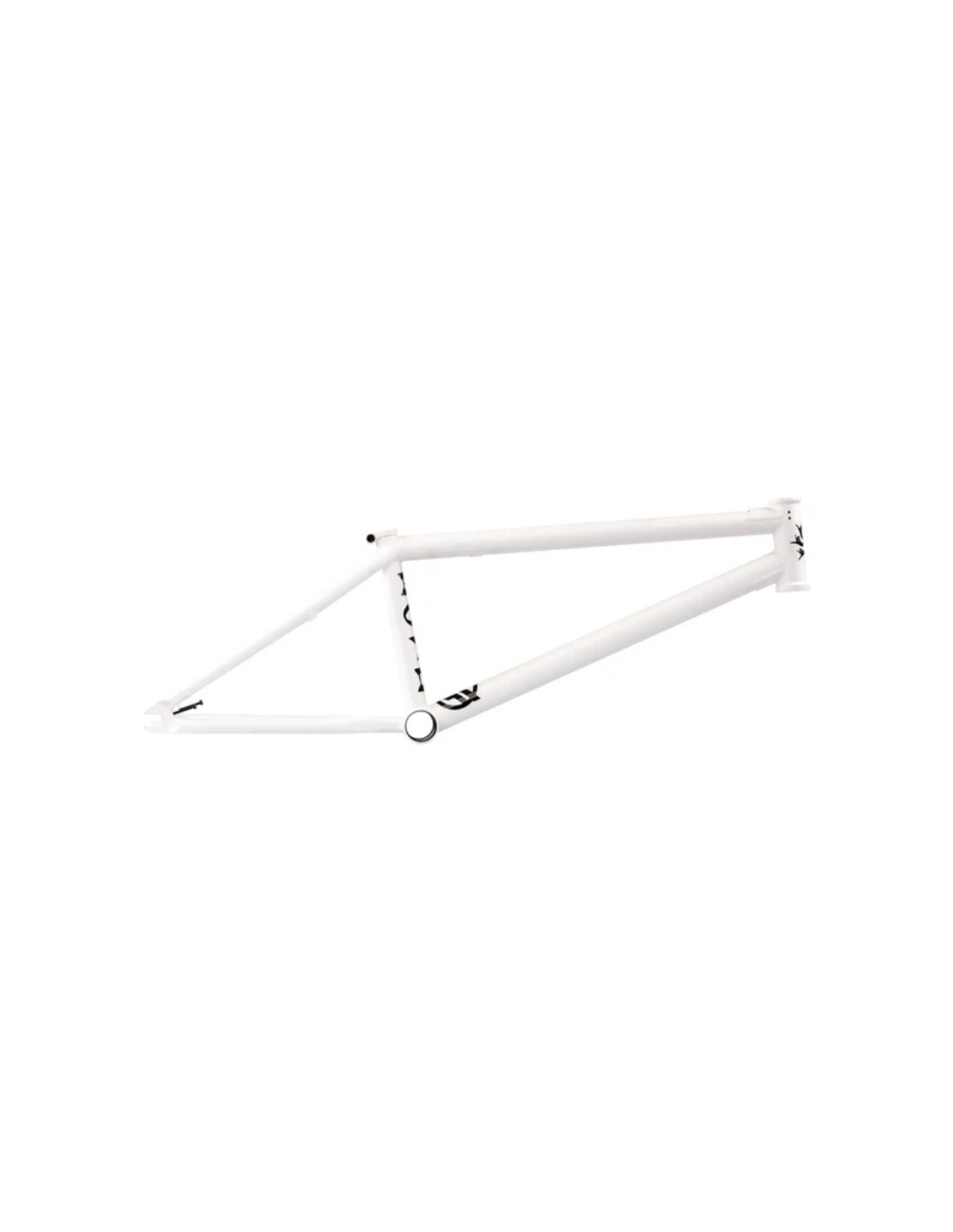

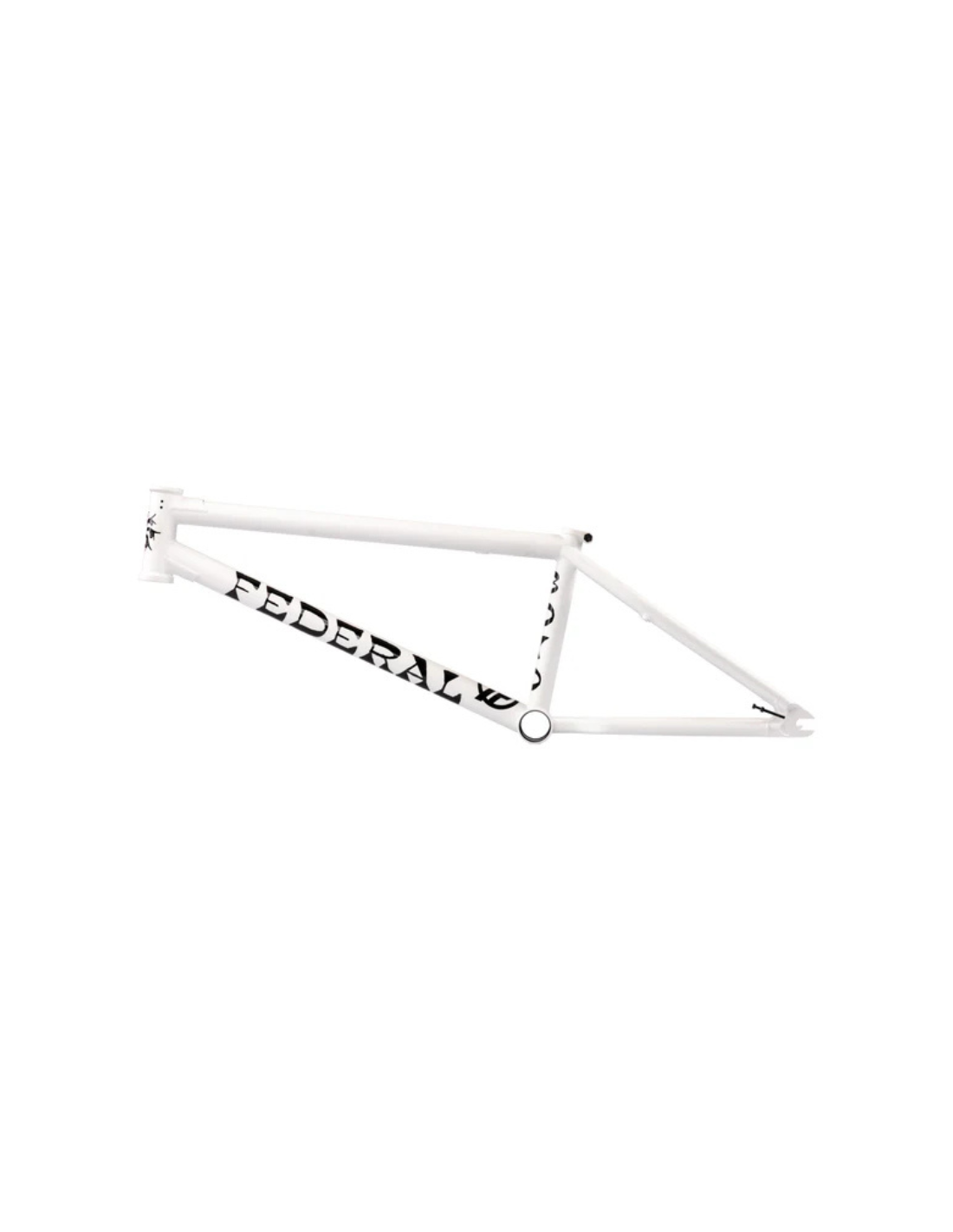

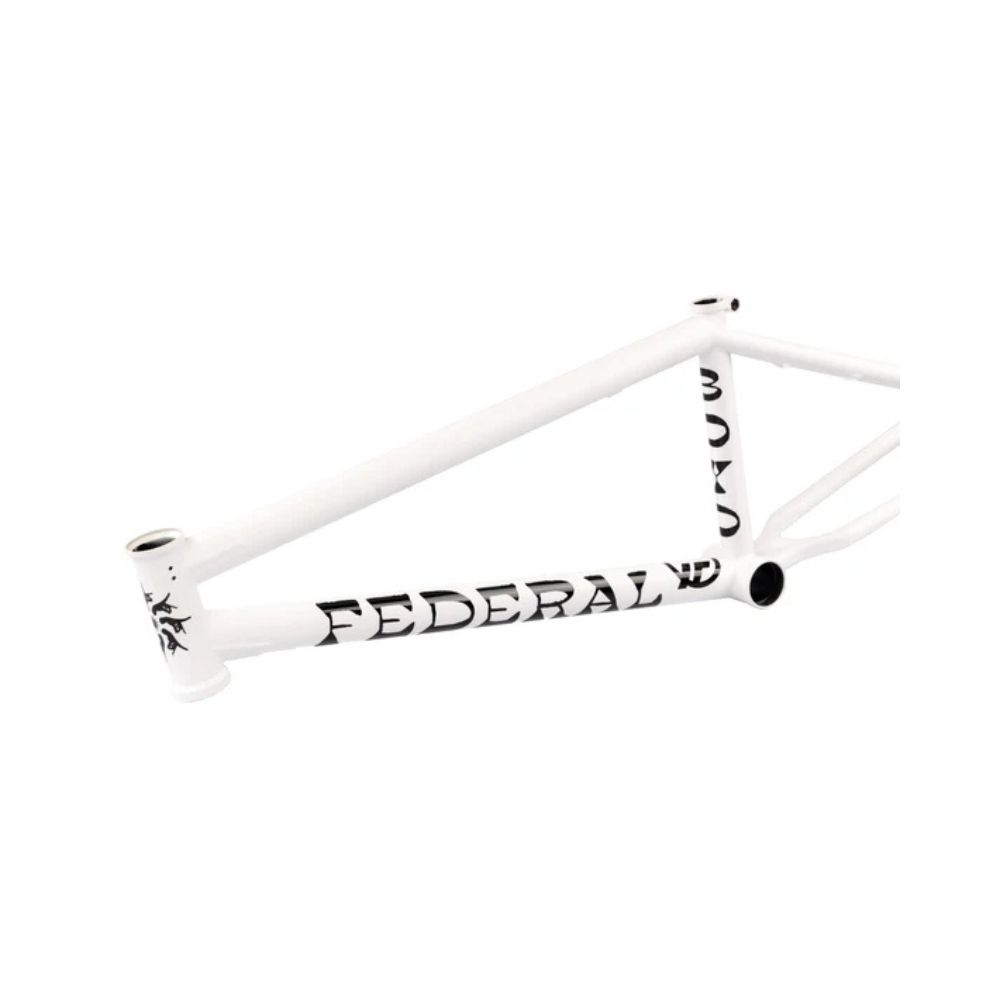

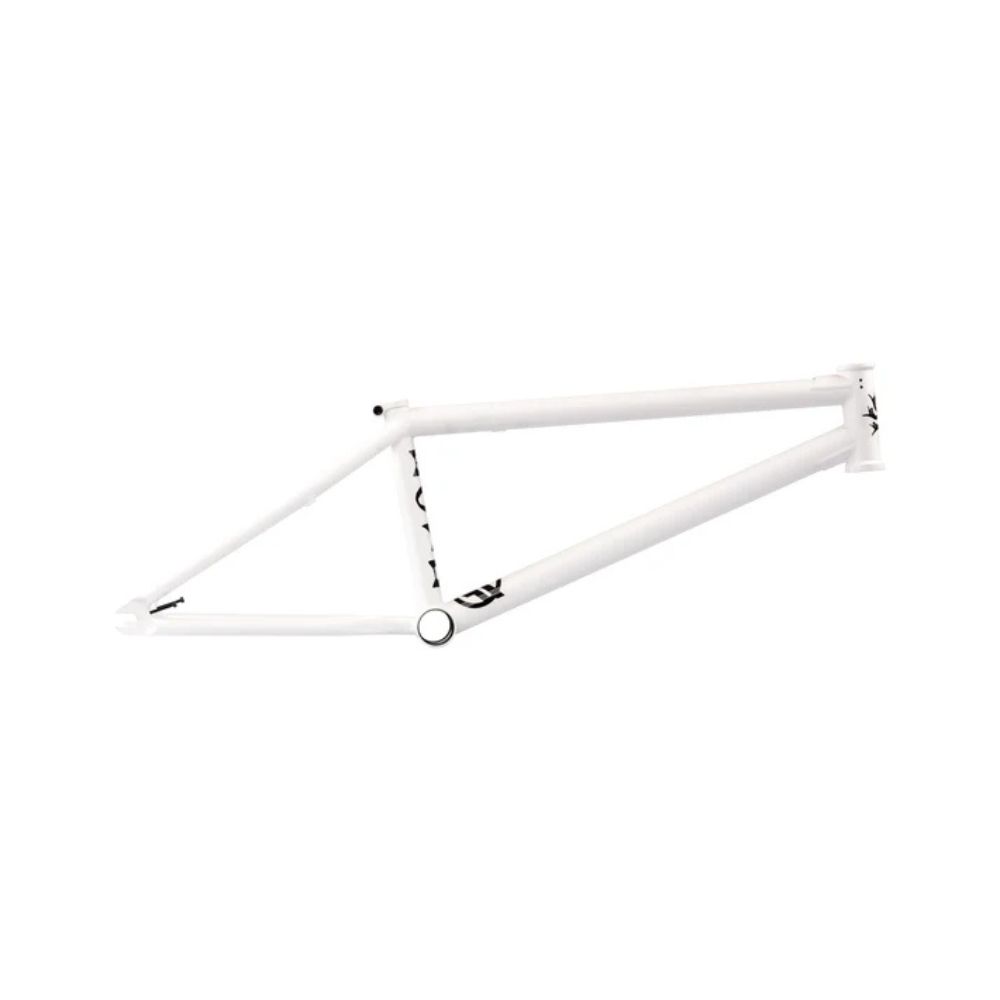

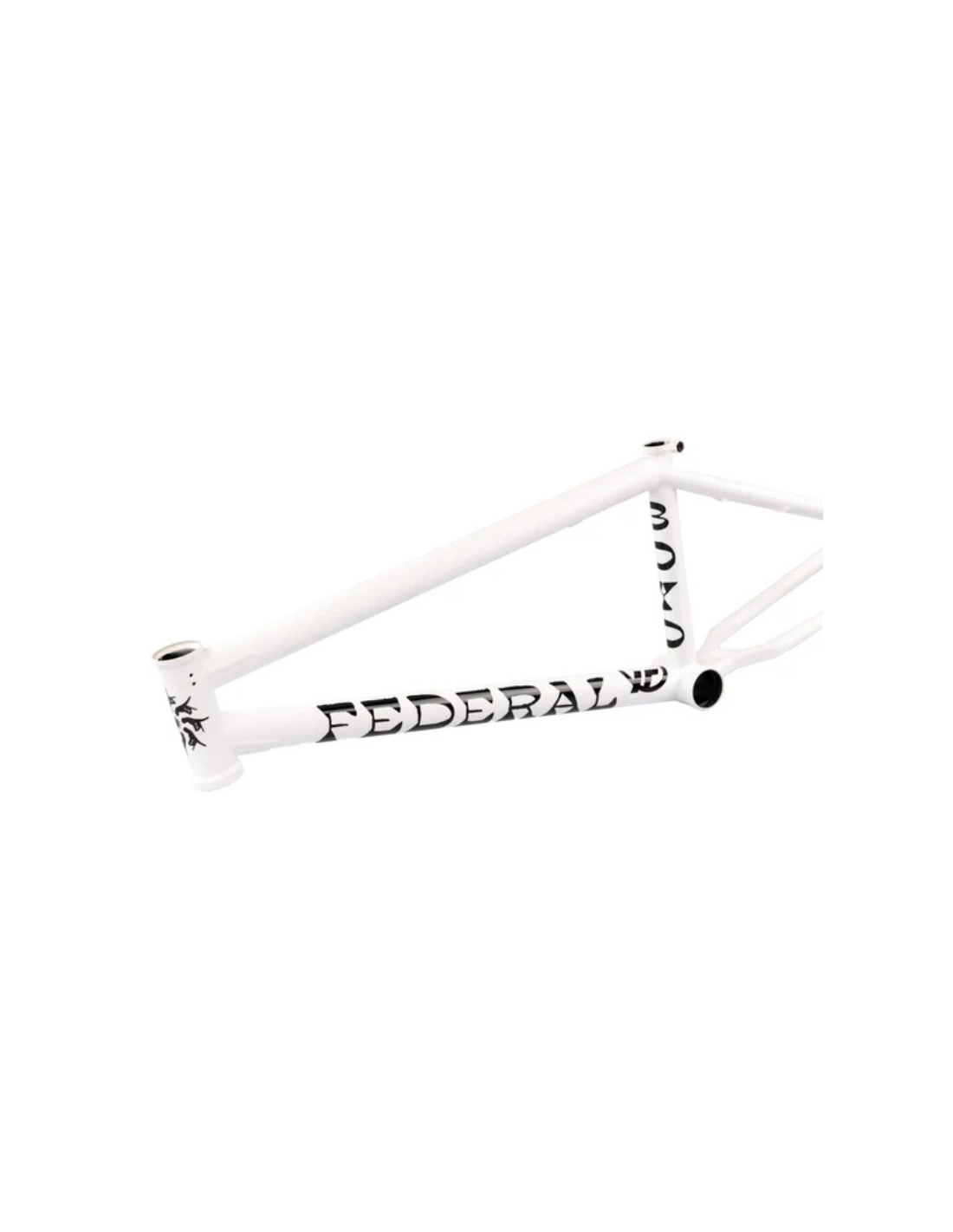

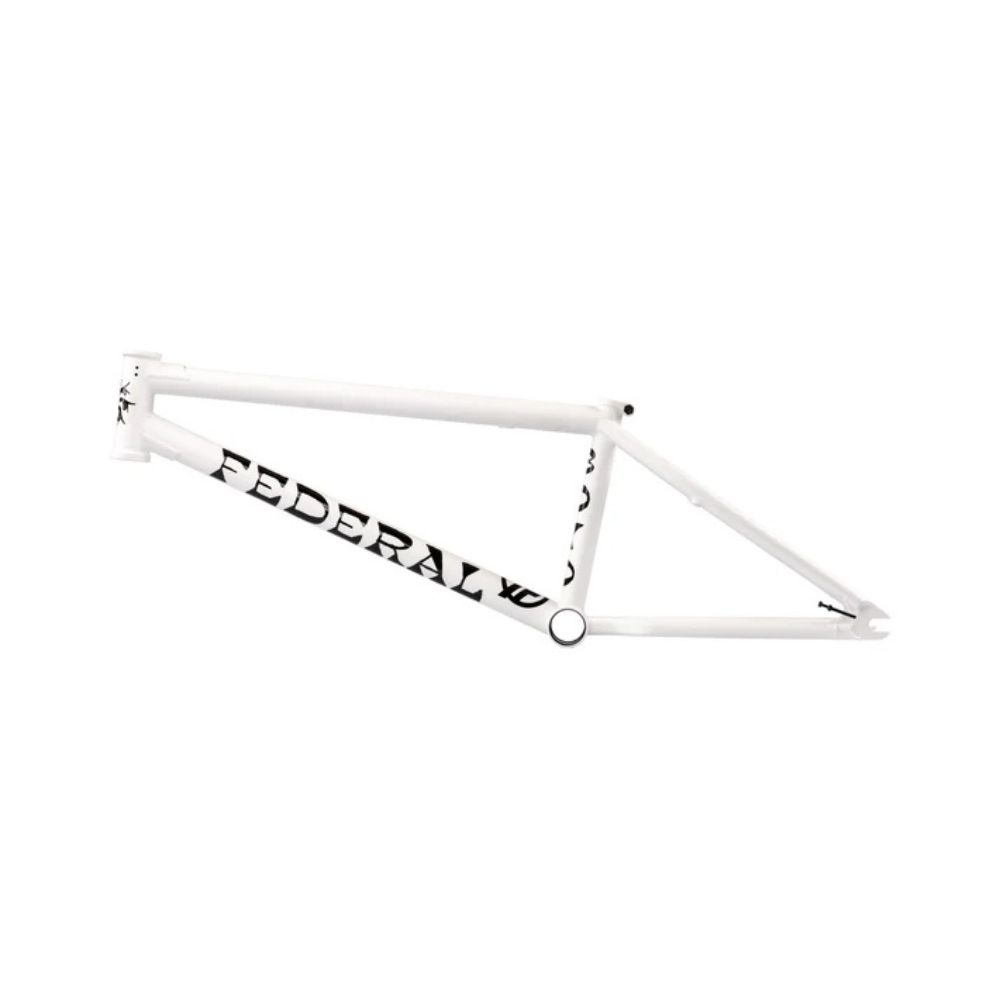

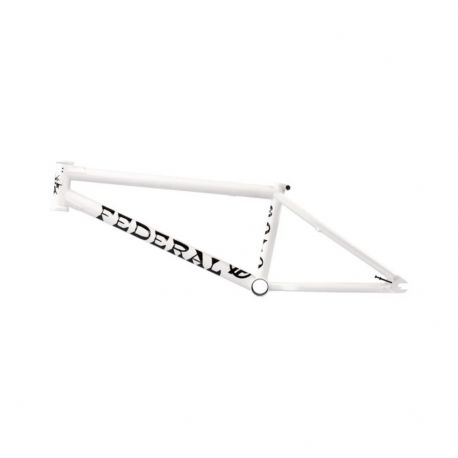

BOYD V2 FRAME

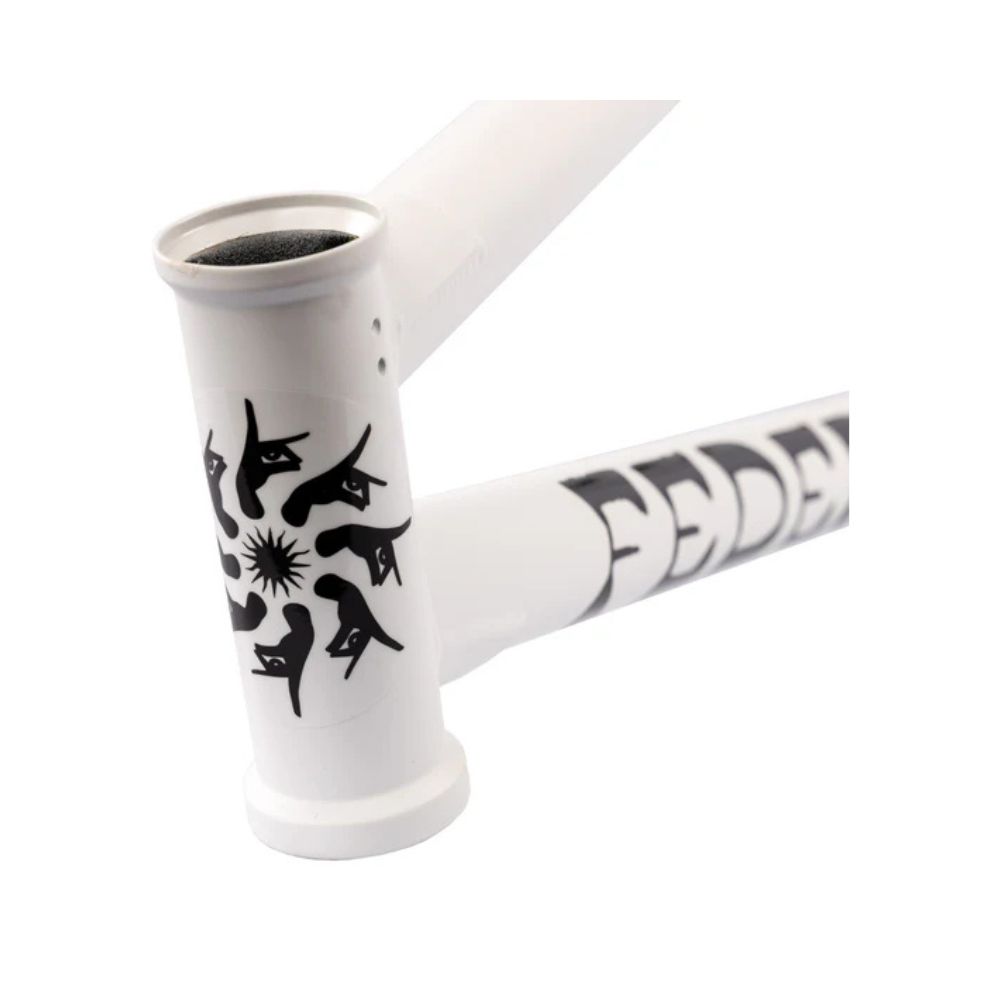

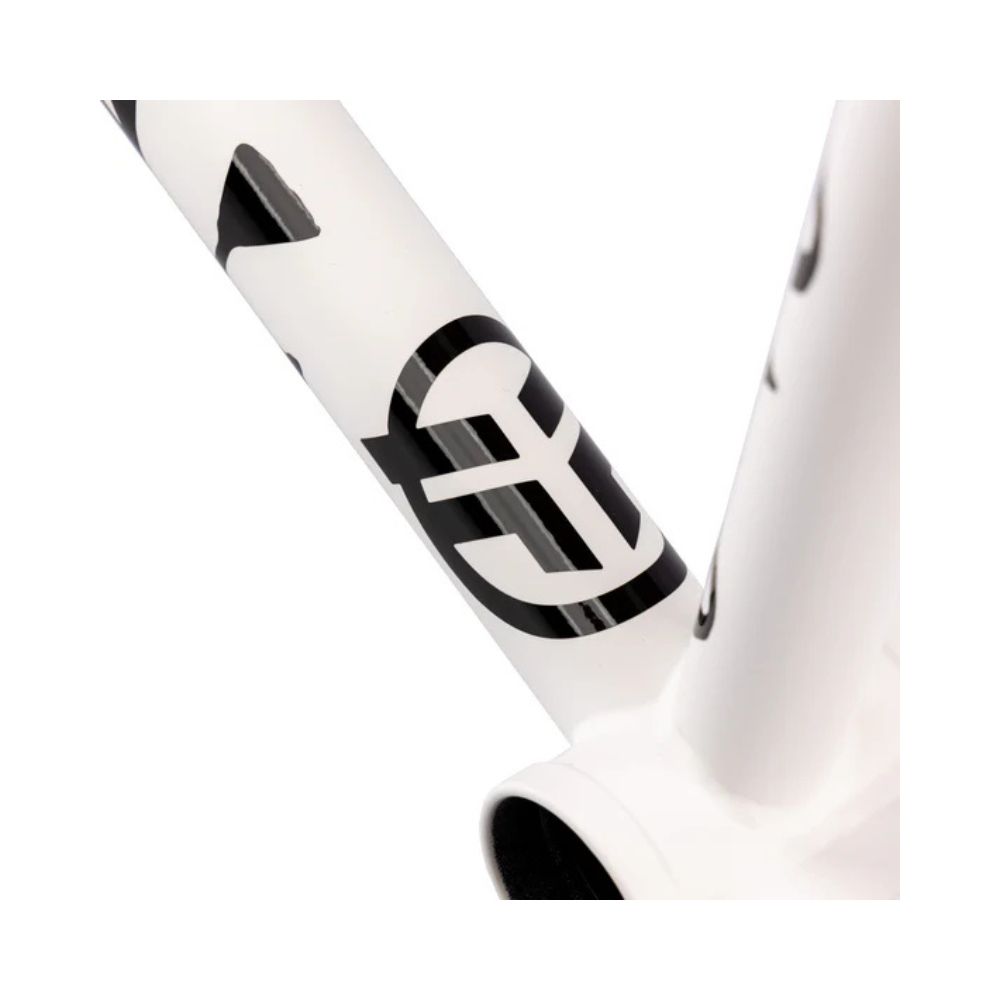

The highly popular signature frame from Boyd Hilder has been updated with brand new graphics and a revised stand over height. It now measures 9.2”, giving the frame a taller overall look while still maintaining Boyd’s approved “ride everything” geometry. The graphics were designed by Rich Forne, under Boyd’s own direction.

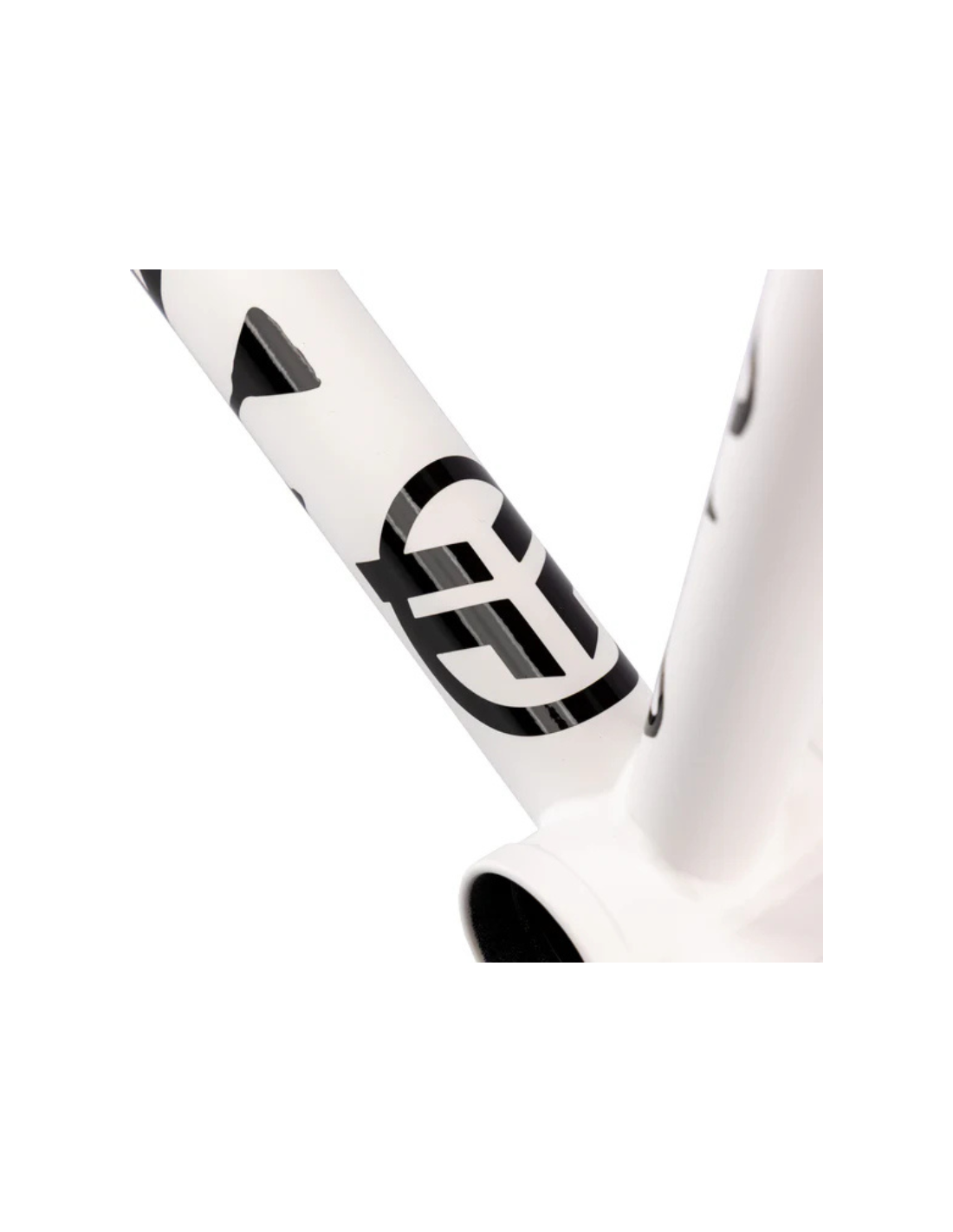

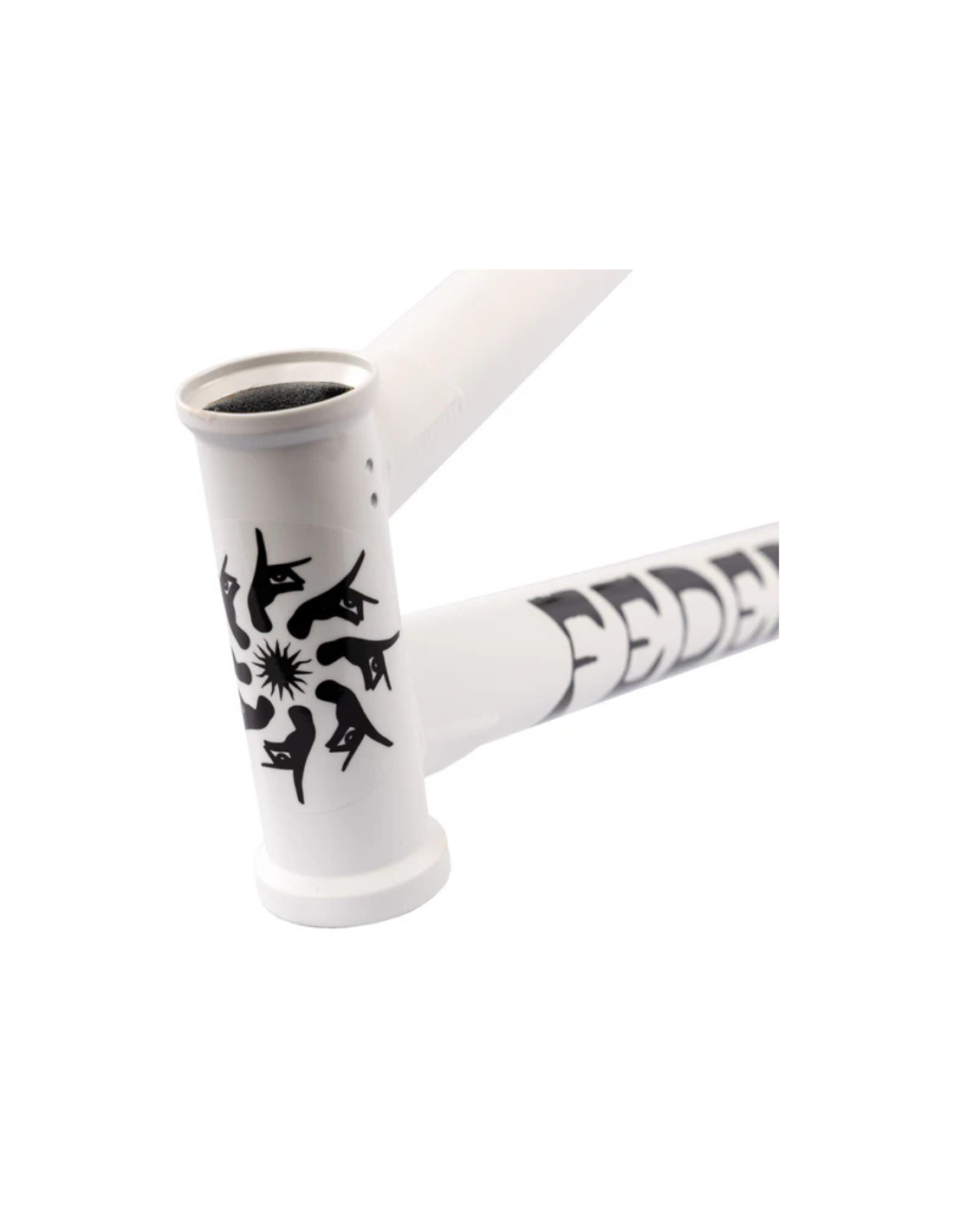

The frame keeps all its previous features, including the ICS2 wishbone, investment cast dropouts with integrated chain tensioners, an investment cast seat clamp, an investment cast seat stay bridge with integrated “F” badge, an oval down tube, top and bottom head tube gussets, tapered seat stays, a stamped down tube gusset, as well as removable brake mounts and gyro tabs.
SPECIFICATIONS
4130 Chromoly frame

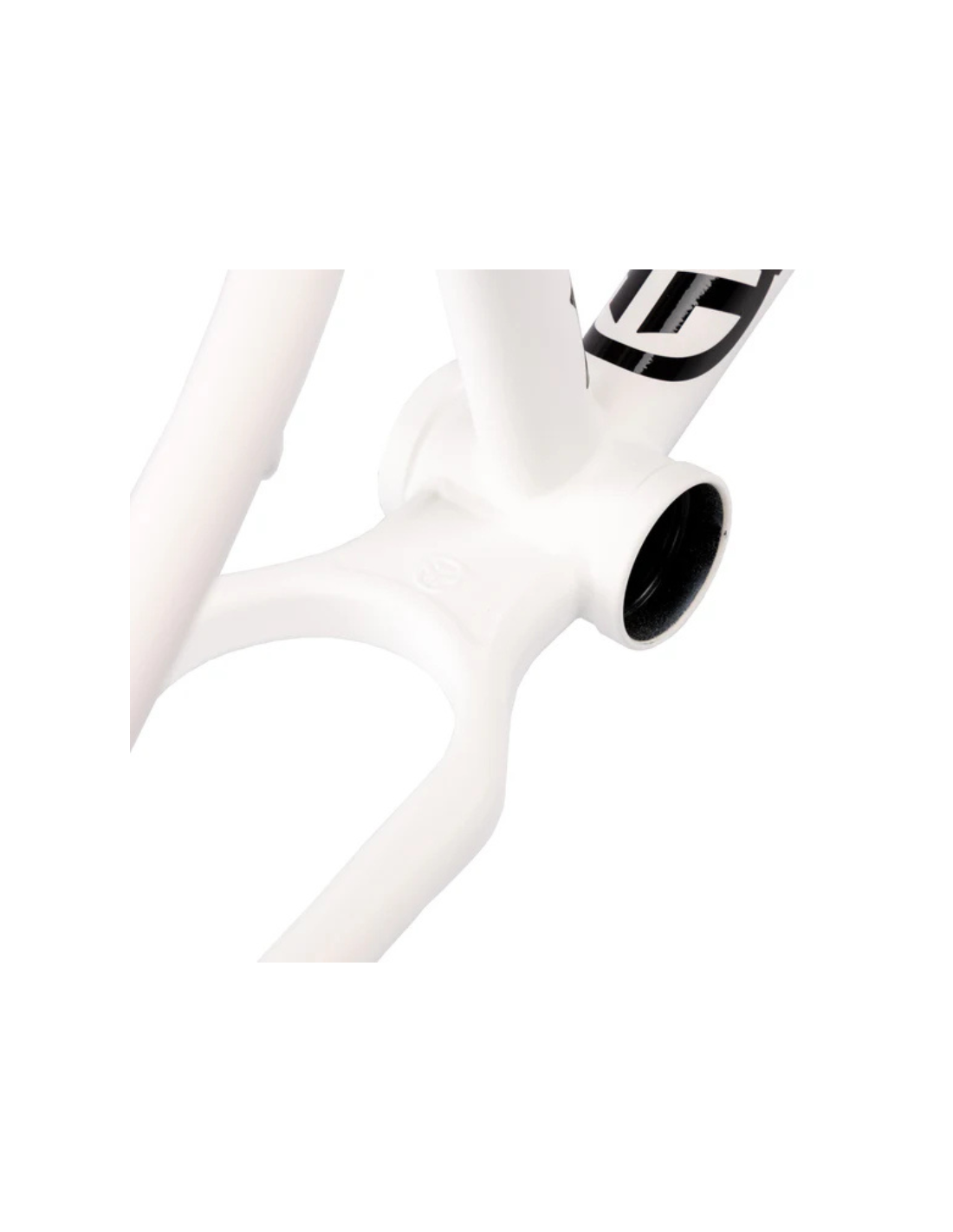

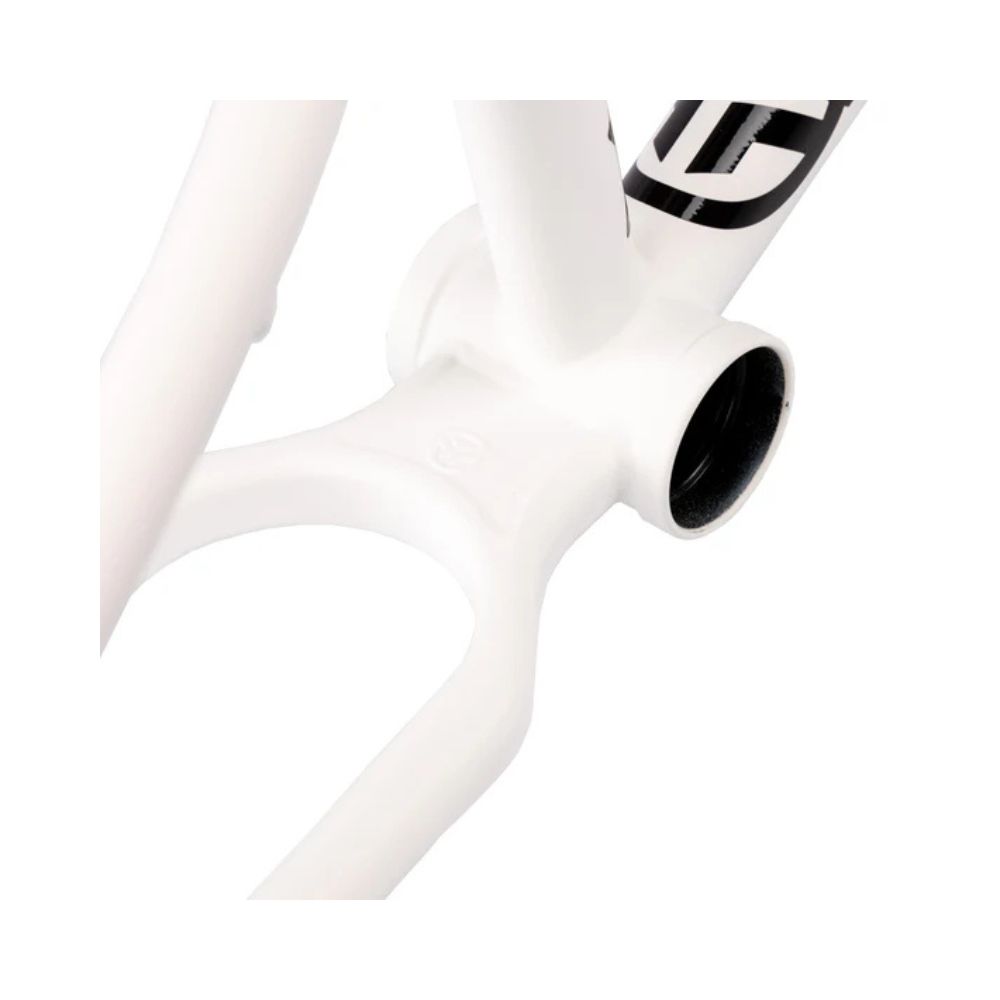

ICS2 chain stays and wishbone: super clean look

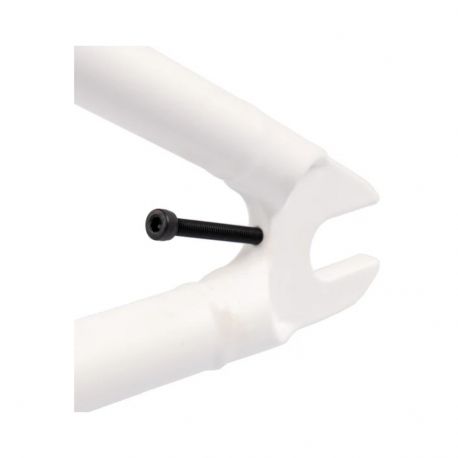

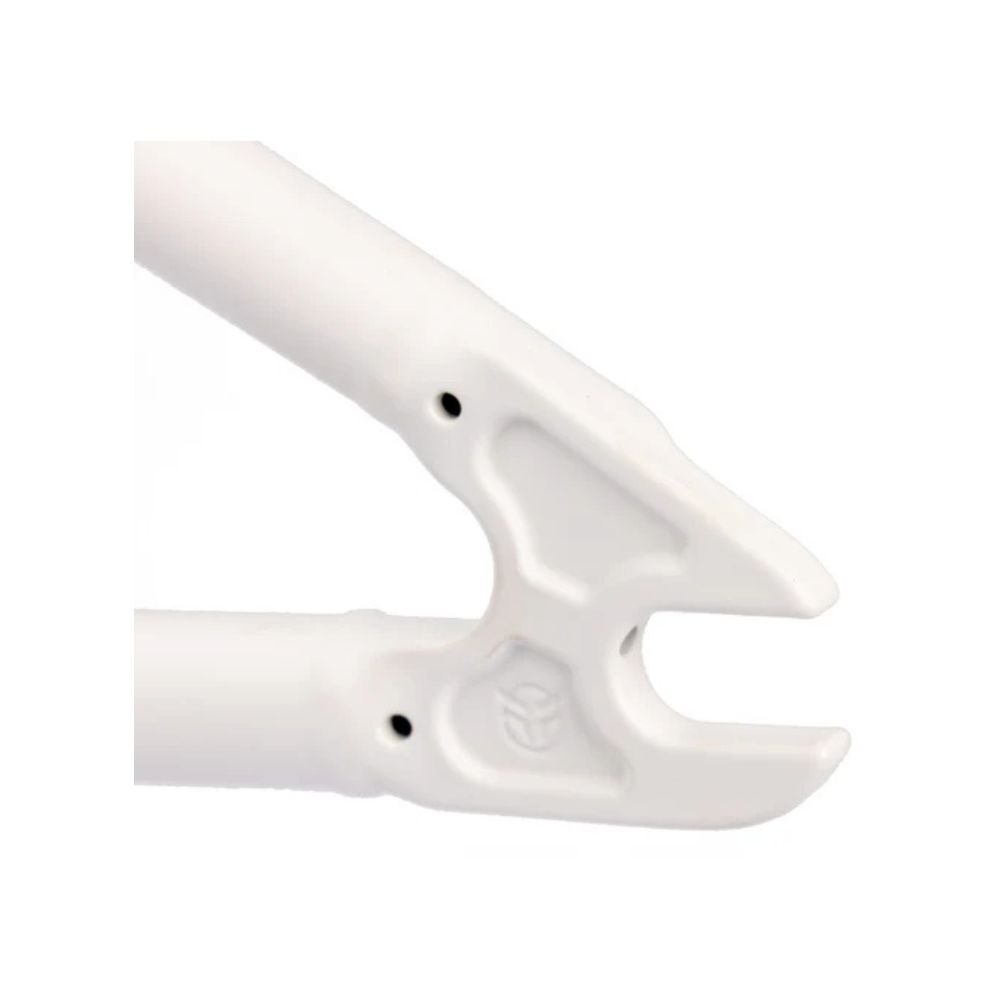

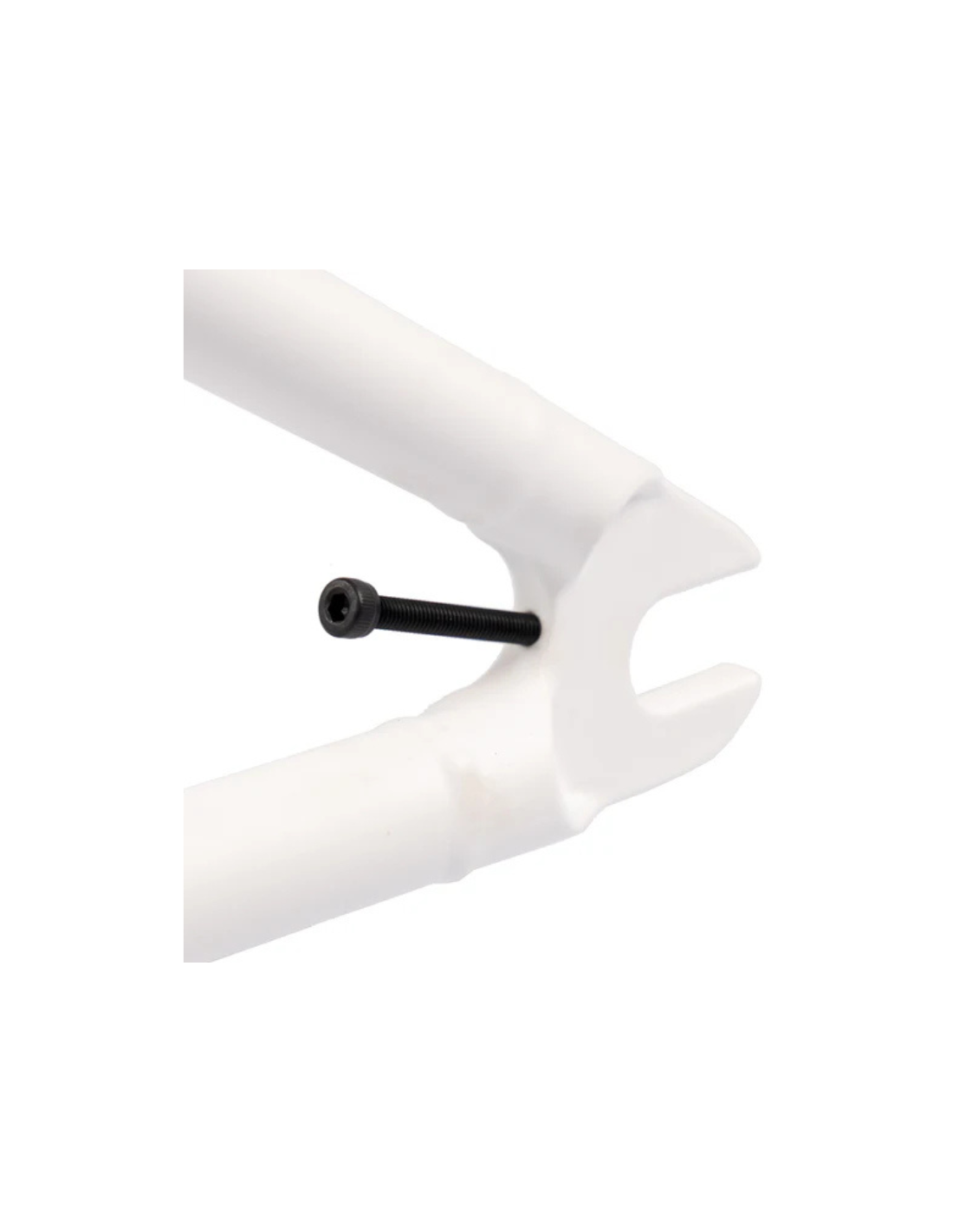

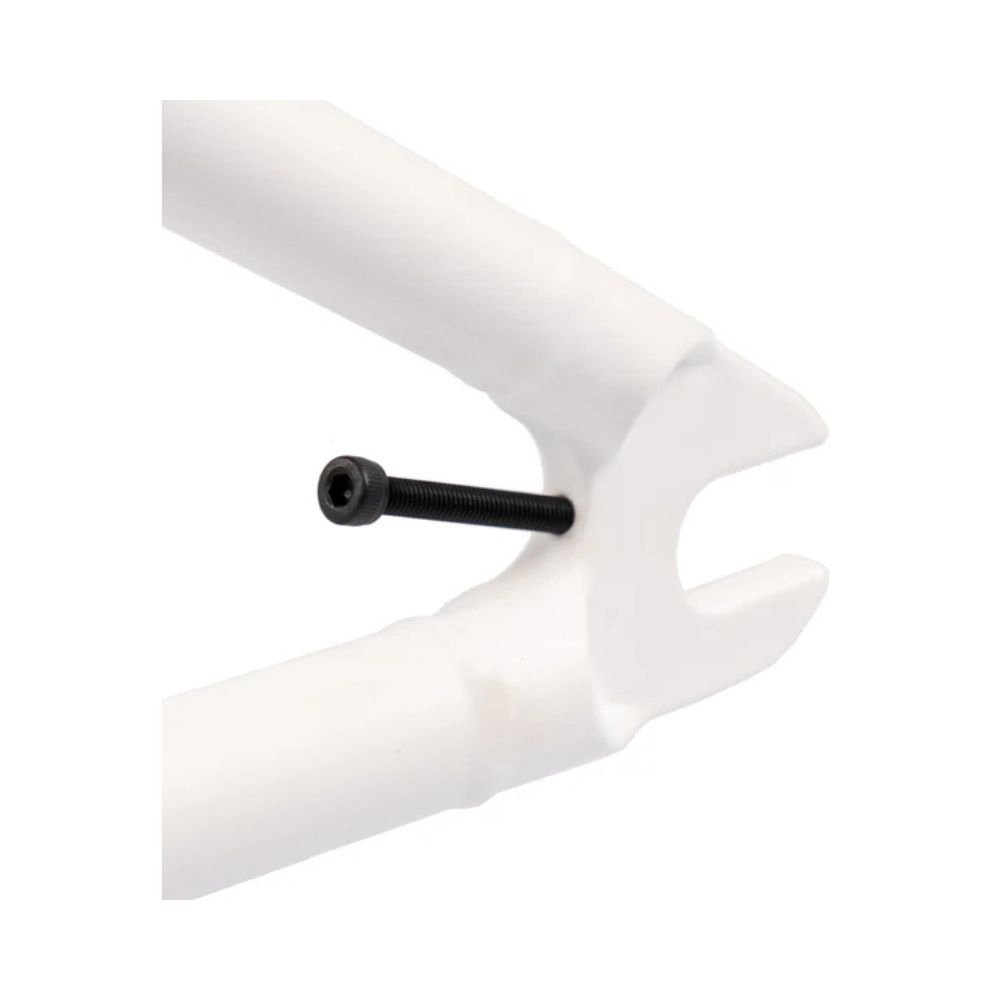

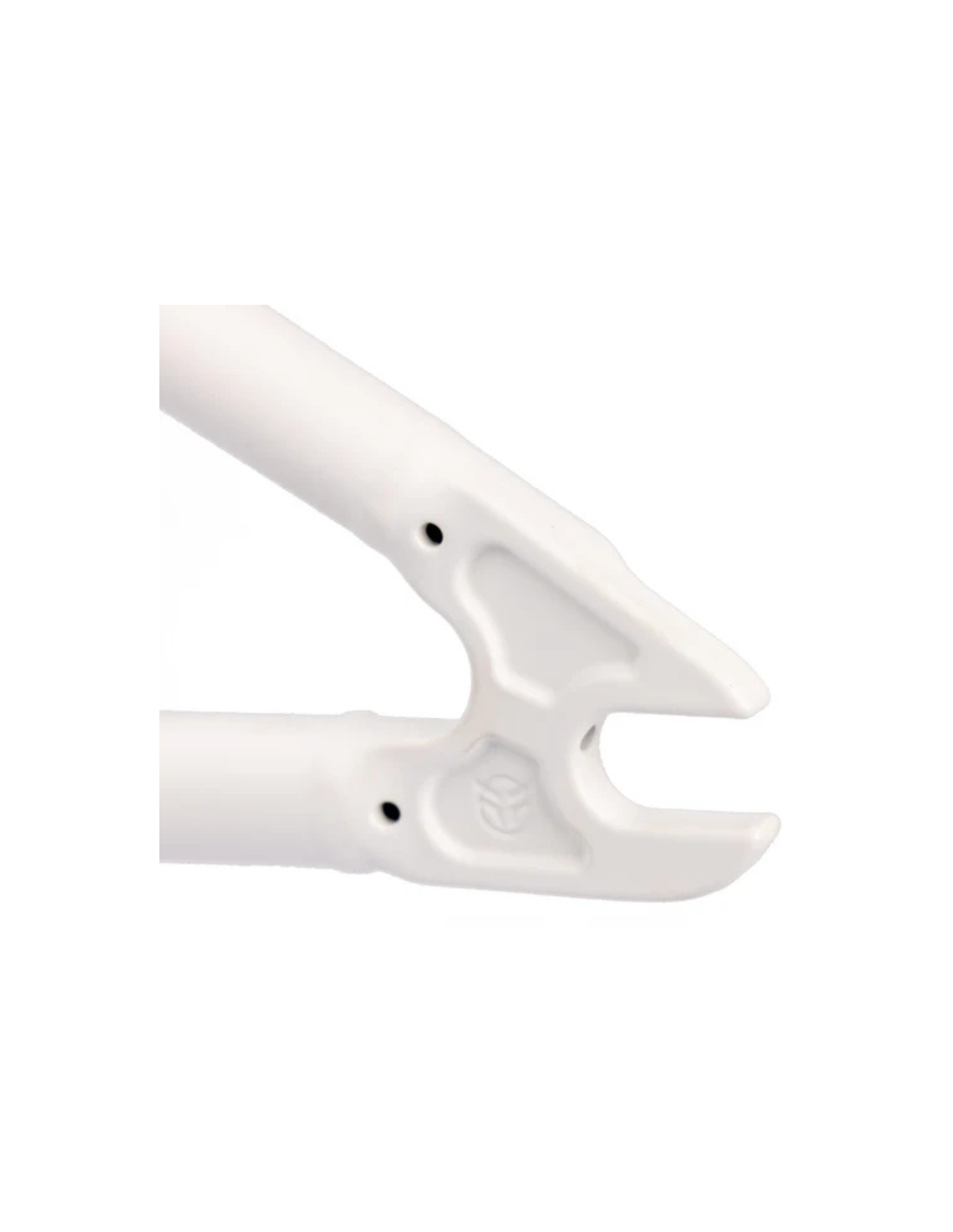

Investment cast dropouts with integrated chain tensioners

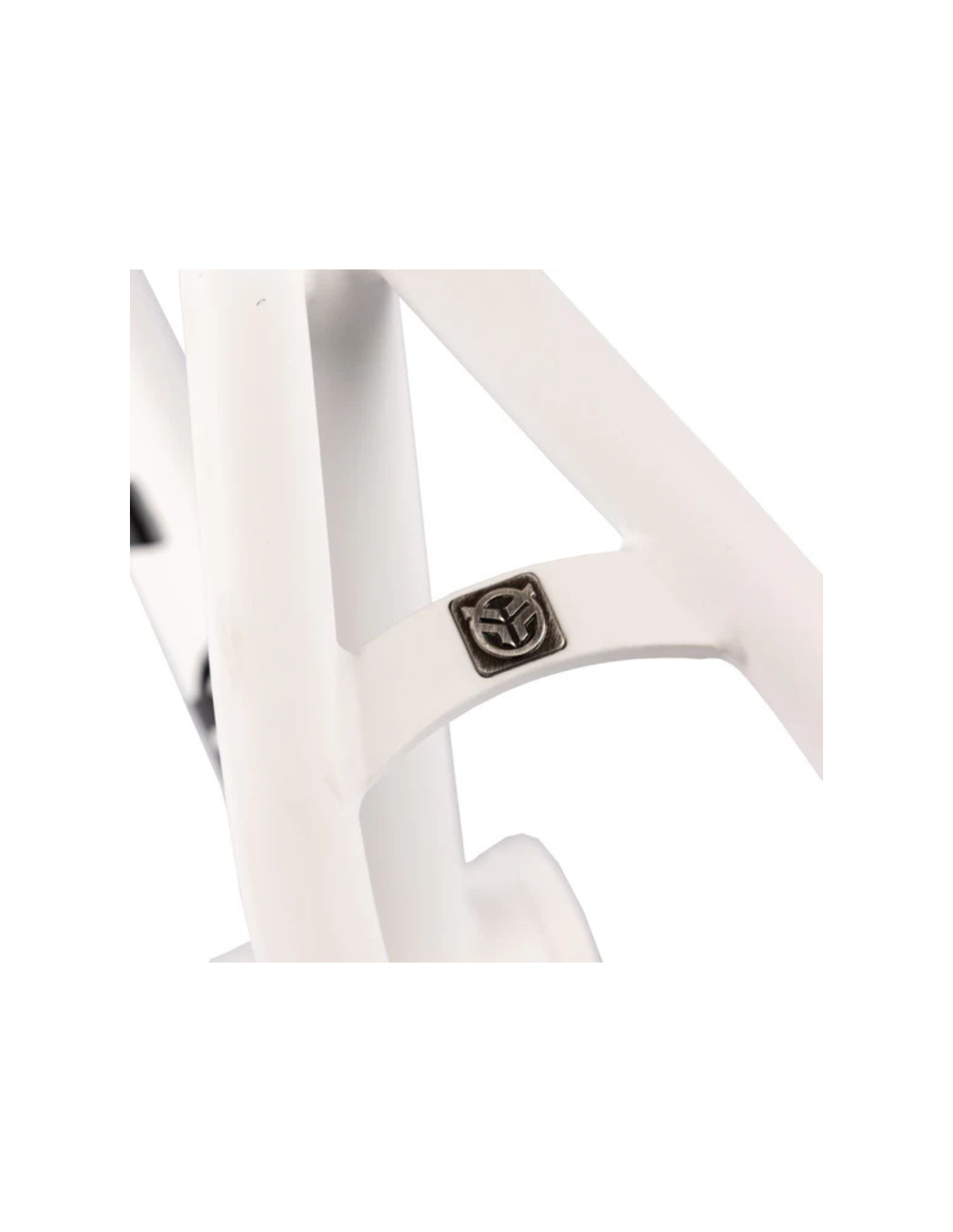

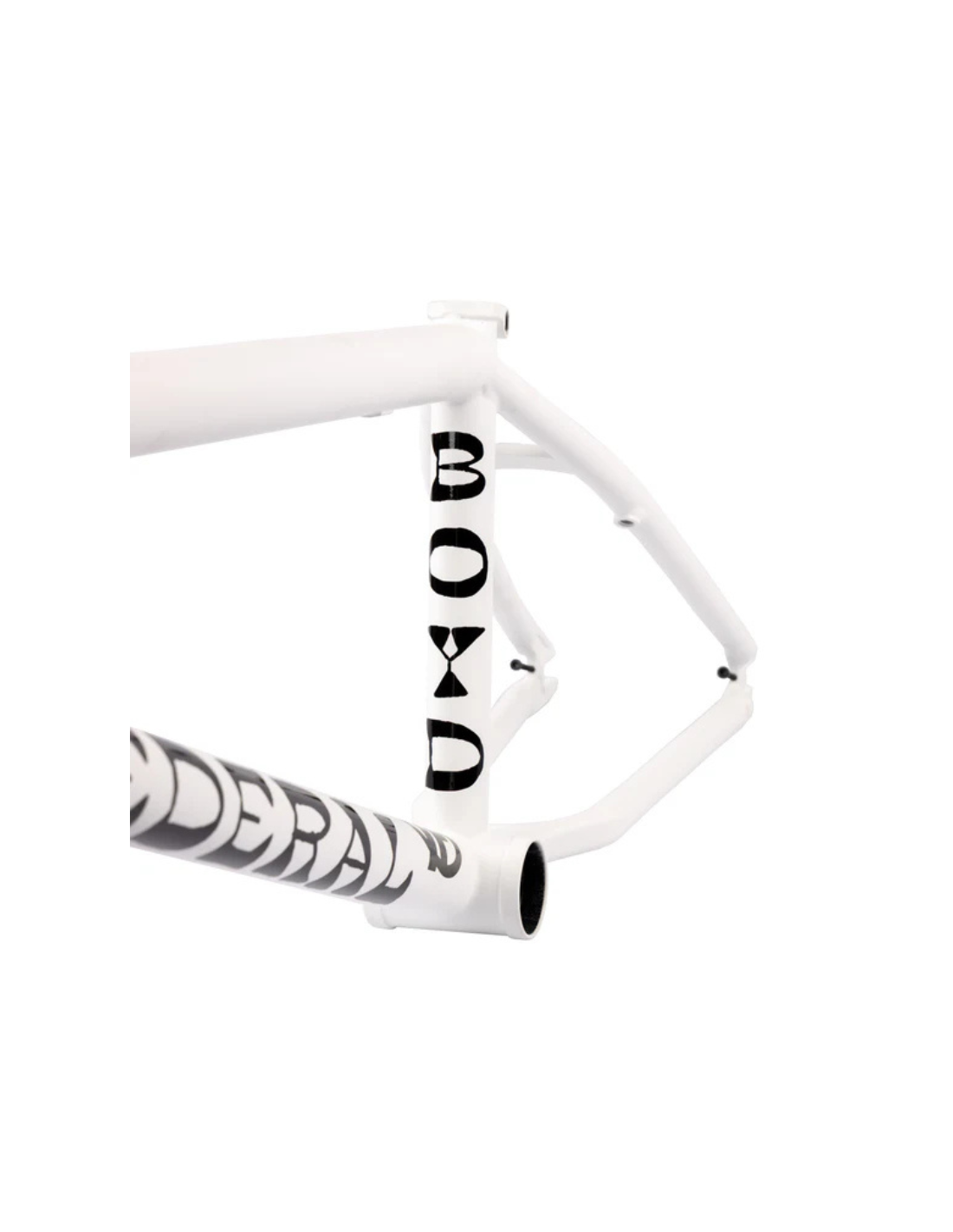

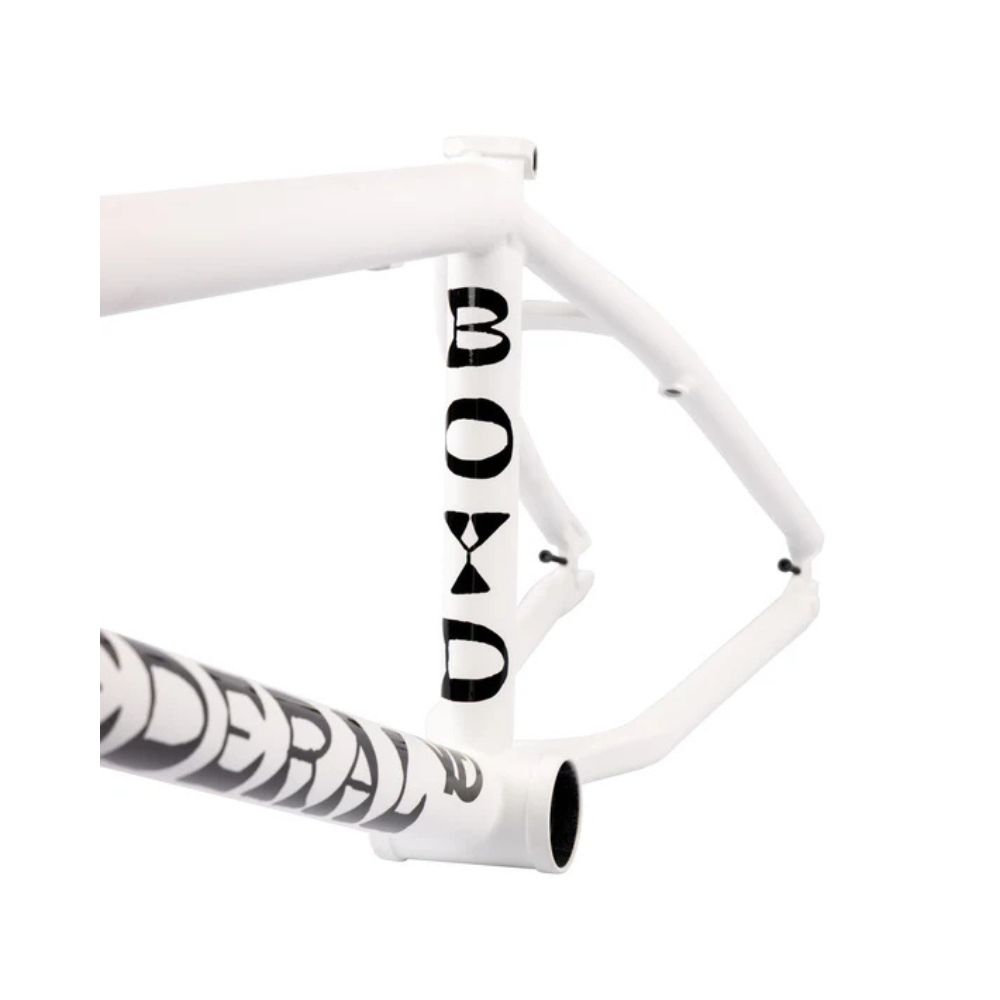

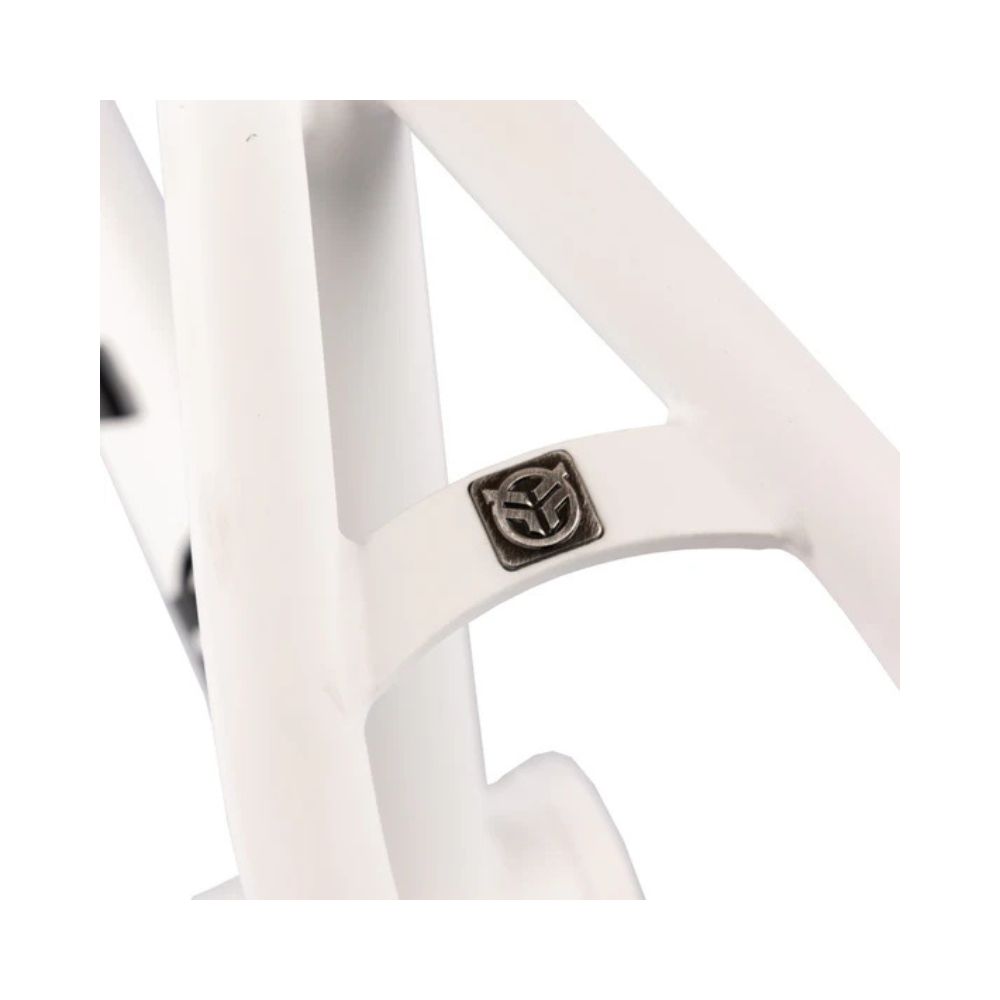

Investment cast stay bridge with built-in Federal badge
Graphics designed by Rich Forne

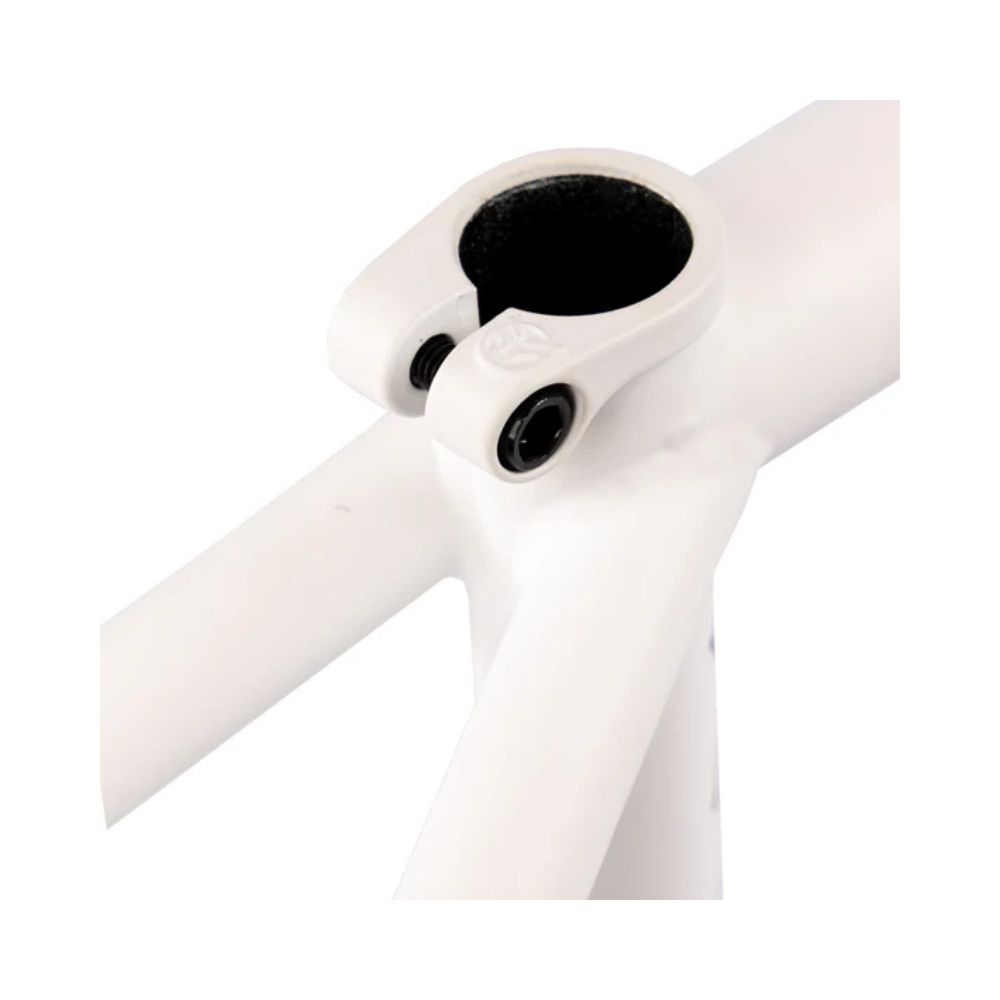

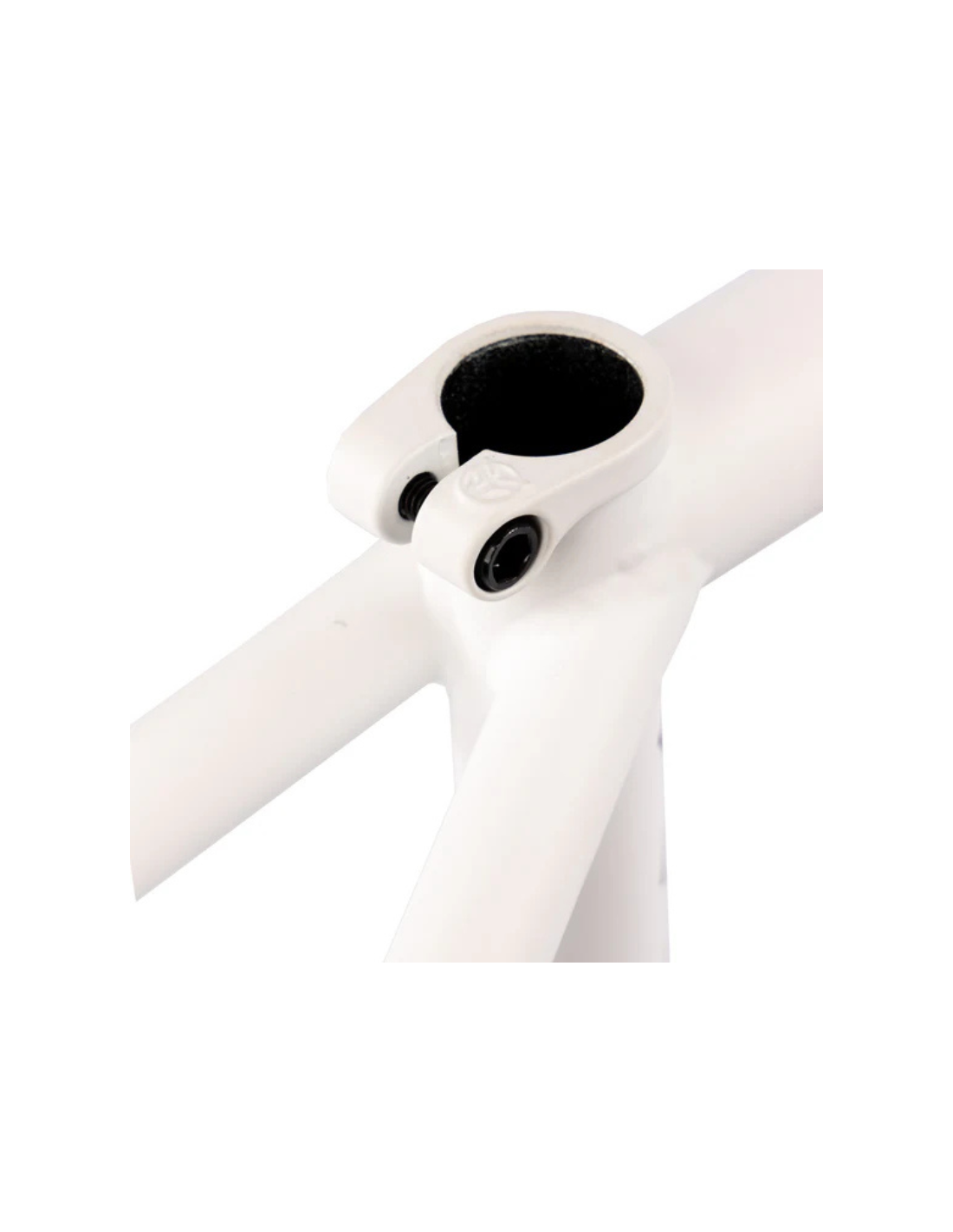

Investment cast seat clamp
Mid BB bottom bracket
Removable brake mounts
GEOMETRY
Top Tube : 20.2”, 20.7”, 21”, 21.2” or 21.5”
Stand Over : 9.2”
Head Tube : 75.2º
Seat Tube : 71º
Chain Stays : 13.4” Slammed
BB Height : 11.7”
