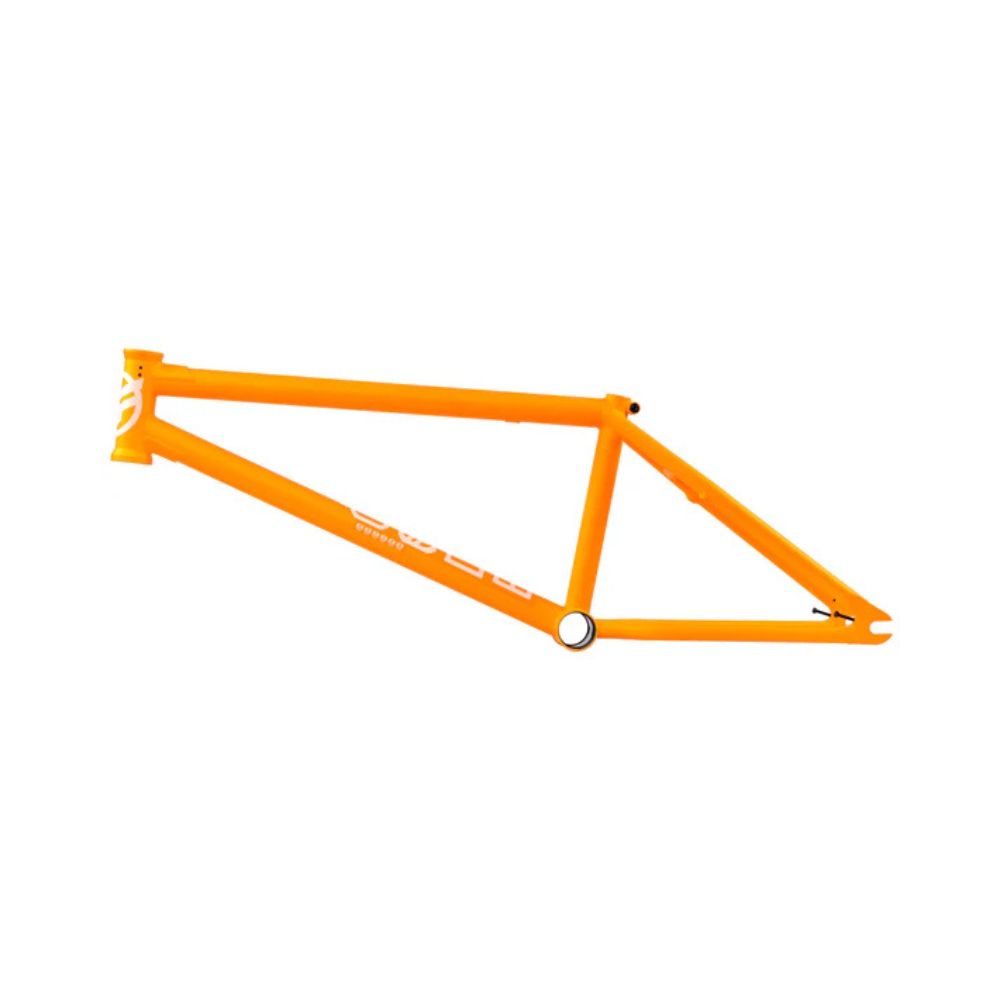

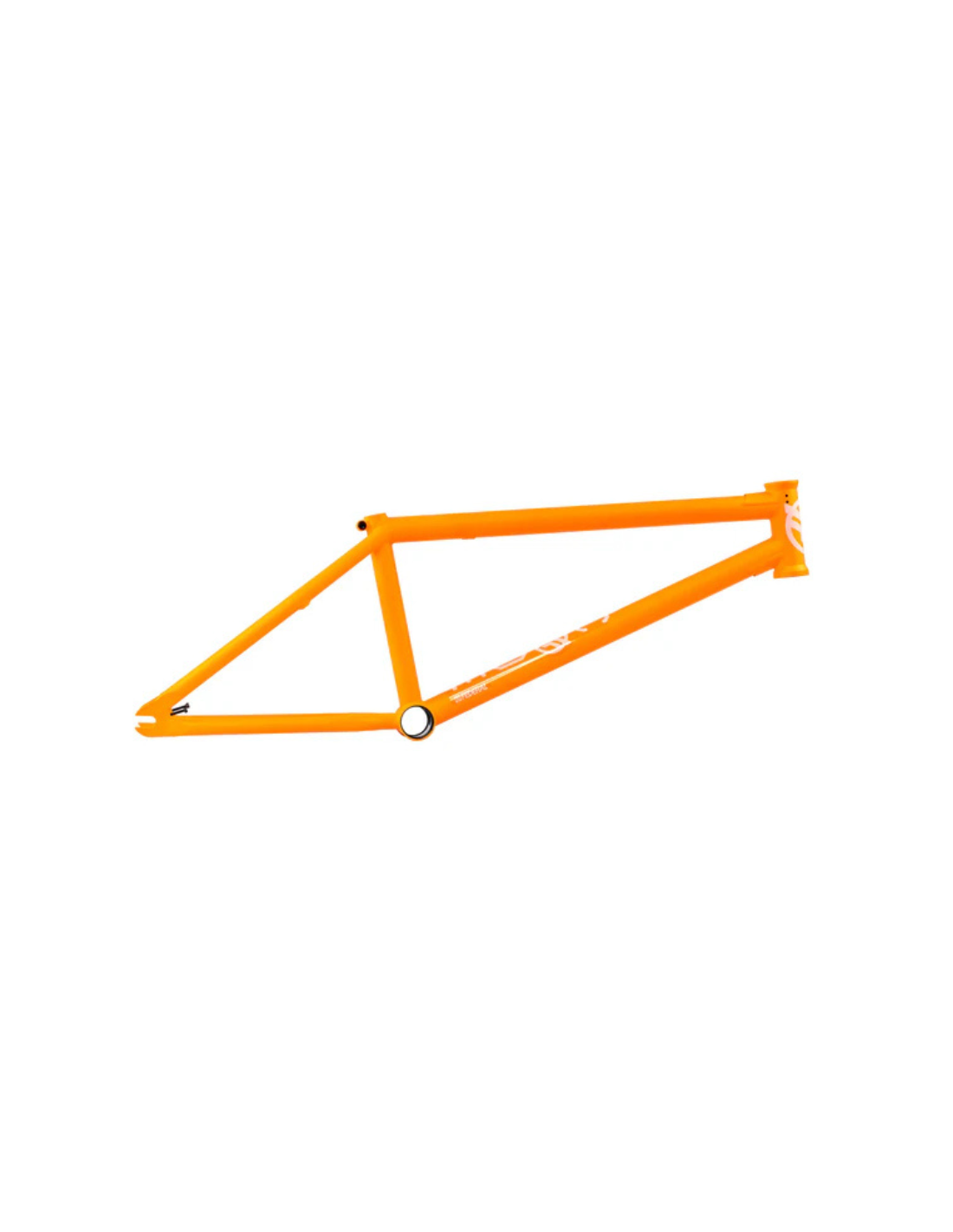

Federal Code Frame - Matt Orange

FEDERAL FRAME CODE

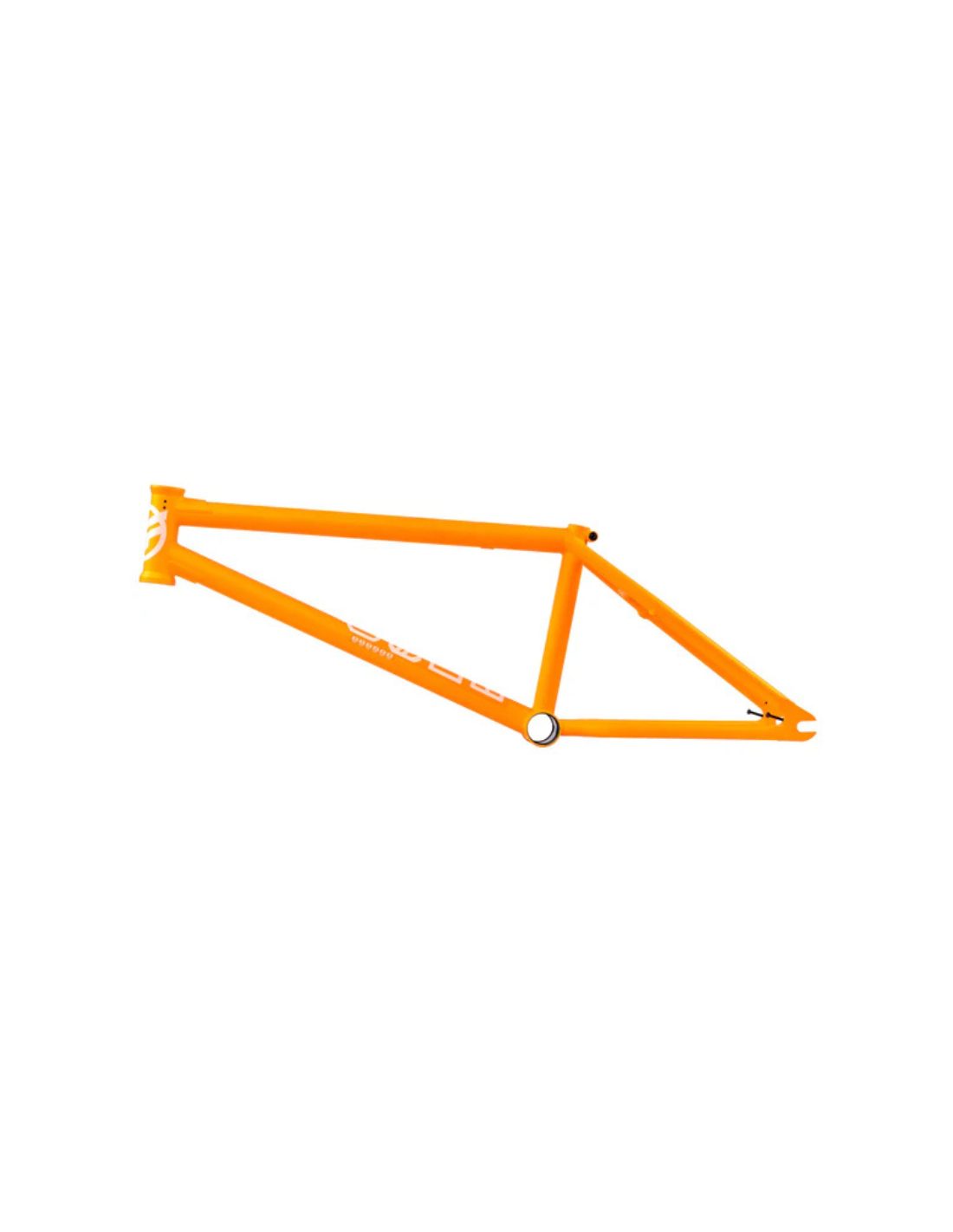

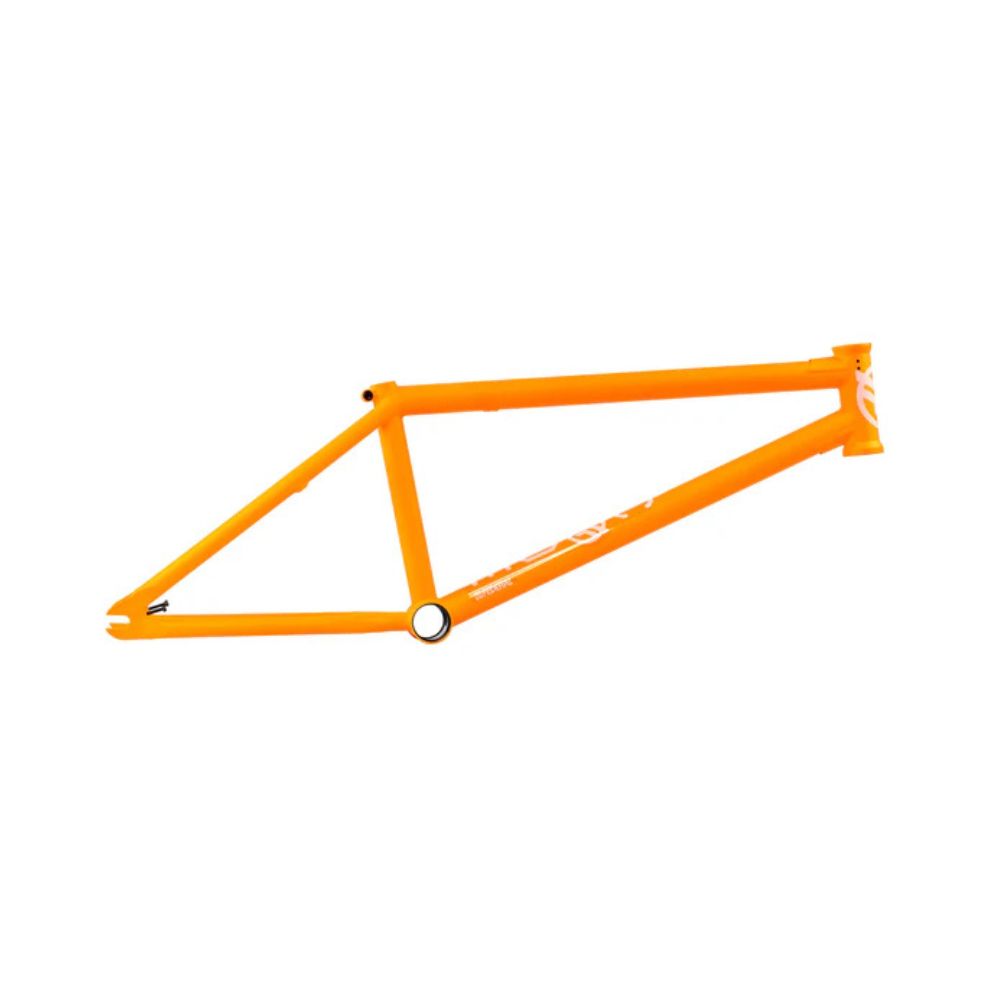

The new Code frame was designed to meet the current street riding requirements. With a stand over of 9.7”, it gives the impression of a bigger frame while improving stability and bike control. Its 75.5° head angle combined with very short 13” rear stays provides great liveliness and excellent responsiveness.

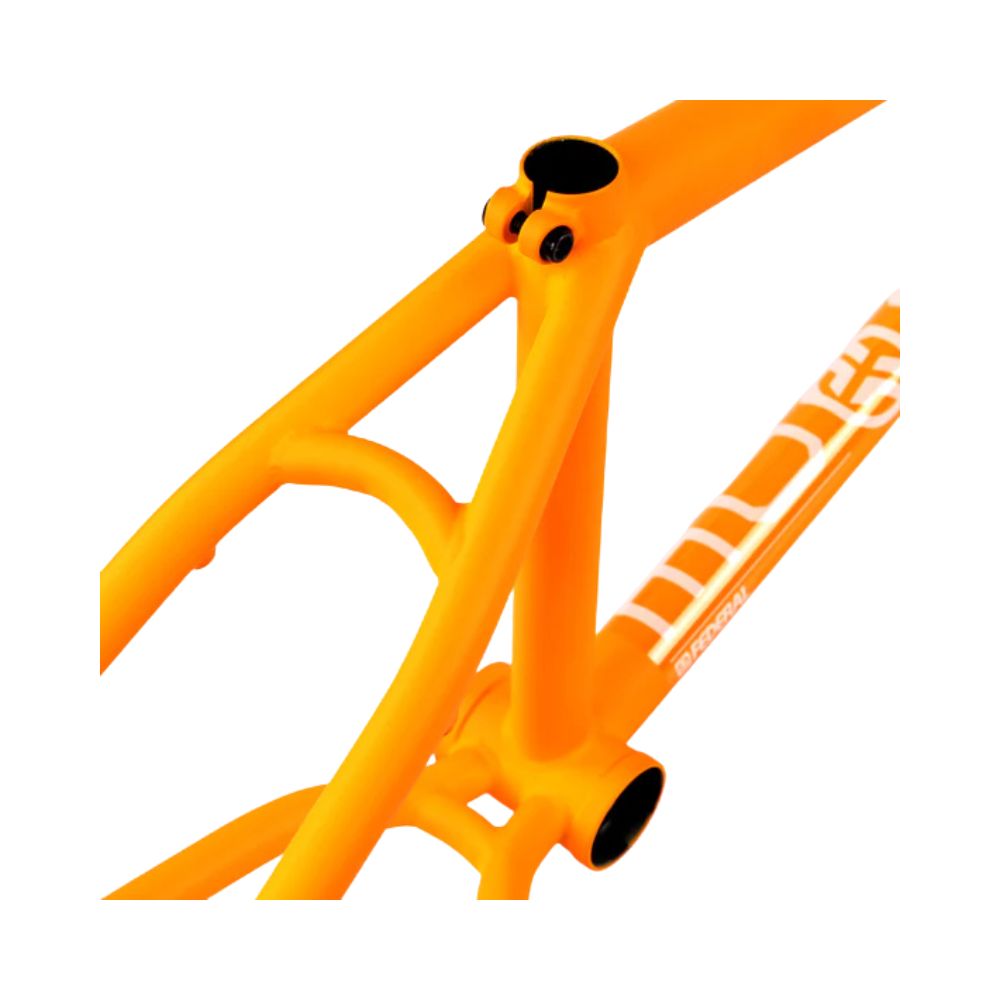

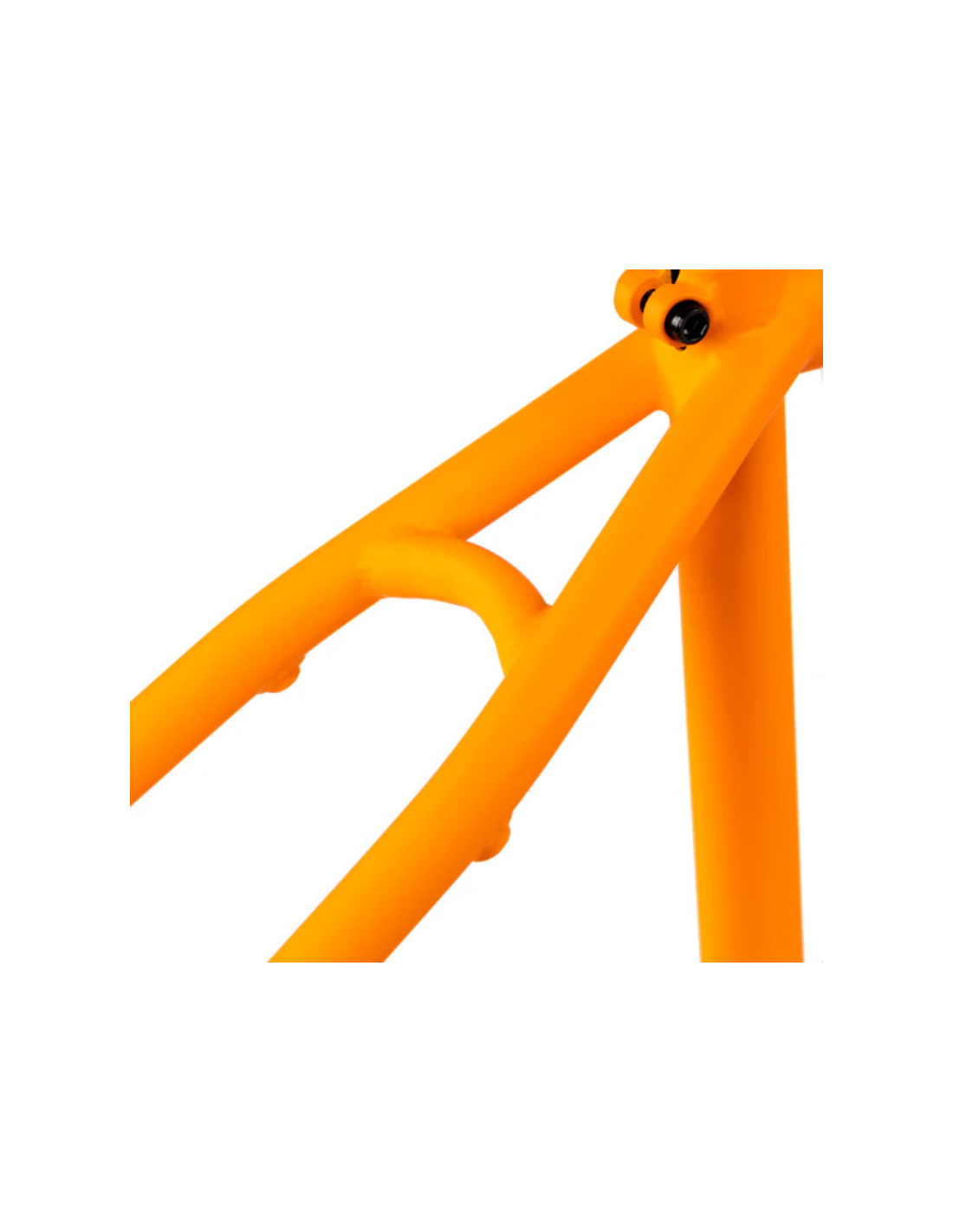

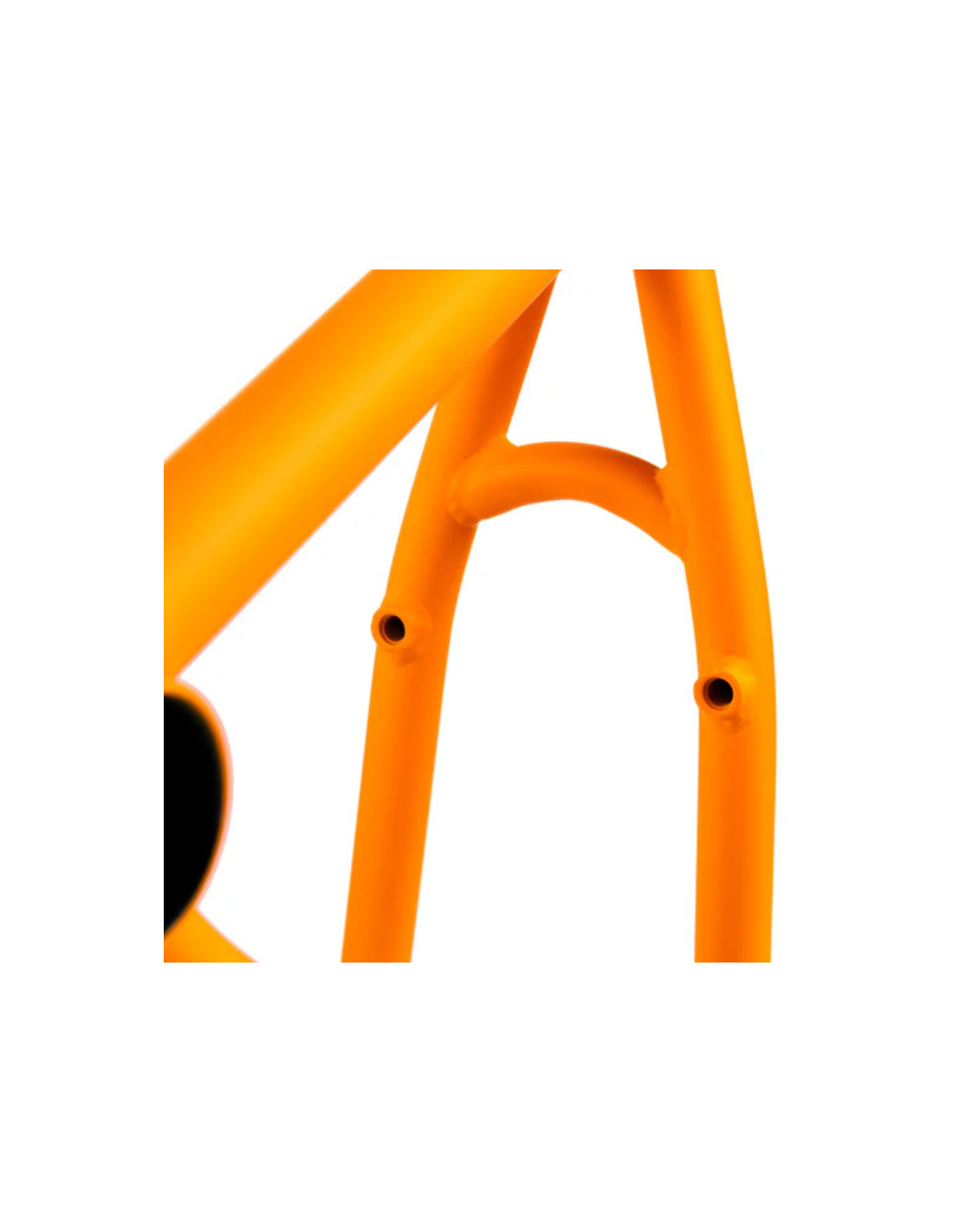

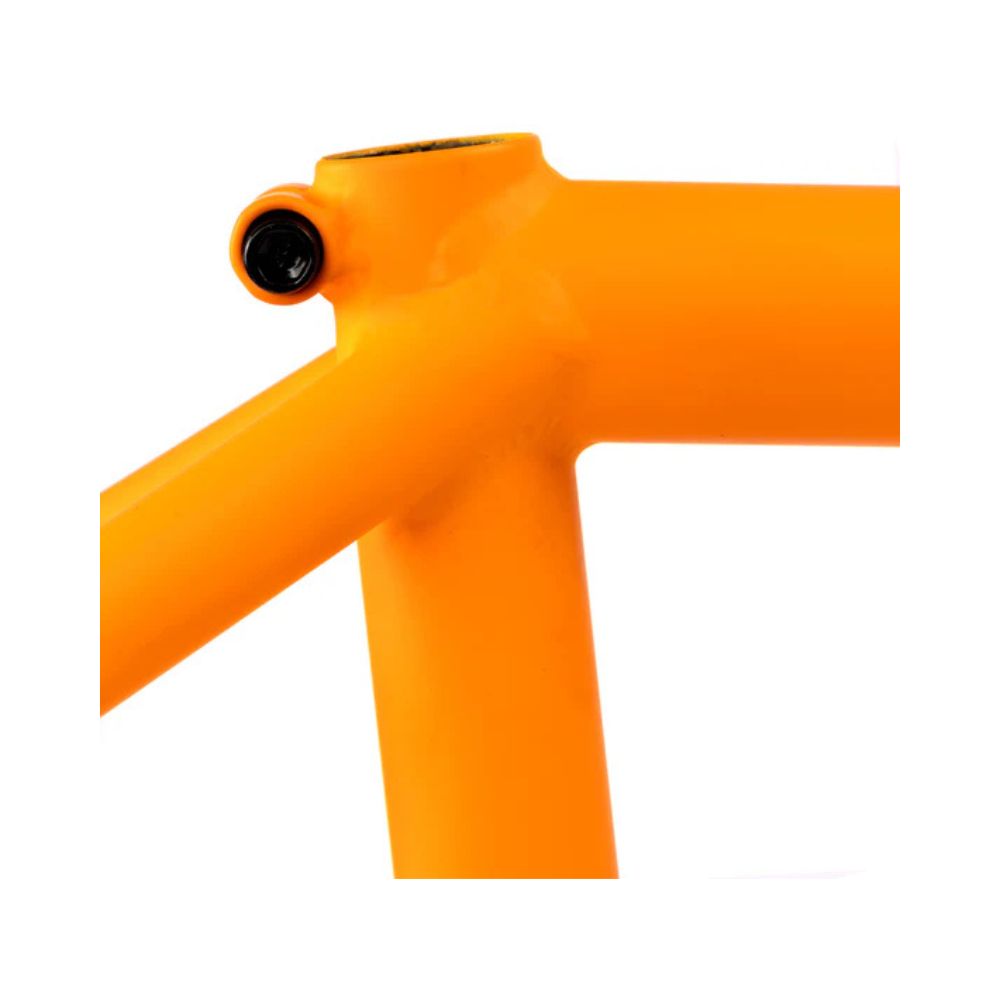

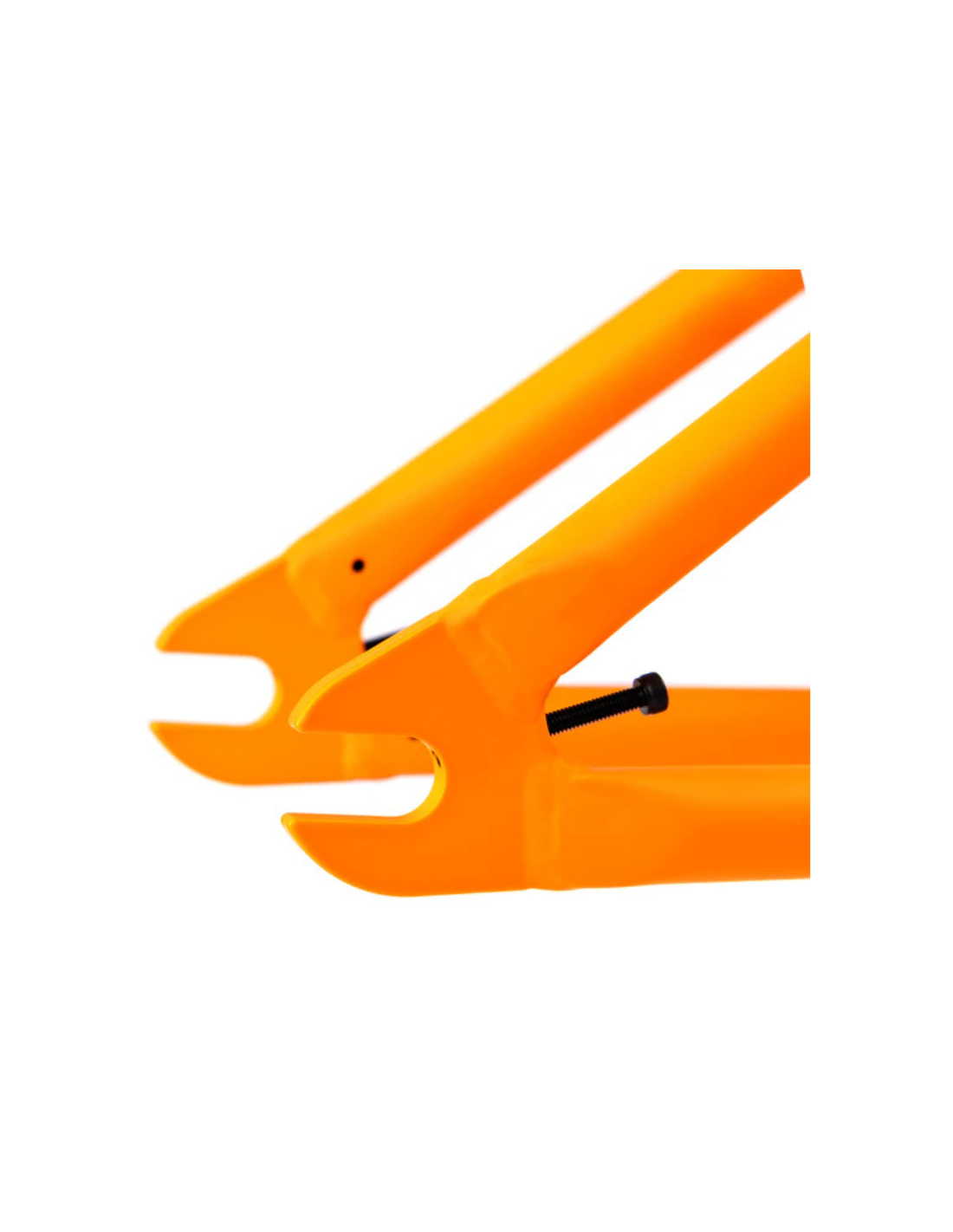

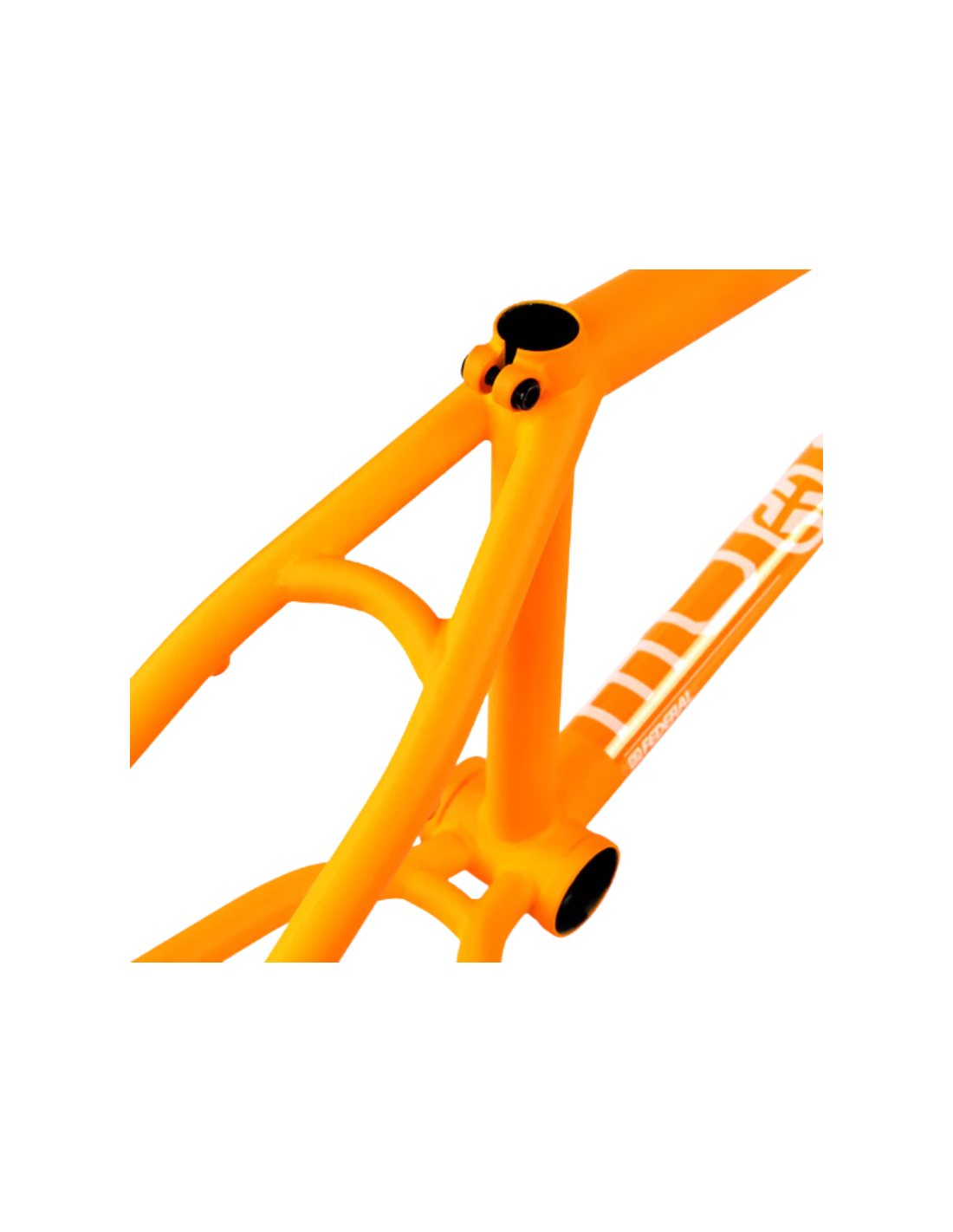

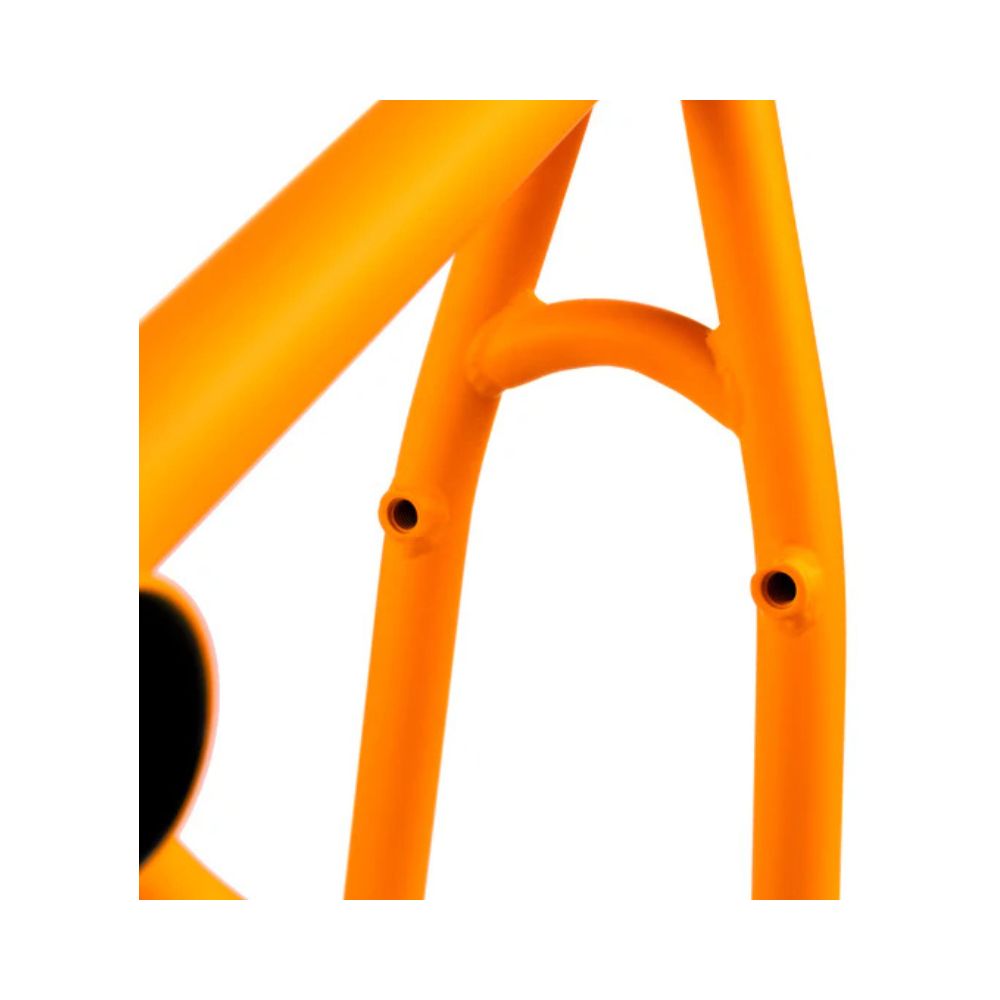

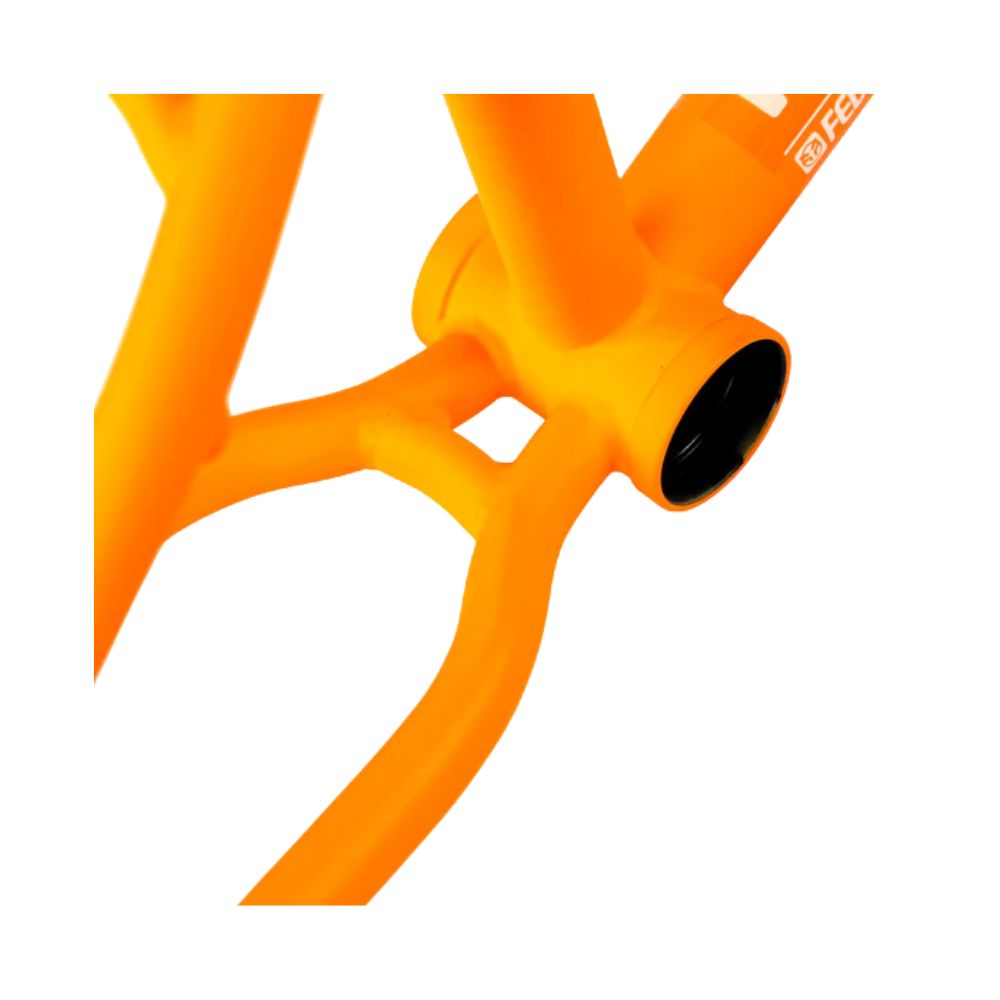

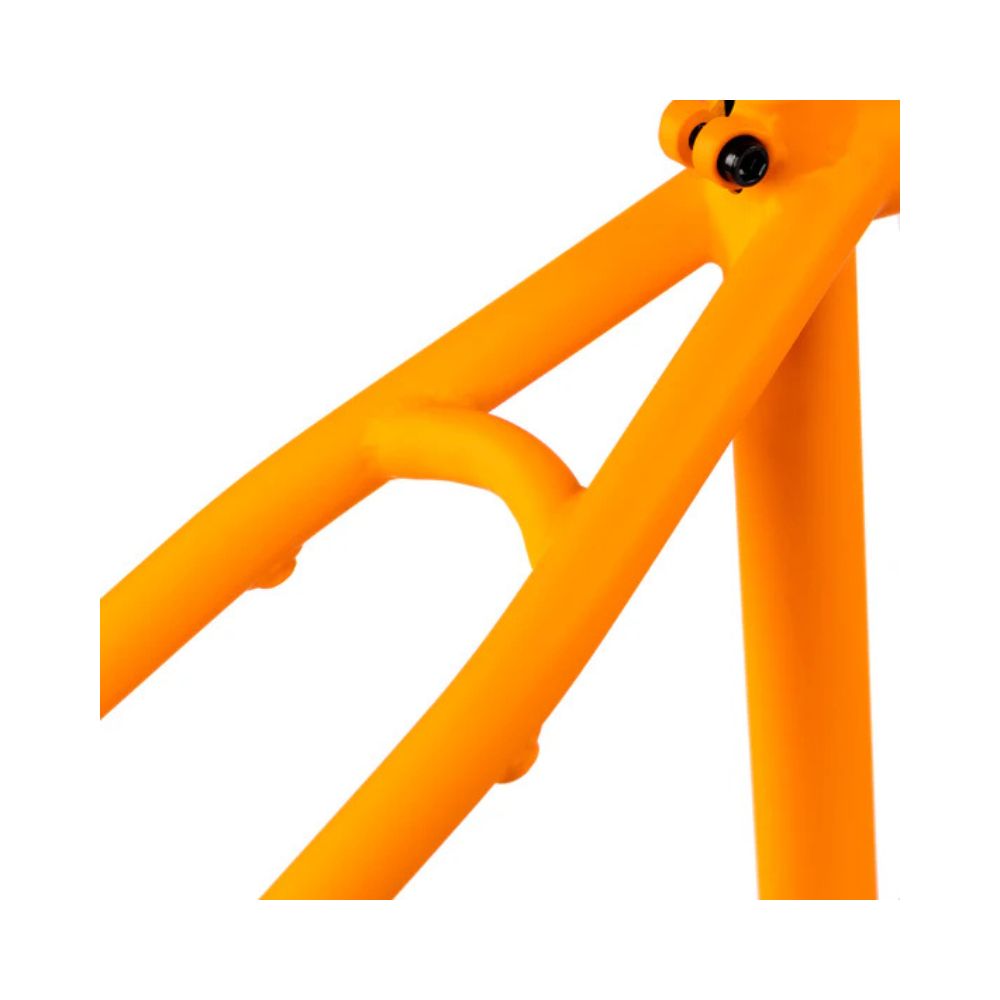

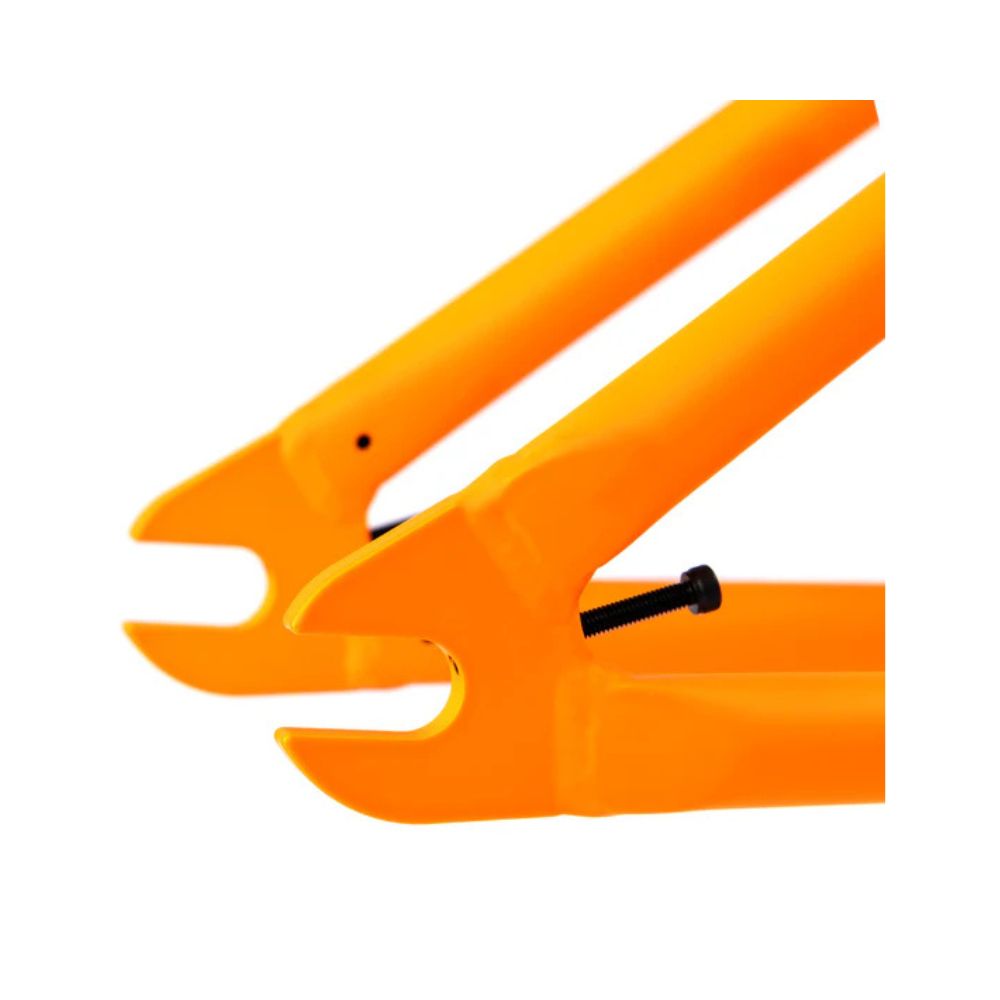

True to the recognized robustness of Federal Bikes frames, this model also focuses on an affordable price thanks to a clean design without unnecessary elements. It features a discreet seat clamp, classic dropouts, and a tubular rear wishbone instead of the previously used IC system. This technical choice preserves all the frame’s strength while contributing, in some areas, to weight savings.

SPECIFICATIONS

• Chromoly Frame

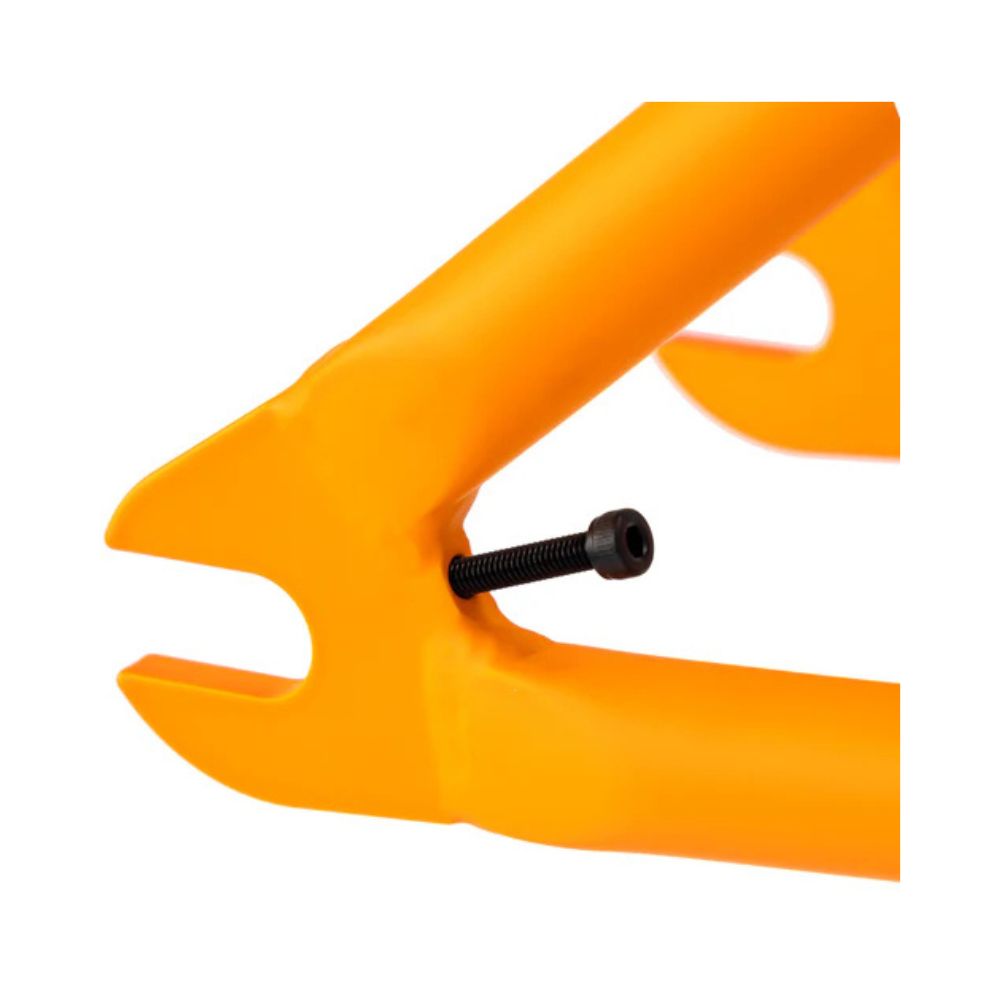

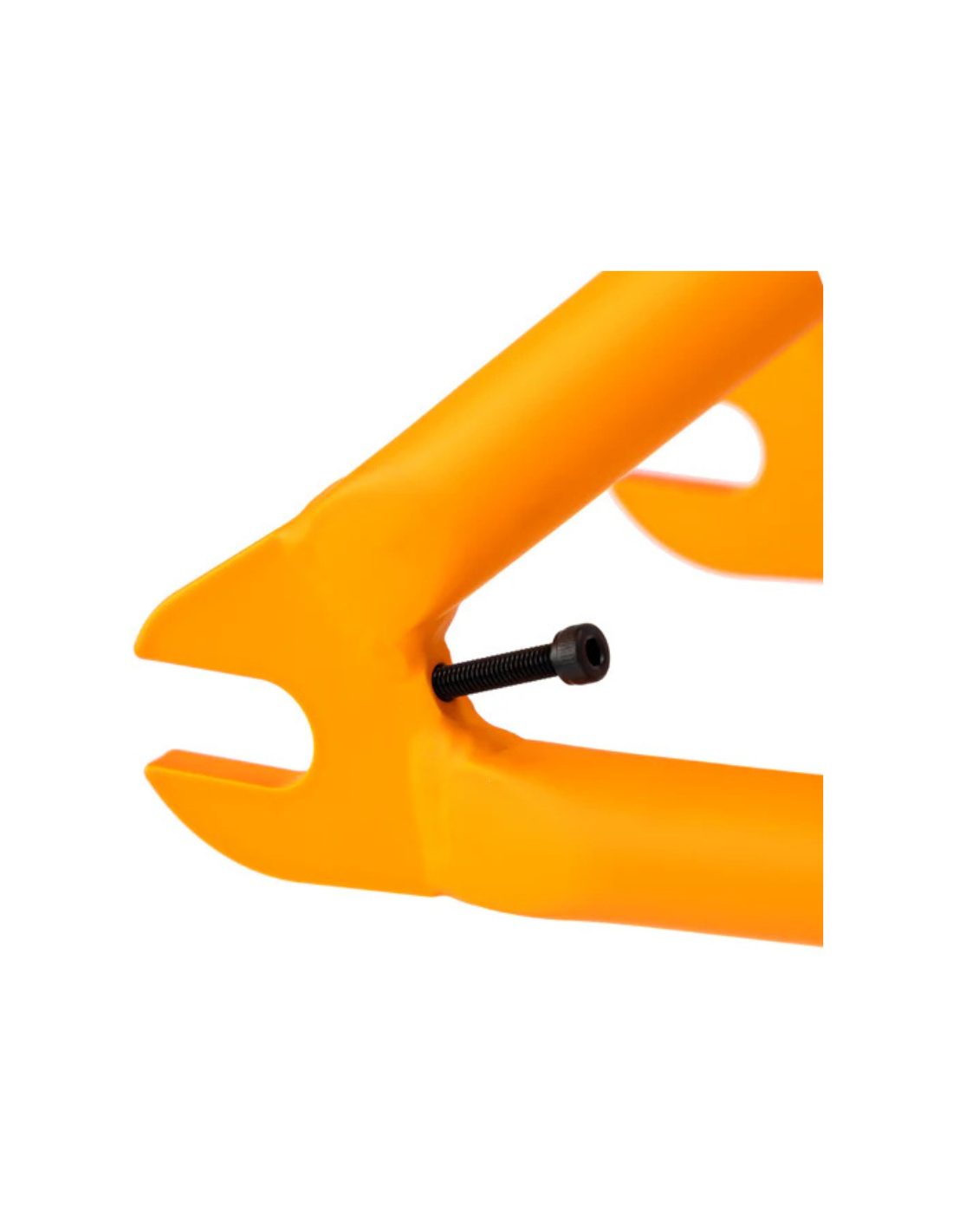

• Integrated Chain Tensioner

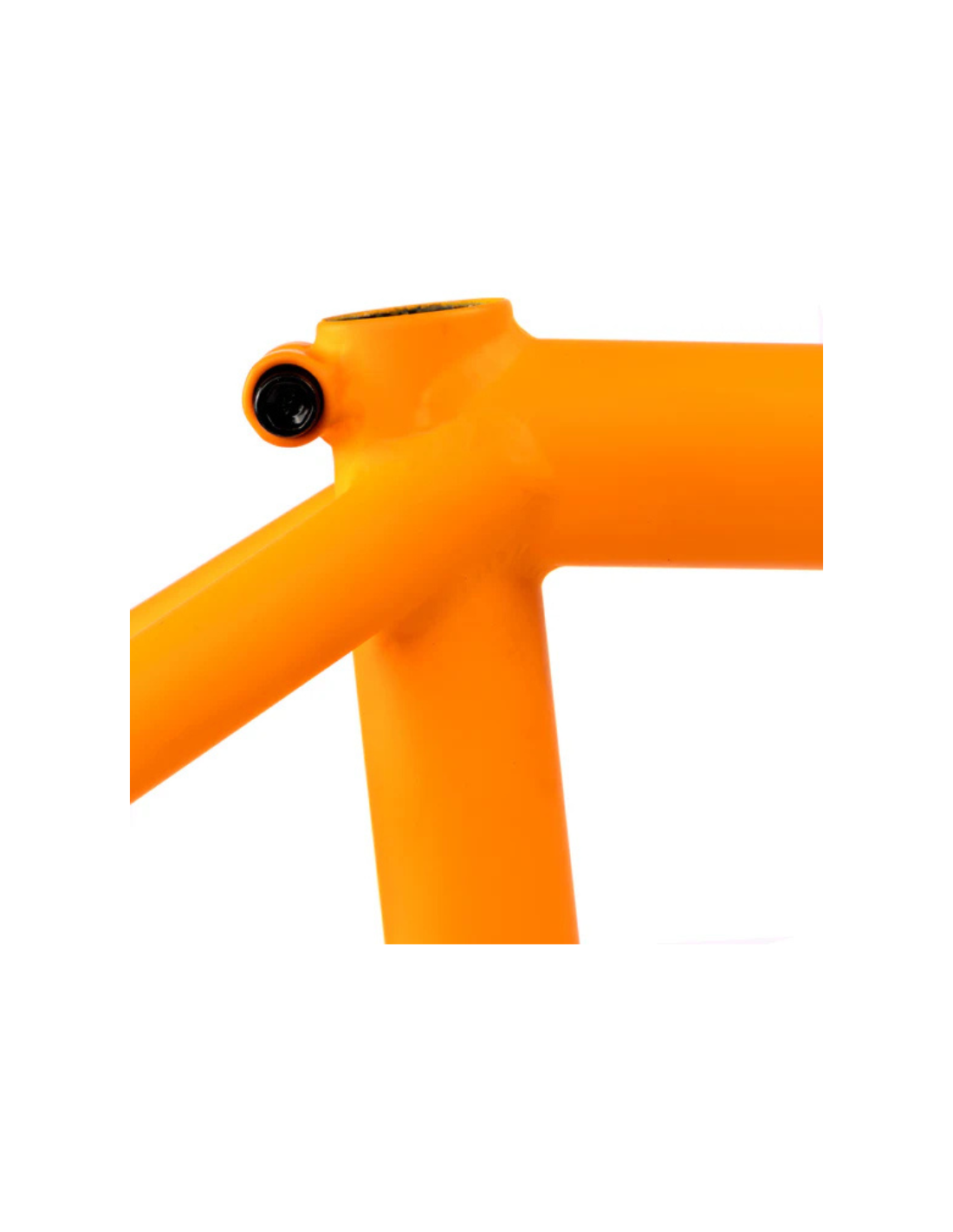

• Integrated Seat Clamp

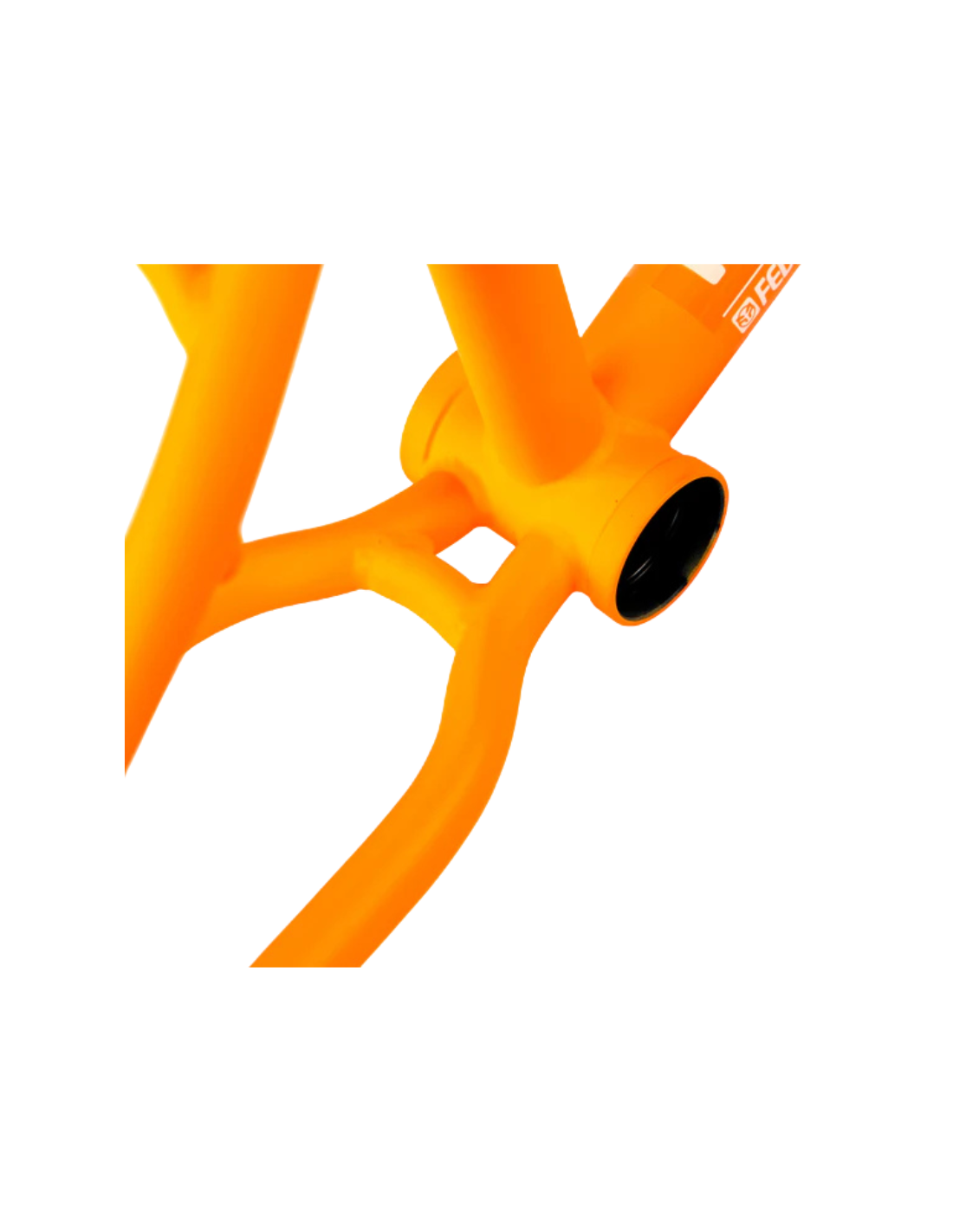

• Mid BB Bottom Bracket
• Removable Brake Tabs (sold separately)

GEOMETRY

• Top Tube: 20.5”, 21”, 21.25”
• Stand Over: 9.7”

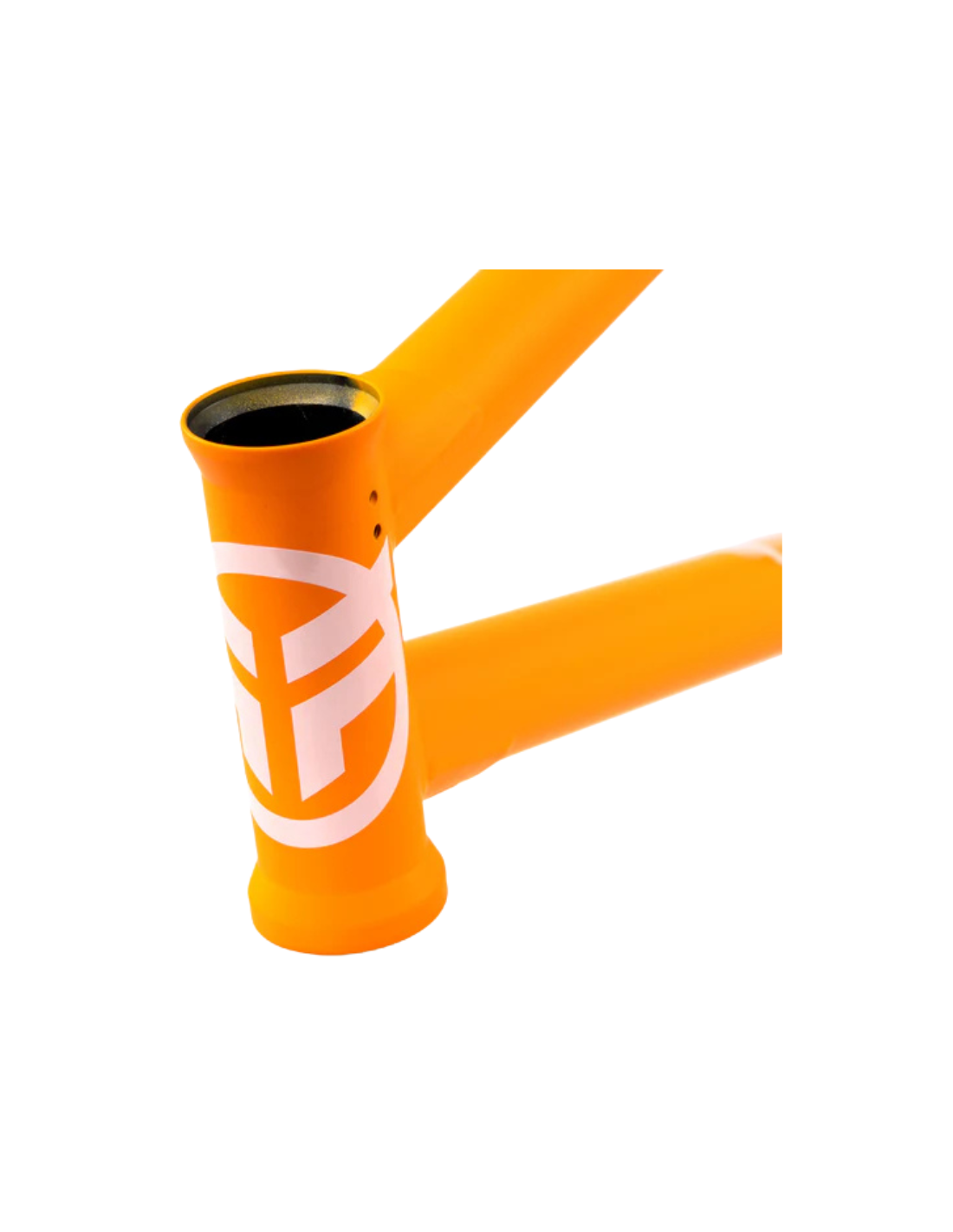

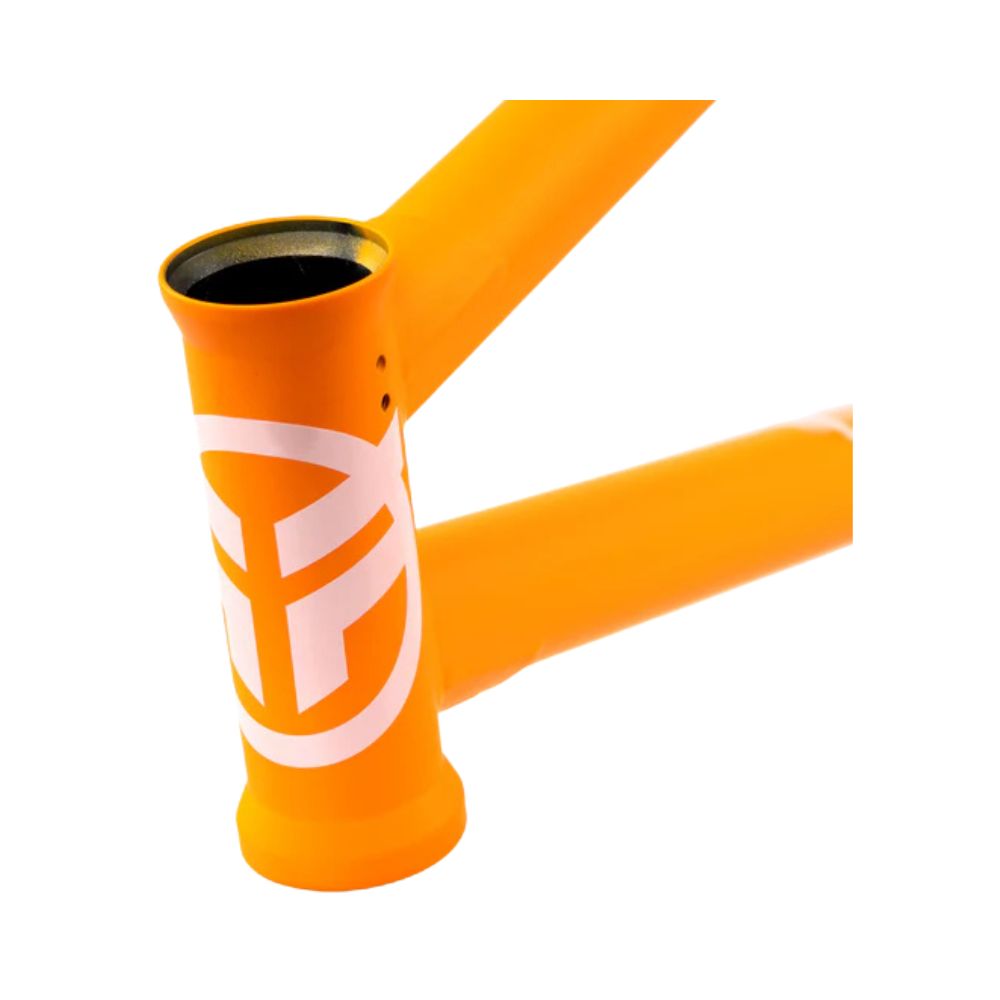

• Head Tube: 75.5º / 4.8"
• Seat Tube: 71º
• Chain Stays: 13” Slammed
• BB Height: 11.7”
