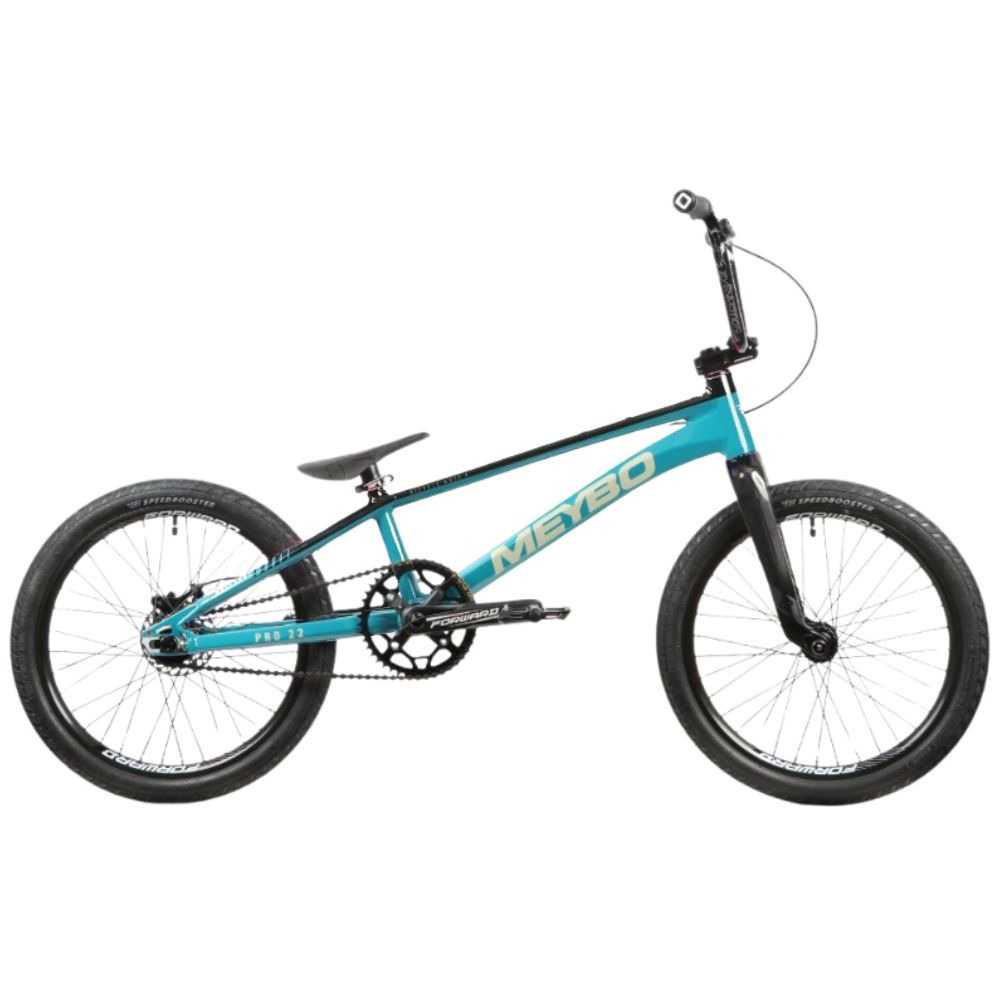

Meybo Holeshot Custom Bmx - Diesel/Black/Grey - Expert XL

NO CONTRACTUAL PHOTO

BMX MEYBO HOLESHOT

The Meybo Custom BMX is based on the Meybo Holeshot frame, made from 6061-T6 aluminum with hydroformed tubes of variable thickness, offering an excellent balance of stiffness, lightness, and responsiveness. Its geometry provides great stability at high speeds while remaining precise in technical sections. It is also equipped with an SD Carbon V2 fork, a Forward handlebar, and other high-quality components.

The Meybo Custom BMX is a high-performance build, perfectly suited to riders of all body types.

SPECIFICATIONS

• Frame: Meybo Holeshot – Expert XL
• Fork: SD Carbon V2 Expert 1-1/8" – 10 mm
• Handlebar: Forward Expert XL Alu 6.5" – Ø22.2 mm
• Grips: Pride Cobra – 129 mm
• Stem: Forward Topload – 40 mm – Ø22.2 mm
• Headset: Forward Swing Integrated – 1-1/8"
• Brake Kit: Forward Joyride Pro V2 – Postmount
• Brake Rotor: Forward GEN – Ø120 mm
• Rims: Forward Joyride Aluminum 20" Expert
• Front Hub: Forward Joyride V3 – 10 mm
• Rear Hub: Forward Joyride V1 – 10 mm – 6 pawls – 150 points of engagement
• Tires: Vee Tire Speedbooster – 20x1-3/8"
• Crankset: Forward Joyride Pro – 165mm
• Bottom Bracket: Pride EB24 – 24 mm
• Chainring: 40T
• Cog: 16T
• Chain: Forward – 3/32"
• Saddle: Pride Race Spirit Pivotal
• Seat Post: Pride Spline AL – Ø25.4 mm
• Seat Clamp: Forward AM – Ø31.8 mm
• Pedals: Forward Megatron

• Weight: 7.78 kg (without pedals)

FRAME GEOMETRY

• Top Tube: 20.67"
• Rider Area: 525mm
• Down Tube: 530mm
• Rear Chainstay Length: 350mm
• Head Tube Angle: 73.5°
• Seat Tube Angle: 71°
