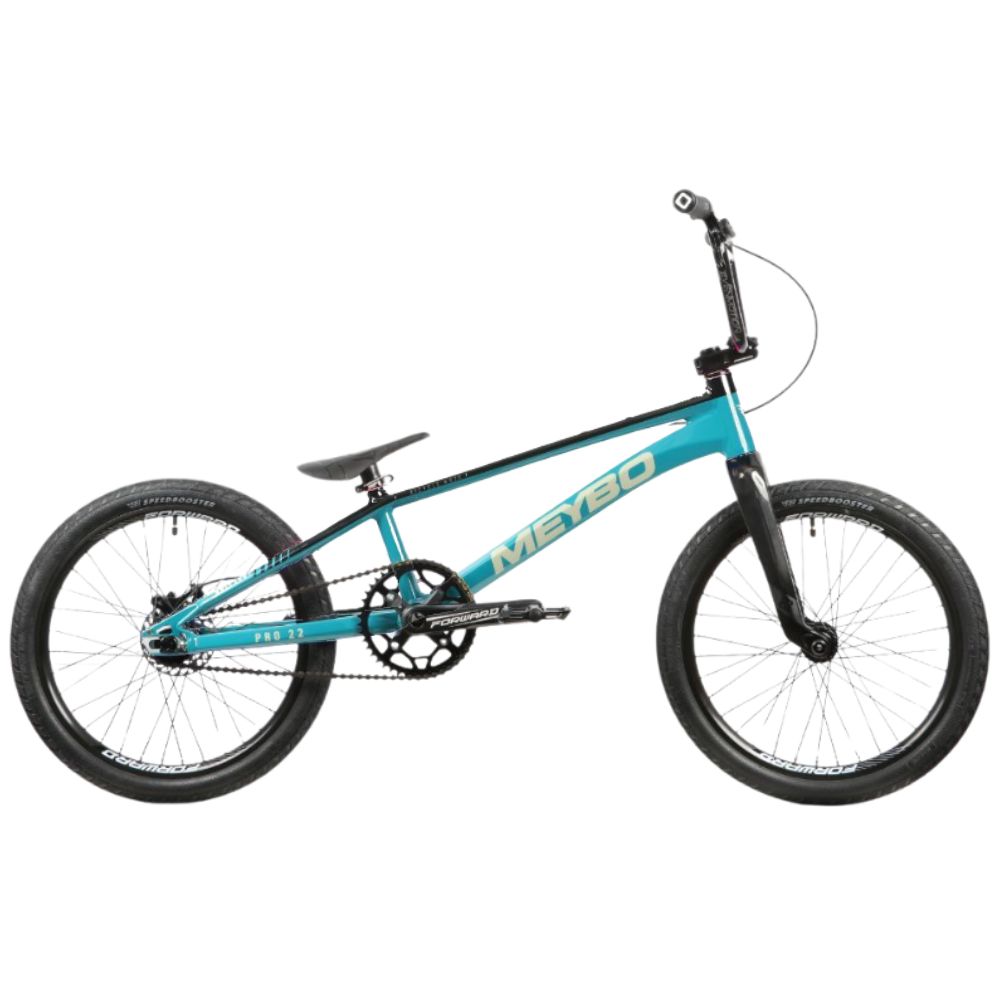

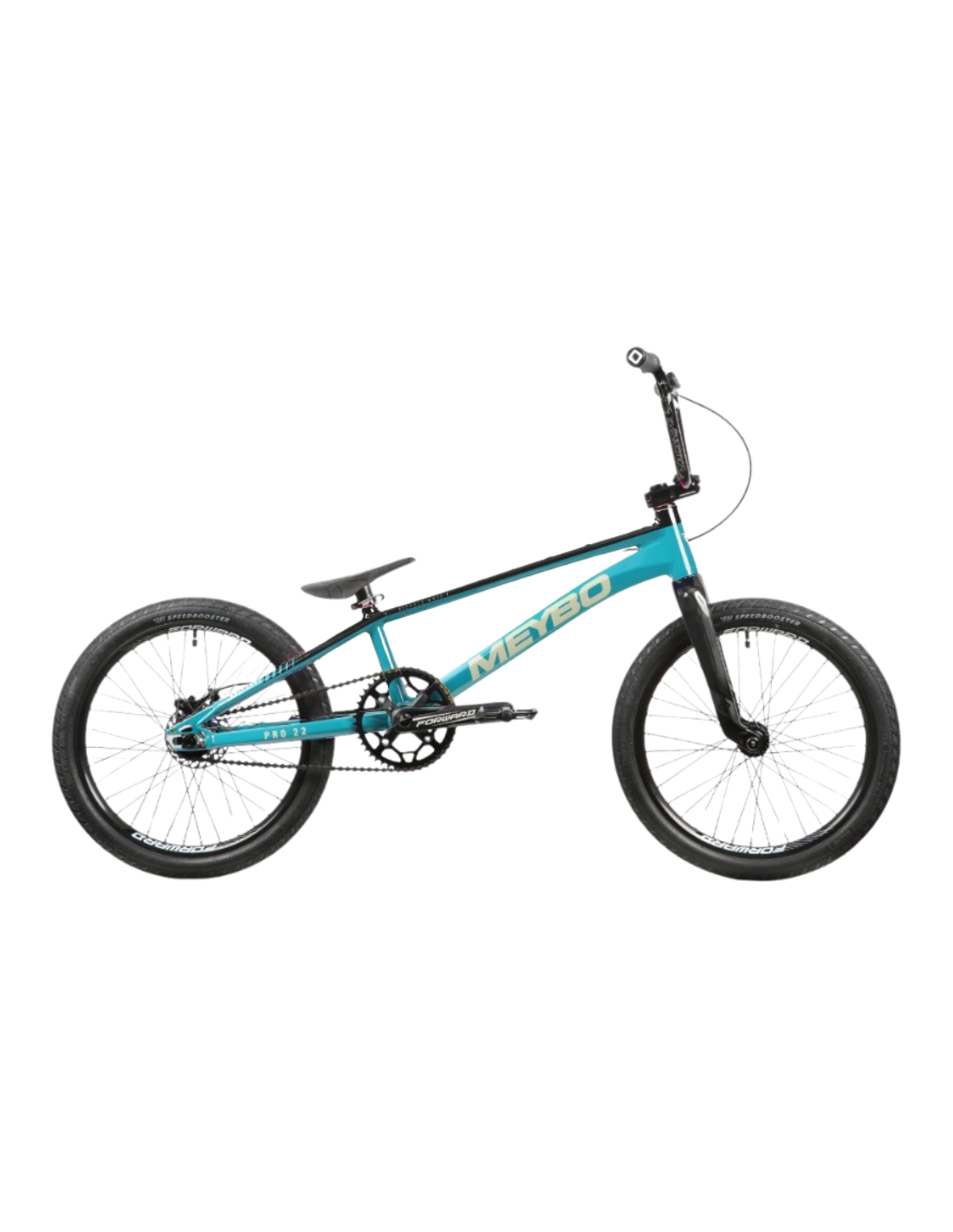

Meybo Holeshot Custom Bmx - Diesel/Black/Grey - Expert

NO CONTRACTUAL PHOTO

BMX MEYBO HOLESHOT

The Meybo Custom BMX is built around the Meybo Holeshot Expert frame, crafted from 6061-T6 aluminum with hydroformed variable-thickness tubes, offering the perfect balance of stiffness, lightness, and responsiveness. Its geometry ensures high-speed stability while remaining precise on technical sections. The bike also features a SD Carbon V2 Expert fork, a Forward Expert 5.75" aluminum handlebar, and other high-quality components.

The Meybo Custom BMX provides a high-performance setup, perfectly suited to riders of all sizes.

SPECIFICATIONS

• Frame: Meybo Holeshot – Expert
• Fork: SD Carbon V2 Expert – 10mm
• Handlebar: Forward Expert Alu 5.75" – Ø22.2mm
• Grips: Pride Cobra – 129mm
• Stem: Forward Topload – 40mm – Ø22.2 mm
• Headset: Forward Swing Integrated – 1-1/8"
• Brake Kit: Forward Joyride Pro V2 – Postmount
• Brake Rotor: Forward GEN – Ø120mm
• Rims: Forward Joyride Aluminum 20" Expert
• Front Hub: Forward Joyride V3 – 10mm
• Rear Hub: Forward Joyride V2 – 10mm – 6 pawls – 150 points of engagement
• Tires: Vee Tire Speedbooster – 20x1-3/8"
• Crankset: Forward Joyride Pro – 160mm
• Bottom Bracket: Pride EB24 – 24 mm
• Chainring: Forward Joyride V2 – 40T
• Cog: 16T
• Chain: Forward – 3/32"
• Saddle: Pride Race Spirit Pivotal
• Seat Post: Pride Spline AL – Ø25.4mm
• Seat Clamp: Forward AM – Ø31.8mm
• Pedals: Forward Megatron

• Weight: 7.48kg (without pedals)

FRAME GEOMETRY

• Top Tube: 19.69"
• Rider Area: 500 mm
• Down Tube: 506 mm
• Rear Chainstay Length: 340 mm
• Head Tube Angle: 73.5°
• Seat Tube Angle: 71°
