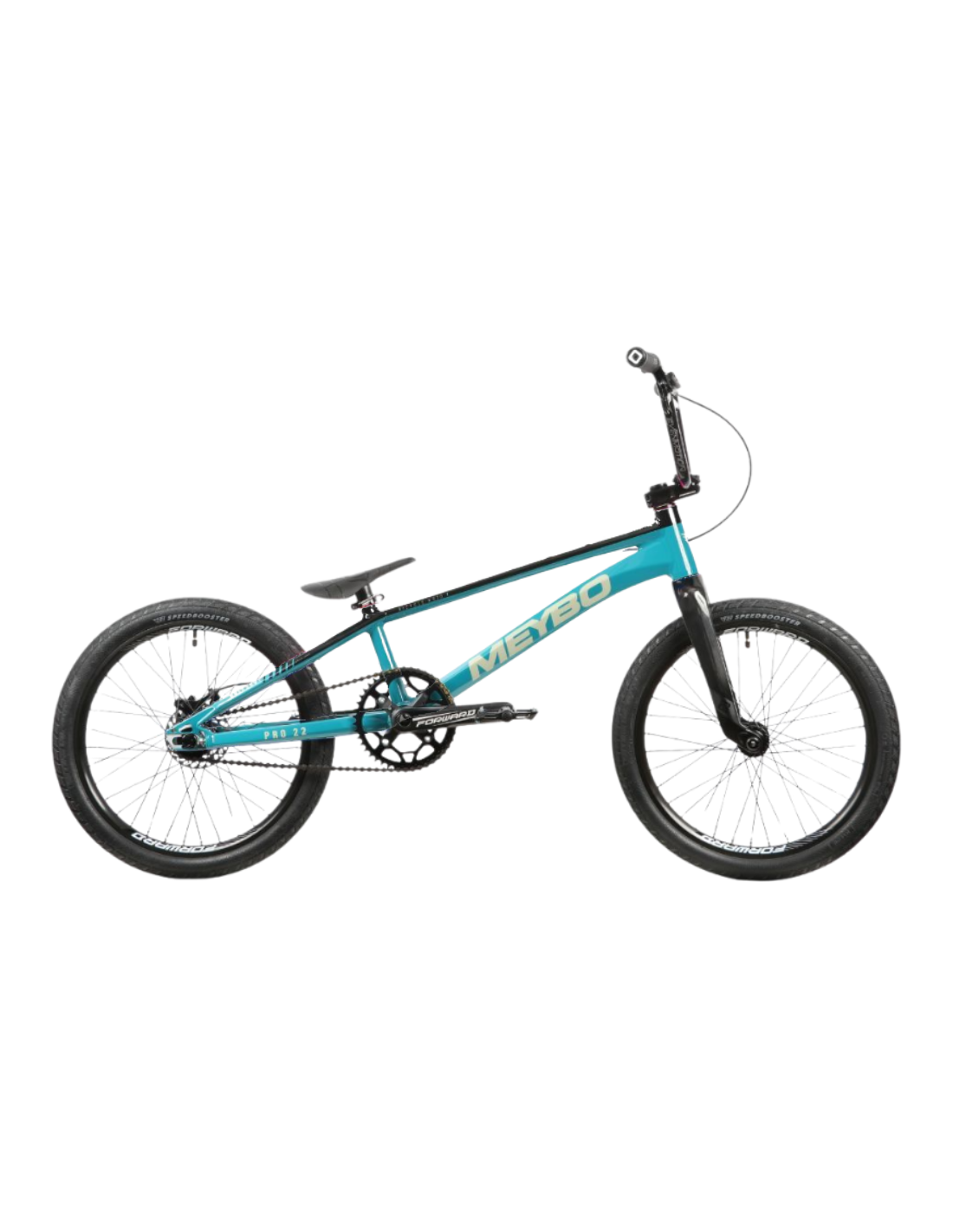

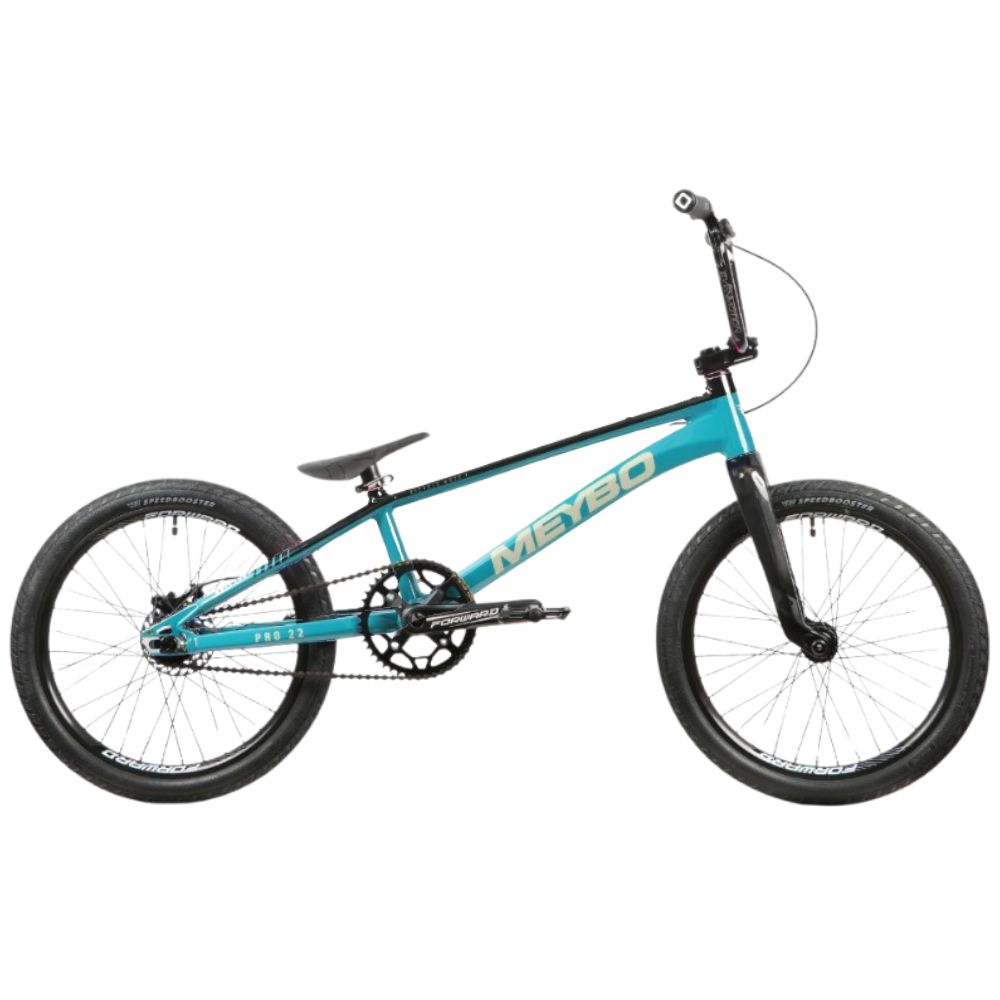

Meybo Holeshot Custom Bmx - Diesel/Black/Grey - Pro 22"

BMX MEYBO HOLESHOT

The Meybo Custom BMX is built around the Meybo Holeshot frame, crafted from 6061-T6 aluminum with hydroformed variable-thickness tubes, offering the perfect balance of stiffness, lightness, and responsiveness. Its geometry ensures high-speed stability while remaining precise on technical sections. The bike also features a Pride Matrix Carbon fork, a Pride Sevemotion handlebar, and other high-quality components.

The Meybo Custom BMX delivers a high-performance setup, suited to riders of all sizes.

SPECIFICATIONS

• Frame: Meybo Holeshot – Pro 22"
• Fork: Pride Matrix Carbon 20" Tapered – 20 mm
• Handlebar: Pride Sevemotion 8" – Ø22.2 mm
• Grips: Pride Cobra – 129 mm
• Stem: Forward Topload – 50 mm – Ø22.2 mm
• Headset: Forward Swing Integrated Tapered 1-1/8" – 1.5"
• Brake Kit: Forward Joyride Pro V2 – Postmount
• Brake Rotor: Forward GEN – Ø120 mm
• Rims: Forward Joyride Aluminum 20"
• Front Hub: Forward Joyride V3 – 20 mm
• Rear Hub: Forward Joyride V2 – 10 mm – 6 pawls – 150 points of engagement
• Tires: Vee Tire Speedbooster – 20 × 1.75"
• Crankset: Forward Joyride Pro – 175 mm
• Bottom Bracket: Pride Interlock BB30 – 24 mm
• Chainring: Forward Joyride V2 – 44T
• Cog: 16T
• Chain: Forward – 3/32"
• Saddle: Combo Saddle – Ø27.2 mm
• Seat Clamp: Forward AM – Ø31.8 mm
• Pedals : Forward Megatron

• Weight: 8.98 kg (without pedals)

FRAME GEOMETRY

• Top Tube: 22"
• Rider Area: 557 mm
• Down Tube: 555 mm
• Rear Chainstay Length: 389 mm
• Head Tube Angle: 74°
• Seat Tube Angle: 71°
