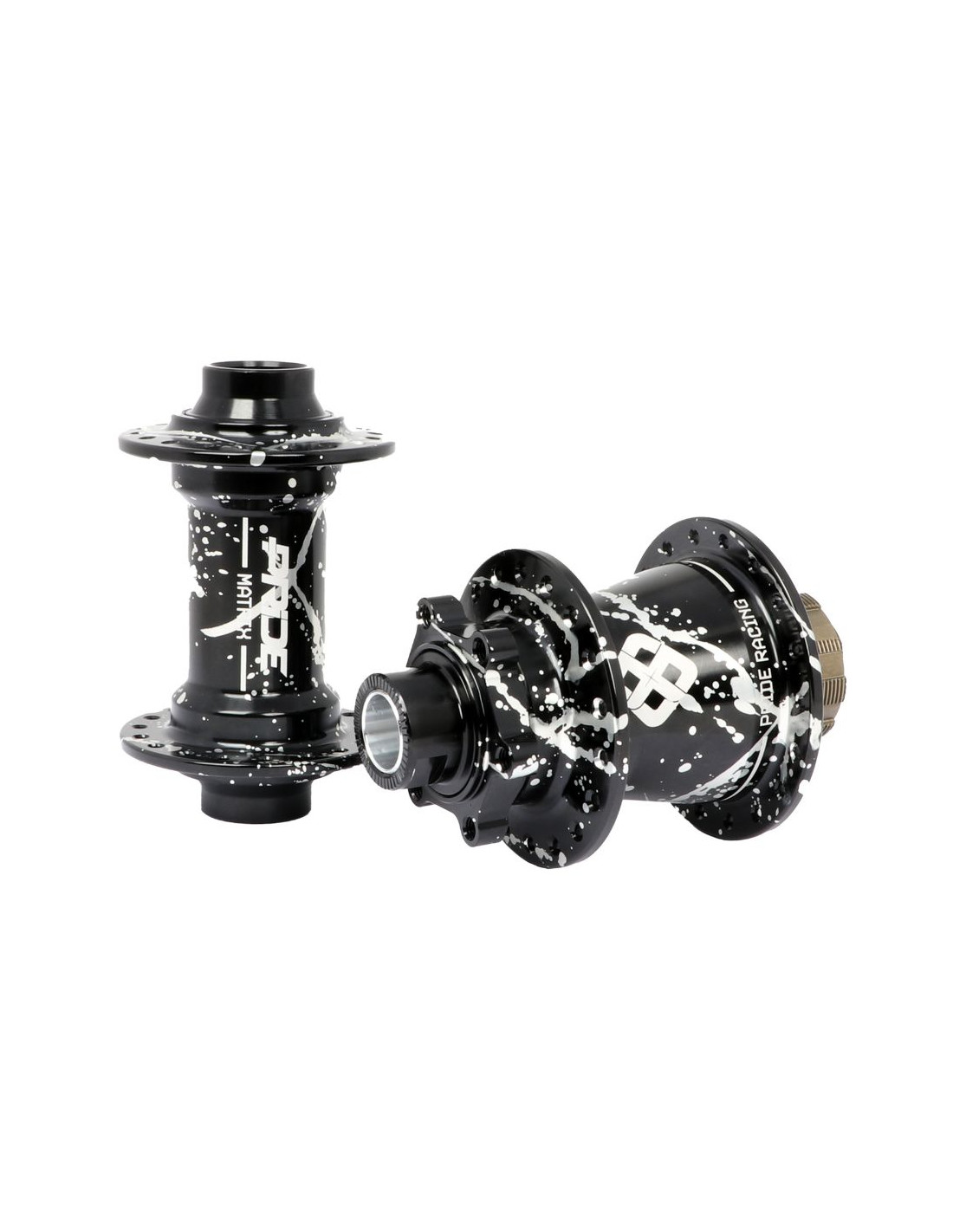

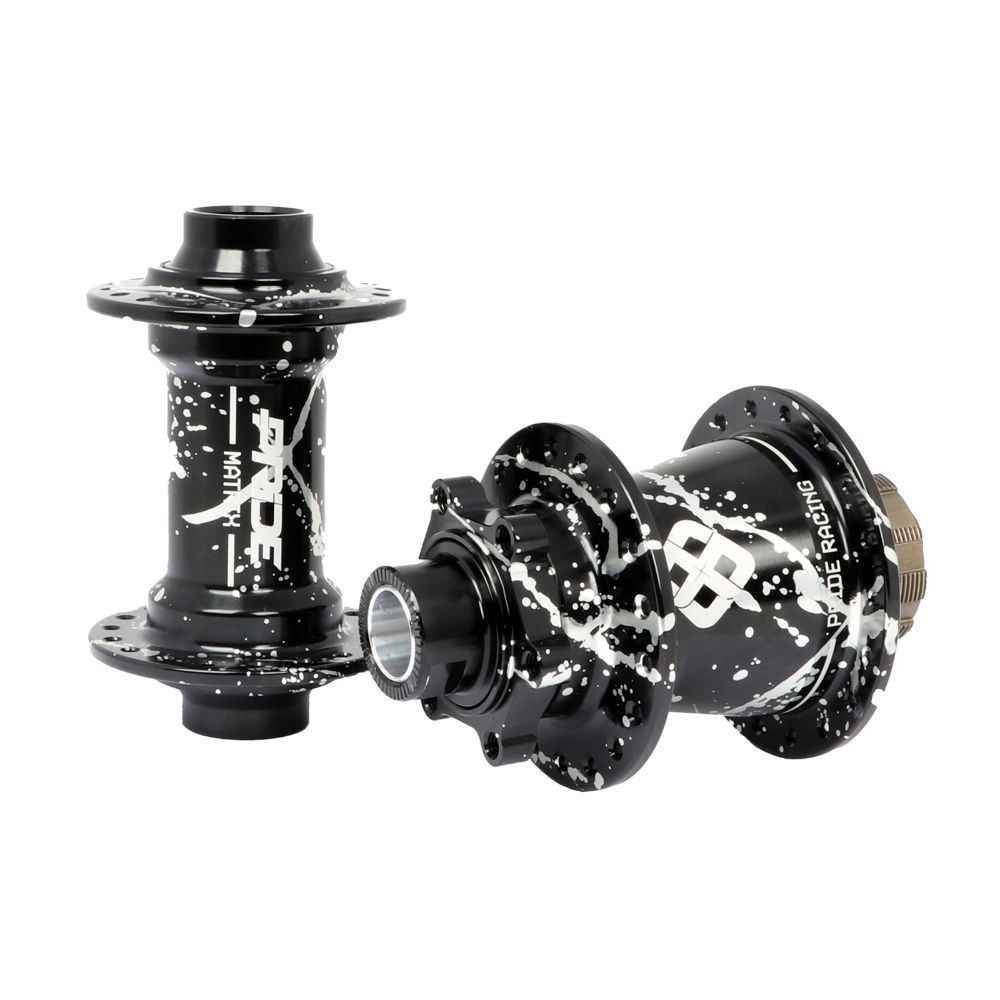

Pride Matrix Hubs Splash Black/Silver - 10/15mm - 28H

NON-CONTRACTUAL PHOTO

PRIDE MATRIX HUBS

Pride Matrix hubs represent the high-end range of the Pride Racing brand, designed to deliver top-level performance and maximum responsiveness on the track.

Developed with the primary goal of providing near-instant engagement without compromising weight, the Matrix hubs feature an innovative engagement system that ensures almost immediate power transfer, ideal for explosive starts or technical accelerations. The core of this system relies on two rows of 6 pawls, totaling 12 pawls, operating alternately. This mechanism achieves 216 points of engagement, with an ultra-low engagement angle of 1.67°, ensuring near-instant pickup with every pedal stroke.

To address one of the most common issues in BMX—interference between the caliper and the spokes—the rear hub has also been optimized for 120 mm rotors, offering improved clearance between the spokes and the caliper.

Matrix hubs stand out as a benchmark for riders seeking precision, responsiveness, and reliability, without compromise.

NOTE : A lock ring and spacers are included with the hub

SPECIFICATIONS

• Material: 6061-T6 Aluminum
• Front spacing: 100x10mm
• Rear spacing: 110x15mm
• Number of holes: 28
• Driver standard: Shimano
• Engagement type: 216 points / 12 pawls
• Disc mount: ISO6
• Front hub bearing: 6805 (25x37x7mm)
• Rear hub bearings: 6903 (17x30x7mm)
• Weight: 182g (Front) / 349g (Rear)
