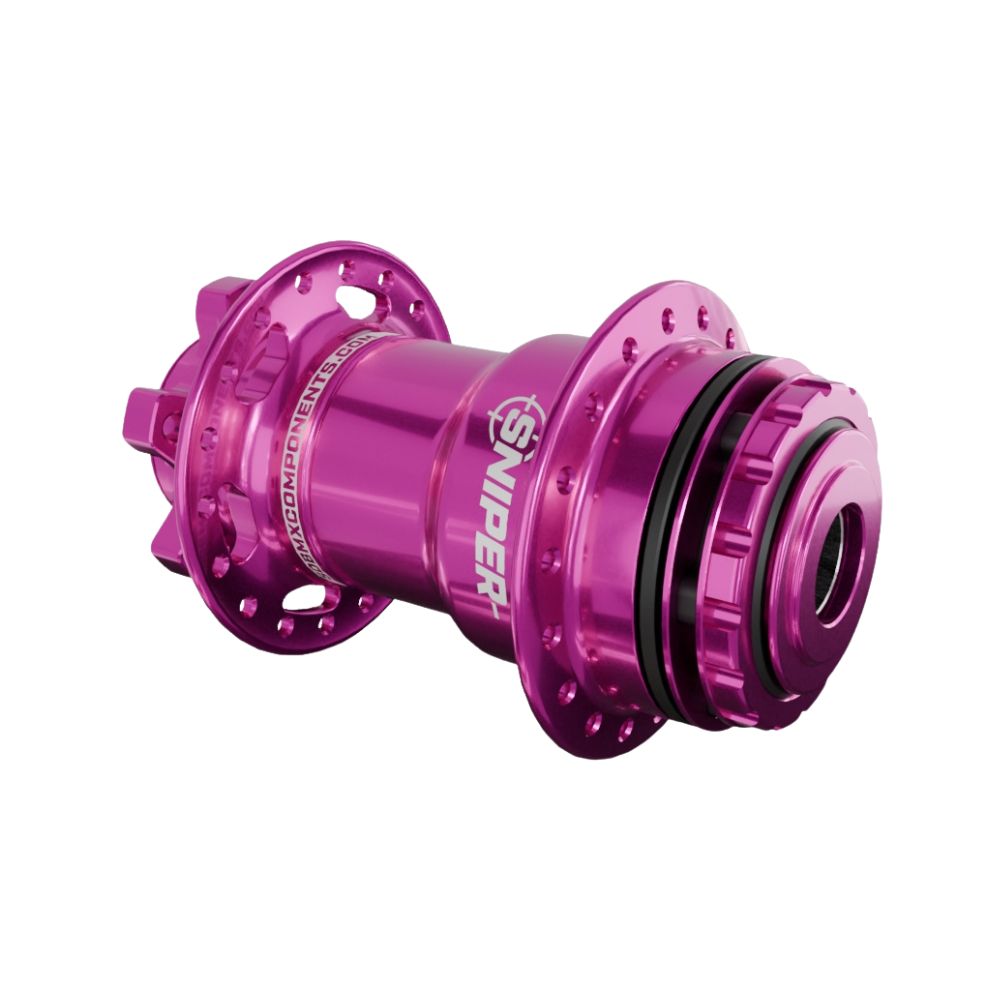

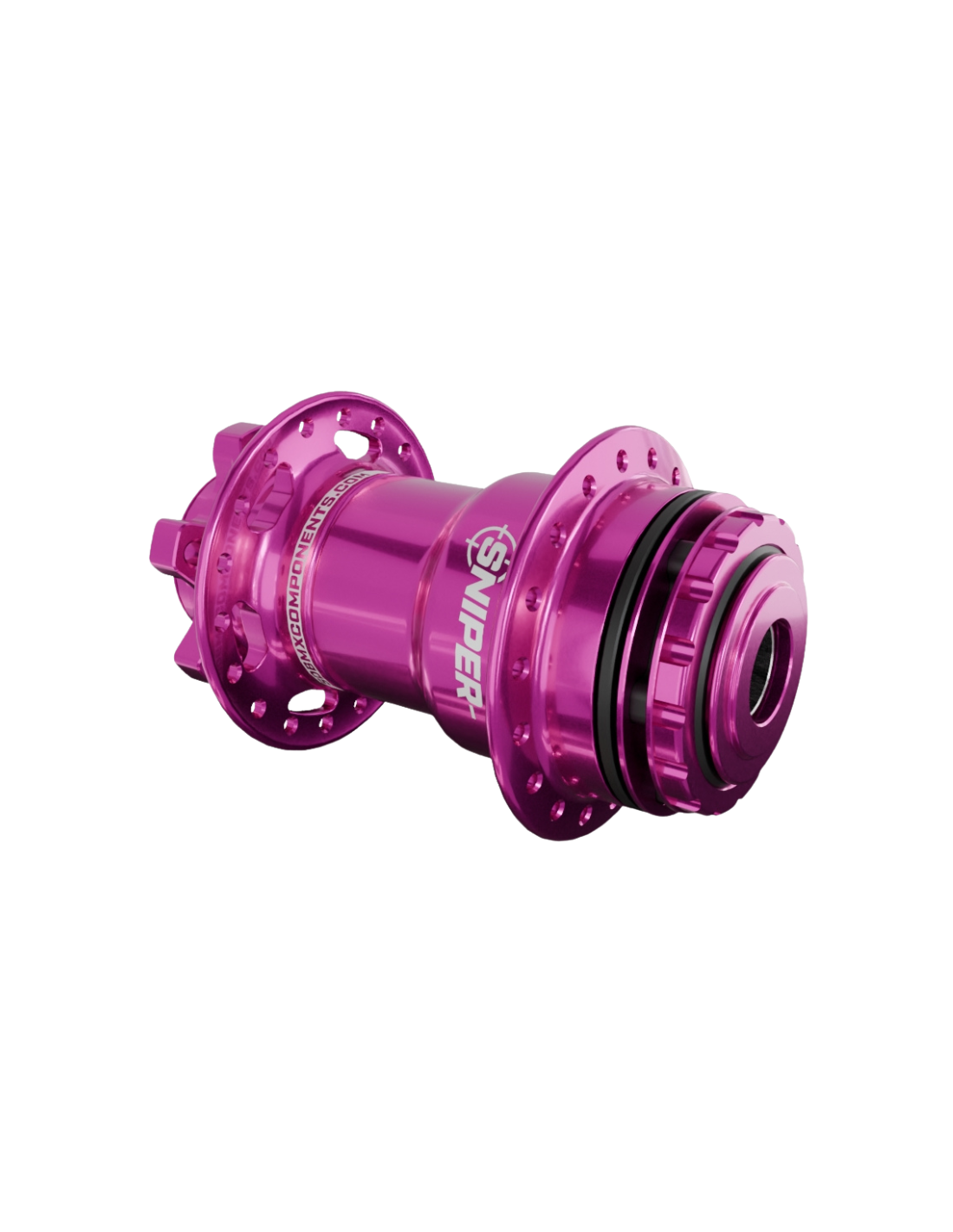

SD-X Sniper Evo Pro HSX Pro Rear Hub - 15mm - Pink

SD-X SNIPER HSX REAR HUB

The SD-X Sniper Evo Pro HSX rear hub is designed for unlimited racing performance and specifically developed for Meybo HSX frames. This full-engagement rear hub delivers uncompromising performance, durability, and precision, making it an ideal choice for elite BMX race riders.

The advanced direct engagement system ensures immediate response to every pedal stroke, silent operation, and zero drag during freewheeling.

This hub is supplied exclusively in 15 mm version and cannot be converted to a 10 mm configuration.

• Hub shell and internal components made from premium 7075 aluminum
  Supplied as standard in 15 mm configuration
  High-quality SKF ABEC-5 bearings
  Hub supplied without EVO cog (sold separately)
  Hub supplied without 15 mm axle (frame specific)

SPECIFICATIONS

• Material: 7075 Aluminum
• Rear spacing: 110x15mm
• Hole count: 36
• Driver standard: SD-X
• Engagement type: Direct
• Disc mount: ISO6
• Hub bearings: 6903
• Driver bearings: 6705 / 6806
• Engagement bearings: Sniper Pro
• Weight: 428g

TECHNICAL INFO

A : Total length: 110mm
B : Flange to outside non-drive side: 25mm
C : Flange to outside drive side: 25mm
D : Flange diameter non-drive side: 56mm
E : Flange diameter drive side: 56mm
