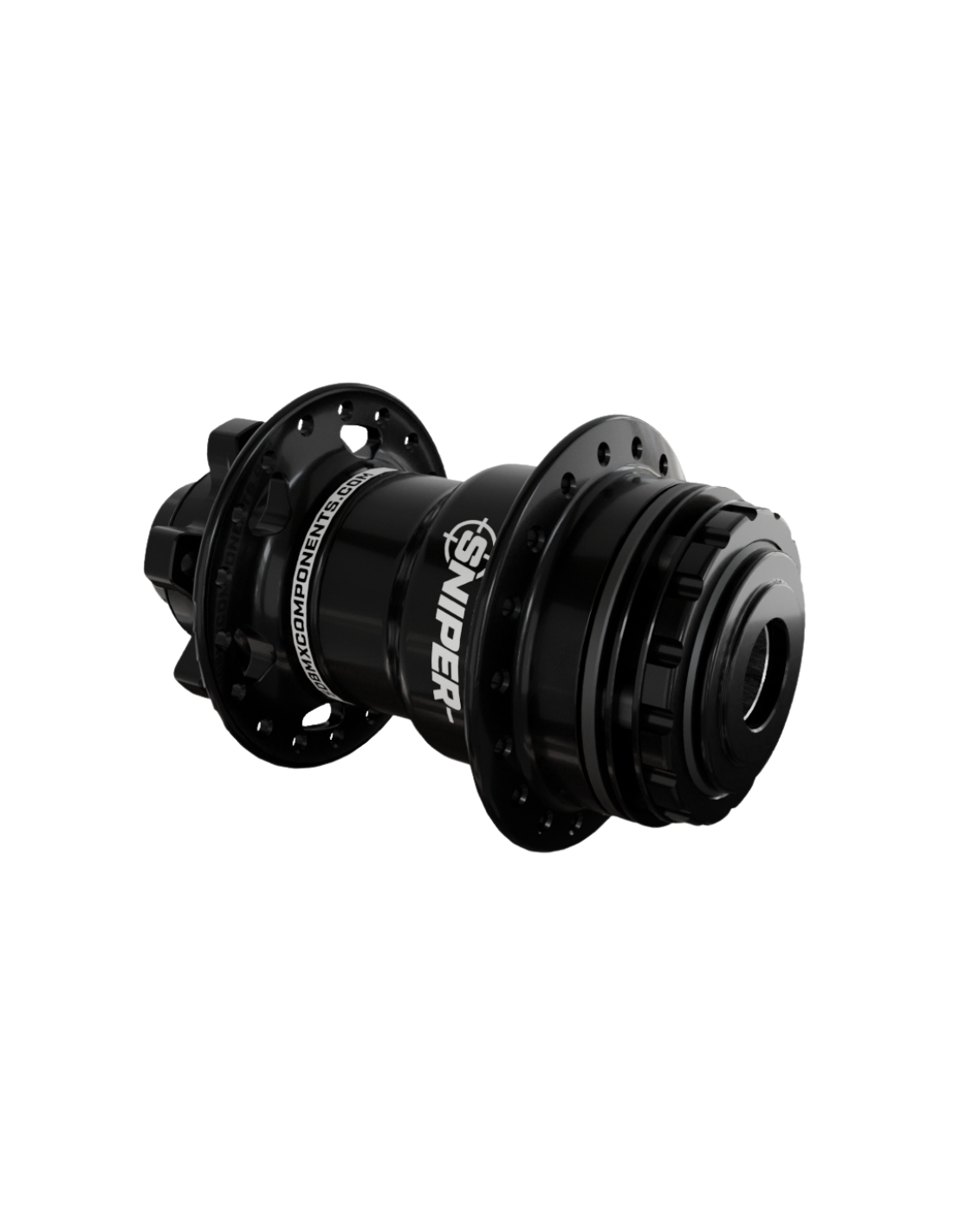

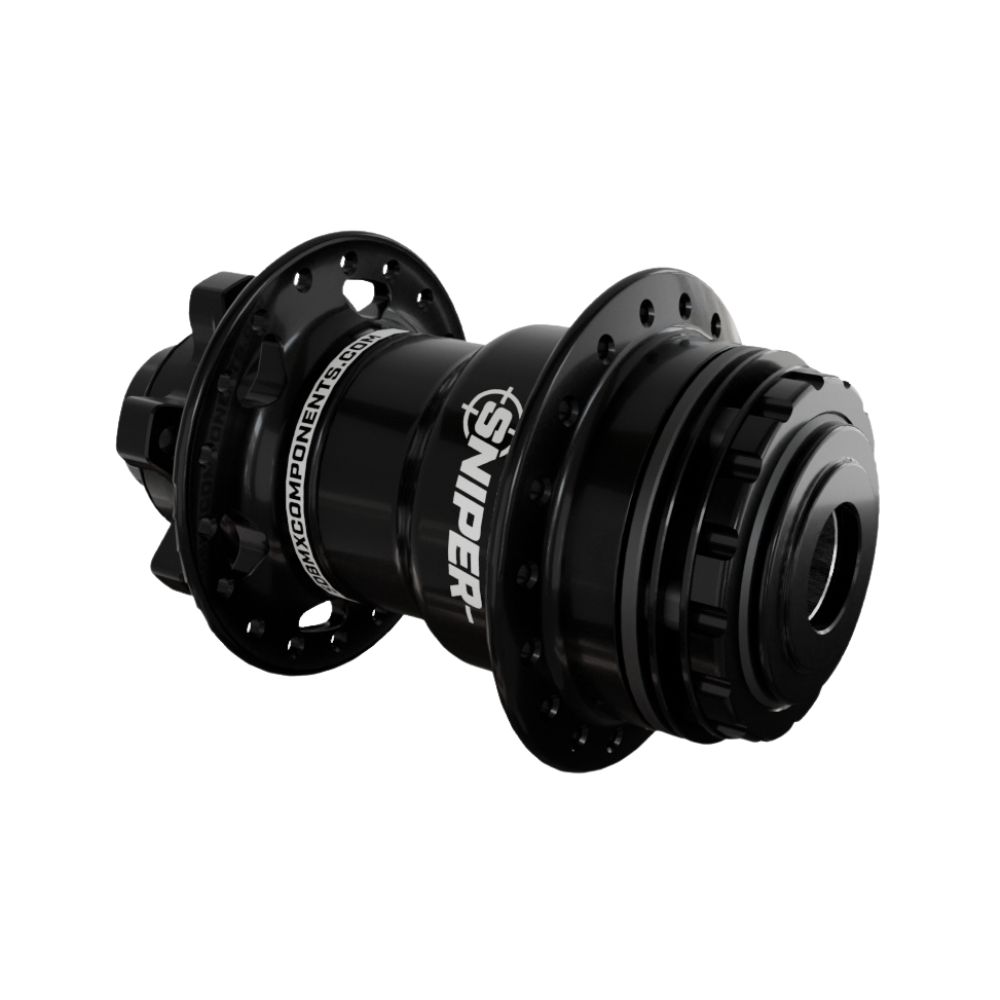

SD-X Sniper Evo Pro Rear Hub - 15mm - Black

SD COMPONENTS SD-X EVO PRO REAR HUB

The SD-X Sniper Evo Pro rear hub is designed for riders who accept no limits. This full-engagement rear hub delivers uncompromising performance, durability, and precision, making it an ideal choice for elite BMX race riders.

The advanced direct engagement system ensures immediate response to every pedal stroke, silent operation, and zero drag during freewheeling.

• Hub shell and internal components made from premium 7075 aluminum
  Supplied as standard in 15 mm configuration
  Convertible to 10 mm using a conversion kit (sold separately)
  High-quality SKF ABEC-5 bearings
  Hub supplied without EVO cog (sold separately)
  Hub supplied without 15 mm axle (frame specific)

SPECIFICATIONS

• Material : 7075 Aluminum
• Rear spacing : 110x15mm
• Hole count : 36
• Driver standard : SD-X
• Engagement type : Direct
• Disc mount : ISO6
• Hub bearings : 6903
• Driver bearings : 6705 / 6806
• Engagement bearings : Sniper Pro
• Weight : 432g

TECHNICAL INFO

A : Total length: 110 mm
B : Flange to outside non-drive side: 32 mm
C : Flange to outside drive side: 25 mm
D : Flange diameter non-drive side: 56 mm
E : Flange diameter drive side: 56 mm
