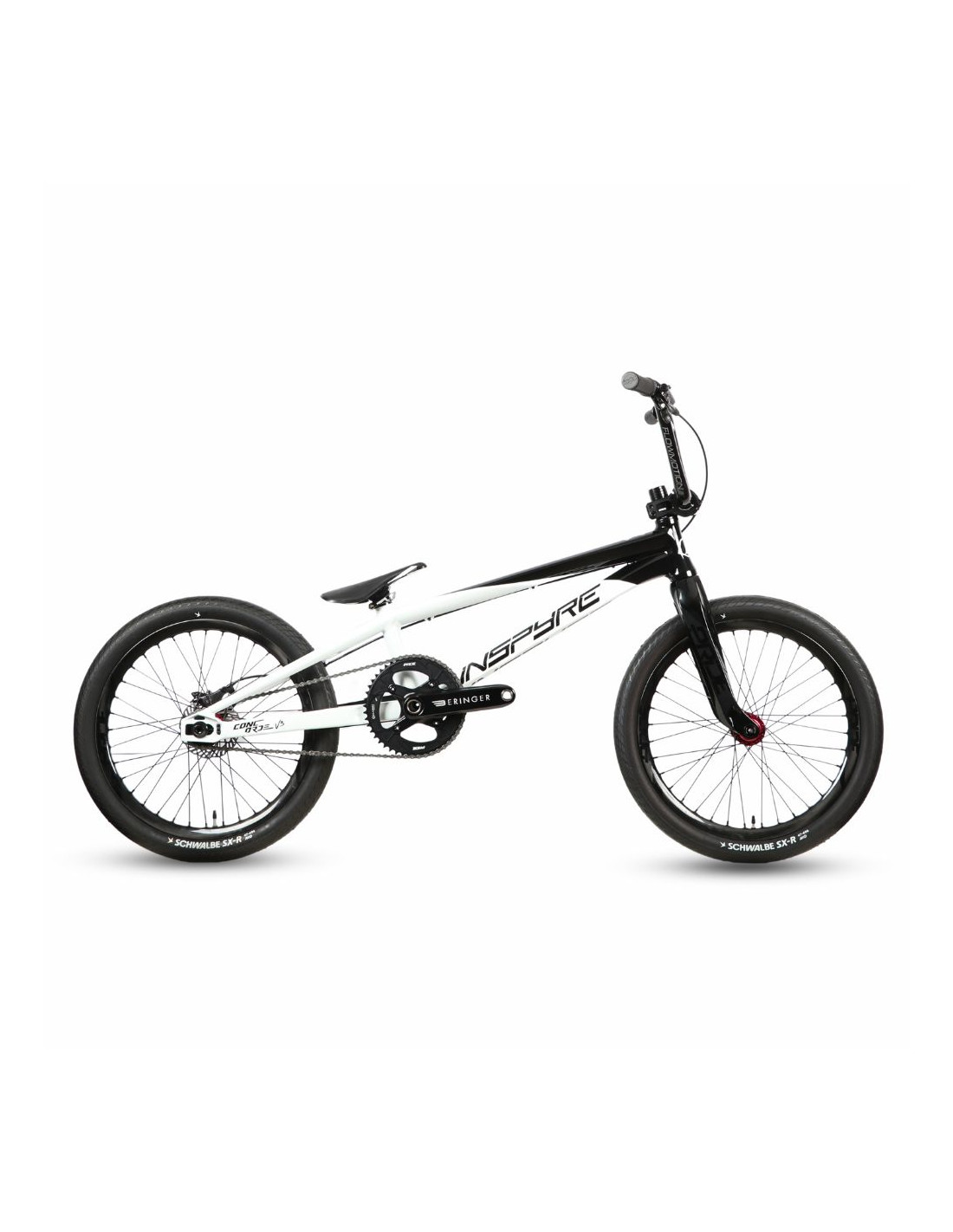

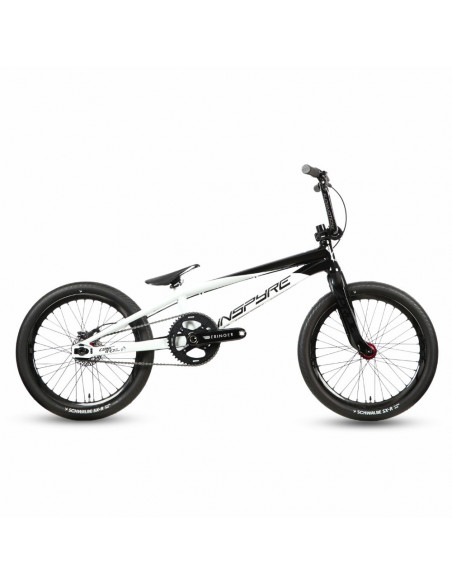

Inspyre Bmx Concorde V3 Pro 3XL - White/Black

BMX INSPYRE CONCORDE V3 - BLACK/WHITE - PRO 3XL

Custom BMX bikes are built with high-end components to deliver an ultra-high-performance ride.

Note: It is possible to make component modifications. For this, please contact us at +33 (0)4.78.44.55.76 or by email at: infos@frenchys-distribution.com

SPECIFICATIONS

• Frame: Inspyre Concorde V3 - Pro 3XL - 22.25"
• Fork: Pride Apex Tapered Carbon - 20mm
• Handlebar: Pride Flowmotion V2 8" - Ø31.8mm
• Grips: Sensus Lite
• Stem: Pride FTL 45mm - Ø31.8mm
• Headset: Pride Ti45 Titanium Tapered 1-1/8" - 1.5"
• Brake Kit: Shimano XT M8100
• Brake Disc: ISO6 - Ø120mm
• Rims: Pride Wave 20" - 36H
• Front Hub: Pride Matrix Splash Red/Black - 20mm - 36H
• Rear Hub: Pride Matrix Splash Red/Black - 15mm - 36H - 216 points of engagement
• Tires: Schwalbe SX-R - 20x1.85"
• Crankset: Beringer E2 - 4-Bolt - 175mm
• Bottom Bracket: Pride BB86 Interlock - Stainless Steel
• Chainring: Pride Hexagon - 4-Bolt - 47T
• Cog: Pride Matrix AL - 17T
• Chain: KMC X9
• Saddle: Pride Control Pivotal
• Seat Post: Pride Spline AL - Ø31.6mm
• Seat Clamp: Forward Elite - Ø34.9mm

FRAME GEOMETRY

• Top Tube: 22.25" / 565mm
• Rider Area: 596mm
• Down Tube: 566mm
• Rear End Length (min): 15.3" / 389mm
• Rear End Length (max): 16.3" / 414mm
• Head Tube Angle: 74°
• Seat Tube Angle: 72°
• BB Drop: 45.4mm
