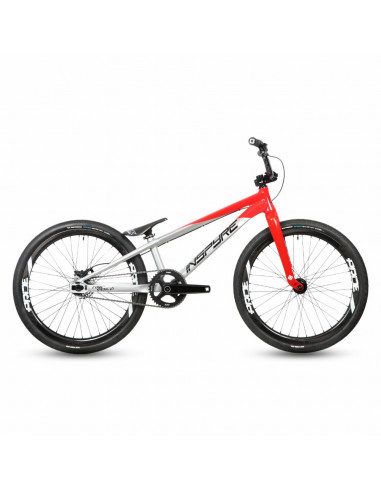

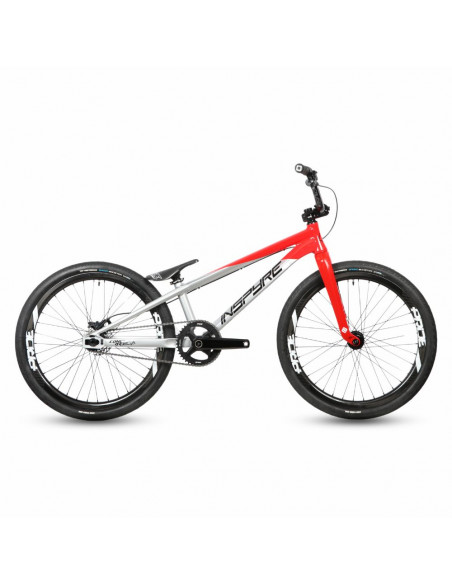

Inspyre Bmx Concorde V3 Cruiser - Racing Red/Grey

BMX INSPYRE CONCORDE V3 CRUISER PRO XL – RACING RED/GREY

Custom BMX bikes are tailor-built with high-end components selected to deliver an ultra-high-performance ride.

SPECIFICATIONS

• Frame: Inspyre Concorde V3 – Cruiser Pro XL – 6061-T6 Aluminum
• Fork: Pride Matrix Carbon Tapered – 20mm
• Handlebar: Pride Sevenmotion V2 – Ø31.8mm – Cruiser 5.5"
• Grips: Pride Cobra – 129mm
• Stem: Pride Cayman V2 – 50mm – Ø31.8mm
• Headset: Pride TI45 Titanium – Tapered
• Brake Set: Shimano SLX M7100
• Brake Rotor: ISO6 – Ø120mm
• Rims: Pride Gravity Carbon 24" – 36H
• Front Hub: Pride Fusion 20mm – 36H
• Rear Hub: Pride Fusion 15mm – 36H – 180 points of engagement
• Tires: Vee Tire Speedbooster – 24x1.75"
• Crankset: SD B-85 – 4-bolt – 175mm
• Bottom Bracket: Pride BB86 Interlock – Stainless
• Chainring: Pride Hexagon – 42T
• Cog: Pride Matrix – 18T
• Chain: KMC X9
• Saddle: Pride Race Spirit Pivotal
• Seatpost: Pride Spline AL – Ø31.6mm
• Seat Clamp: Forward Elite – Ø34.9mm

FRAME GEOMETRY

• Top Tube: 21.85" / 555mm
• Rider Area: 617mm
• Rear End Length (min/max): 15" (380mm) / 16" (405mm)
• Head Tube Angle: 73.5°
• Seat Tube Angle: 70°
