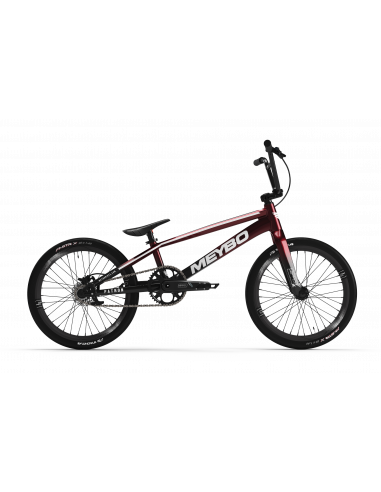

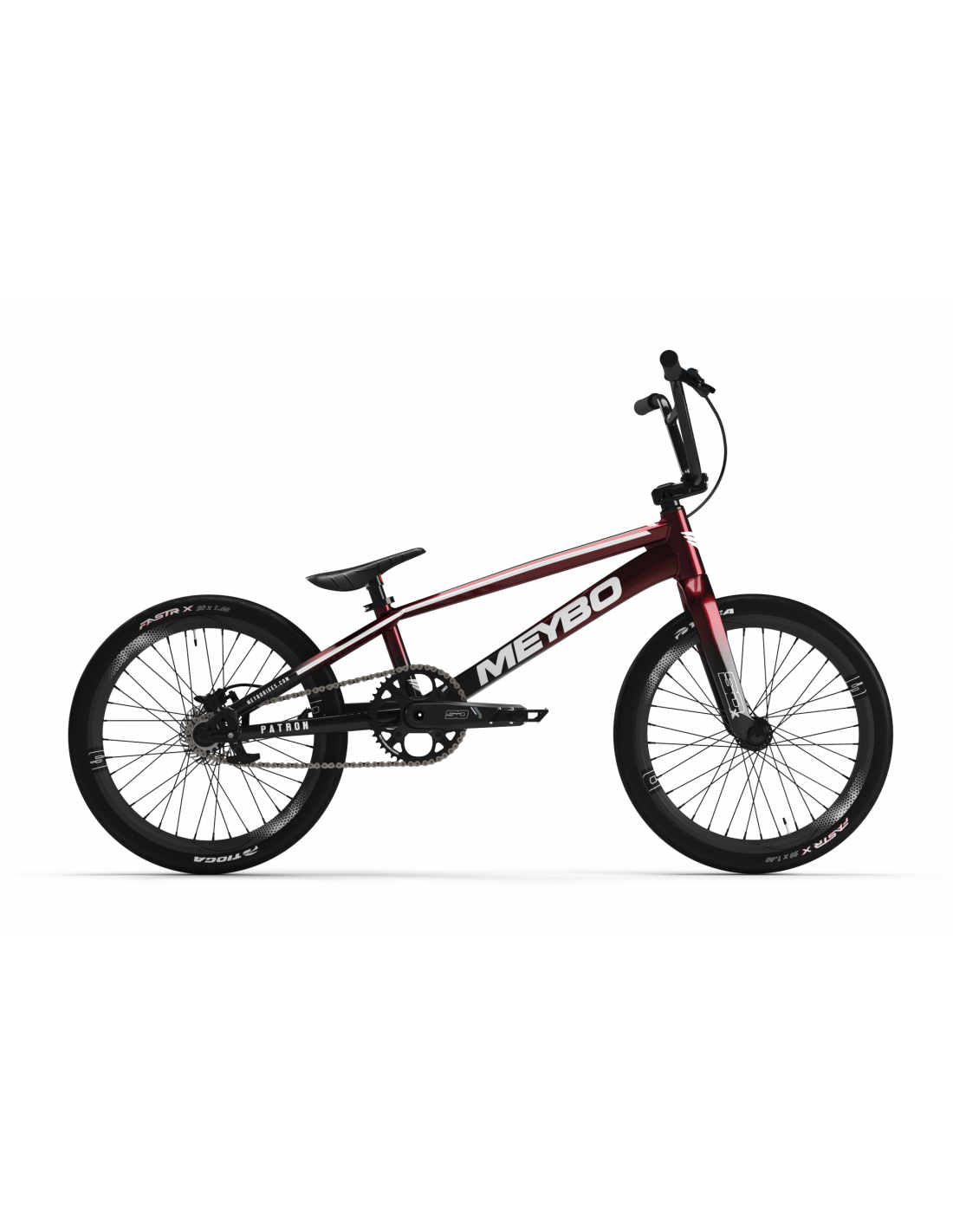

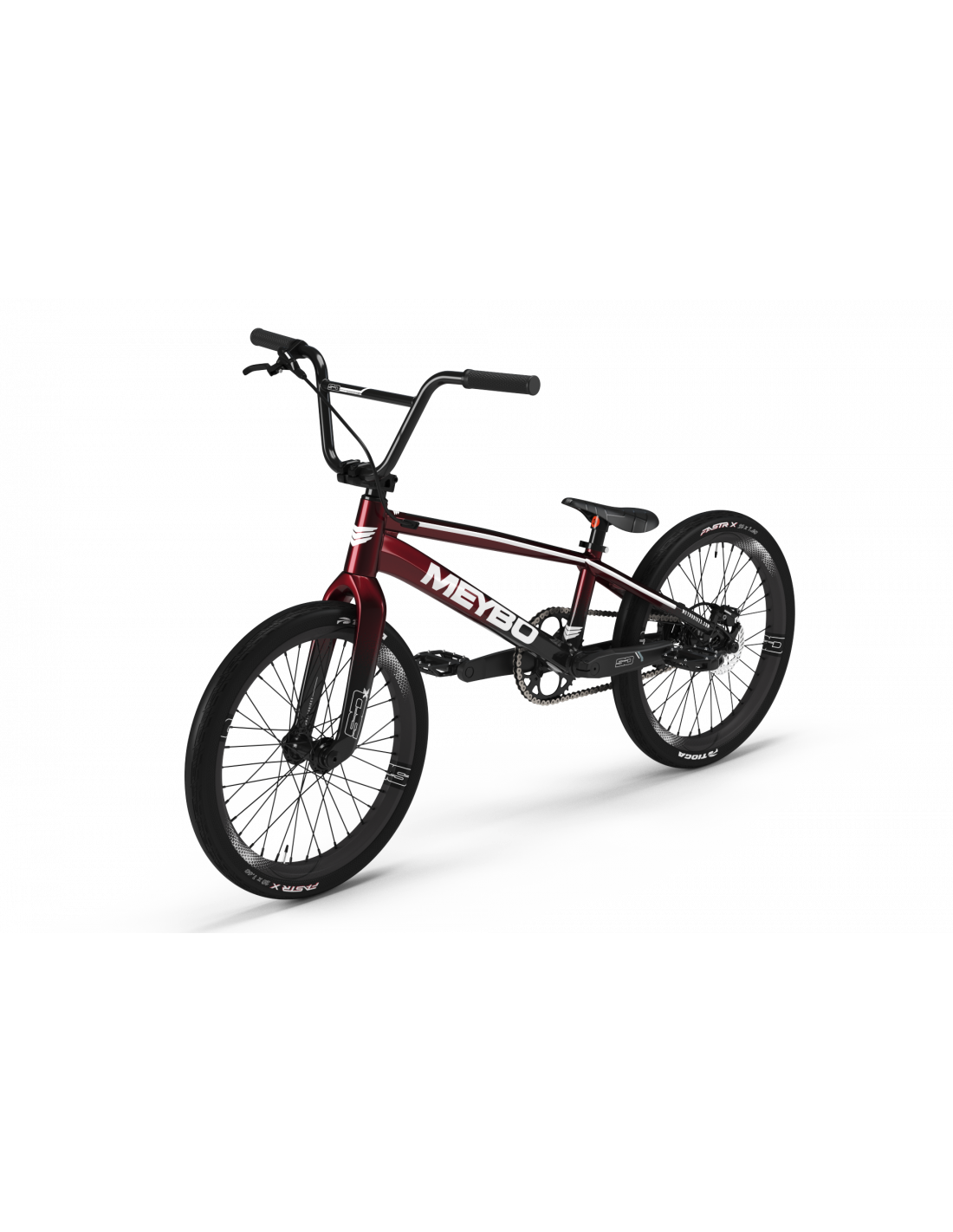

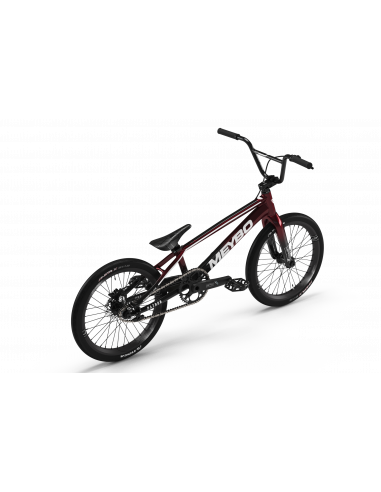

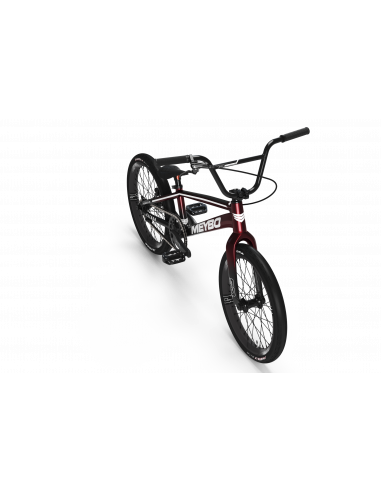

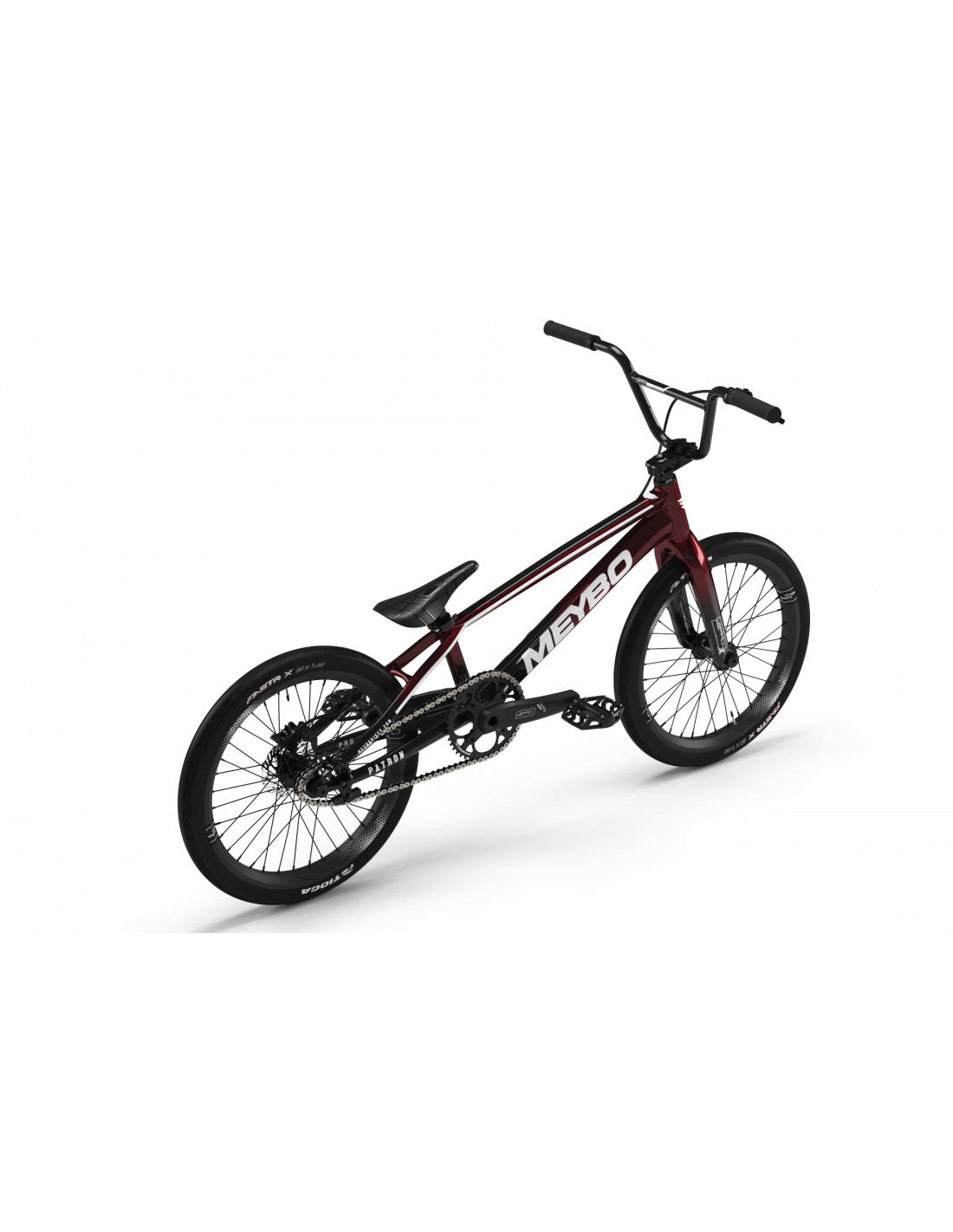

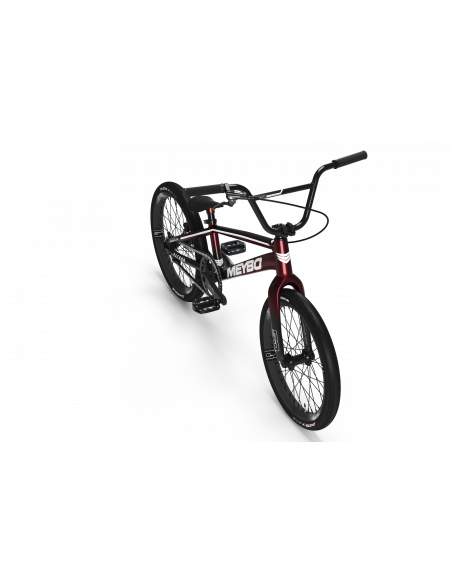

Meybo Patron 2025 Bmx - Red/Black/White - Pro 22.5"

MEYBO PATRON 2025

Discover the new Meybo Patron 2025, a premium complete BMX Race bike designed for performance.

This year, the Patron features several upgrades, including a Meybo HSX Alu frame, replacing the Meybo Holeshot frame from the 2024 model, and an SD Carbon V2 fork. The rest of the bike retains its many high-end components, selected for their dynamism and reliability, including a Shimano MT501 braking system, Tioga Fastr-X tires, and numerous other parts designed for top-level BMX Racing.

The Patron range is designed to fit every rider's morphology. Depending on the bike size, each component is carefully chosen to provide the best possible riding experience.

As you've guessed, the Patron is competition-ready. It’s the ideal machine to fly over the most demanding tracks on the global circuit and beat the stopwatch.

SPECIFICATIONS

• Frame : Meybo HSX Alloy Pro 22.5"
• Fork: SD Carbon V2 Pro Tapered 20mm 1-1/8" - 1.5"
• Headset : FSA Sealed Bearings Fully Integrated 1-1/8” - 1.5"
• Handlebars : SD Cr-Mo 8"
• Stem : SD - 100% CNC Machined 1-1/8” - 50mm
• Grips : SD - Lock-On 130mm
• Brake Kit : Shimano MT501 - Hydraulic Brake
• Front Hub : SD Ace Pro - 36H - 20mm
• Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
• Rims : SD Carbon M58 V2 - 20x1.75" - 25mm
• Tires : Tioga Fastr-X - 20x1.75"
• Crankset : SD Pro Hollow - 4 Bolt - 175mm
• Pedals : Wellgo LU-313 - Sealed Bearings
• Bottom Bracket : SD Hollow BB30 - 24mm - Euro/BSA
• Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 44T - Black
• Cog : 16T
• Chain : KMC K1 3/32 Silver/Black
• Chain Tensioners : Integrated
• Seat : Box Two Pro - 27.2mm
• Seat Clamp : SD QR - 31.8mm

GEOMETRY - FRAME

•
• Top Tube : 22.5"
• Down Tube : 22.99"
• Chainstay : 15.35"
• Head Tube Angle : 74°
• Seat Post Angle : 71°
• Head Tube Size : 1"-1/8 - 1.5"
• Seat Post Size : 27.5mm
• Dropouts : 15mm
• Buttom Bracket : BB30
• DISC ONLY
