Wheels 20" (451) Forward Joyride / Pride Control V1 10/10mm Polish

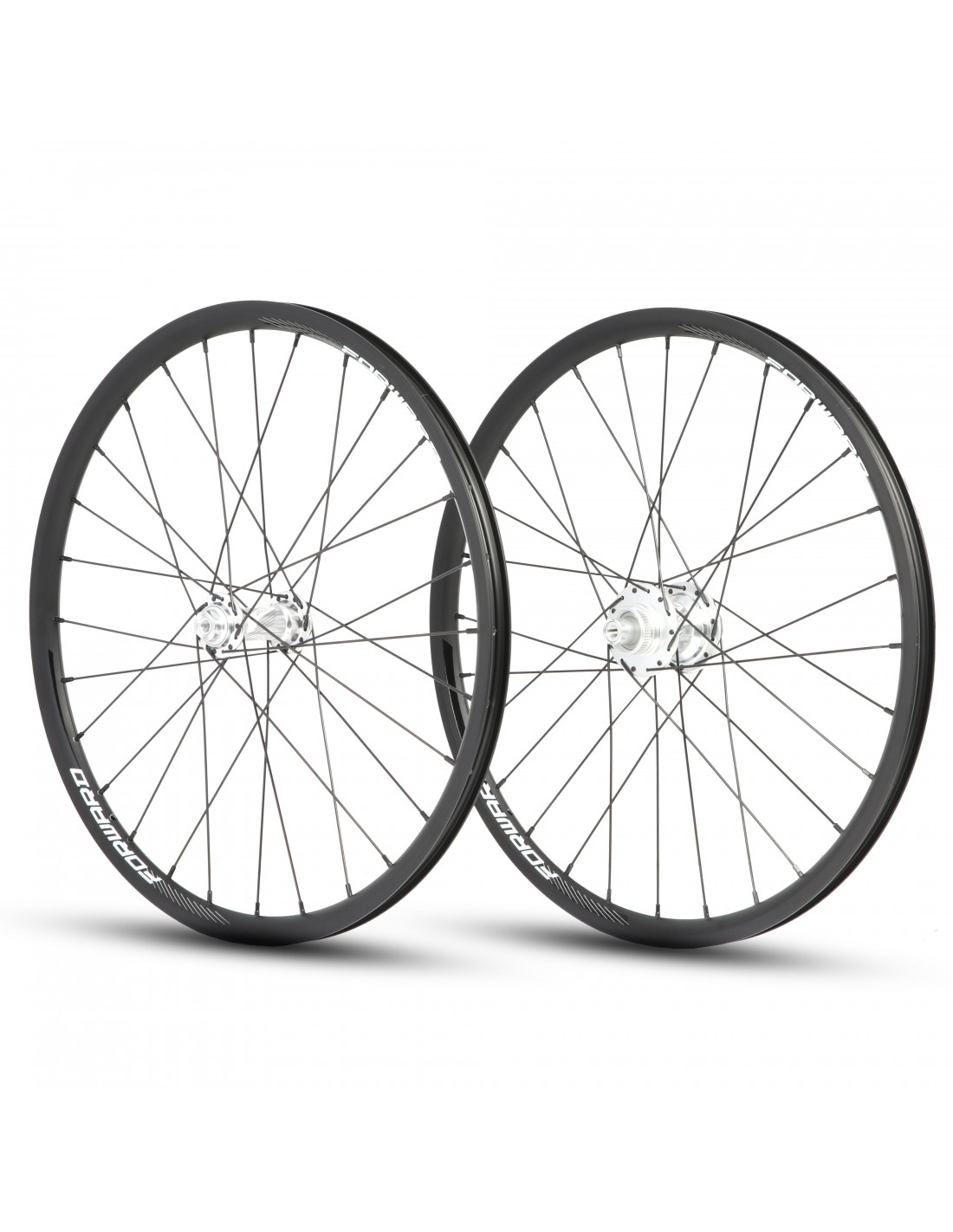

FORWARD JOYRIDE / PRIDE CONTROL WHEELS

The Forward/Pride wheels have been specifically developed for BMX Race bikes equipped with 20" (451) rims. They combine Forward-branded 6061 aluminum rims with Pride Control V1 hubs. The double-wall rims provide a great balance of strength and lightness. The Control hubs feature 6 micro-toothed pawls, delivering a precise engagement system with 180 points of contact. The result is near-instant power transfer, whether coming out of a turn or launching from the start gate.

NOTES

• The rear wheel comes with a lock ring and spacers to adjust the chainline.
• Rim tapes are not included.

SPECIFICATIONS - RIMS

• Size / ETRTO : 20" / 16-4051
• Material : 6061 Aluminum
• Walls : Double
• Number of spokes : 28
• Height : 21mm
• Width : 22.5mm
• V-Brake compatibility : Yes
• Valve type : Presta
• Compatible tire width : 20-57mm (20x1-1/8" - 20x1-3/8")

SPECIFICATIONS - HUBS

• Material : 6061-T6 Aluminum
• Front hub spacing : 10x100mm (female bolts)
• Rear hub spacing : 10x110mm (female bolts)
• Driver standard : Shimano
• Engagement type : 180 points / 6 pawls
• Disc mount : Centerlock
• Front bearing : 15267 (15x26x7mm)
• Rear bearing : 6902 (15x28x7mm)

WEIGHT

• Pair of wheels : 1574g
• Front wheel : 699g
• Rear wheel : 875g
