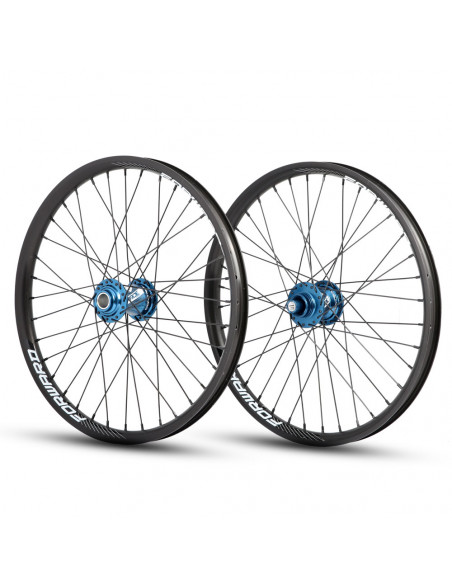

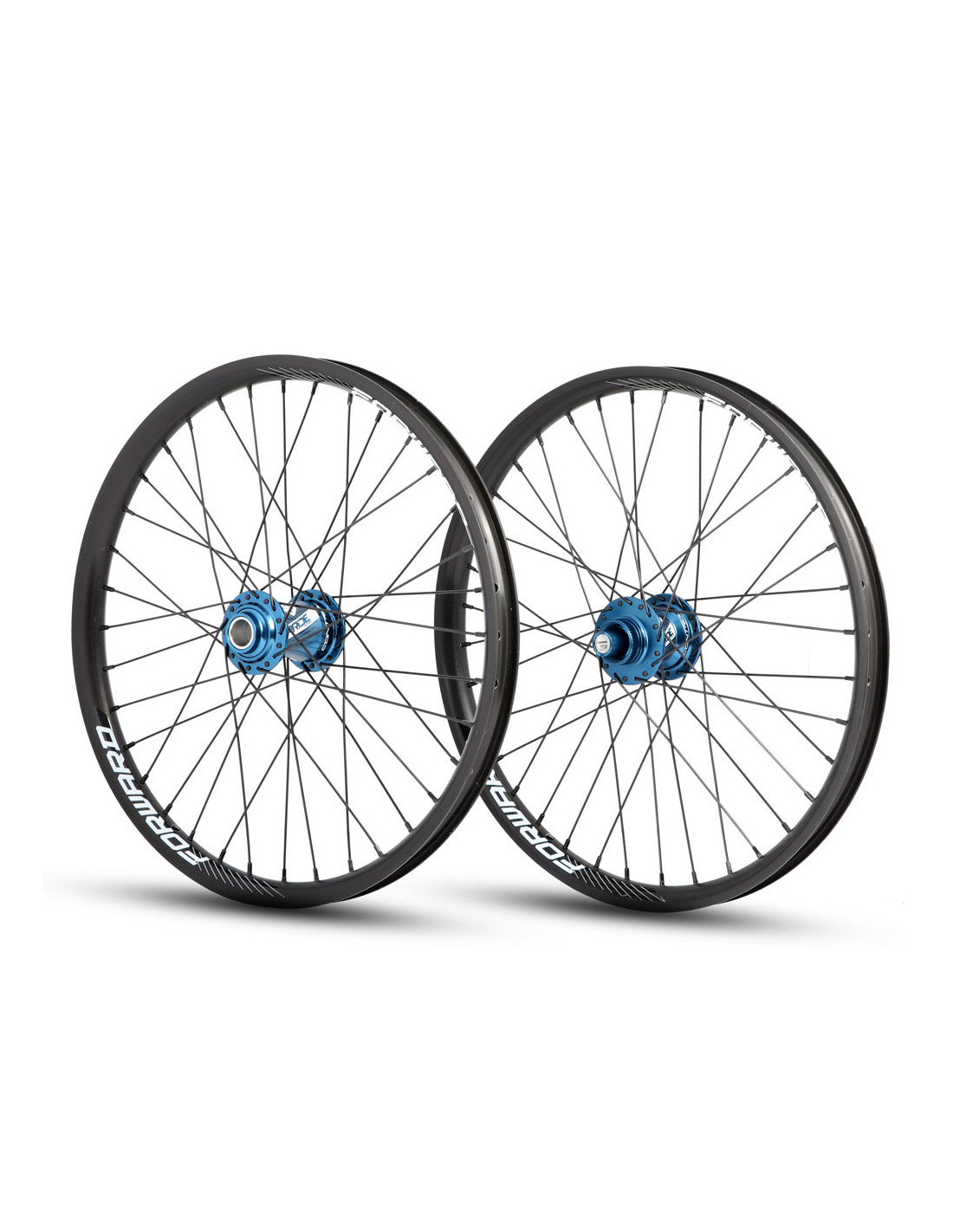

Wheels 20" (406) Forward Joyride / Pride Control V1 20/10mm Blue

FORWARD JOYRIDE / PRIDE CONTROL WHEELS

The Forward/Pride wheels have been specifically developed for BMX Race bikes equipped with 20" (406) rims. They combine Forward-branded 6061 aluminum rims with Pride Control V1 hubs. The double-wall rims provide a great balance of strength and lightness. The Control hubs feature 6 micro-toothed pawls, delivering a precise engagement system with 180 points of contact. The result is near-instant power transfer, whether coming out of a turn or launching from the start gate.

NOTES

• The 20mm front axle is not included.
• The rear wheel comes with a lock ring and spacers to adjust the chainline.
• Rim tapes are not included.

SPECIFICATIONS - RIMS

• Size / ETRTO : 20" / 24-406
• Material : 6061 Aluminum
• Walls : Double
• Number of spokes : 36
• Height : 19mm
• Width : 30mm
• V-Brake compatibility : No
• Valve type : Schrader
• Compatible tire width : 29-71mm (20x1.40" - 20x1.90")

SPECIFICATIONS - HUBS

• Material : 6061-T6 Aluminum
• Front hub spacing : 20x100mm (axle not included)
• Rear hub spacing : 10x110mm (female bolts)
• Driver standard : Shimano
• Engagement type : 180 points / 6 pawls
• Disc mount : ISO6
• Front bearing : 6805
• Rear bearing : 6902

WEIGHT

• Pair of wheels : 1730g
• Front wheel : 826g
• Rear wheel : 904g
