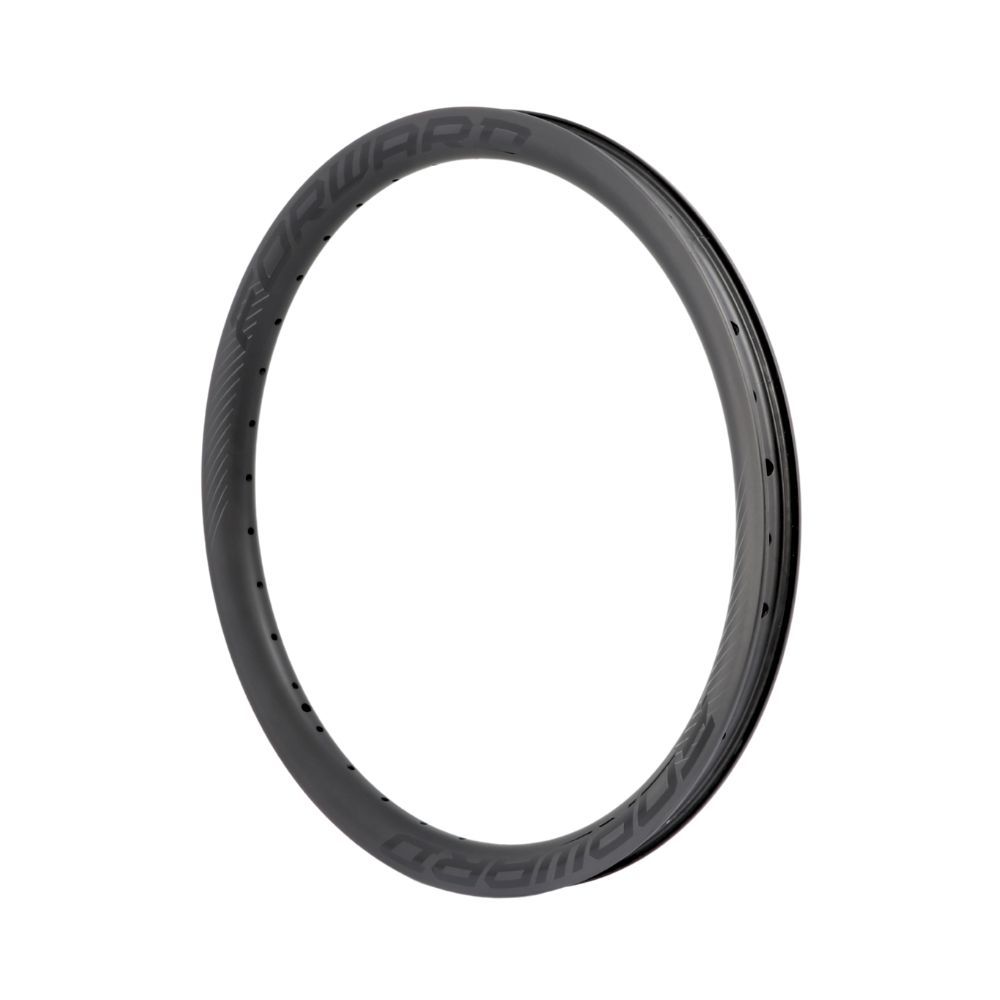

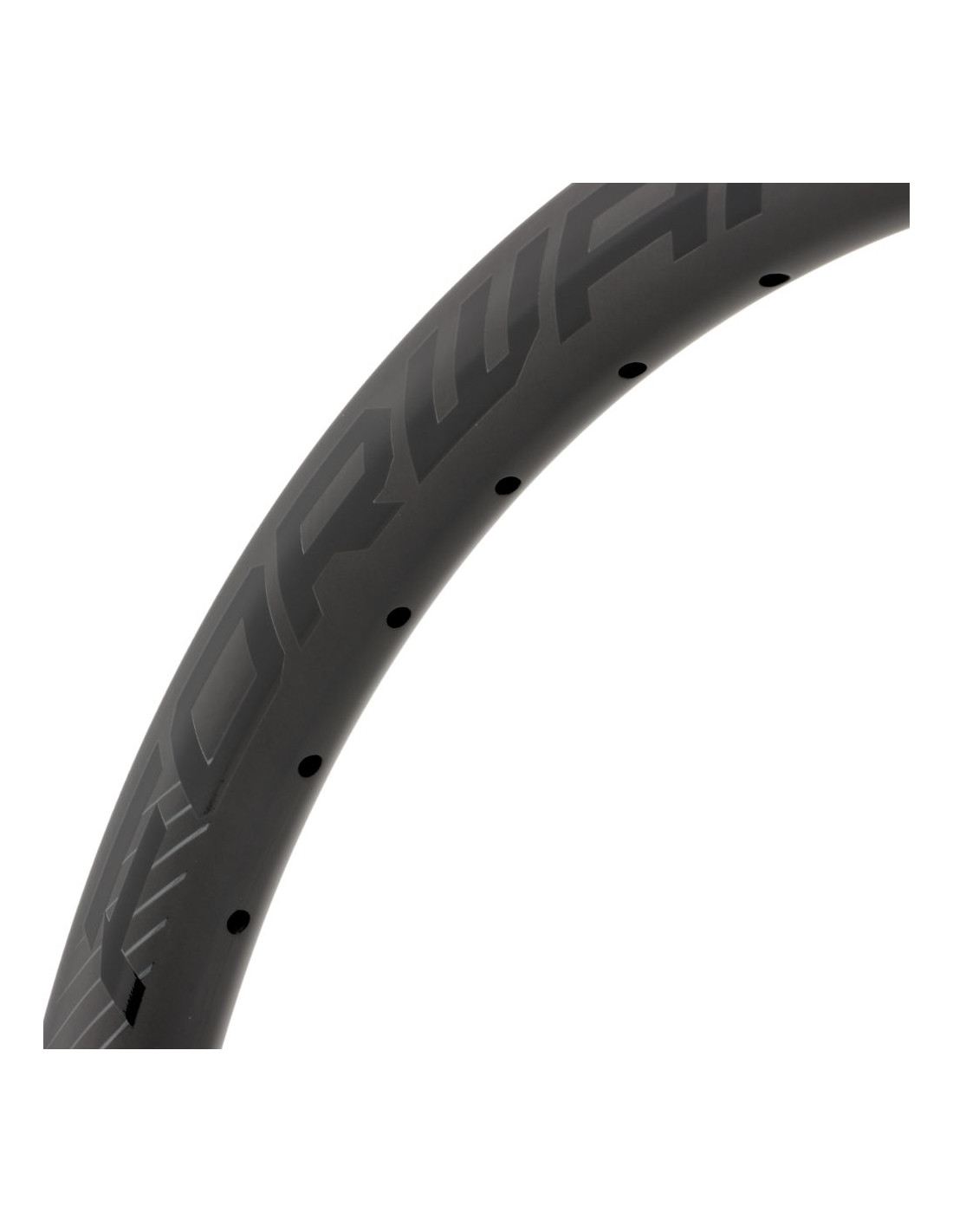

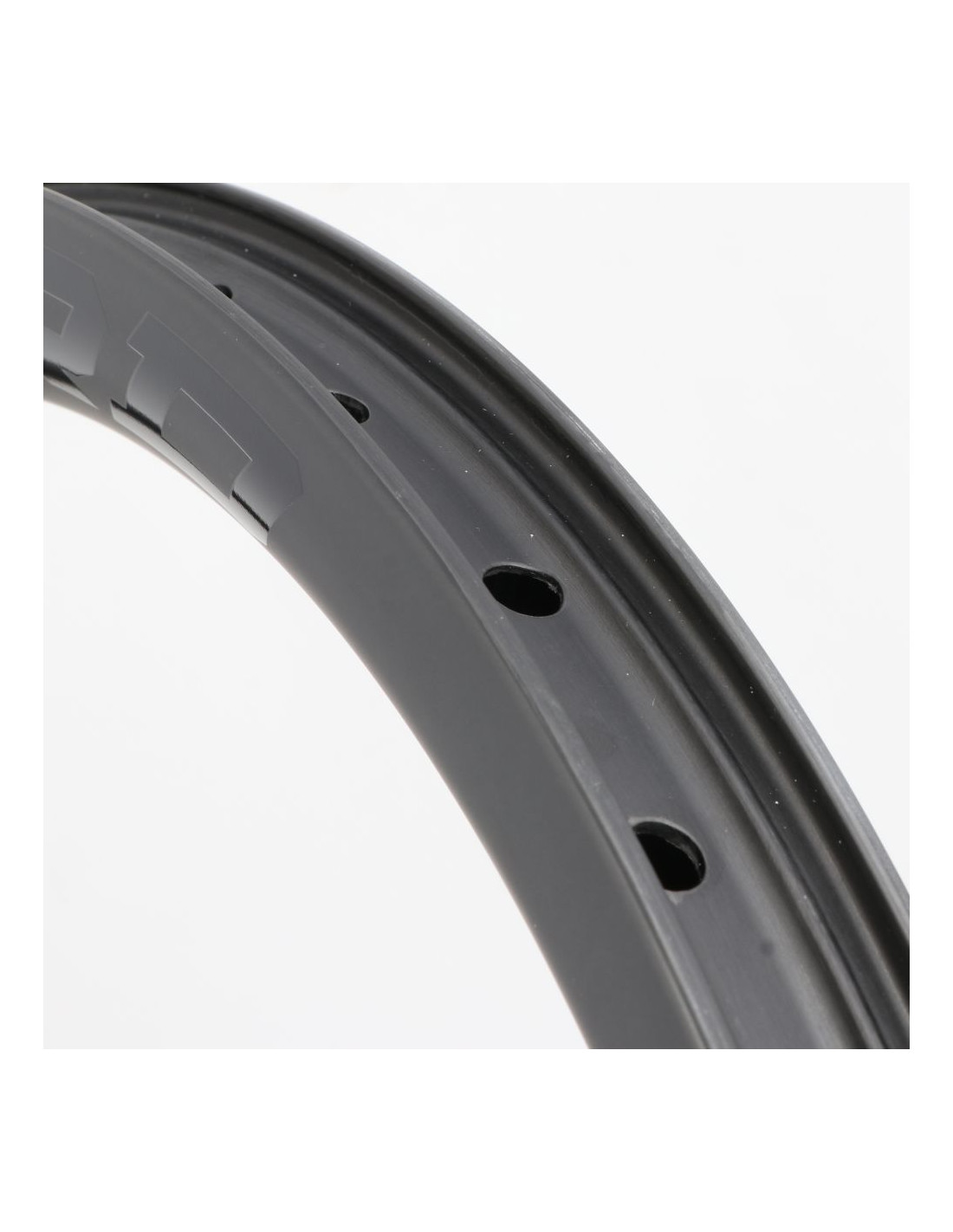

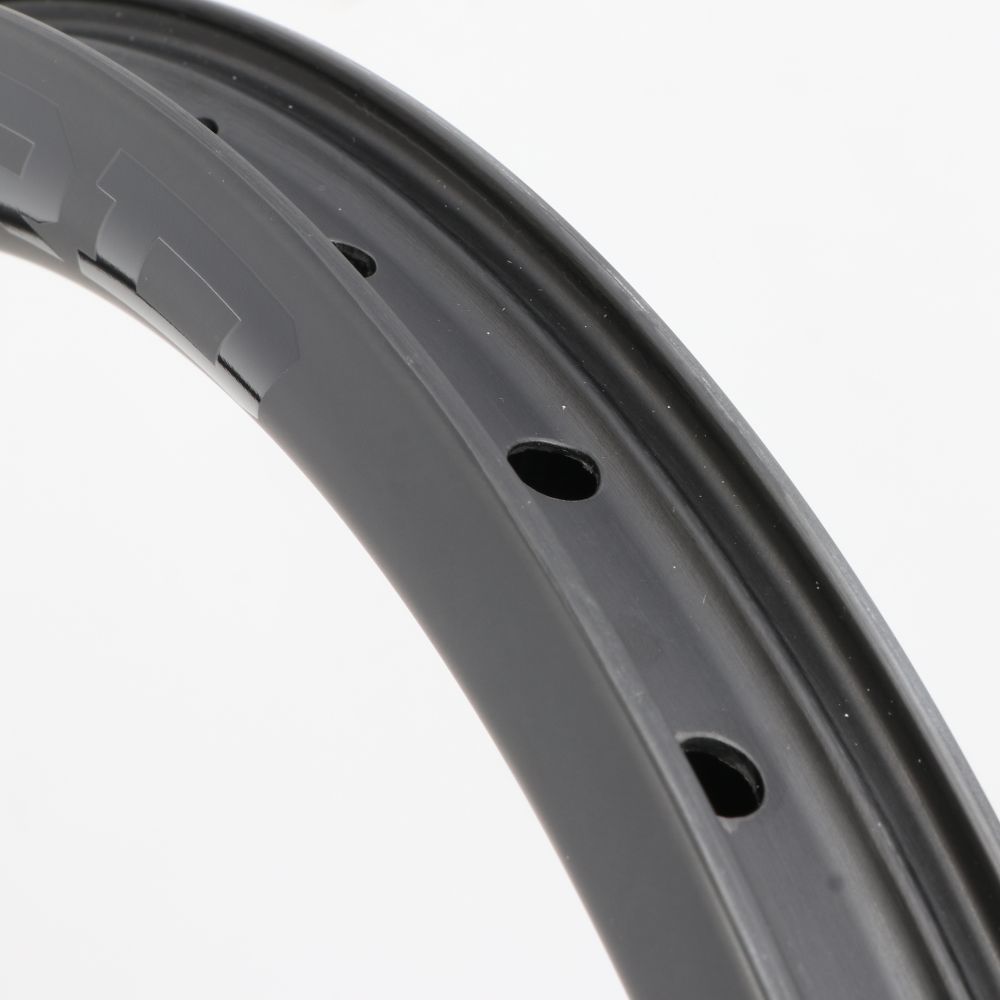

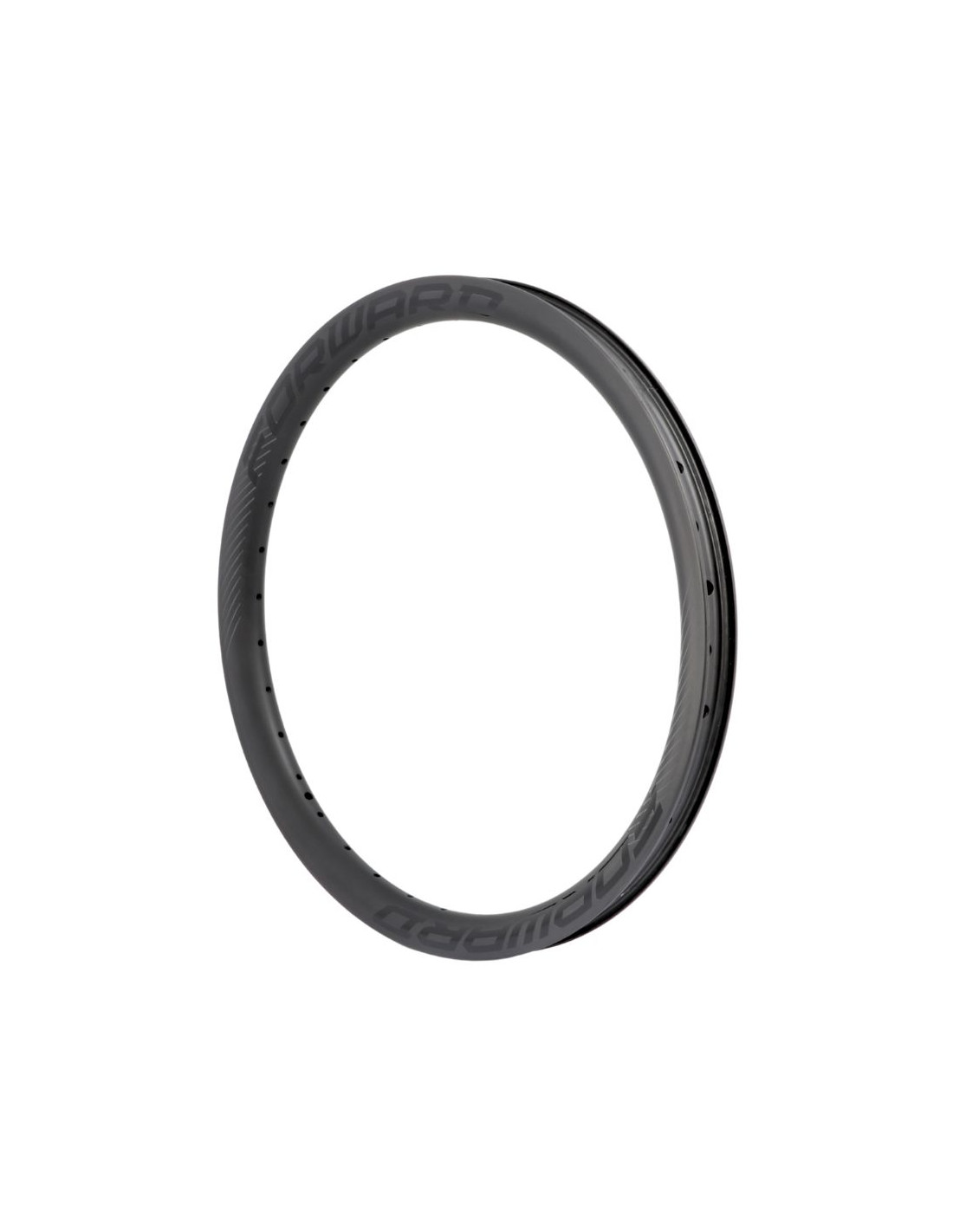

Rim 20" (406) Forward Joyride Carbon Disque UD Matt - 36H

FORWARD CARBON RIM

Forward Carbon rim made from Toray T700 carbon, designed for high-performance BMX. Lightweight and ultra-stiff, it offers excellent impact resistance, optimal responsiveness, and maximum reliability for racing. Ideal for demanding riders seeking performance and durability.

SPECIFICATIONS

• Material : Toray T700 Carbon
• Size / ETRTO : 20" / 23-406
• Spoke holes : 36
• Depth : 27 mm
• Width : 30 mm
• ERD : 372 mm
• Max pressure : 7.5 bar / 110 PSI
• Valve type : Presta
• V-Brake compatible : No
• Tubeless compatible : Yes
• Finish : UD Matte
• Weight : 322 g

RECOMMENDATIONS / BUILDING INSTRUCTIONS

• Please strictly follow the recommendations below, failure to do so may void the product warranty :

• - Do not exceed the maximum tire pressure
• - 3-cross lacing pattern only, no radial lacing
• - Recommended spoke tension: 110 kgf
• - Front use or rear use with disc brake only
