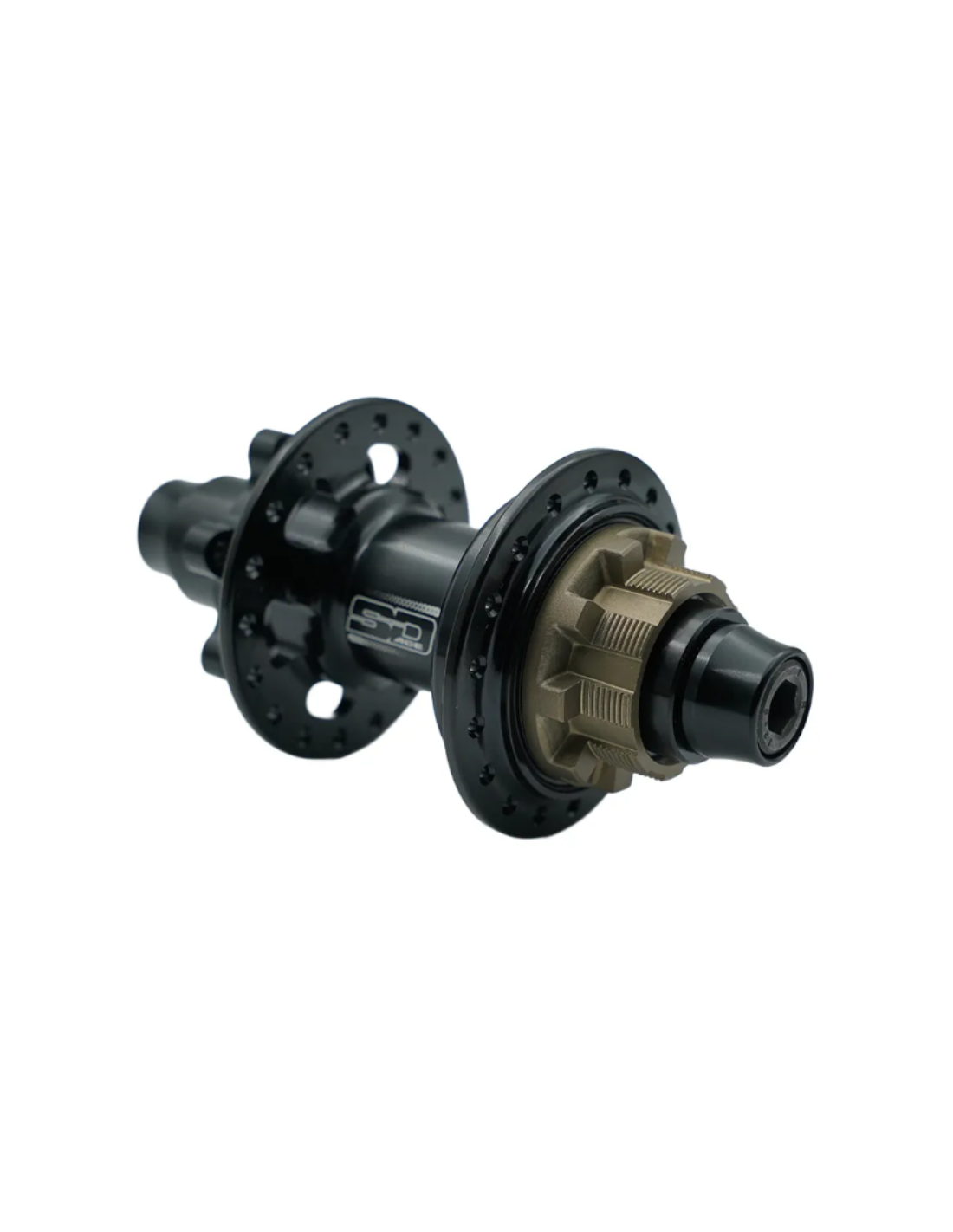

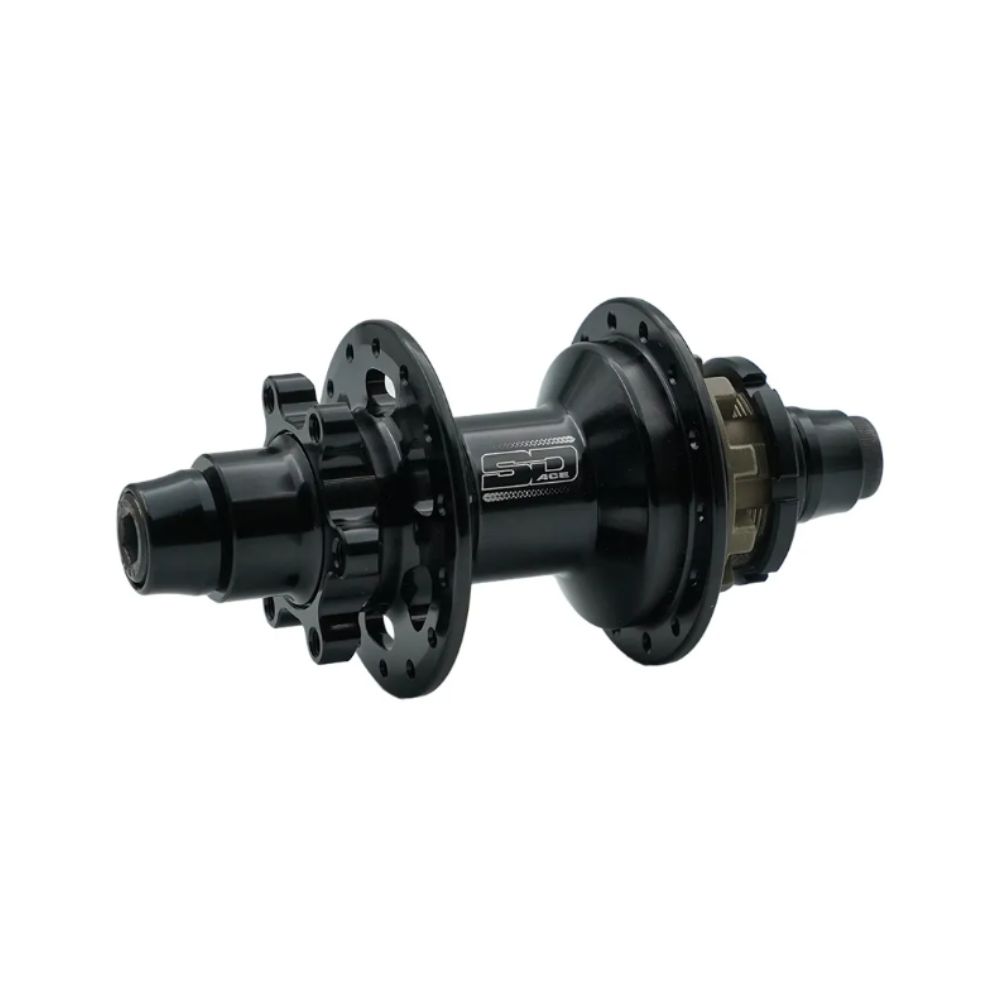

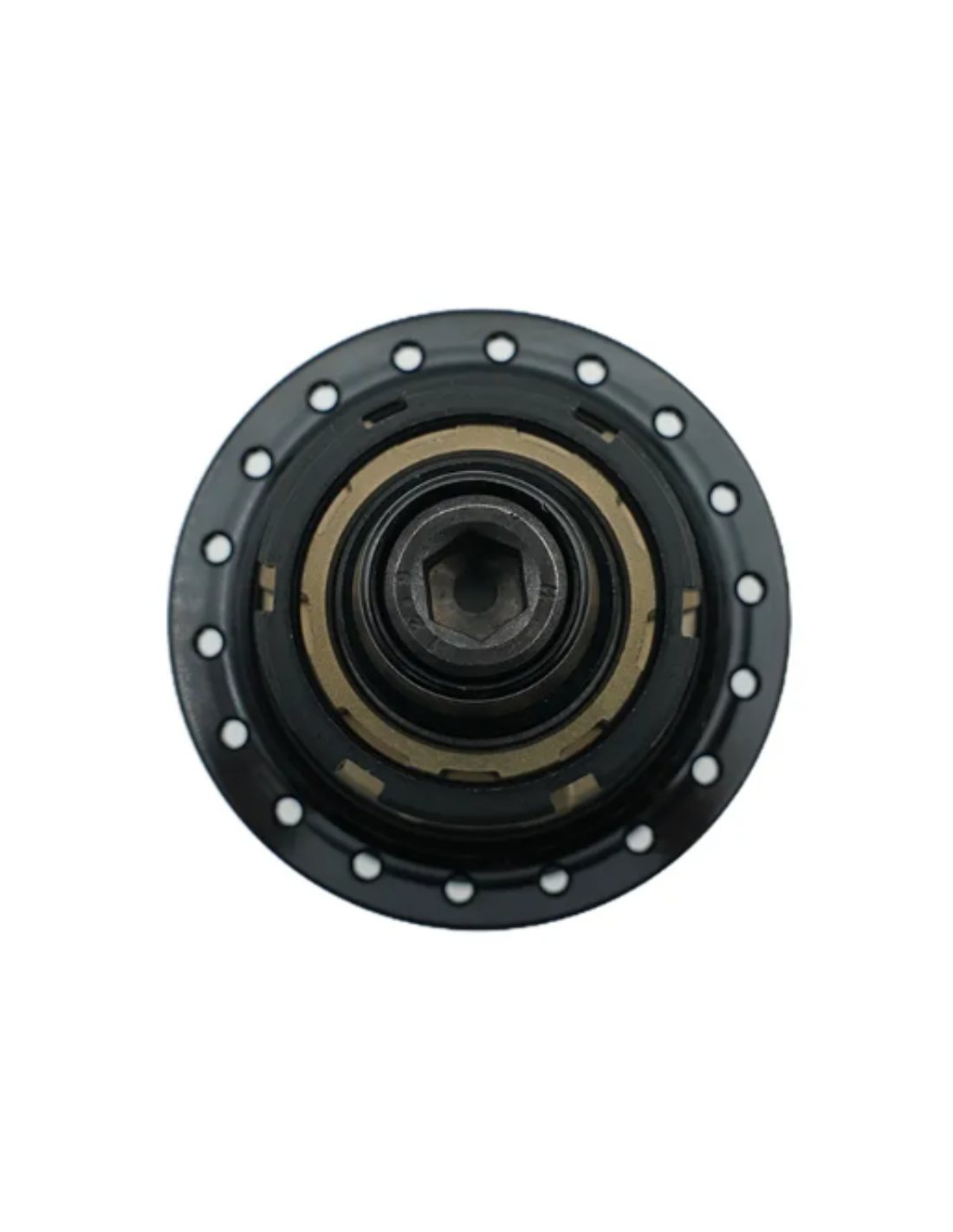

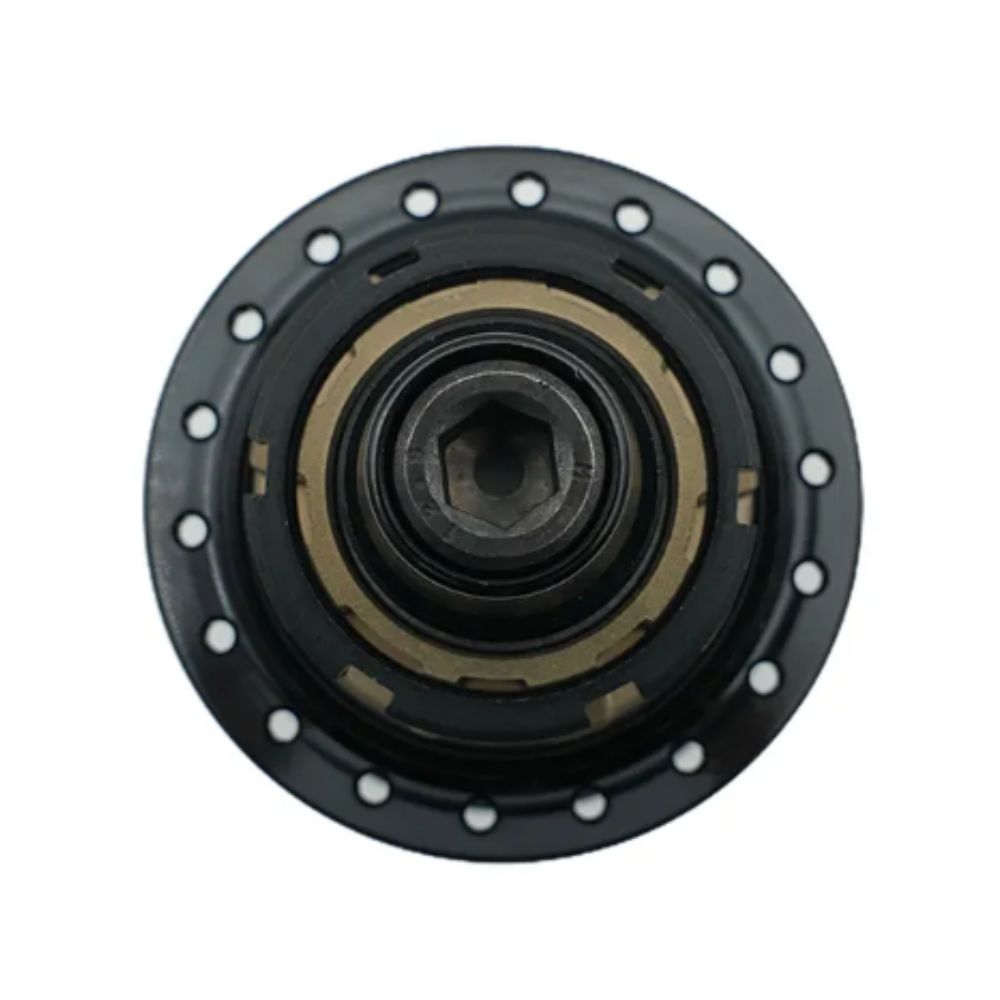

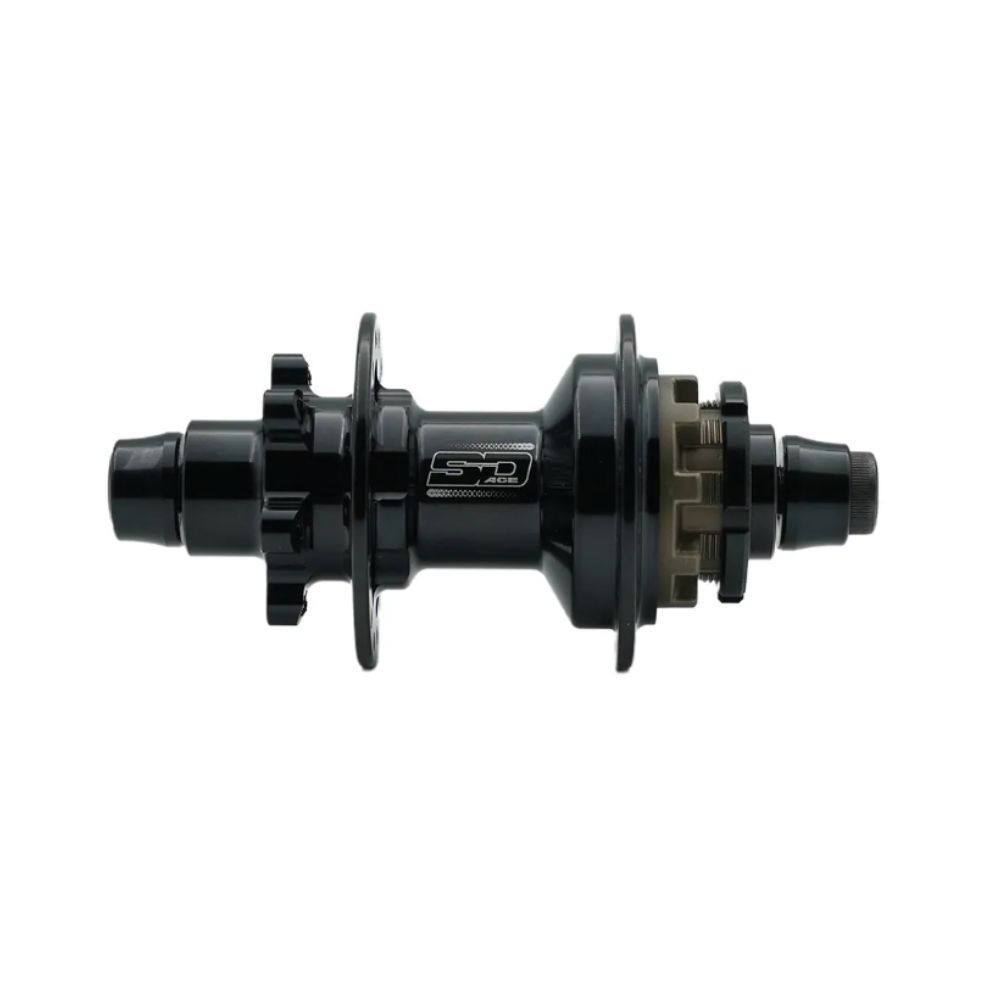

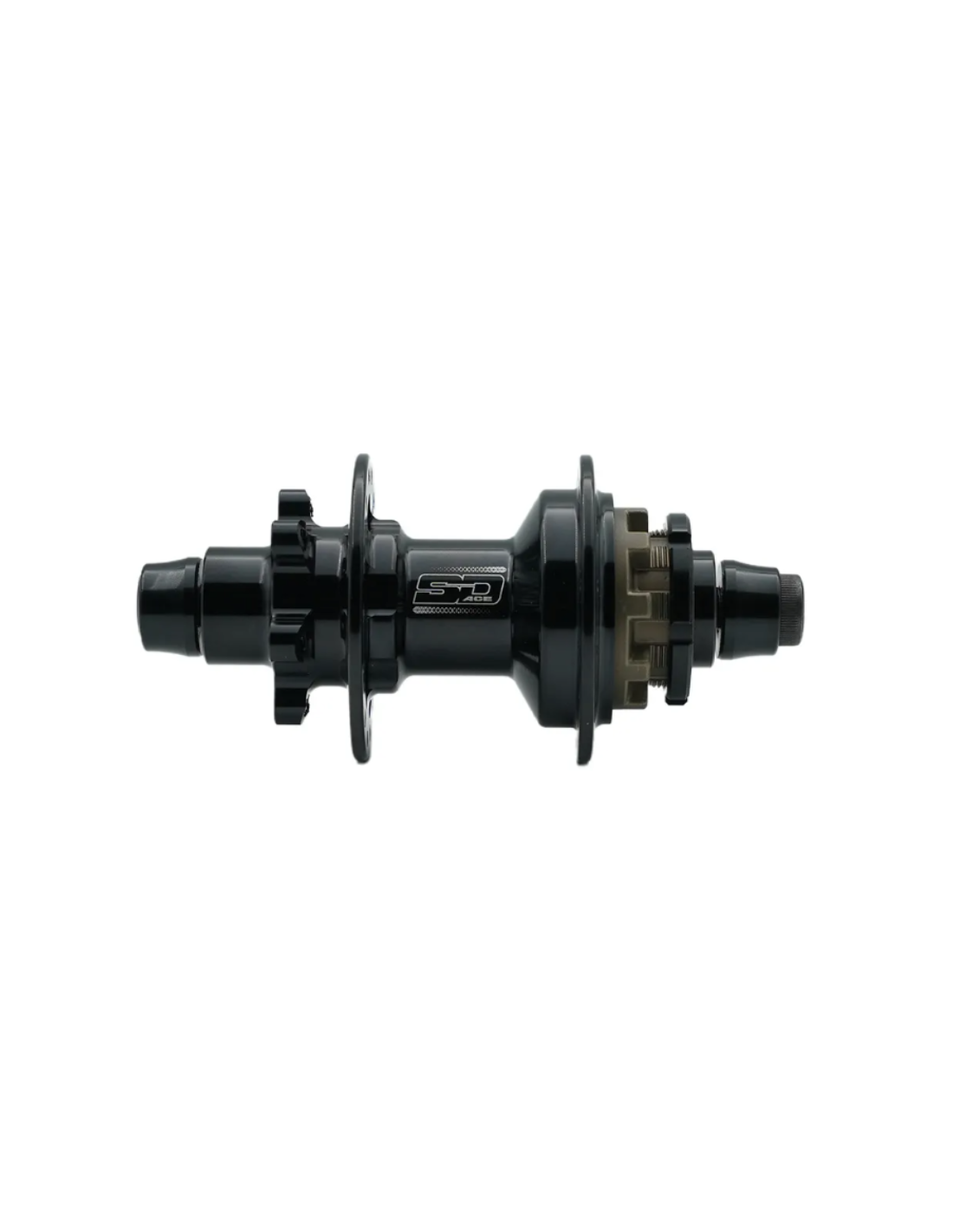

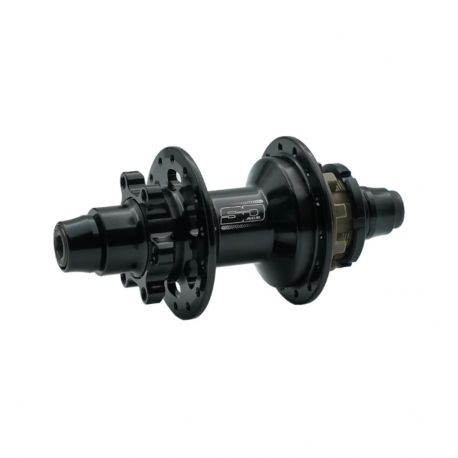

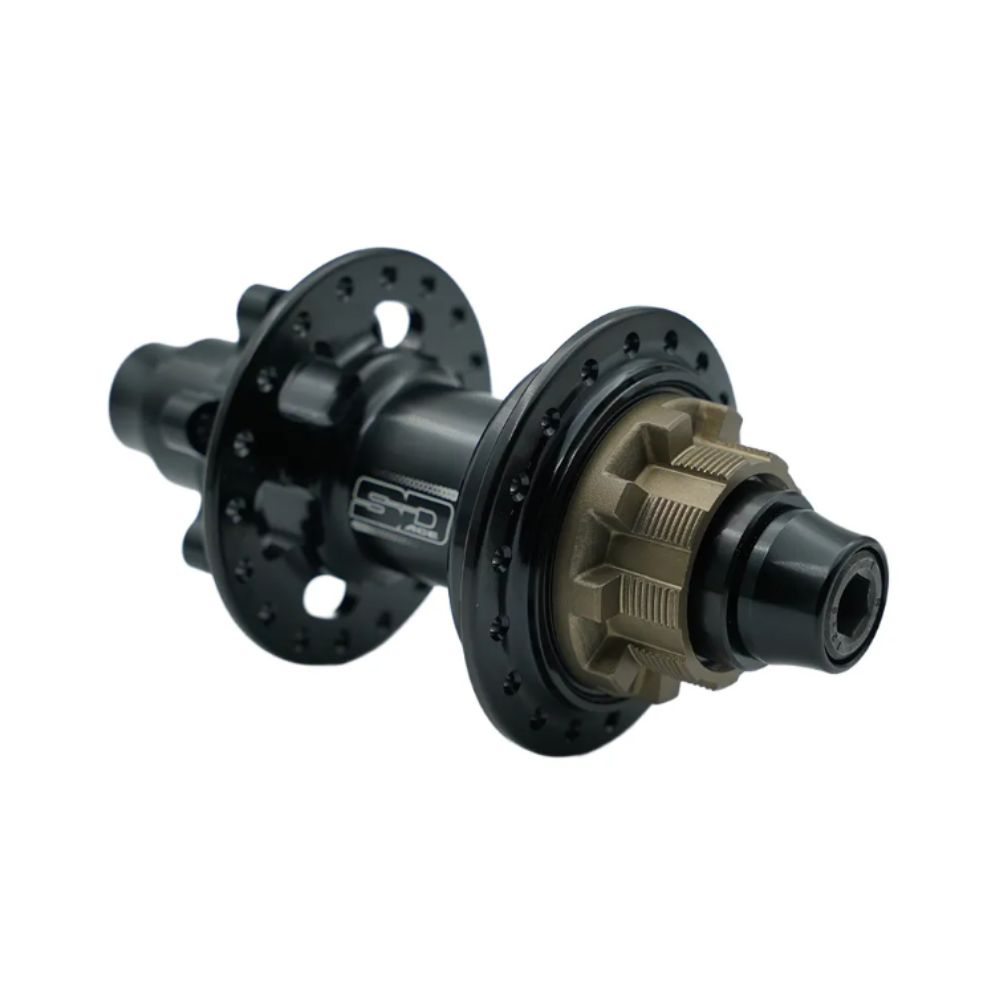

SD Ace V2 Rear Hub - 10mm - 28H - Black

SD ACE V2 REAR HUB

The SD Ace V2 hub is designed with an aluminum body combining lightness, strength, and performance. Engineered to provide efficient power transfer, it guarantees excellent reliability and high precision with every pedal stroke.

Featuring 180 points of engagement and 6 pawls, it ensures immediate responsiveness and fast engagement to optimize power transfer. Its sealed bearings contribute to long-lasting smooth rotation while protecting the hub from impurities and wear. Its ISO6 system guarantees excellent disc stability even under heavy braking.

A robust, smooth, and precise hub, designed to meet the demands of riders seeking performance and reliability.

NOTE : The hub is supplied with a lock ring and a spacer to adjust the chainline.

SPECIFICATIONS

• Material: Aluminum
• Spacing: 10x110mm
• Hole count: 28
• Bearings: 6902-2RS
• Weight: 326g (without bolts)

TECHNICAL INFO

A : Total length: 110 mm
B : Distance between flange and outer side on non-drive side: 32mm
C : Distance between flange and outer side on drive side: 26mm
D : Flange diameter on non-drive side: 58mm
E : Flange diameter on drive side: 58mm

RECOMMENDATIONS

Hub maintenance and lacing must be carried out by a professional, otherwise the product warranty will be void.
