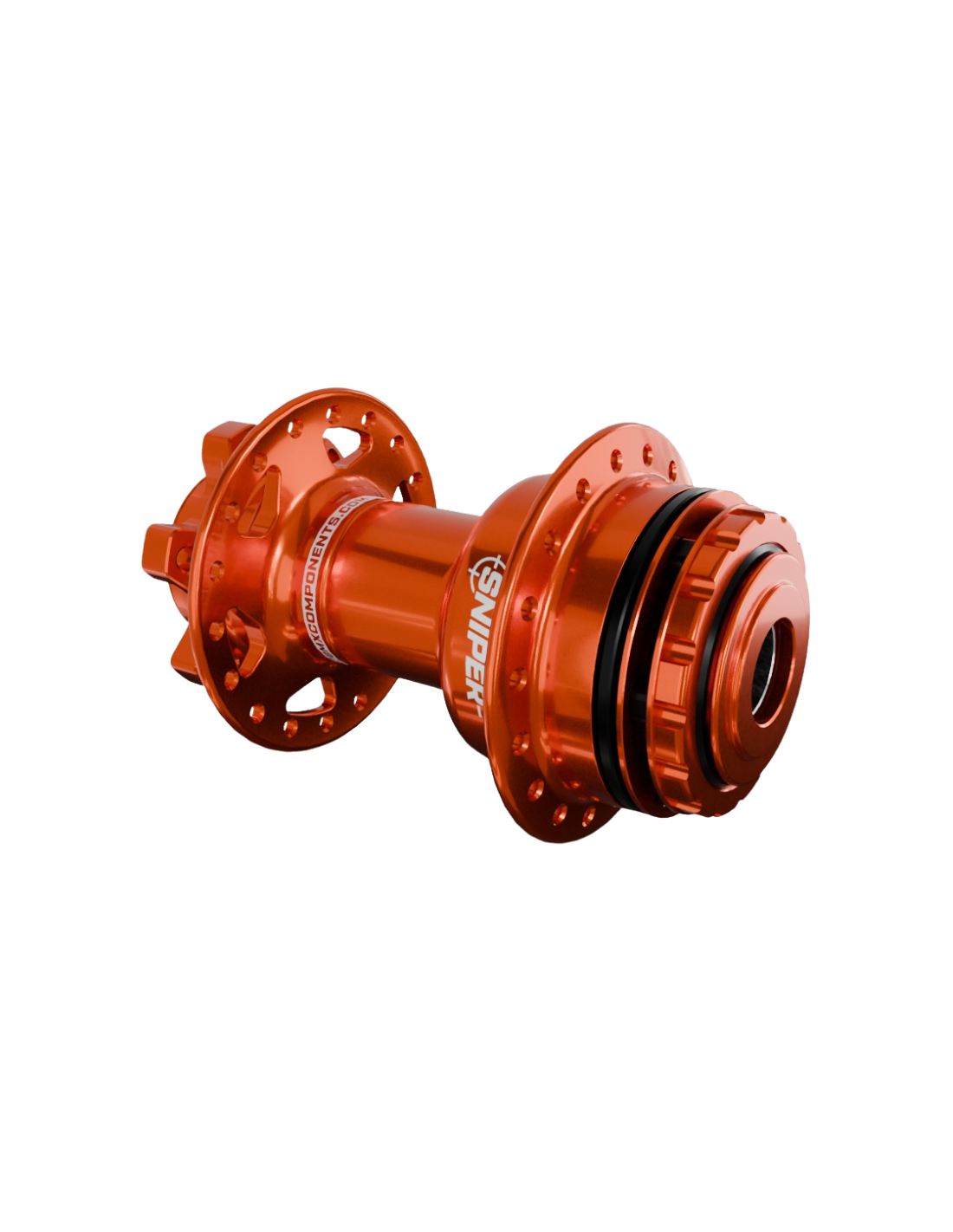

SD-X Sniper Evo Air HSX Rear Hub - 15mm - 28H - Orange

SD COMPONENTS SD-X EVO AIR HSX REAR HUB

The SD-X Sniper Evo Air HSX rear hub is designed specifically for young riders using Meybo HSX frames. This full-engagement rear hub combines lightweight aluminum construction with SKF ABEC-5 bearings, ensuring maximum efficiency and optimal reliability in BMX racing.

The advanced direct engagement system provides immediate power transfer, silent operation, and zero resistance while freewheeling.

This hub is supplied exclusively as a 15 mm version and cannot be converted to a 10 mm configuration.

• Compatible exclusively with Meybo HSX frames (Alloy and Carbon)
• Hub shell and internal components made from premium 7075 aluminum
  Supplied in 15 mm configuration as standard
  High-quality SKF ABEC-5 bearings
  Hub supplied without EVO cog (sold separately)
  Hub supplied without 15 mm axle (frame specific)
• Weight limit 55kg

SPECIFICATIONS

• Material : 7075 Aluminum
• Rear spacing : 15x110mm
• Hole count : 28
• Driver standard : SD-X Evo
• Engagement type : Direct
• Disc mount : ISO6
• Hub bearings : 6903
• Driver bearings : 6705 / 6806
• Engagement bearings : Sniper Air
• Weight : 320g

TECHNICAL INFO

A : Total length : 110 mm
B : Flange to outside non-drive side : 25mm
C : Flange to outside drive side : 25mm
D : Flange diameter non-drive side : 56mm
E : Flange diameter drive side : 56mm
