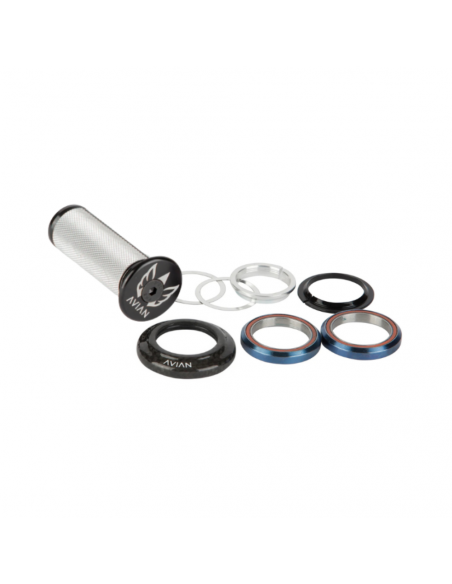

Avian (IS) 1-1/8" Headset - Carbon

AVIAN HEADSET (IS) 1-1/8"

The Avian headset is an “integrated” or “IS” type headset, specifically designed for frames with a 1-1/8" head tube. Precisely CNC-machined, this headset ensures easy installation and guarantees smooth, responsive steering. Its design meets the demands of the most discerning riders, delivering an exceptional riding experience.

SPECIFICATIONS

• Material: Aluminum / Steel (Bearings)
• Type: Integrated (IS)
• SHIS Code: IS42/28.6 - IS42/30
• Upper Bearing: 1-1/8" (30.4–41.8 mm / 45°x45°)
• Lower Bearing: 1-1/8" (30.4–41.8 mm / 45°x45°)
• Fork Compatibility: 1-1/8"
• Weight: 113g (complete kit)

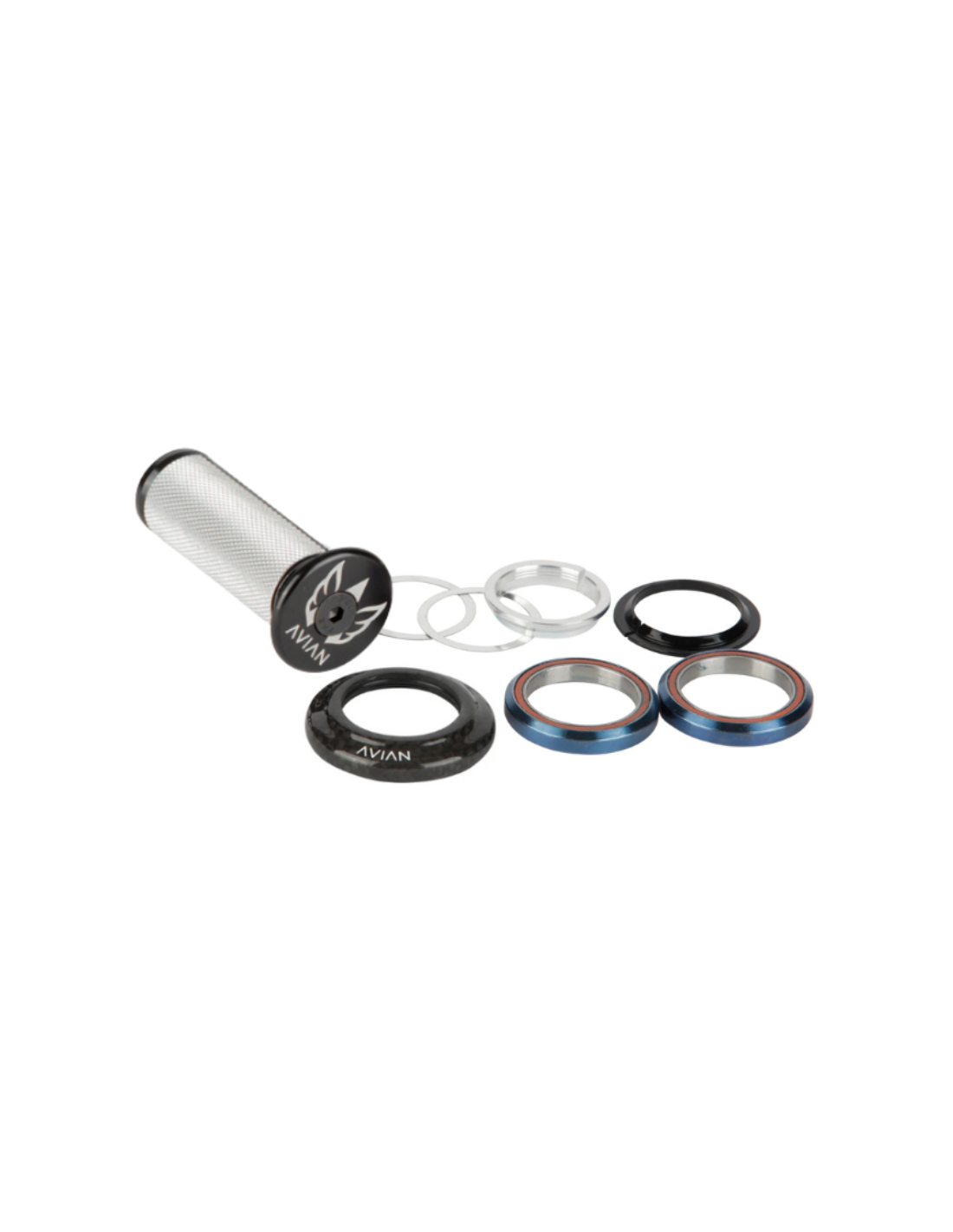

Kit contents:

• 1x Top cover (8 mm)
• 1x Expander plug
• 2x Adjustment washers
• 1x Compression ring
• 1x Upper bearing
• 1x Lower bearing
• 1x 1-1/8" fork crown race

Note: The included expander plug is designed for use with 1-1/8" steerer tubes with a 23.2 mm inner diameter. If your fork has a steerer tube thicker than 2.7 mm, the expander plug will not be compatible. Fork manufacturers using steerer tubes thicker than 2.7 mm should provide a stem lock system or another type of internal locking device.
