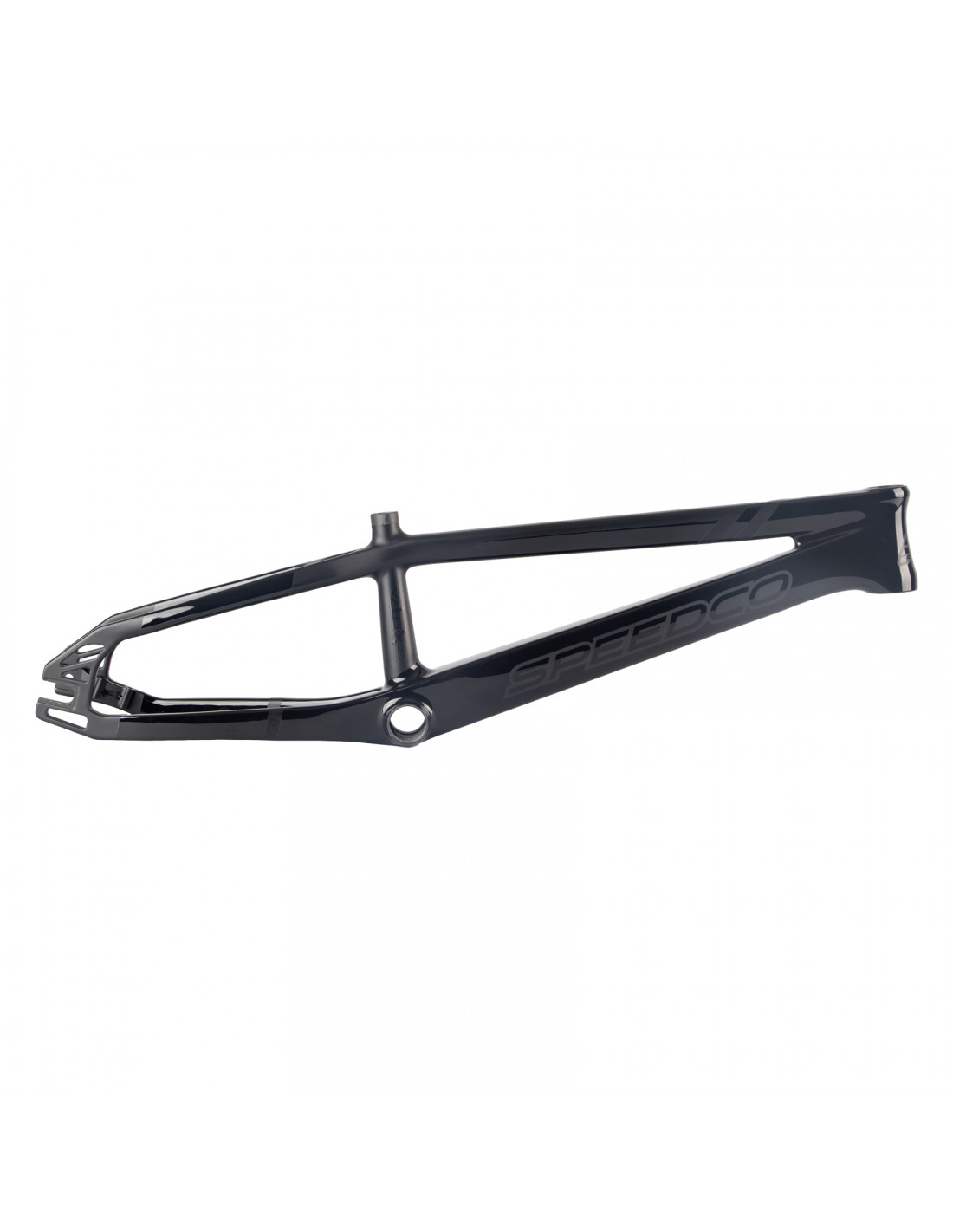

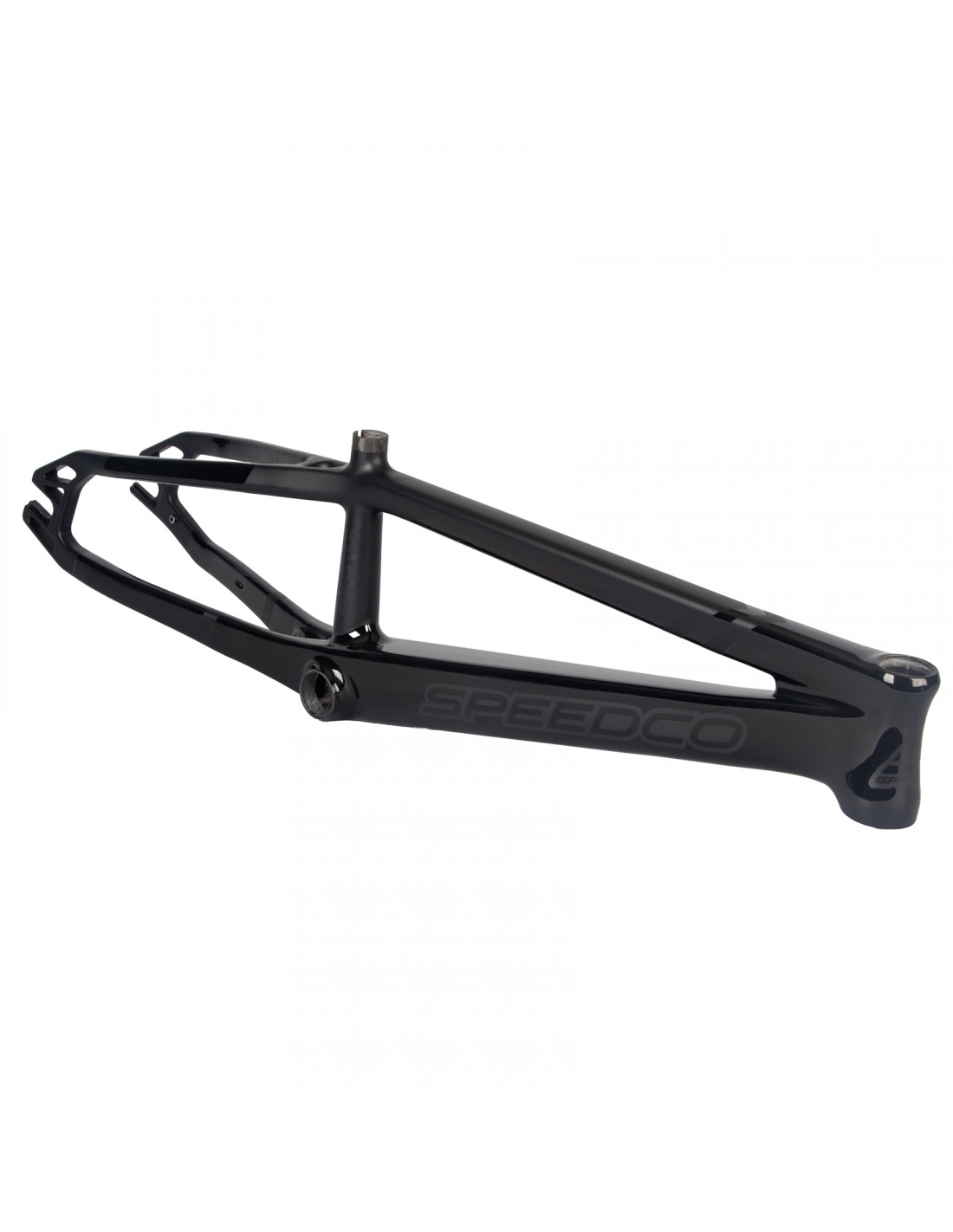

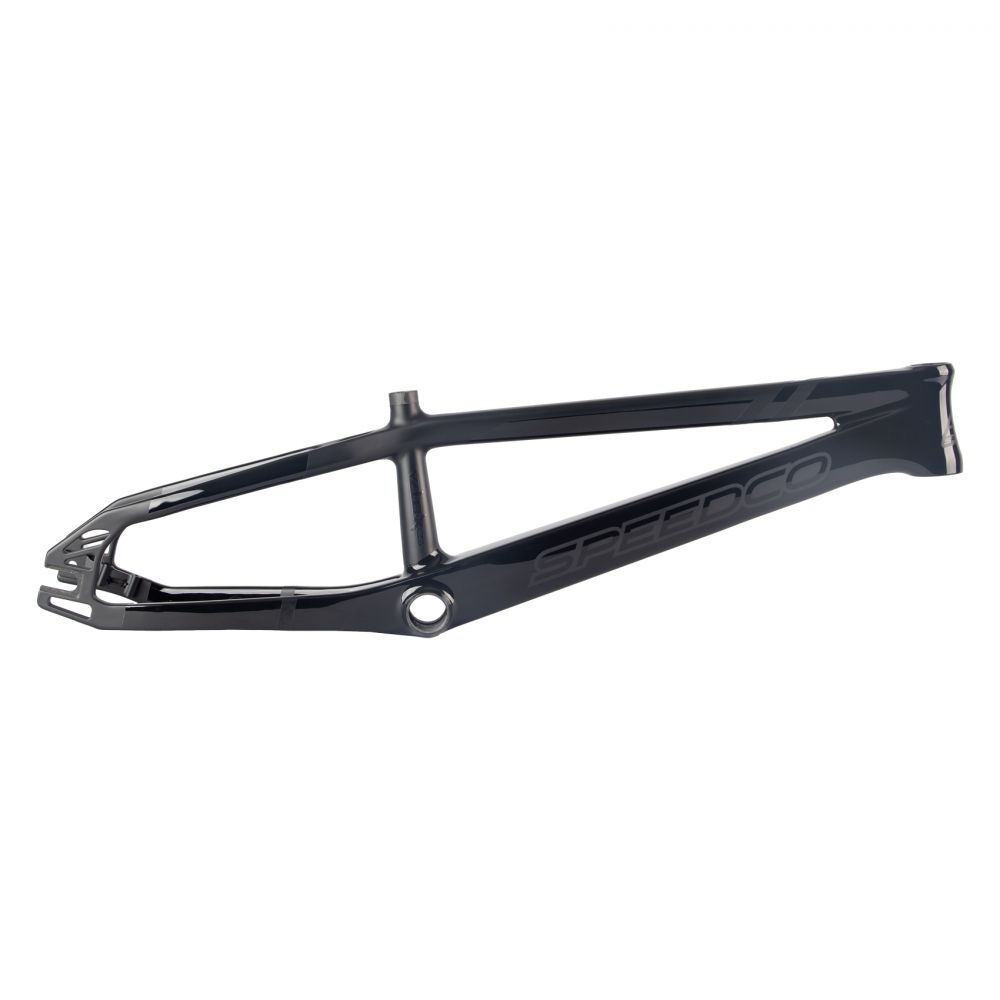

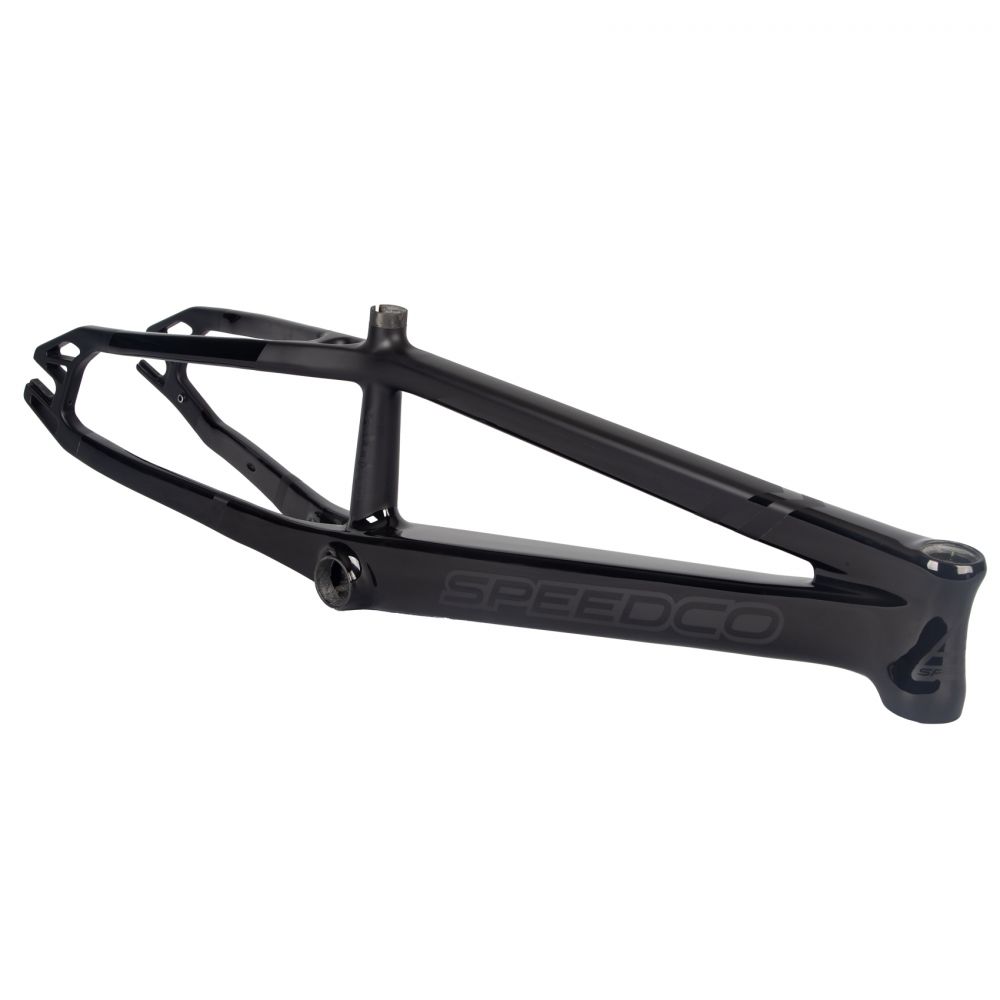

Speedco Velox Evo Frame - Stealth Black

SPEEDCO VELOX EVO FRAME

The first generation of VELOX frame was a true turning point in the BMX RACE carbon frame market. These atypical shapes and monocoque construction evolved the norms.

The all-new Velox Evo is the result of continuous innovation and Speedco's commitment to pushing the boundaries. It's no secret; the game is changing, evolving, if you prefer. Lap times continue to improve year after year, and riders are constantly pushing the limits in pursuit of that extra 1%, scrutinizing every aspect of their equipment.

To build this new frame, Speedco examined the requirements of high-level riders and reimagined their winning technology to deliver a masterpiece of performance.

Tested and approved throughout the 2023 season in the hands of Rico Bearman, the U23 World Cup overall champion.

Aerodynamic and not just for aesthetics.
The Velox Evo is designed for UCI World Cup-level competition, using tube shapes borrowed from the fastest bikes in the professional road peloton for optimized performance at maximum speeds.

New Down Tube

The down tube of the Velox Evo connects directly to the rear stays through the bottom bracket, creating a reinforced power center for increased responsiveness from the start and in corners.

Flat Mount Attachment

The frame is compatible with Flat Mount standard brake calipers, which offer more clearance for the caliper. The brake hose is routed internally from headtube to end for easy maintenance. It is compatible with 10mm, 15mm, or 20mm rear wheel axles (axle not included with the frame), and the rotor standard is 140mm (no option to install 120mm).

Asymmetric Rear Stays

The drive side is asymetric at the rear dropouts to allow the installation of an internal chain tensioner, while the upper seat stay has been raised to eliminate chains sucks when using bigger chainrings.

SPECIFICATIONS

• - 100% Torayca Carbon Frame
• - Compatible only with "Flat-mount" hydraulic calipers - 140mm rotors
• - Headtube standard IS42 - IS52
• - BB86 bottom bracket (Ø 41mm)
• - Integrated chain tensioner on the rear dropout
• - Compatible with 10mm / 15mm / 20mm axles (axles not included)

GEOMETRIES & SIZES

TECHNICAL SPECIFICATIONS
