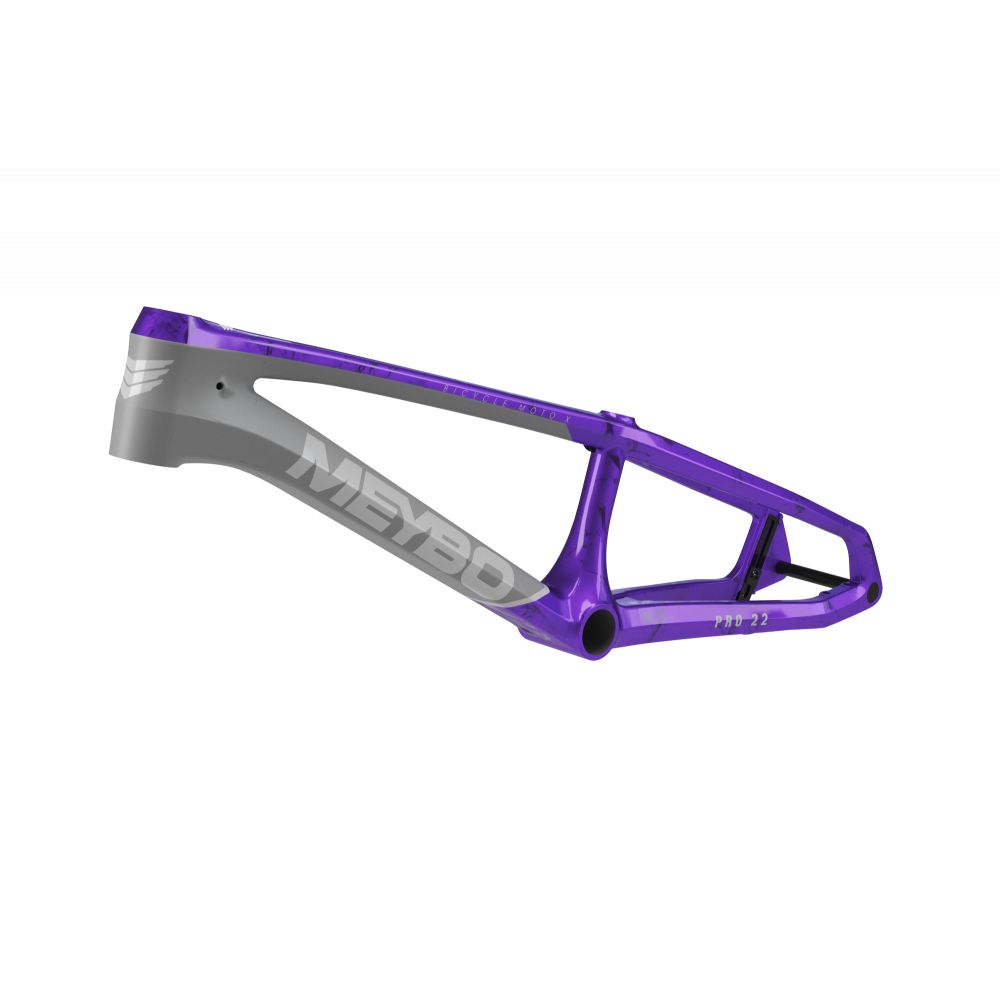

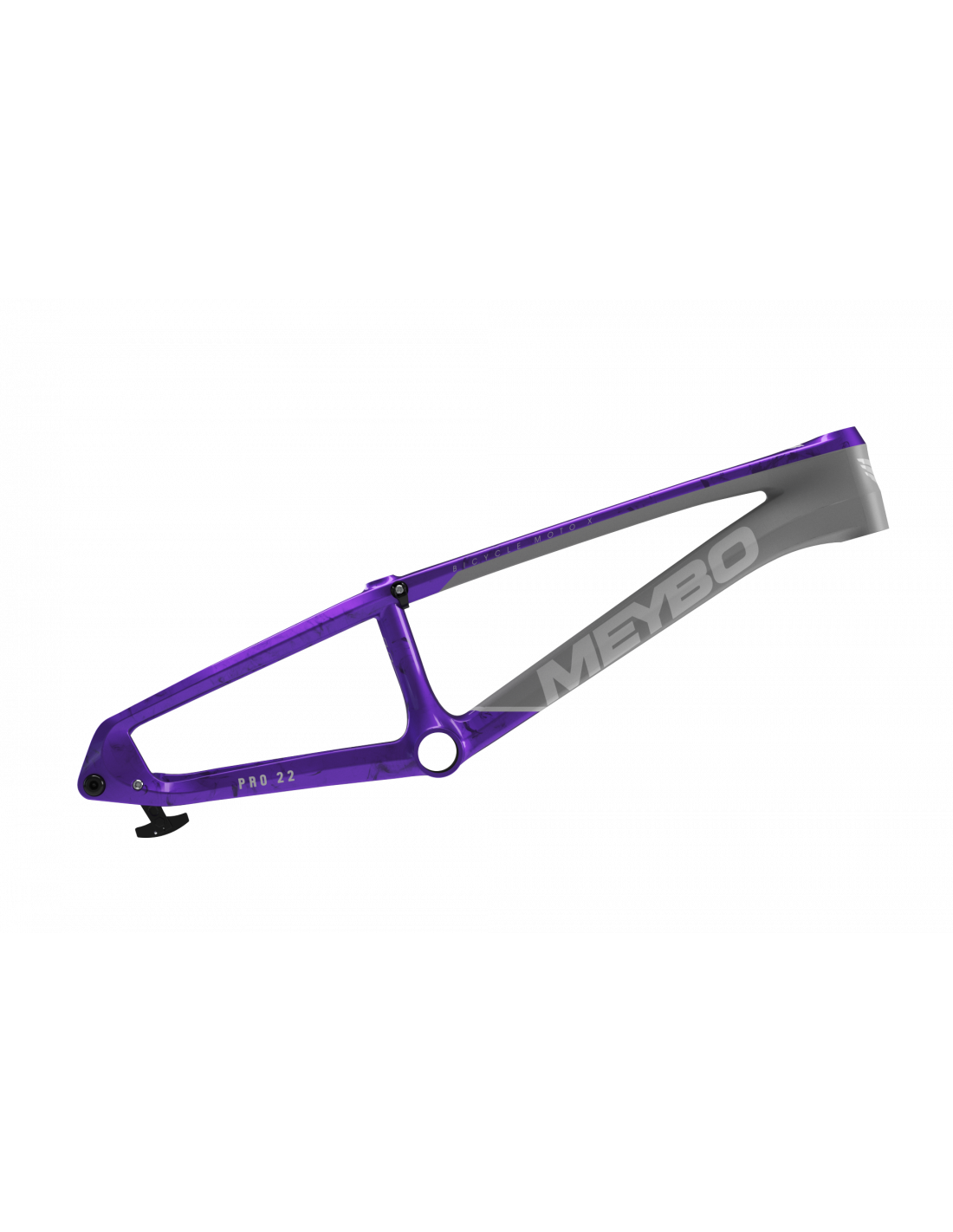

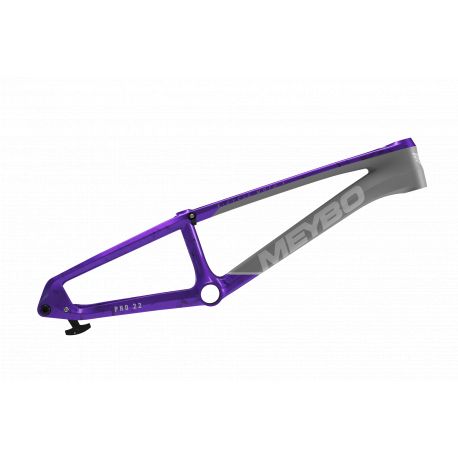

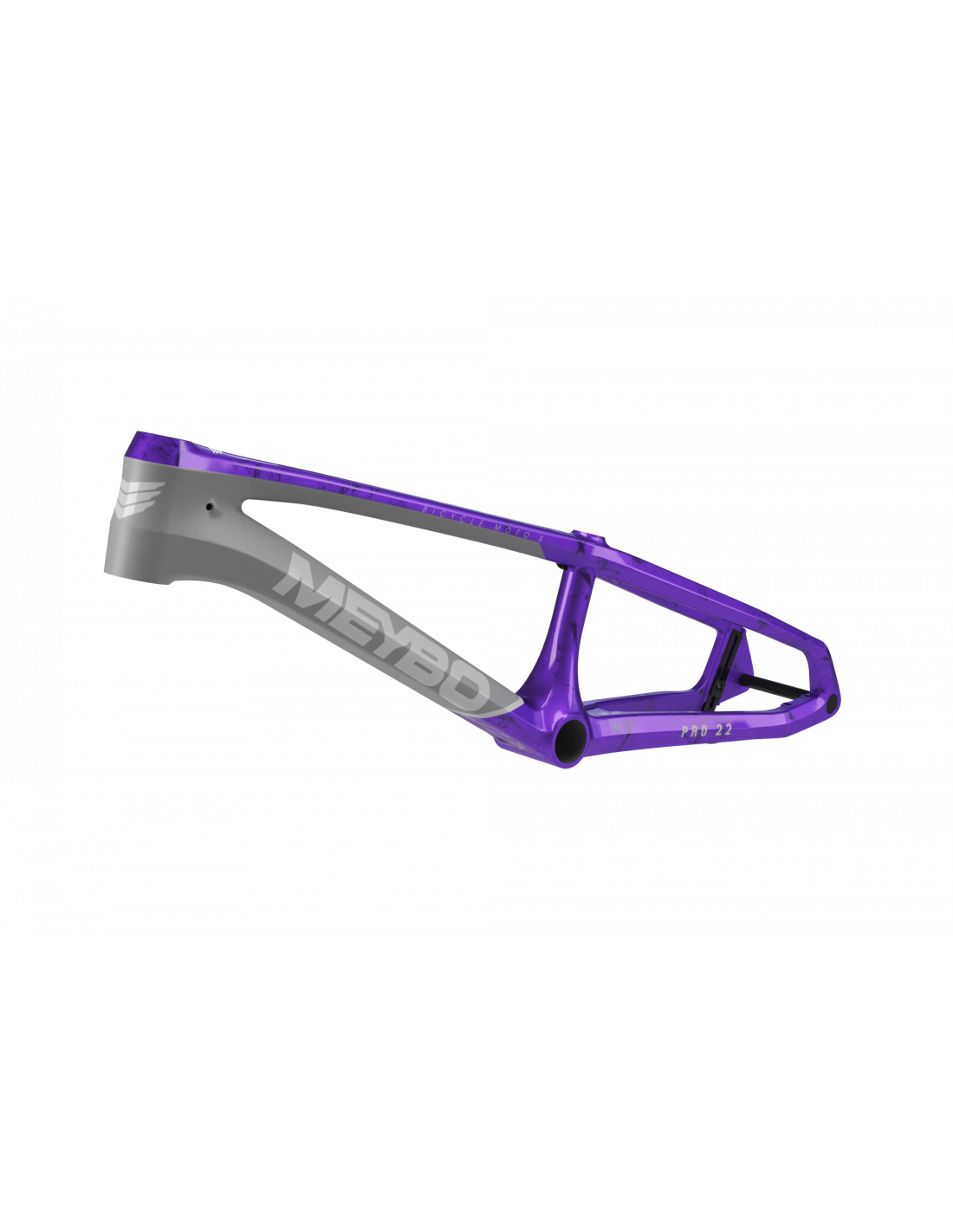

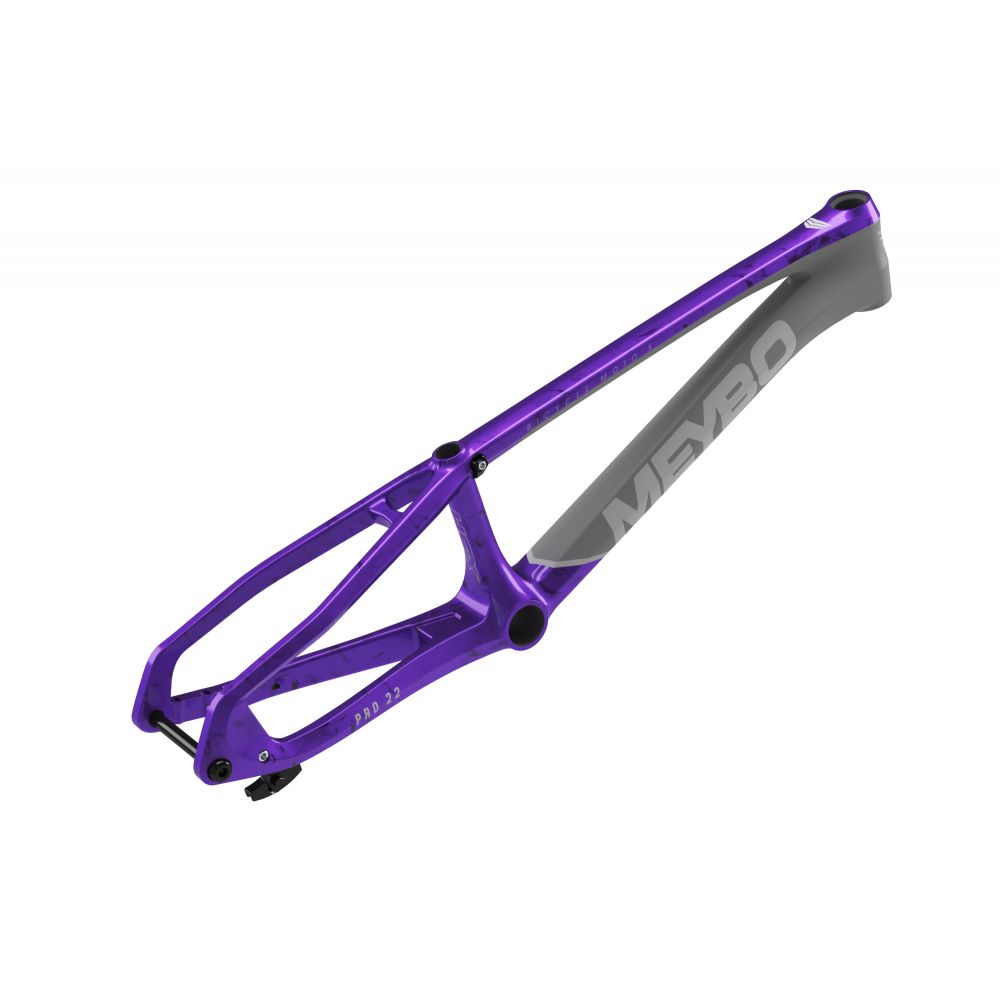

MEYBO HSX CARBON FRAME
The Meybo HSX Carbon frame is the top-performing model in the range, engineered for the most demanding race conditions. It stands out with its refined aesthetics and innovative design.
Crafted from Toray T800 carbon fiber, this frame combines lightweight construction, stiffness, and stability. Designed with World Cup track geometry, it provides the perfect balance between agility and control, even at high speed.
This premium model features a Flat Mount brake interface designed for 120 mm rotors, optimizing braking performance. It is also equipped with a CNC-machined 7005 aluminum 15 mm thru-axle, ensuring maximum rear-end stiffness.
The integrated chain tensioner keeps the chain perfectly tensioned at all times, ensuring smooth power transfer regardless of gearing. Purpose-built for peak performance, the HSX Carbon is a true racing weapon.
Specifically designed for BMX racing, this frame represents the highest standard of technology, precision, and performance.
FRAME SPECIFICATIONS
RECOMMENDATIONS / WARRANTY
Meybo HSX carbon fiber frames must be installed exclusively by a professional bicycle mechanic. Failure to follow the installation instructions may damage the frame and void the warranty. NEVER ride a cracked or broken frame. Doing so may lead to loss of control, resulting in an accident, serious injury, or death.
Carbon fiber can hide structural damage caused by impacts or crashes. In the event of an impact or accident, stop riding immediately and have the frame inspected by a professional bicycle mechanic for potential damage. Meybo HSX frames are designed for seatposts with a maximum length of 150 mm. Using a longer seatpost may damage the frame and void the warranty!
GEOMETRIES & SIZES
| Top Tube/Rider Area | Down Tube | Fixed Chainstay | Head tube Angle | Seat Tube Angle | Head Tube Size | Seat Post Size | Dropout | Bottom Bracket | Disc Brake Type | Weight (Manufacturer) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Expert | 500 mm | 506 mm | 340 mm | 73,5◦ | 71,0◦ | 1 1/8" | 25,4 mm | 15 mm | BB86 ⍉41 | Flatmount | 1213g |
| Expert XL | 525 mm | 530 mm | 345 mm | 73,5◦ | 71,0◦ | 1 1/8" | 25,4 mm | 15 mm | BB86 ⍉41 | Flatmount | 1237g |
| Pro 21 | 536 mm | 534 mm | 369 mm | 74,0◦ | 71,0◦ | Tapered 1 1/8" - 1.5" | 27,2 mm | 15 mm | BB386 EVO ⍉46 | Flatmount | 1240g |
| Pro 21,5 | 546 mm | 543 mm | 380 mm | 74,0◦ | 71,0◦ | Tapered 1 1/8" - 1.5" | 27,2 mm | 15 mm | BB386 EVO ⍉46 | Flatmount | 1376g |
| Pro 22 | 558 mm | 555 mm | 386 mm | 74,0◦ | 71,0◦ | Tapered 1 1/8" - 1.5" | 27,2 mm | 15 mm | BB386 EVO ⍉46 | Flatmount | 1390g |
| Pro 22,5 | 571 mm | 566 mm | 393 mm | 74,0◦ | 71,0◦ | Tapered 1 1/8" - 1.5" | 27,2 mm | 15 mm | BB386 EVO ⍉46 | Flatmount | 1417g |
| Pro 23 | 583 mm | 579 mm | 397 mm | 74,3◦ | 71,0◦ | Tapered 1 1/8" - 1.5" | 27,2 mm | 15 mm | BB386 EVO ⍉46 | Flatmount | 1446g |
| Cruiser Pro 22 | 564 mm | 577 mm | 393 mm | 74,0◦ | 70,5◦ | Tapered 1 1/8" - 1.5" | 27,2 mm | 15 mm | BB386 EVO ⍉46 | Flatmount | 1509g |
