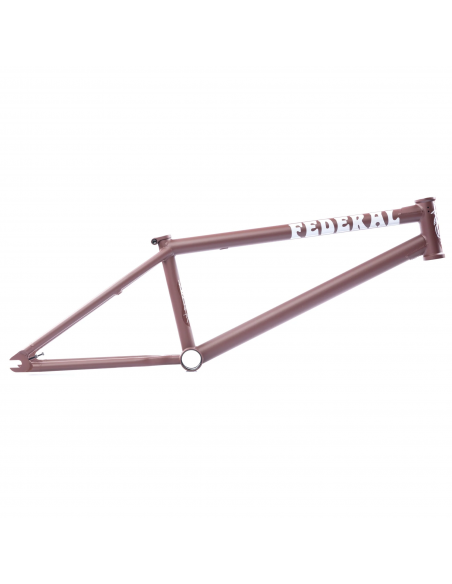

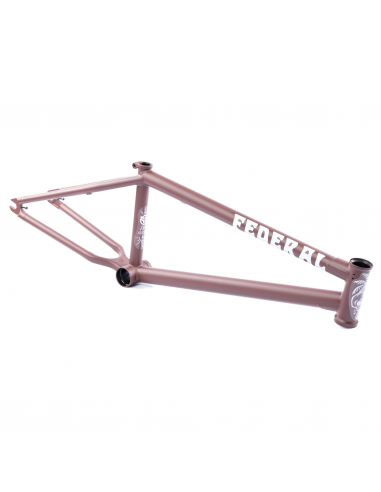

Federal Boyd ICS2 Frame - Matt Dark Maroon

FEDERAL BOYD ICS2 FRAME

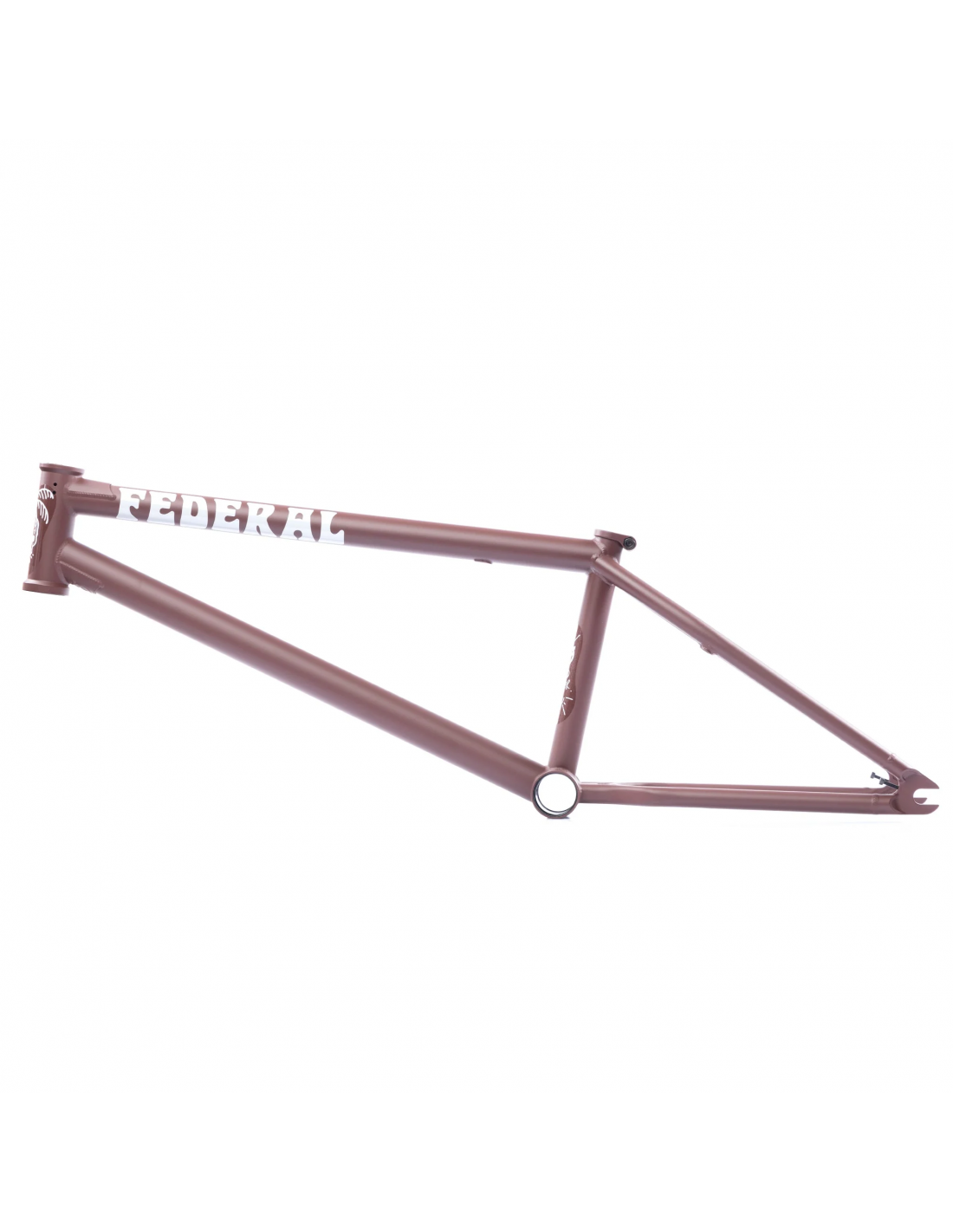

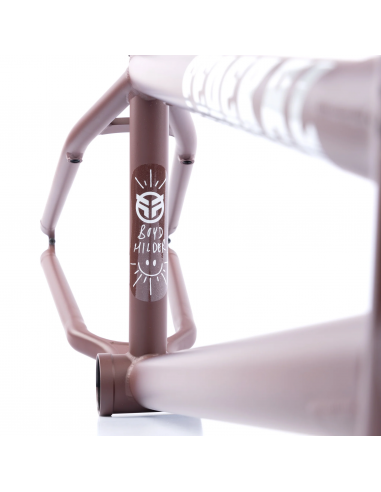

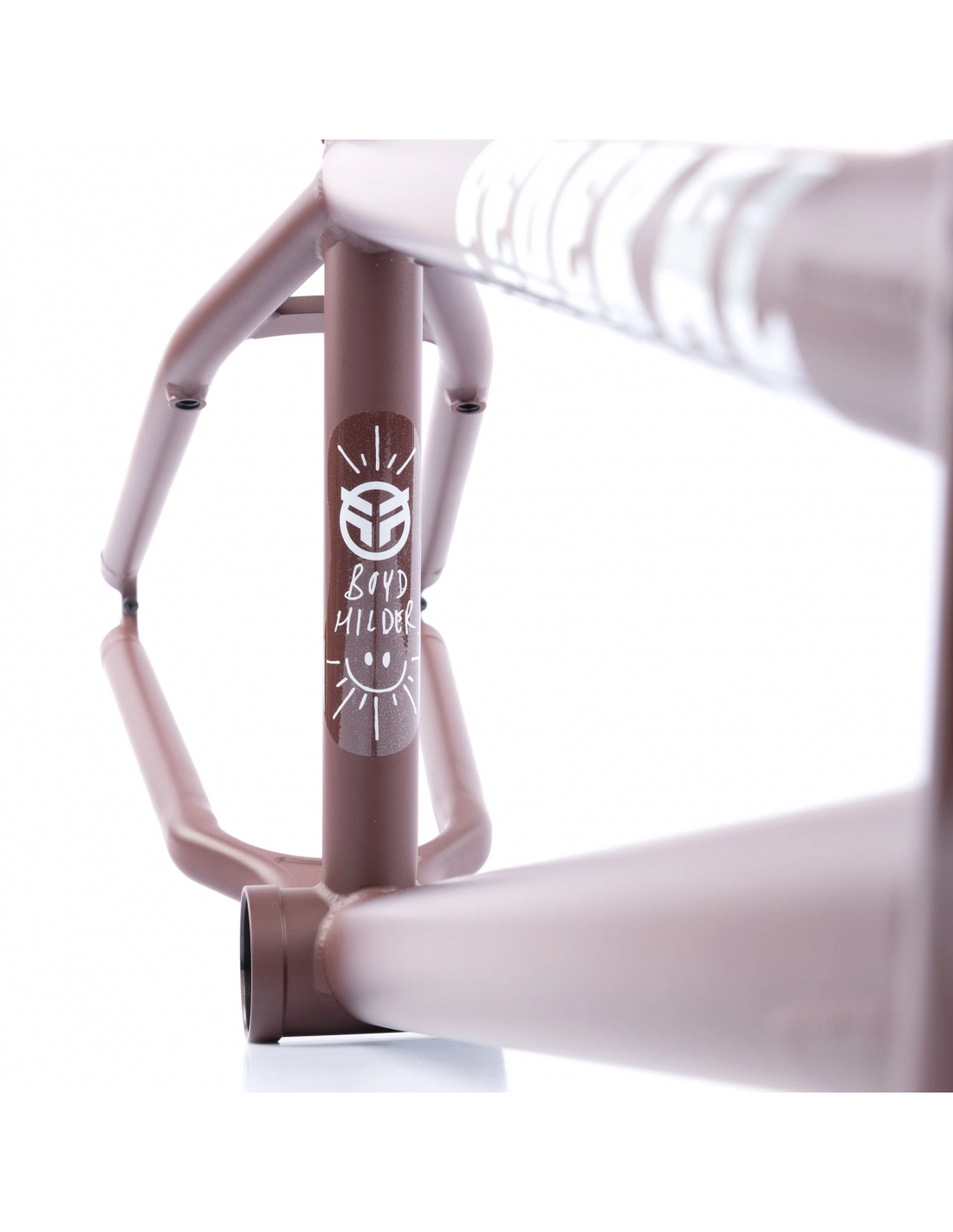

The Boyd ICS2 frame was designed to meet Boyd Hilder’s exact specifications.

This frame incorporates all of Federal’s latest innovations, including the new ICS2 rear triangle (wishbone), newly redesigned investment cast dropouts, and a Federal badge embedded in the seat stay bridge. Additionally, Boyd requested an ovalized down tube, a taller head tube, and a longer top tube. Finished off with graphics designed by Rich Forne, this frame truly has it all.

In short, it’s a versatile frame equipped with Federal’s latest manufacturing technologies, suitable for all styles of riding.

Note: The finish on these frames is a clear coat applied over raw tubing, which can sometimes reveal vein-like effects beneath the coating. These effects vary from frame to frame and are purely cosmetic, having no impact on the frame’s strength or quality.

SPECIFICATIONS

• 4130 Chromoly tubing with ovalized down tube

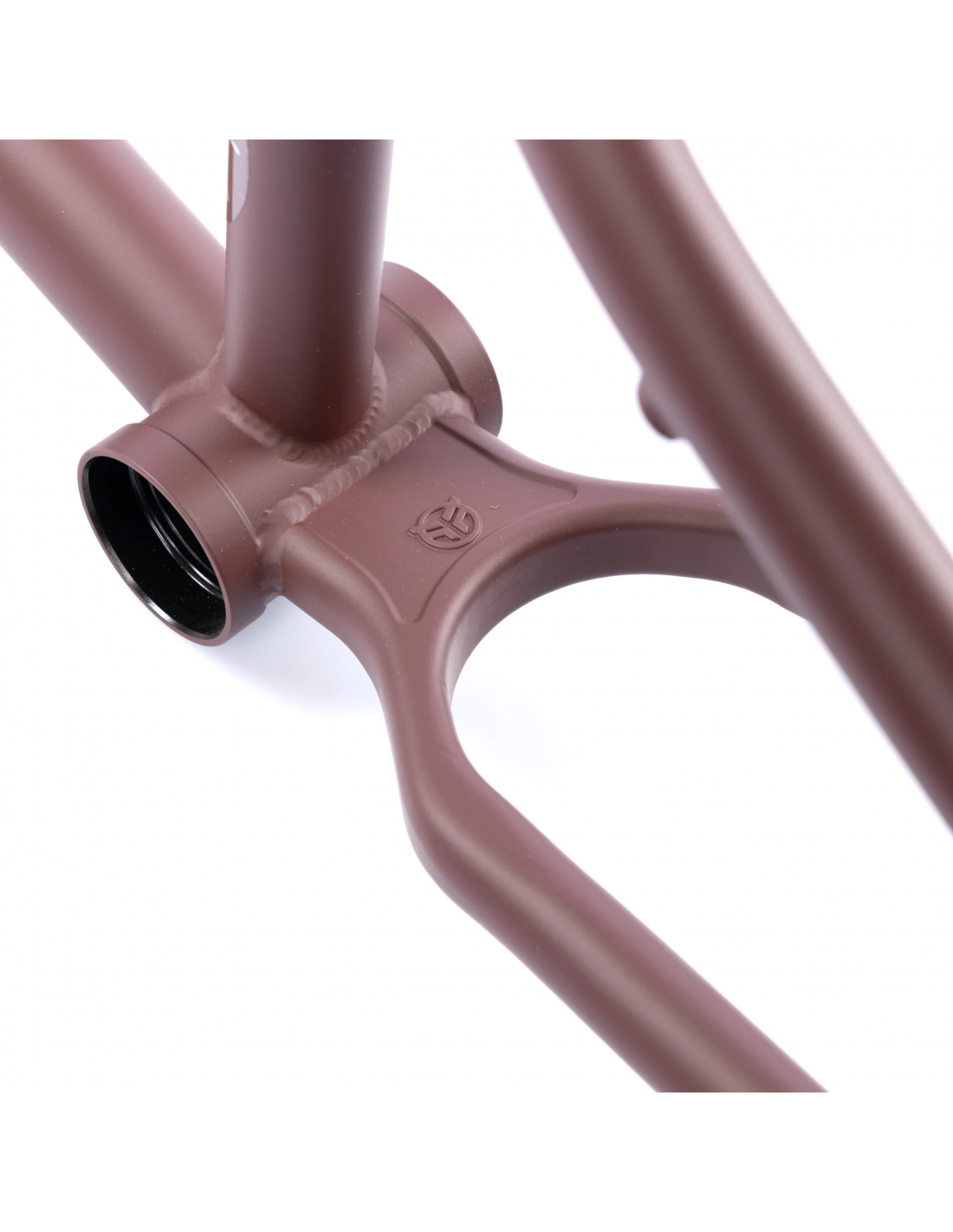

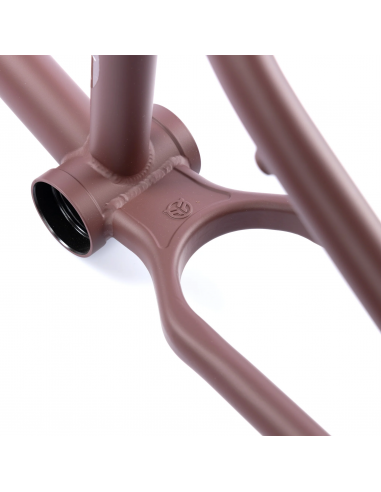

• ICS2 wishbone rear triangle

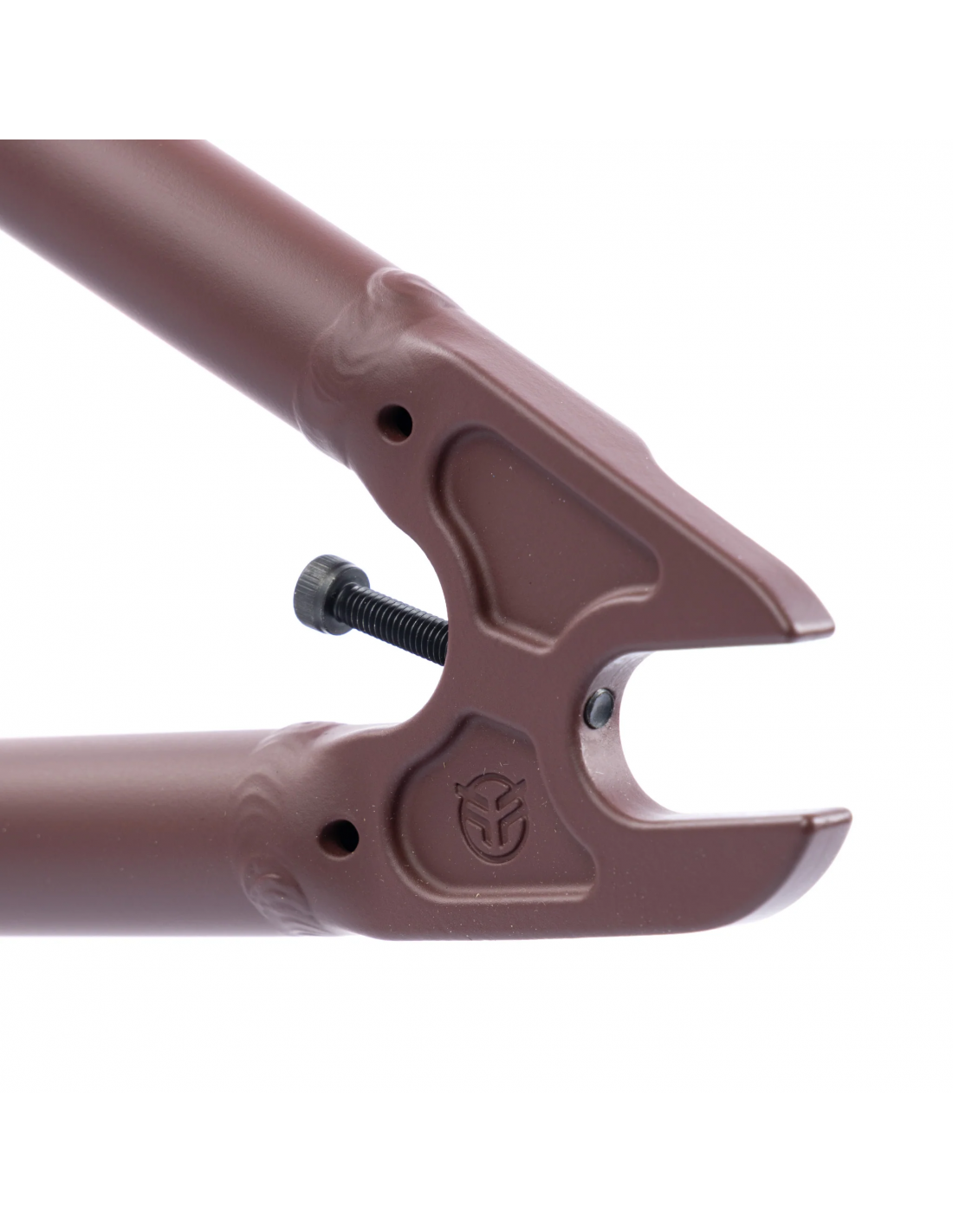

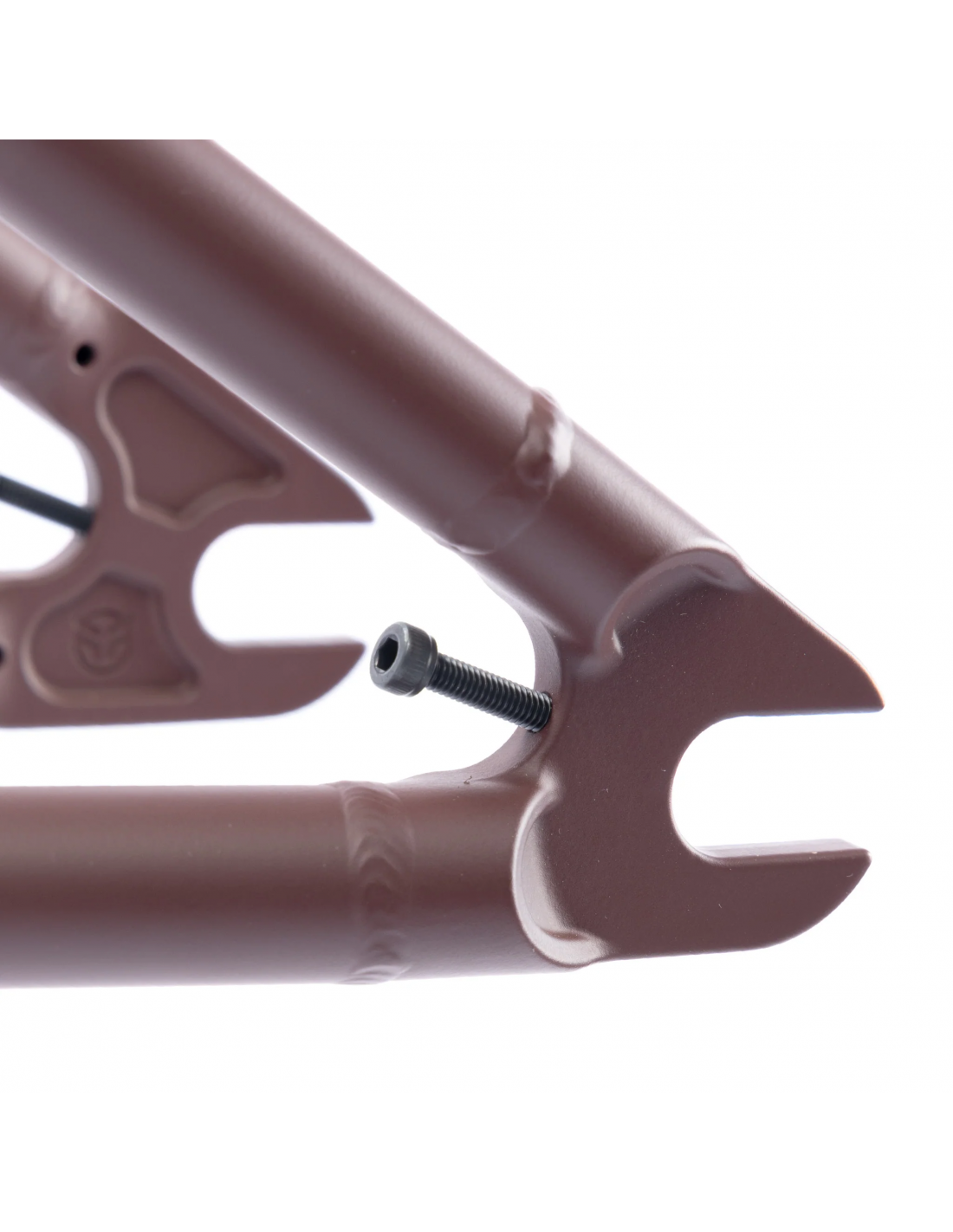

• Newly redesigned investment cast dropouts with integrated chain tensioners
• Investment cast seat stay bridge with Federal badge

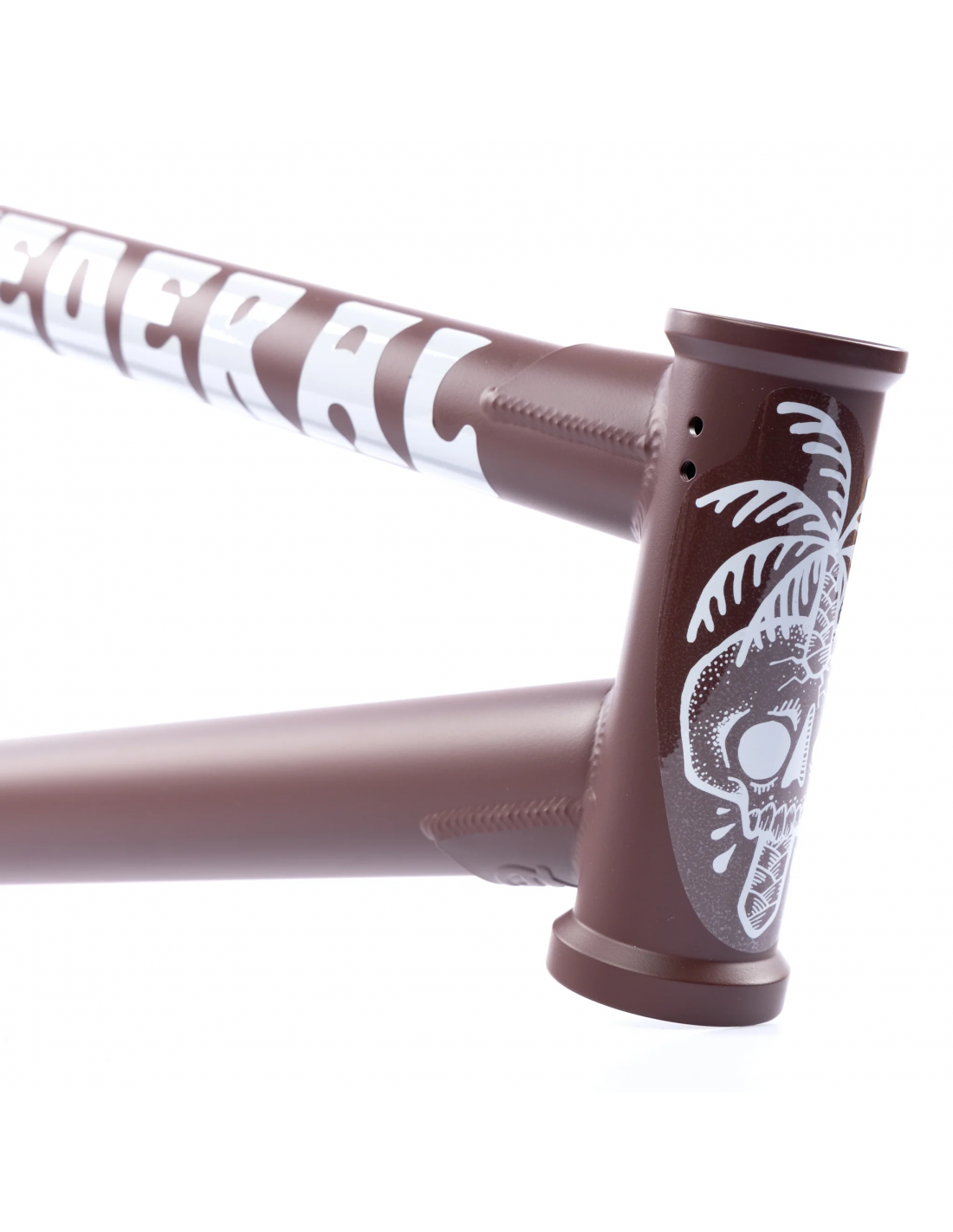

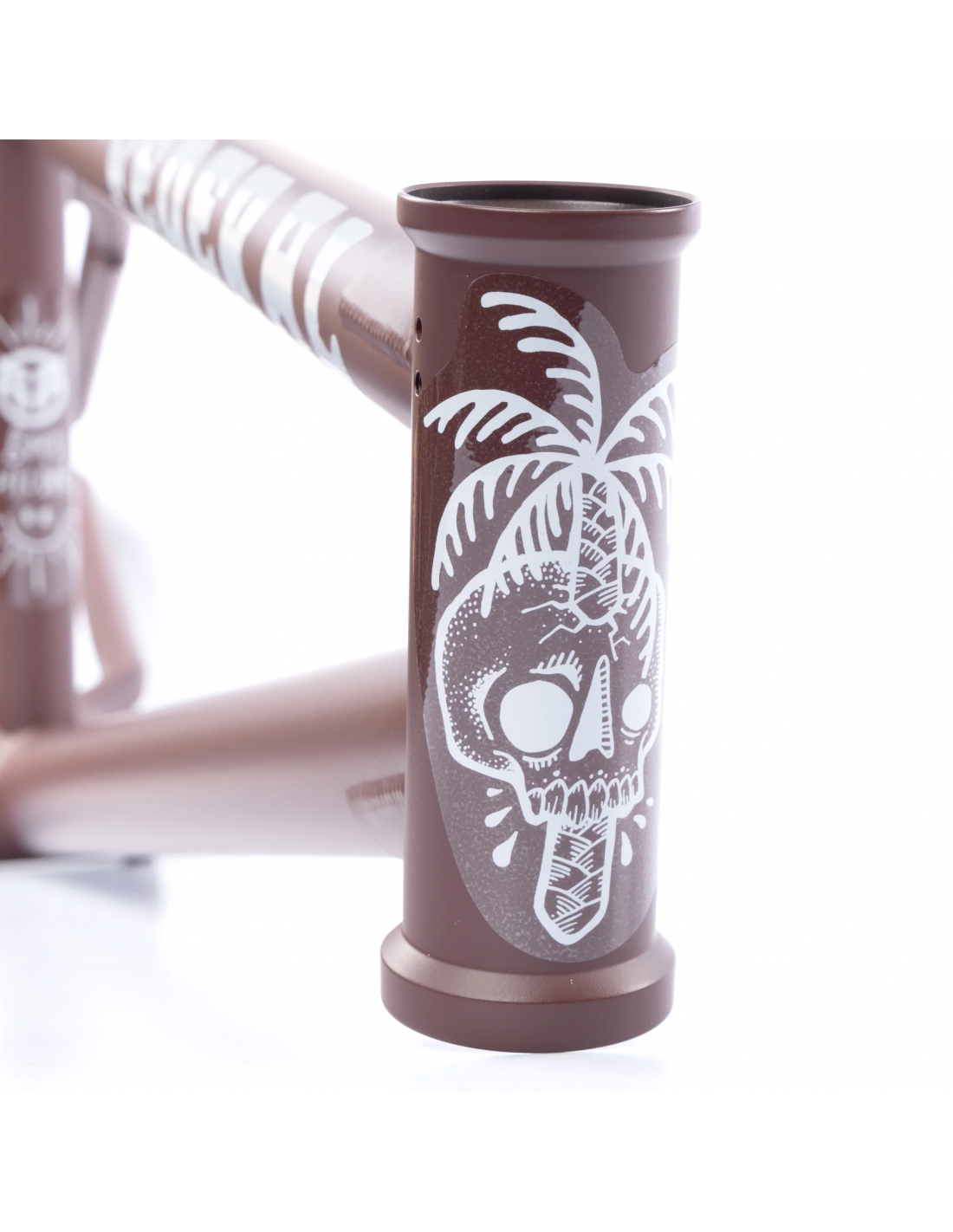

• Graphics designed by Rich Forne
• Embossed down tube gusset featuring the "F" logo

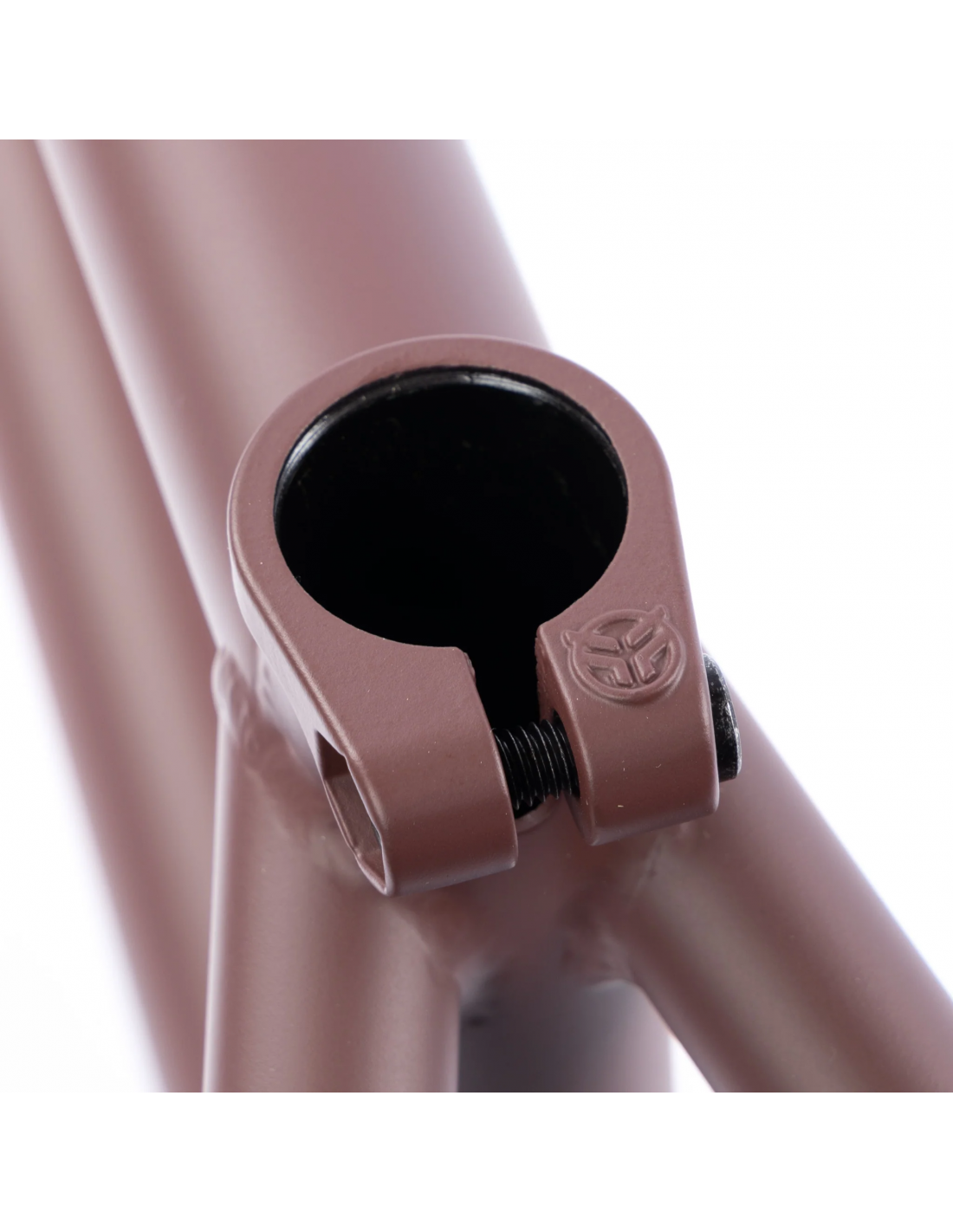

• Integrated investment cast seat clamp
• Tapered seat stays
• Mid bottom bracket (Mid BB)
• Removable brake mounts

GEOMETRY

• Top Tube : 20.7" / 21" / 21.2" / 21.5"
• Head Tube Angle : 75.2°
• Seat Tube Angle : 71°
• Chain Stay Length : 13.4" (slammed) to 13.8"
• Bottom Bracket Height : 11.7"
• Stand Over Height : 9"
