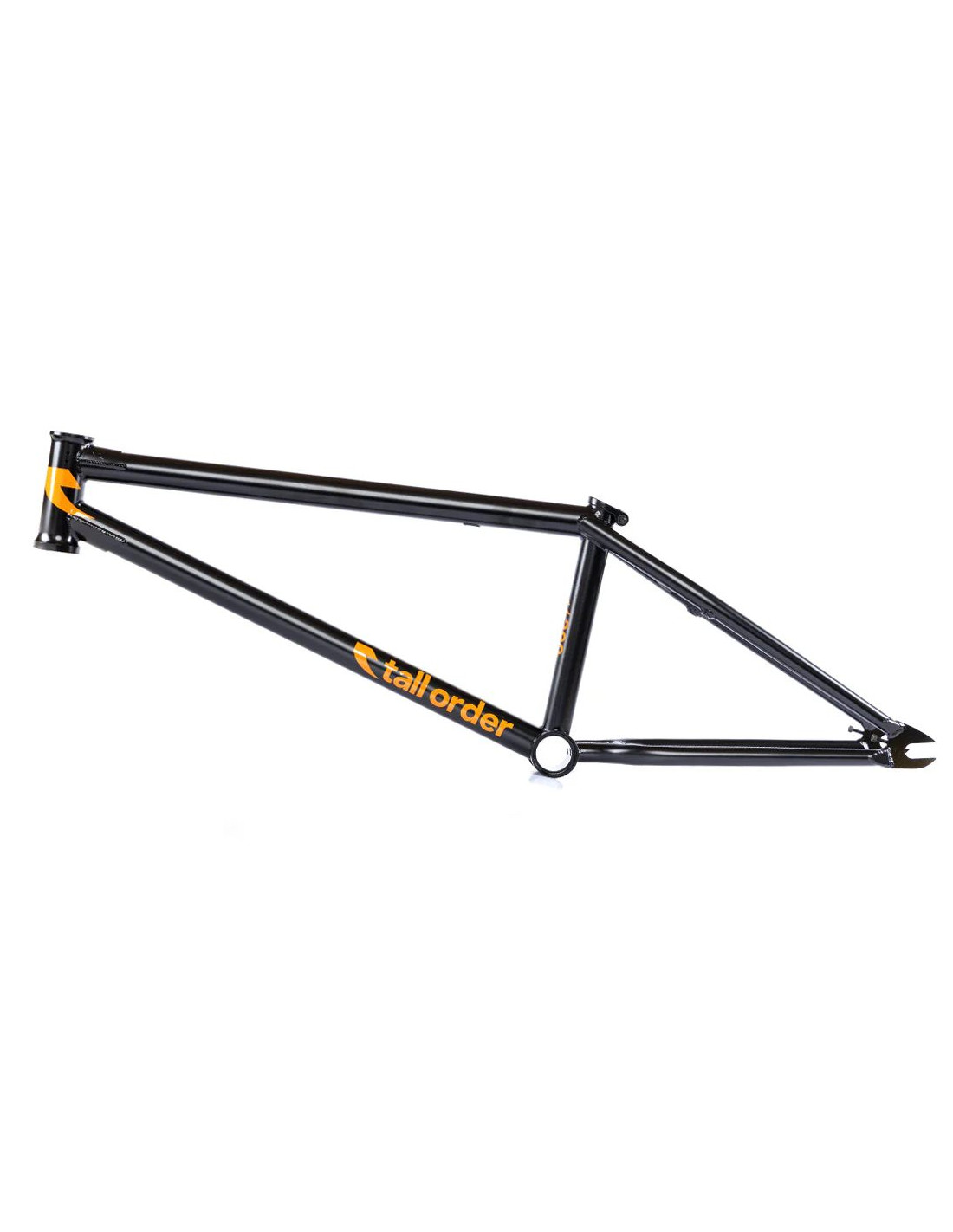

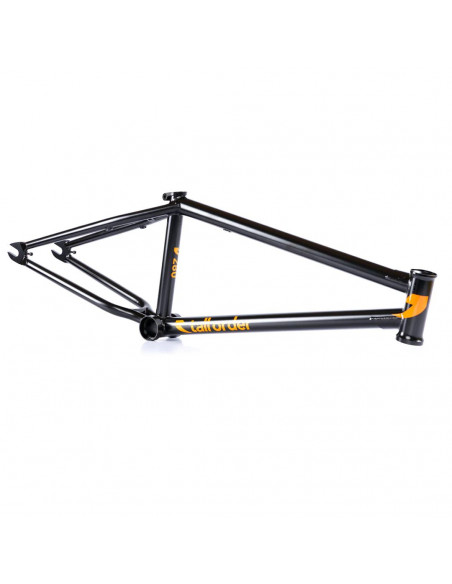

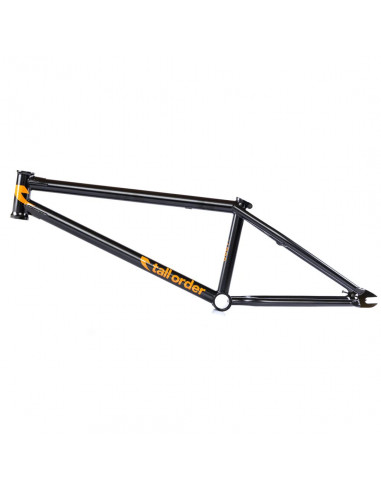

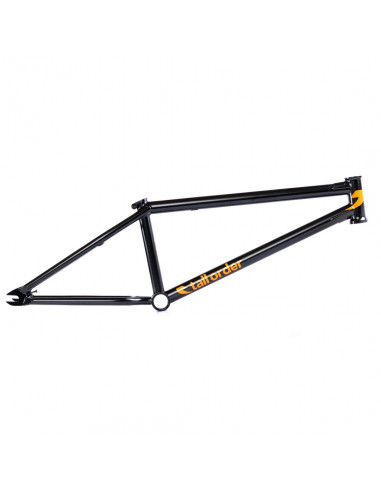

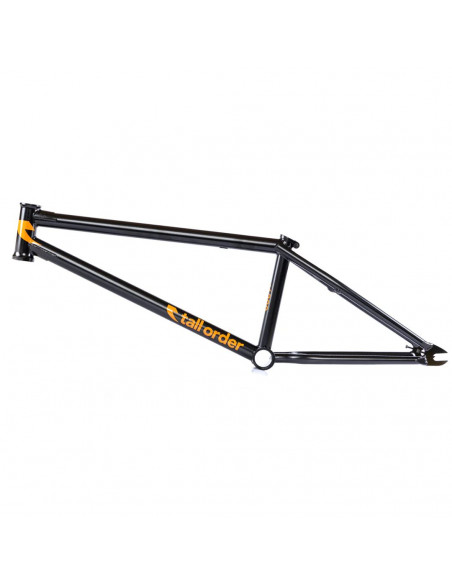

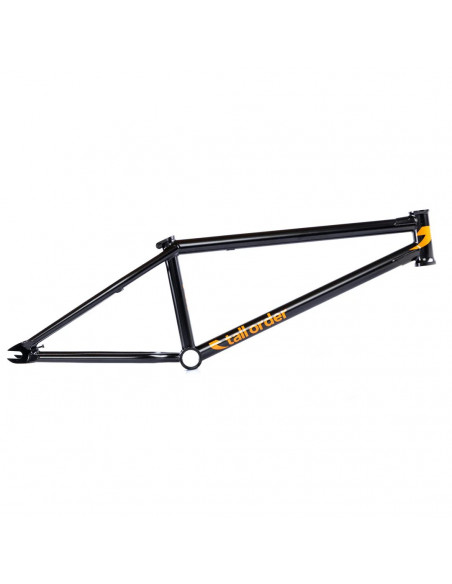

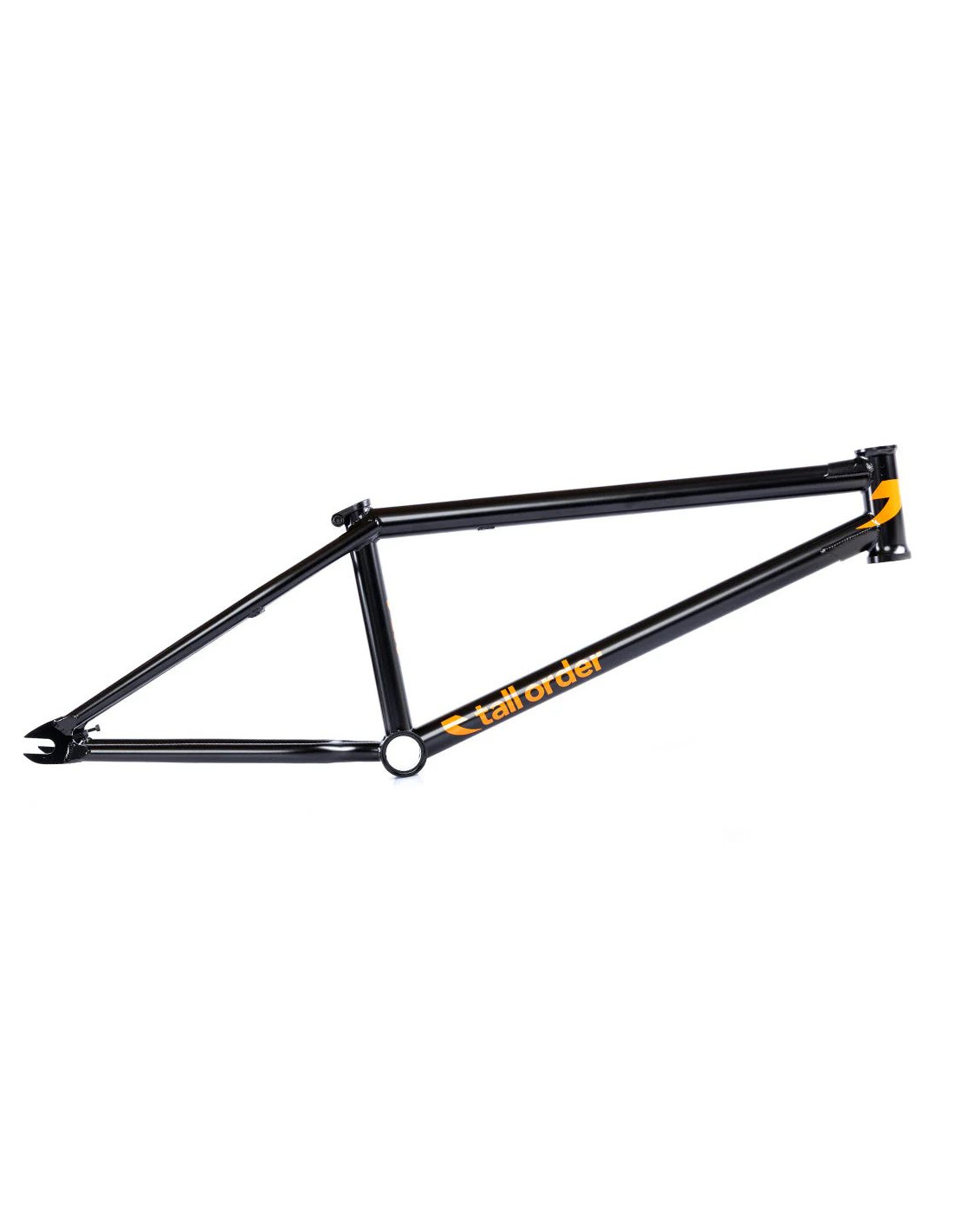

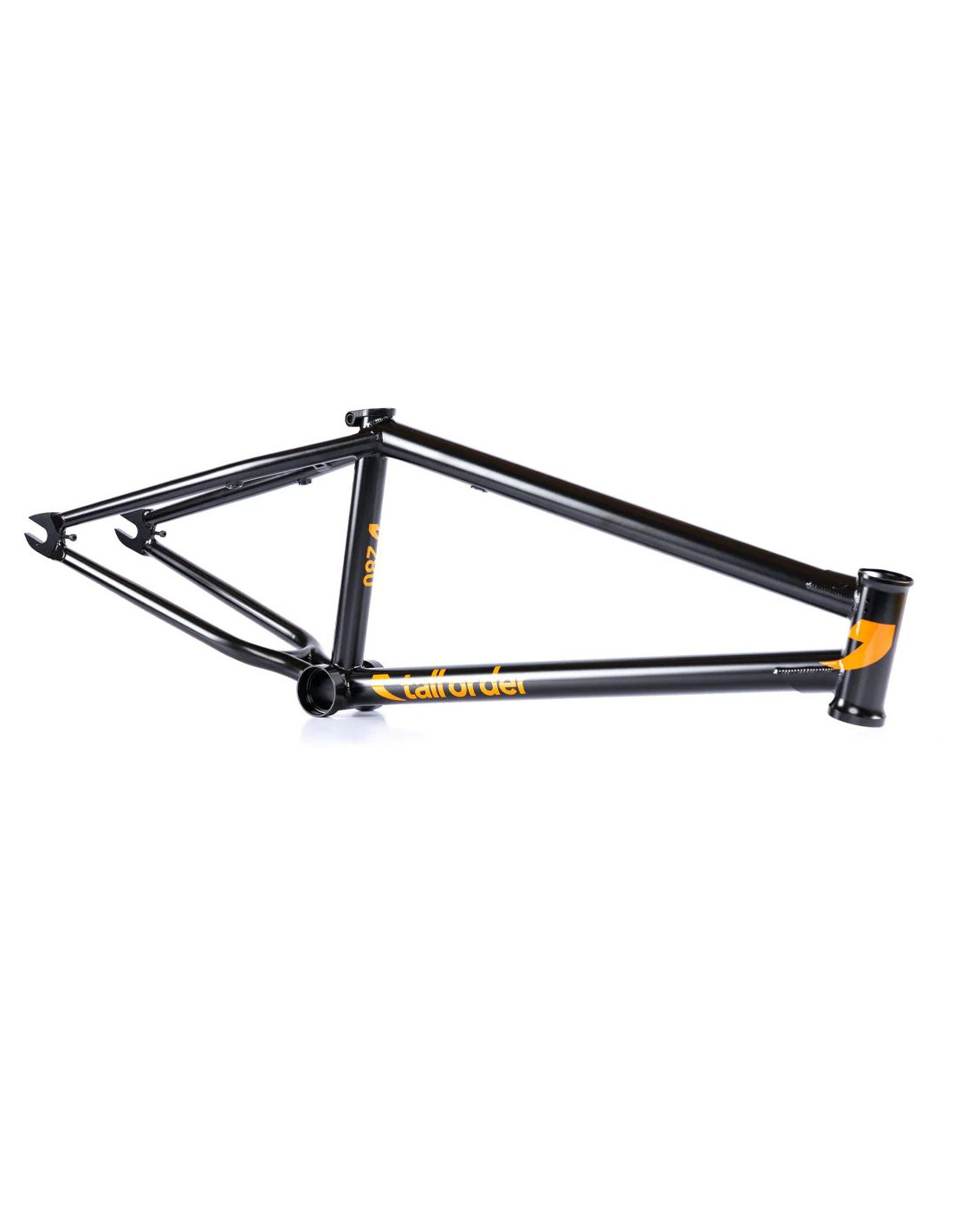

TALL ORDER 280 FRAME
This frame was designed to combine the best features of the 215 and 315 models into one. One of the main design goals was to meet the needs of team riders who previously rode both older frames, allowing all of them to switch to this new one.

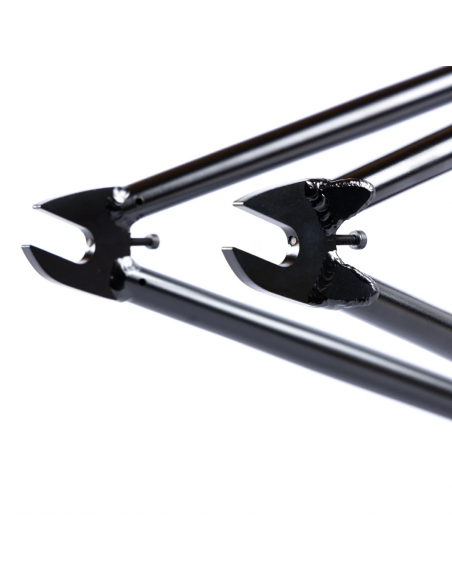

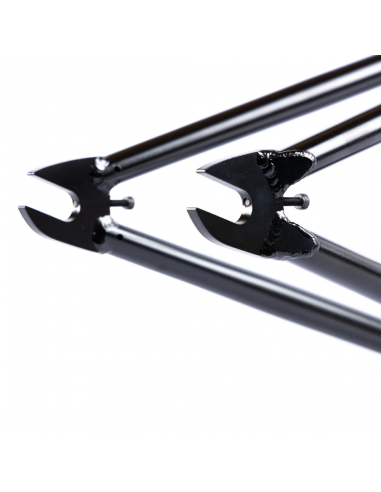

To achieve this, the dropouts have been slightly lengthened, giving riders the flexibility to choose their preferred rear end length. It can be run with the same chain lengths as a 13.5” or 13.75” slammed frame. The effective usable chain stay range, based on the team’s gearing setups (25x9, 28x9, 31x9), is between 13.54” and 13.94”.

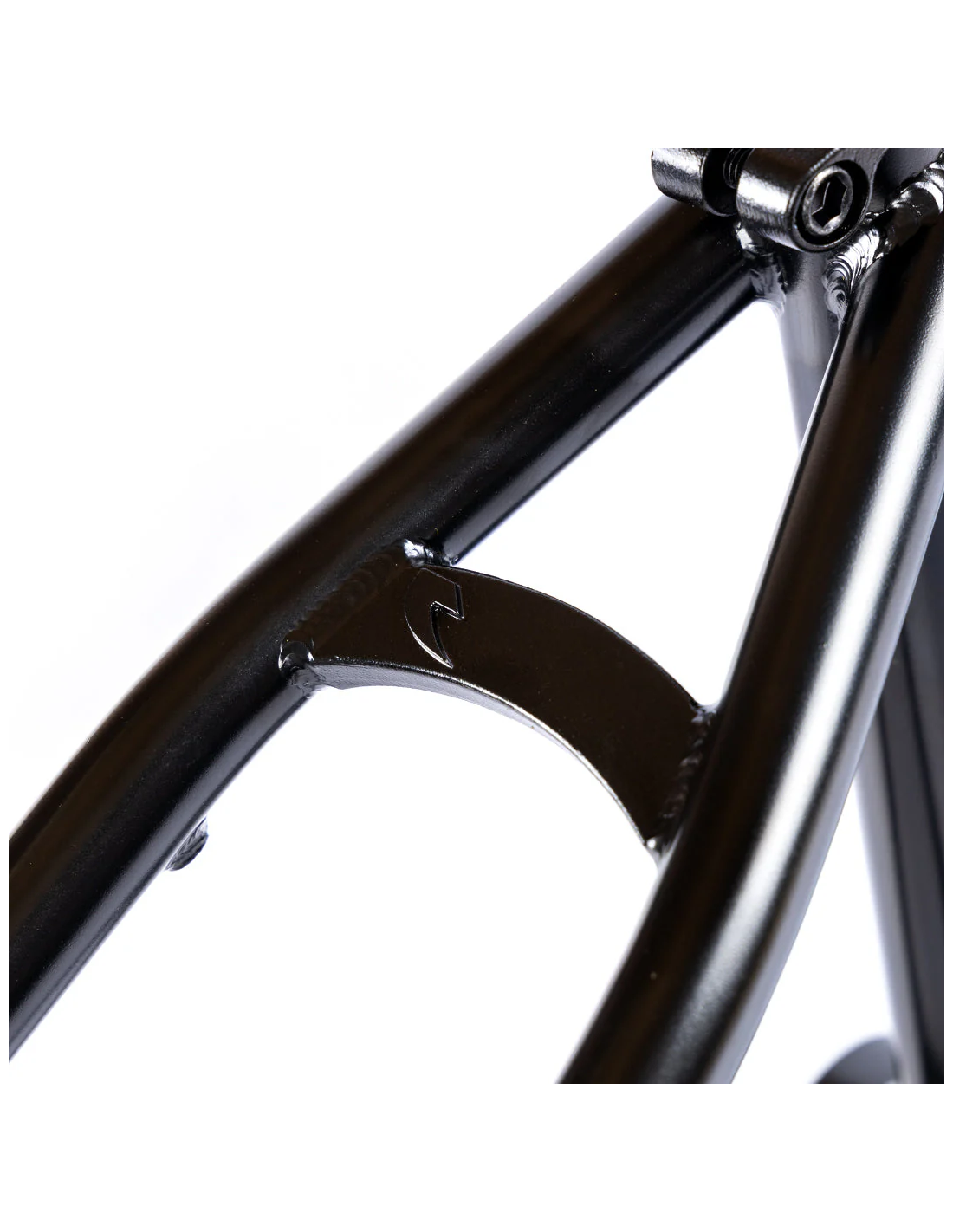

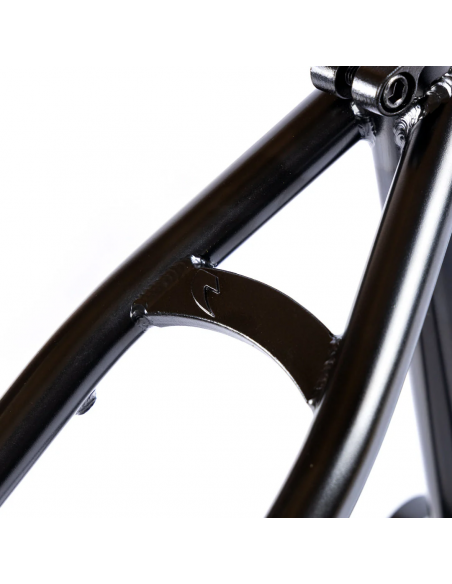

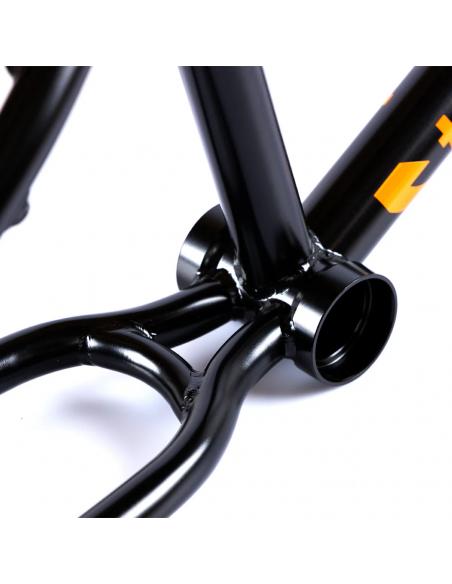

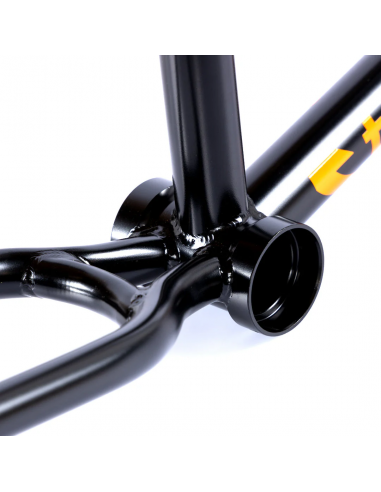

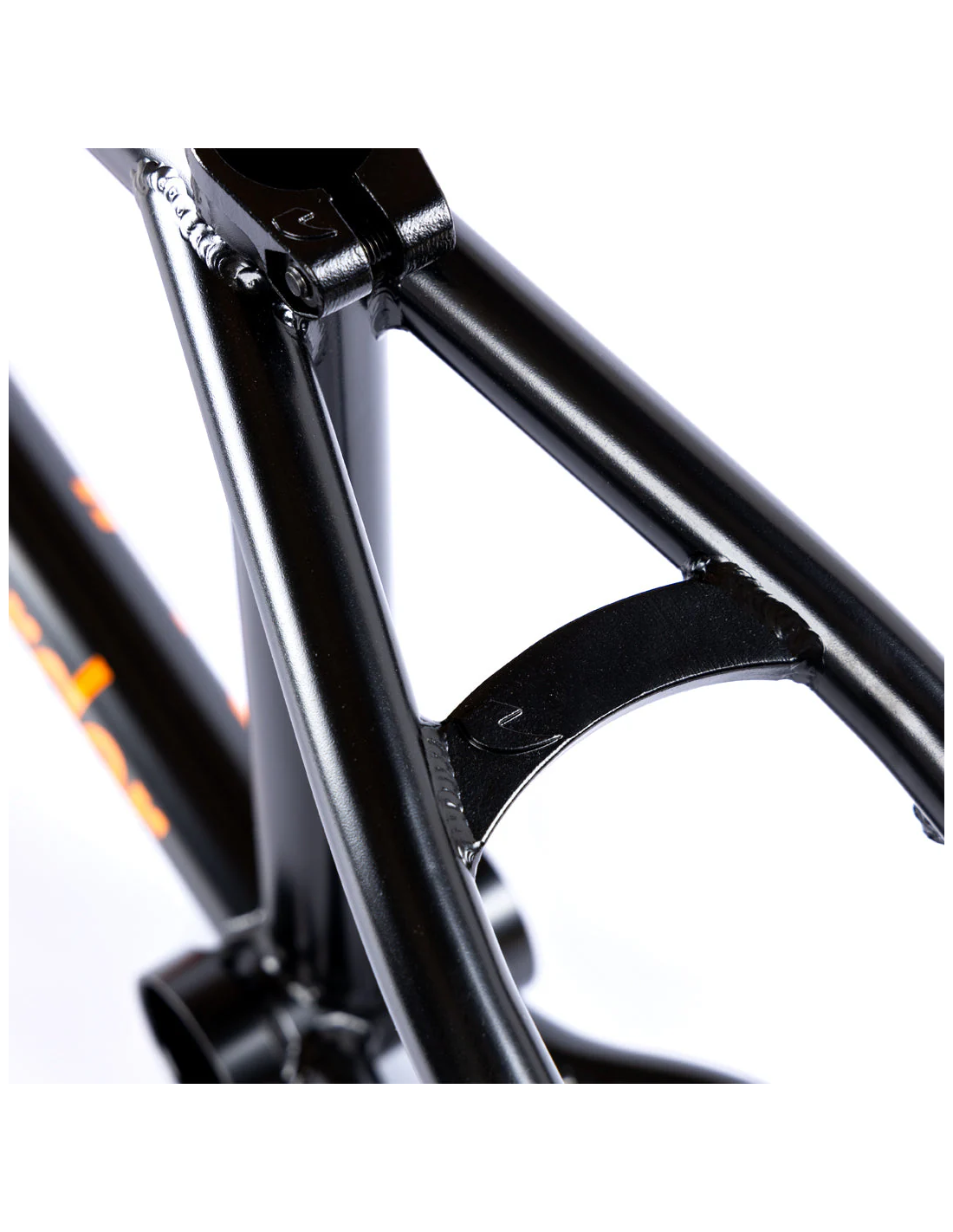

The head tube angle is set at 74.75°, offering better control at higher speeds. The frame also features an investment cast seat stay bridge, as well as gussets on both the top tube and down tube for added strength.
Made from Japanese Sanko chromoly tubing, this frame is designed to be lightweight without compromising durability.
SPECIFICATIONS
