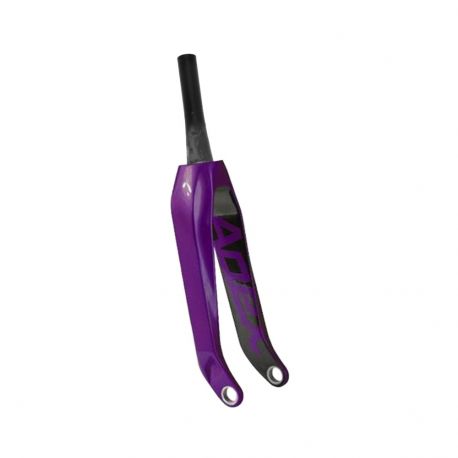

Pride Apex Fork Tapered - 20" - 20mm - Purple Haze

PRIDE RACING APEX TAPERED FORK - 20"" - 20MM

After months of extensive R&D, including lab tests and World Cup track trials, the APEX Carbon Tapered fork has been specially designed to meet the expectations of the most demanding athletes. Its performance was rigorously validated by Jeremy Rencurel over several months of intensive use.

Its innovative design offers superior stiffness for unmatched responsiveness on the track. Every curve, every angle of the APEX is designed to reduce drag, optimize stiffness, and maximize speed. The unique APEX design aims to optimize structural rigidity. Selected materials and specific geometry work together to ensure efficient energy transfer from the rider.

The internal construction of the APEX Carbon Tapered fork is specific and optimized to provide significant strength. It also uses different types of carbon fibers according to their specific properties to best manage various loads in the areas where they occur – such as lateral loads, torsion, and impacts. Its steerer is made from 7075-T6 Aluminum, an alloy known for its high strength. This ensures both great structural strength and increased durability. The fork legs are CNC machined from Aluminum for optimal precision and designed to accept a 20mm thru-axle (not included).

Complies with and exceeds EN 16054 standards.

SPECIFICATIONS

• Material: Torayca® HM Carbon
• Wheel size: 20"" (406/451)
• Axle: 20mm
• Steerer diameter: Tapered 1-1/8"" - 1.5""
• Steerer length: 170mm
• Fork height: 309mm
• Offset: 31mm
• Dropout width: 9mm
• Max outer tire diameter: 531x32mm
• Weight: 695g (without top cap)

RECOMMENDATIONS

• - Always use a torque wrench when installing the fork. Regular torque checks are recommended.
• - Wheel axle length: 116mm

• ---
