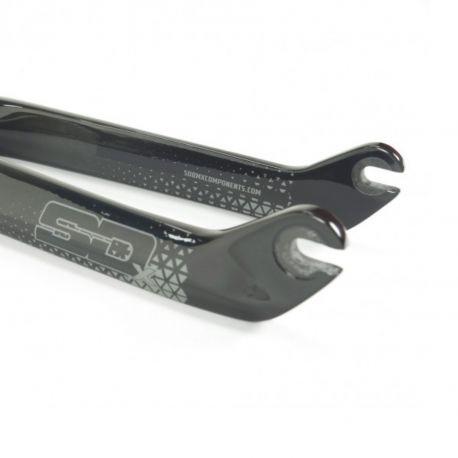

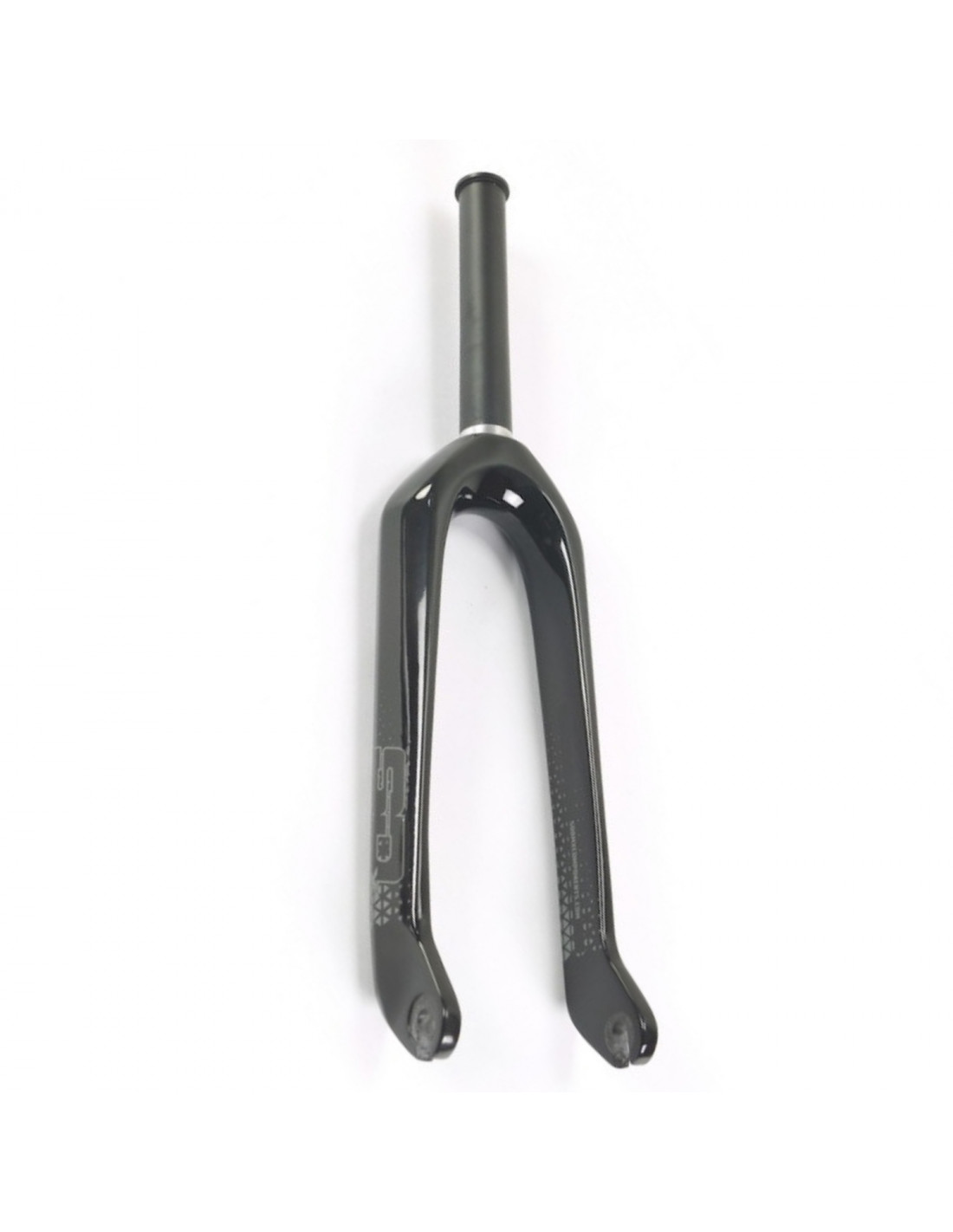

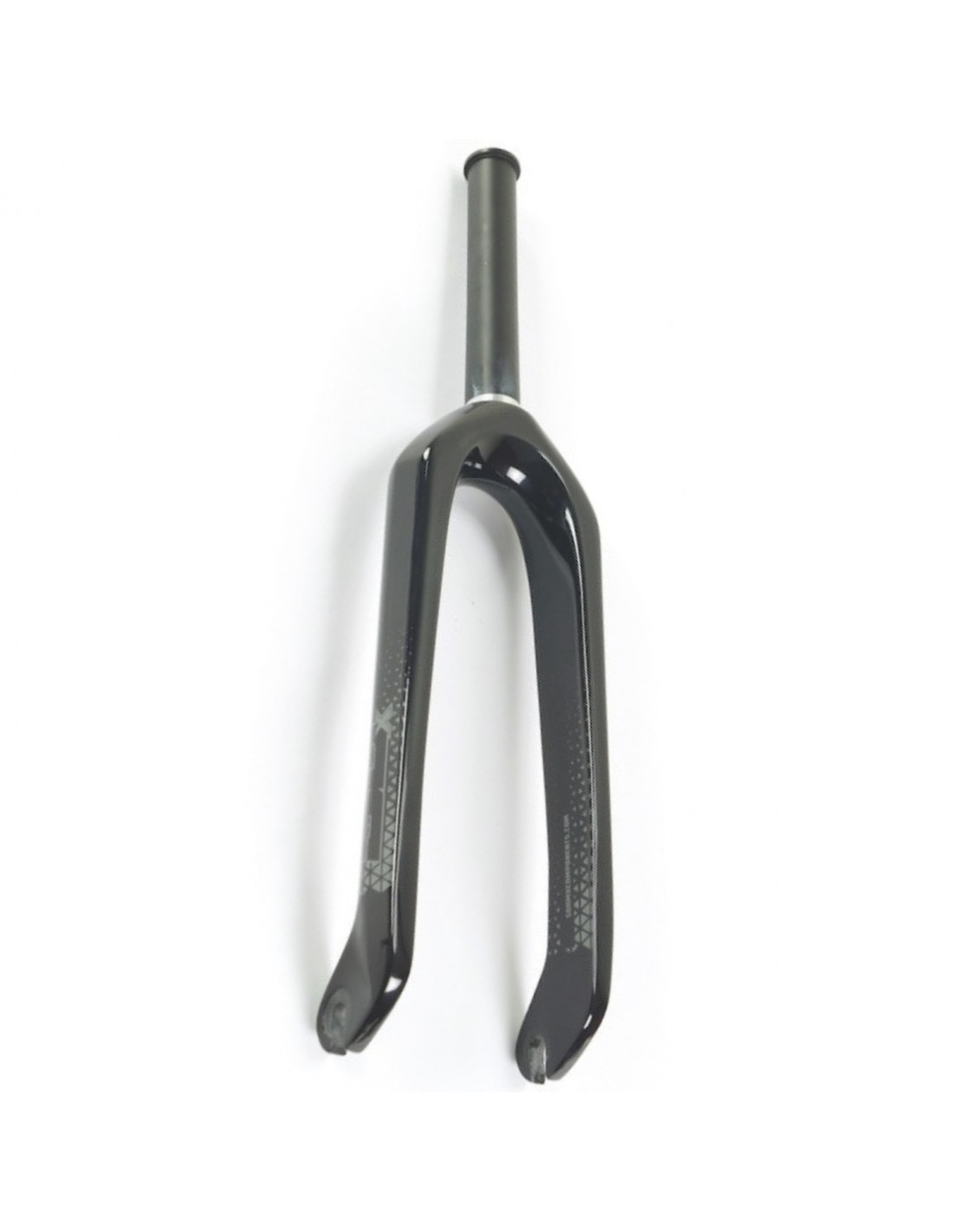

SD Carbon V2 Junior - 1" - 10mm - Shiny Black

SD CARBON V2 FORK

The SD Carbon V2 Black fork is made of carbon fiber with a 7075-T6 aluminum steerer tube and is specially designed for kids. It is an extremely high-performance fork that offers exceptional stiffness during use. Thanks to its aluminum steerer tube, the Carbon V2 fork is both strong and lightweight. With this carbon fork, SD offers the perfect balance by combining these two qualities in a single piece.

This fork is designed for a kids’ bike with a straight 1" steerer and fork legs compatible with 1"1/8 and 1"3/8 wheels. This fork model is designed for a 10mm hub axle.

SPECIFICATIONS

• Material : Carbon (legs) / 7000-series Aluminum (steerer)
• Wheel size : 20" (451)
• Axle : 10mm
• Steerer diameter : 1" (straight steerer)
• Steerer length : 170mm (non-cuttable)
• Compression bolt : M20x1.5 x 20mm
• Fork height : 310mm
• Offset : 30mm
• Dropout width : 7.5mm
• Finish : Gloss
• Weight : 486g (with compression bolt)
