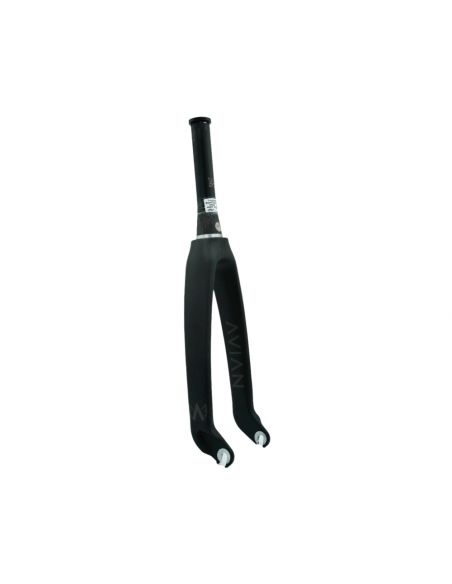

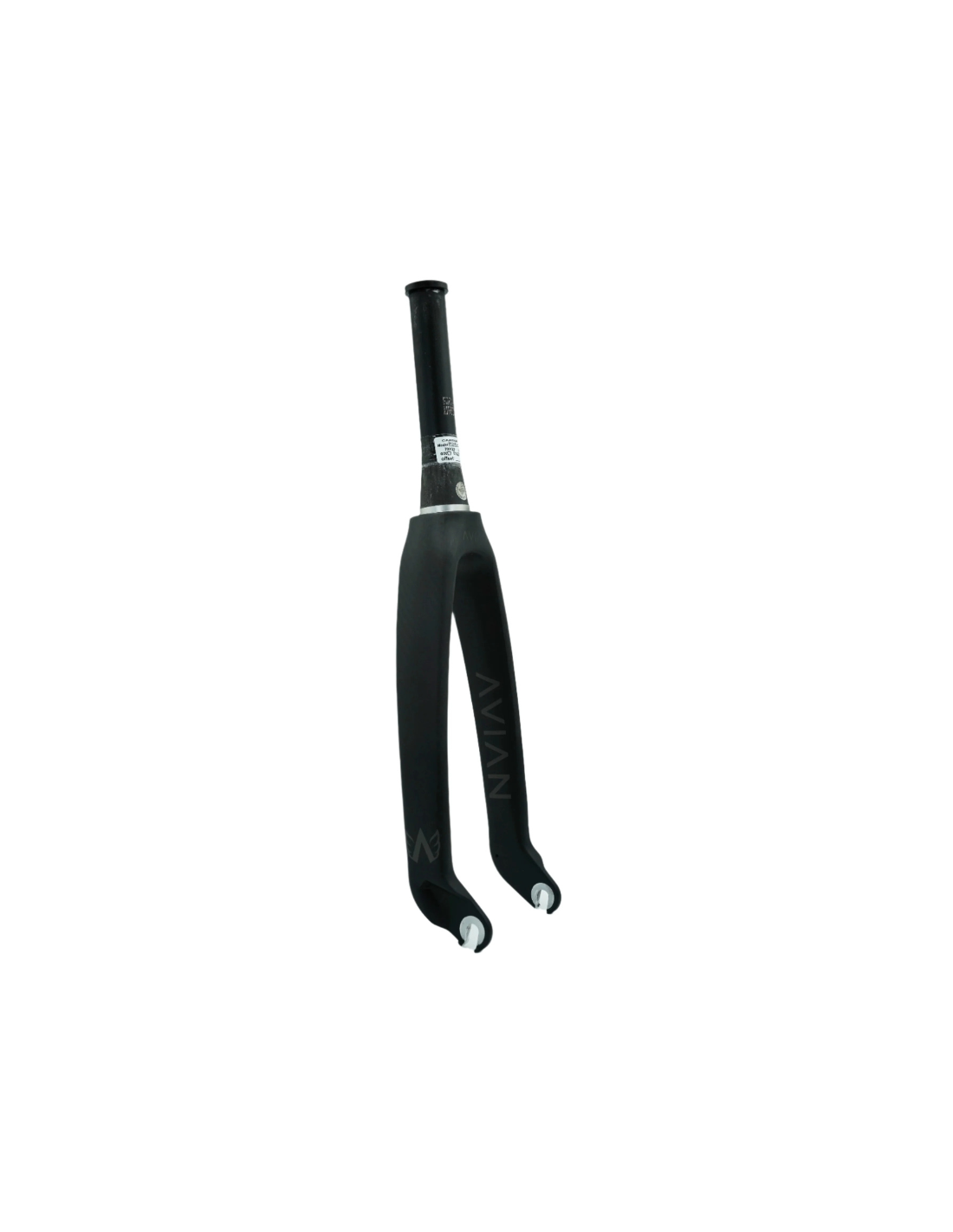

Avian Versus Fork - Tapered - 20" - 20mm - Black Matte

AVIAN VERSUS TAPERED FORK

SD Components is a Dutch brand that offers high-end and high-performance products.

Rigorously tested and approved by numerous elite riders from around the world, the AVIAN Versus carbon fork is manufactured using Toray carbon fibers, known as an industry leader for their superior strength compared to other weave types.

It features a 4mm thick aluminum steerer tube with an internal threaded clamping system, eliminating the need for expansion plugs and star nuts that often compromise the fork's strength. This tapered version perfectly fits frames with a 1-1/8" upper and 1.5" lower conical steerer tube.

This version comes with 20mm dropouts, and if you want to switch to 10mm, we sell a separate reducer kit.

For optimal installation, it is recommended to use a 20mm thru-axle with a minimum length of 116.5mm.

DETAILS :

• Material: Carbon (legs) / 7005 Series Aluminum (Steerer)
• Steerer Tube Diameter: 1-1/8" - 1.5" (Tapered)
• Wheel Size: 20"
• Compression Bolt: M10x75mm (Tighten between 4-5Nm is fine, but do not exceed 5.5Nm)
• Axle: 20mm
• Offset: 32mm
• Steerer Tube Length: 170mm
• Fork Height: 303mm
• Dropout Width: 8mm
• Weight: 618g
