Shimano Disc Brake Deore M6100 J-Kit - 1600mm

SHIMANO DEORE M6100 DISC BRAKE J-KIT - 1600mm

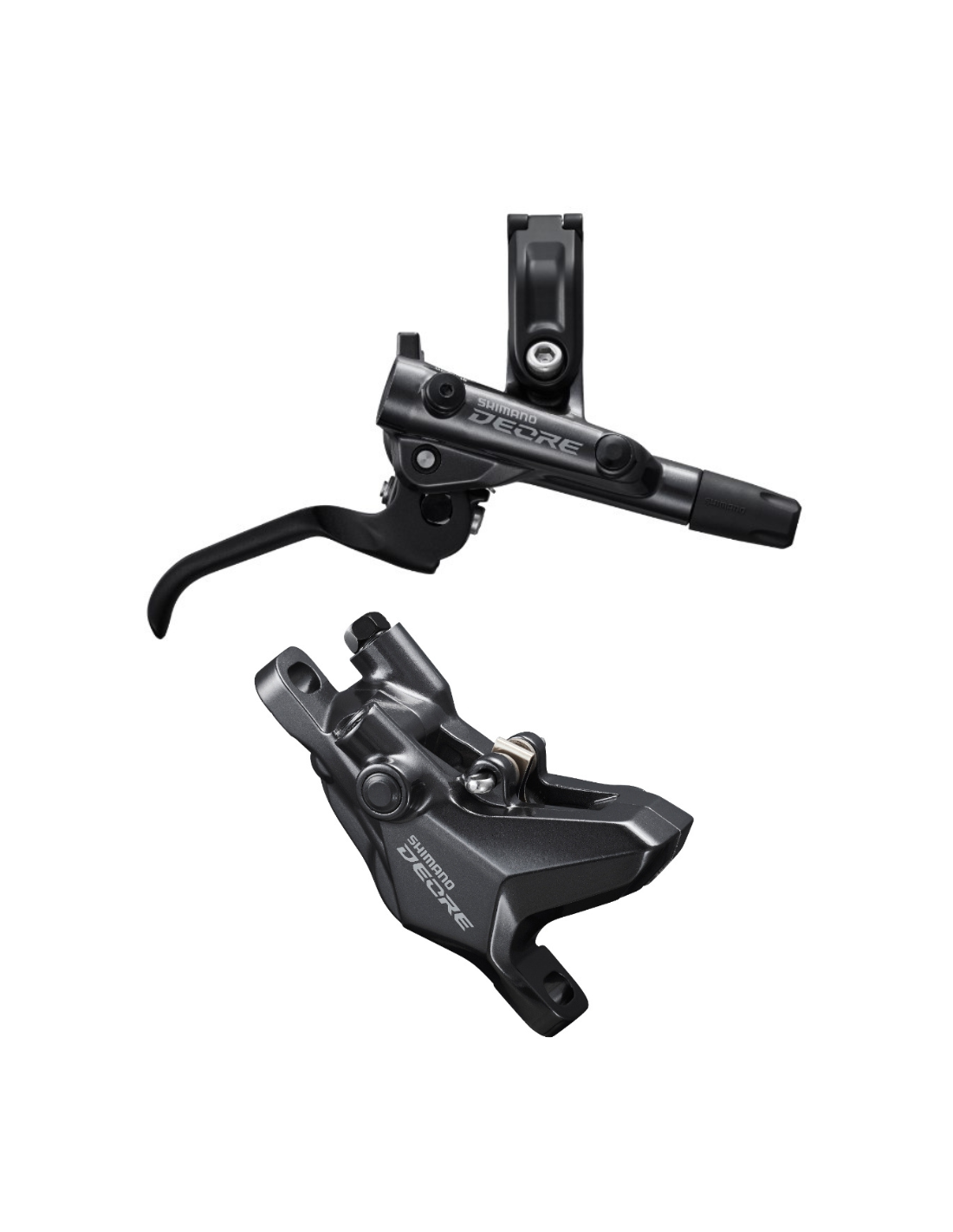

The SHIMANO DEORE M6100 brake kit features the SERVO-WAVE system, delivering outstanding and reliable performance with smooth operation. The short, 2-finger lever is refined and ergonomic, enabling precise braking control. The master cylinder and dual-piston caliper ensure powerful and dependable braking in all conditions. Additionally, the M6100 lever includes an extra support point on the handlebar to enhance rigidity during braking.

Thanks to its I-SPEC clamp, installation is quick and does not require removing the grips. It also offers a customized cockpit setup with a dial for reach adjustment and a 20° angle adjustment for the shifter lever. The J-KIT system allows for easy hose length adjustment before securing it to the master cylinder and/or simplifies internal cable routing.

SPECIFICATIONS

• Brake Type : Hydraulic disc brake

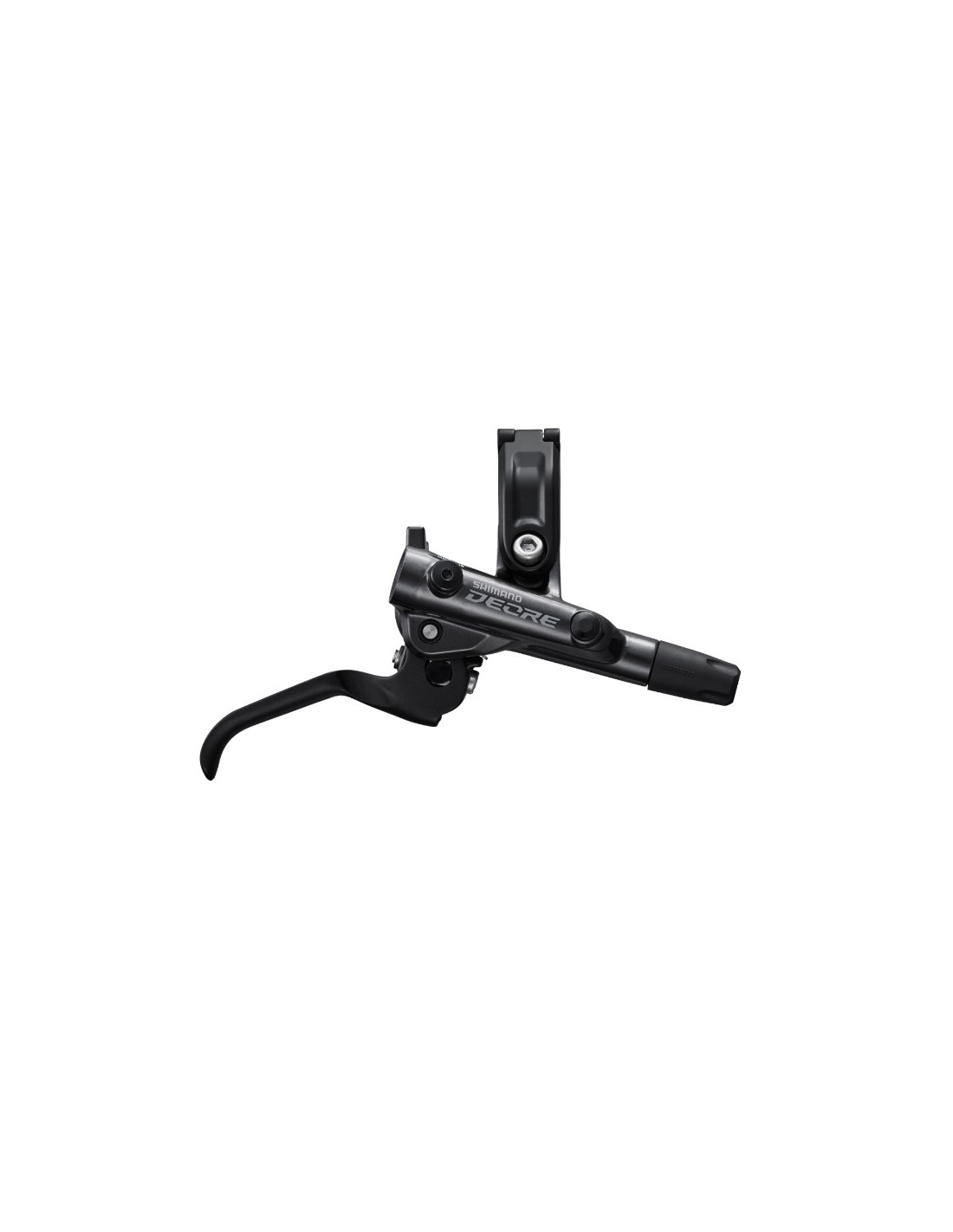

• Lever : DEORE BL-M6100 / Right-side / I-SPEC clamp / 2-finger design

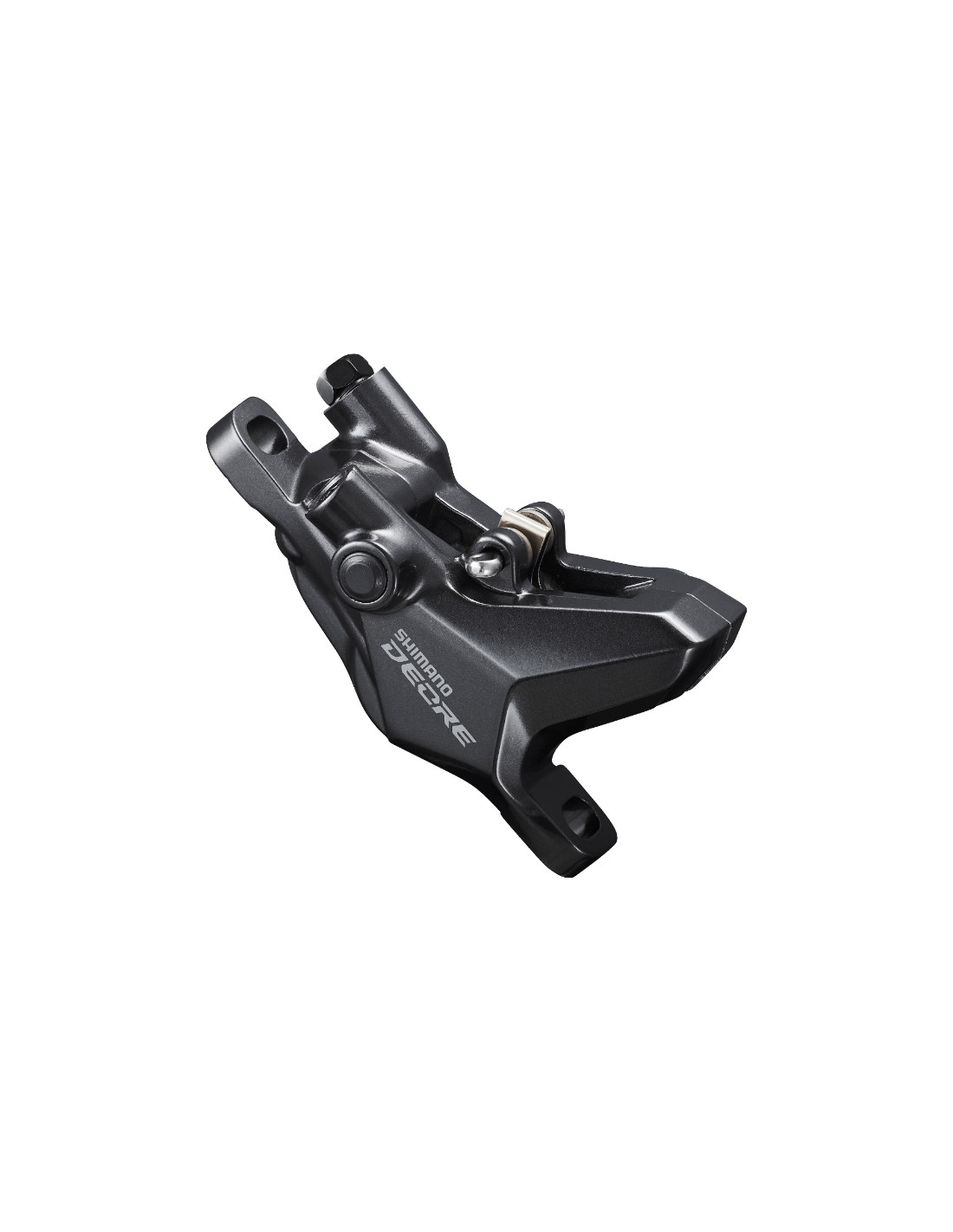

• Caliper : DEORE BR-M6100 / Postmount / 2 pistons
• Hose : SM-BH90 - 1600mm
• J-KIT : Yes (hose is not pre-connected)
• Oil Type : Mineral
• Weight : 298g

BRAKE INSTALLATION

• Position the brake lever on the handlebar.
• Mount the caliper on the disc brake mount.
• Remove the black rubber cap from the end of the hose.
• Remove the plugs located at the end of the brake levers.
• Slide the black rubber nut cover onto the hose.
• Do not remove the small seal located at the end of the hose.
• Insert the brake hose into the lever nut.
• While ensuring the hose is fully seated in the lever nut, tighten the nut to compress the olive within the lever. Do not overtighten; the nut threading should remain visible, as it will later be covered by the rubber nut cover you slid onto the hose earlier.
• Finally, activate the brake lever to complete the installation.
