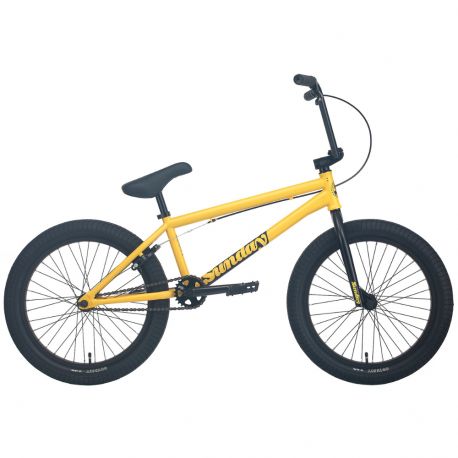

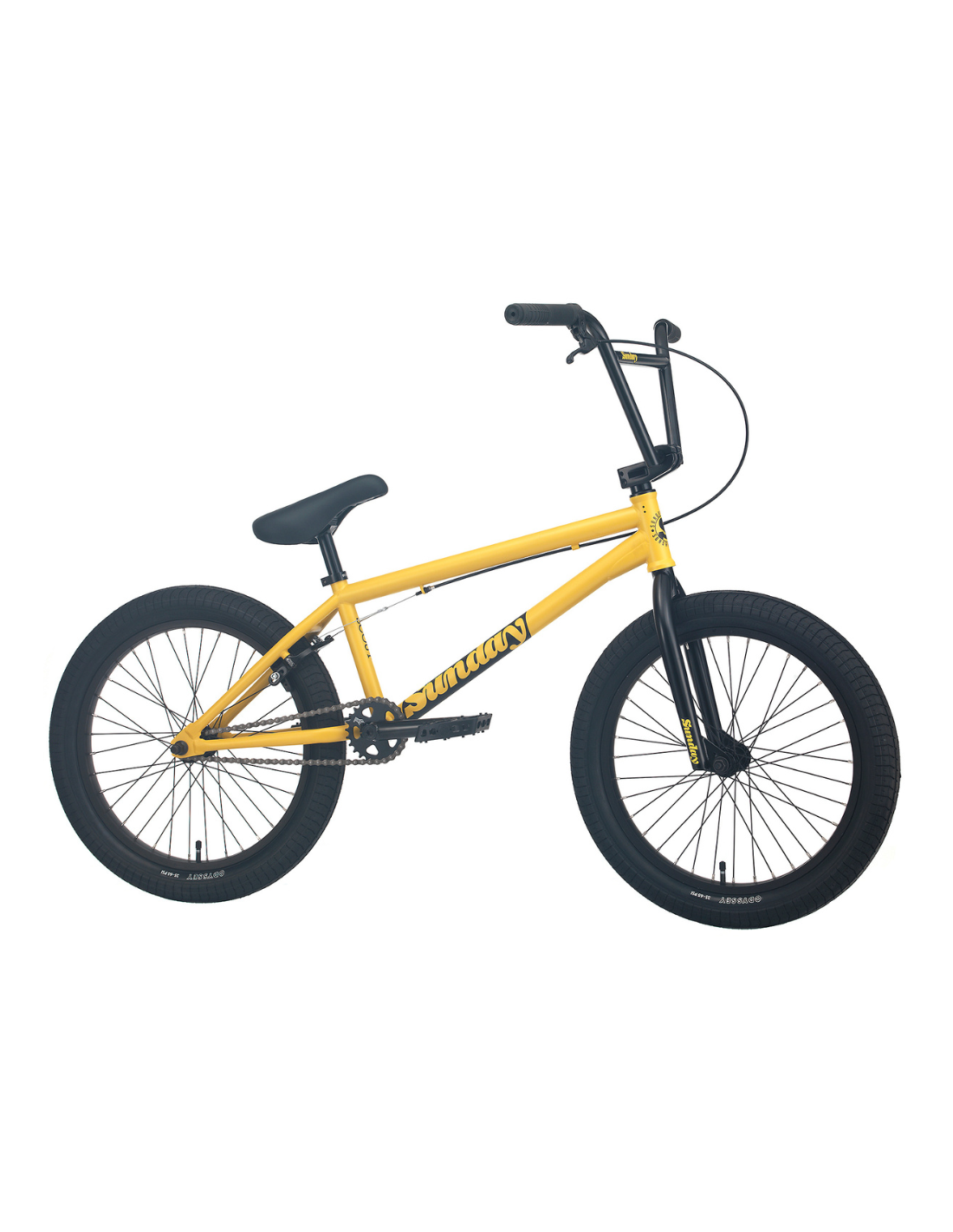

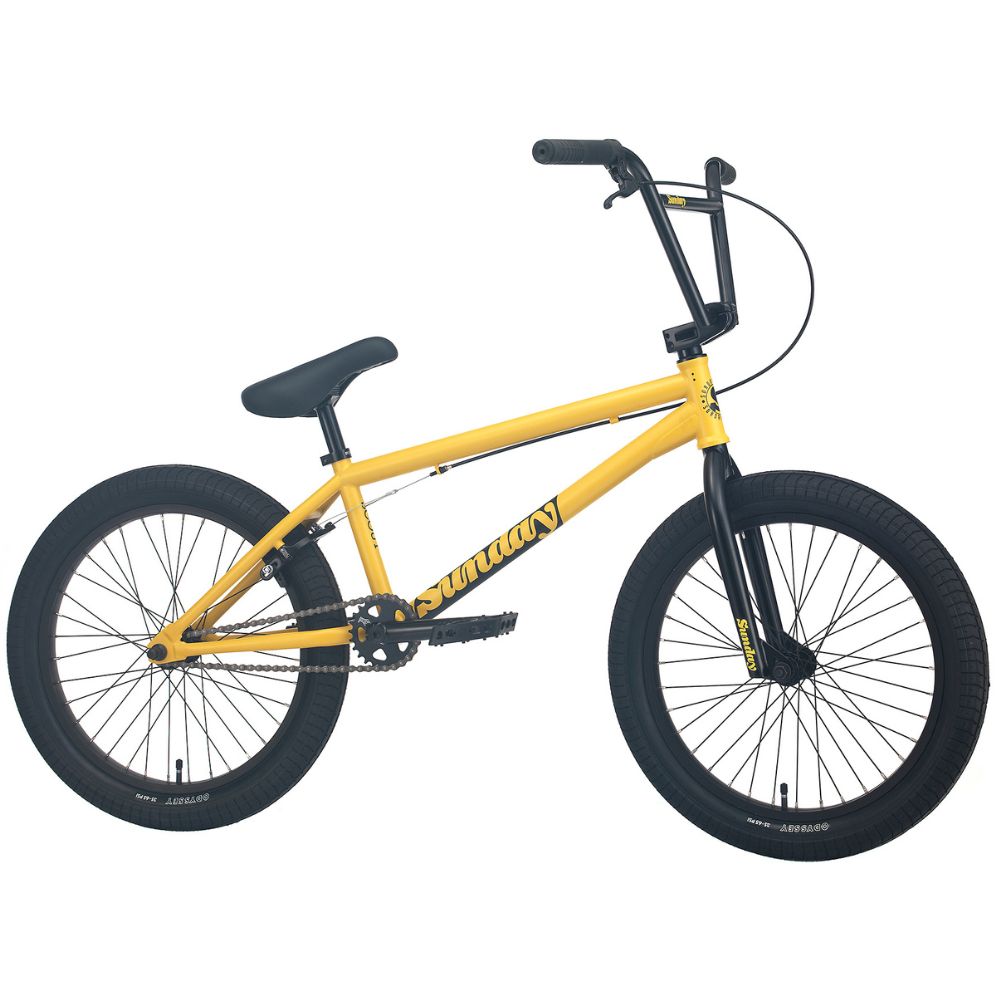

Sunday Scout 20.75" Bmx - Matt Mustard

BMX SUNDAY SCOUT

The Sunday SCOUT is a versatile BMX designed for experienced riders who want to progress without compromise. Built around pro-level geometry in a range of top tube sizes, the SCOUT features quality components such as Odyssey Springfield brakes, Path Pro tires, and other Odyssey parts.

FEATURES

• Sunday Freeze Top Load Stem
• Odyssey Springfield Brakes
• Odyssey Path Pro OEM 2.40" Tires
• Odyssey Twisted Pro Pedals
• Sunday Badge Pivotal Seat
• FSA Headset
• Sealed Bearings (front and rear hubs)

SPECIFCIATIONS

• Frame : Sunday Scout, 21" top tube, integrated 1-1/8" headtube, chromoly tubing
• Fork : Sunday Scout, 20", chromoly tubing
• Handlebars : Sunday, 4 piece
• Stem : Sunday Freeze Top Load, 48mm
• Headset : FSA integrated, 1-1/8"
• Brake Lever : Odyssey Springfield
• Brakes : Odyssey Springfield U-brake
• Brake Cable : Odyssey Quik Slic
• Grips : Odyssey Broc Raiford
• Seat : Sunday Badge, Pivotal
• Seat Post : Sunday, Pivotal
• Seat Clamp : Sunday
• Chainring : Sunday Sabertooth v2, 25T, steel
• Crankset : 170mm, 3-piece, chromoly
• Bottom Bracket : Sealed, Mid, 19mm
• Pedals : Odyssey Twisted PC Pro
• Rims : P-7X aluminum, 20", 20H
• Front Hub : Sunday, 36H, low flange, sealed bearings, 3/8" axle
• Rear Hub : Sunday, 36H, sealed bearings, 14mm axle with 9-tooth driver
• Spokes : 14g steel, black
• Tires : Odyssey Path Pro OEM, 20 x 2.4"
• Chain : KMC Z1 Large
• Weight : 11.79 kg

GEOMETRY - FRAME

• Top Tube Length : 21"
• Head Tube Angle : 75.5°
• Seat Tube Angle : 71°
• Chainstay Length : 13.2-13.5"
• Bottom Bracket Height : 11.5"
• Standover Height : 9"

GEOMETRY - HANDLBAR

• Rise : 9"
• Width : 29"
• Backsweep : 12°
• Upsweep : 3°
