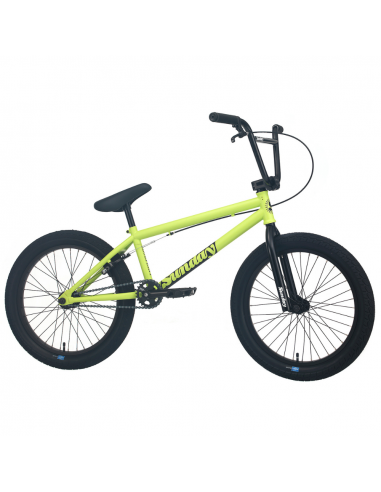

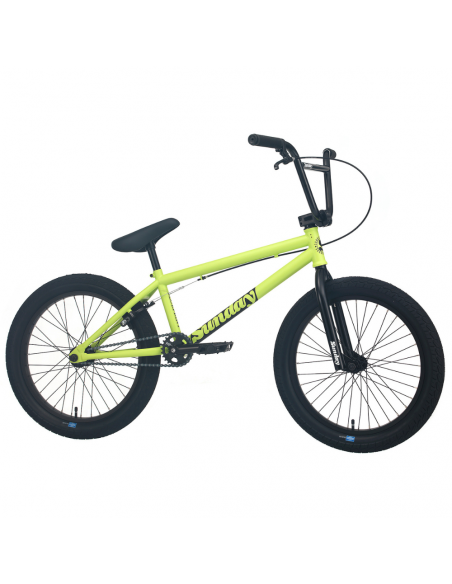

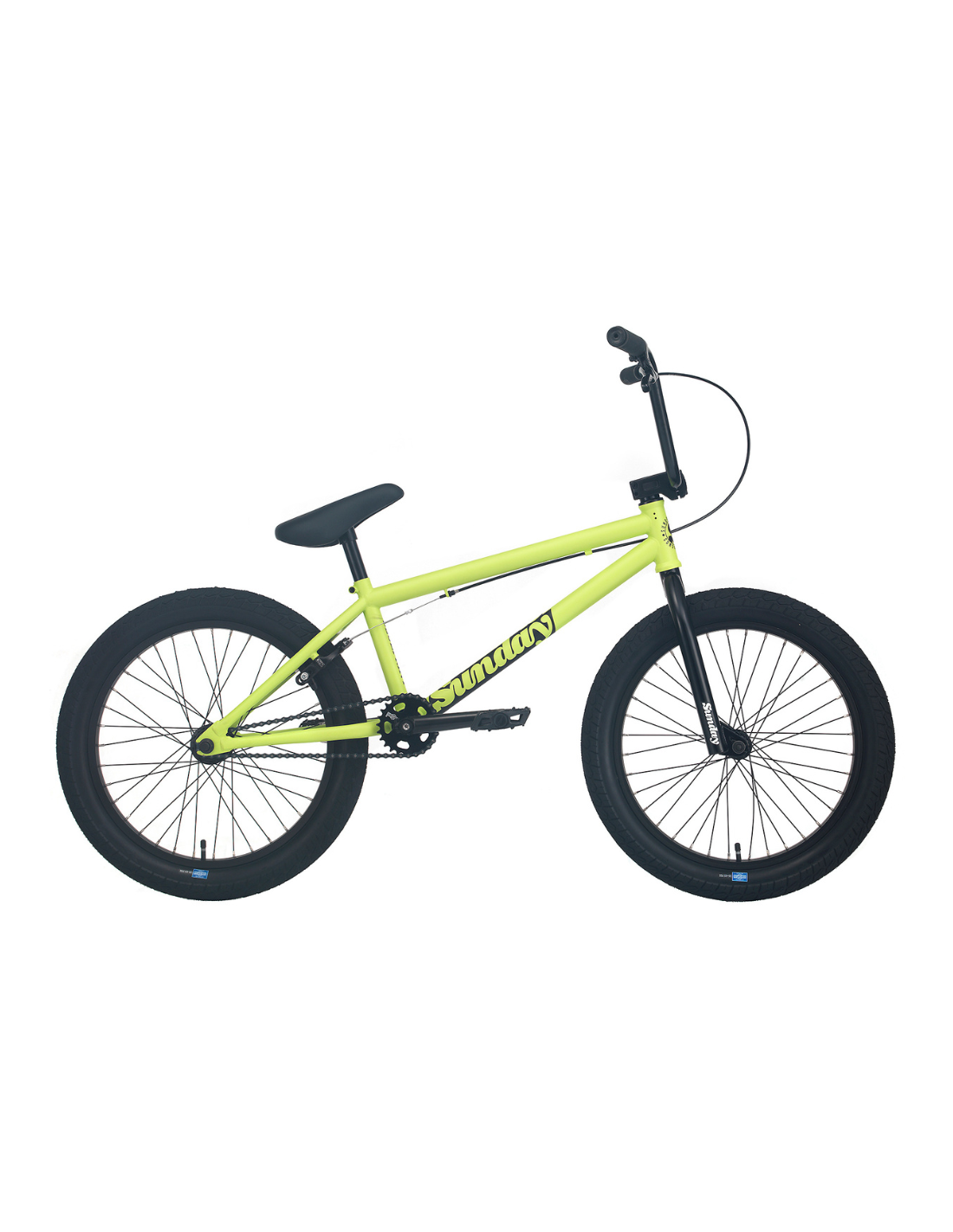

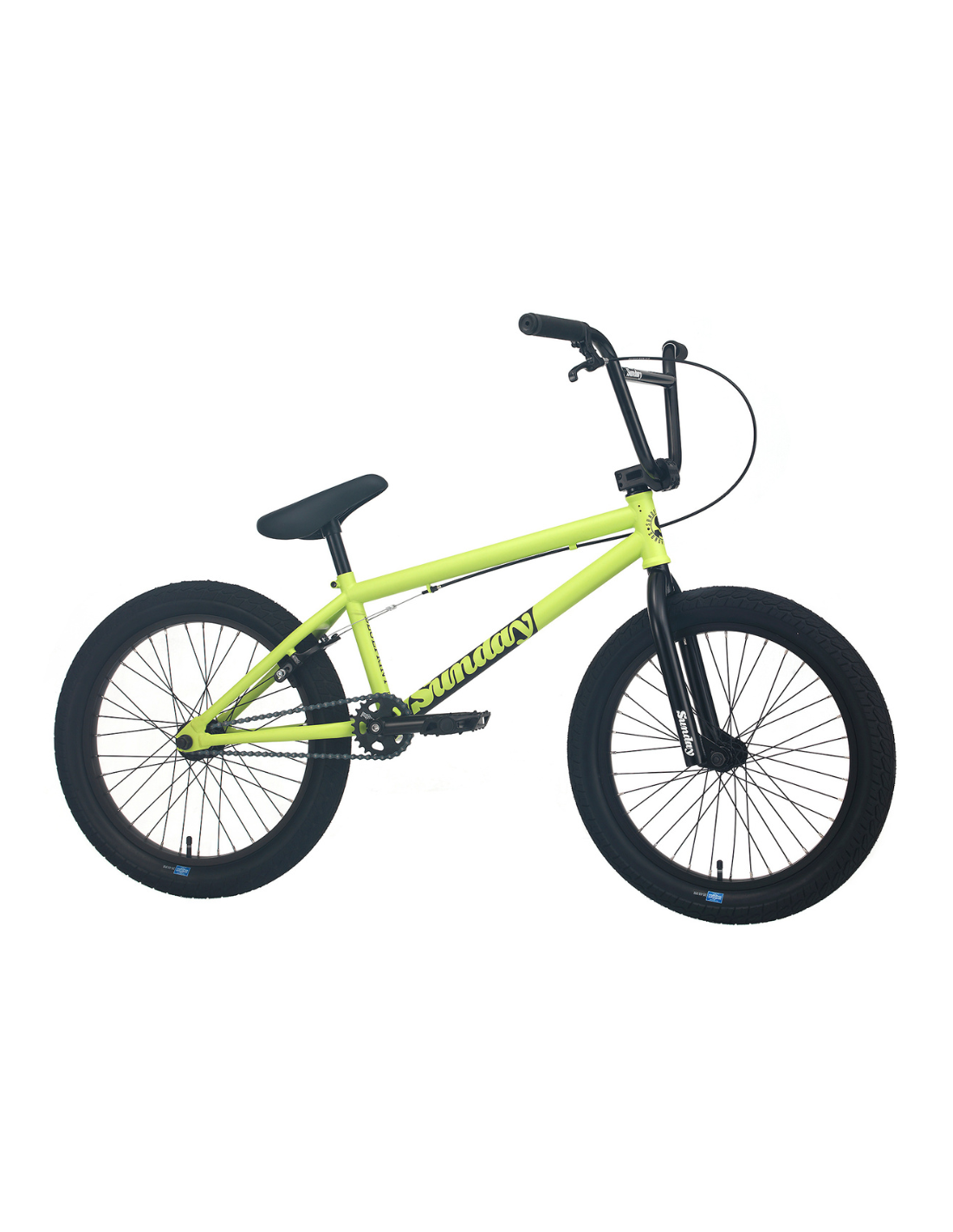

Sunday Blueprint 20" Bmx - Matt Kiwi

SUNDAY BLUEPRINT BMX

The SUNDAY Blueprint is designed for riders who are just starting out in BMX. Developed with a responsive geometry, the Blueprint will help you learn your first BMX tricks with ease.

It comes equipped with reliable components like the Odyssey Springfield brake, Sunday Freeze stem, and Sunday Current V2 2.40" tires. The bike also features an integrated headset for added durability.

FEATURES

• Tires: Sunday Current V2 2.4"
• Brake: Odyssey Springfield U-brake
• Headset: FSA integrated
• Grips: Sunday Cornerstone
• Stem: Sunday Freeze front load
• Chain: KMC S1

SPECS

• Frame: Sunday Blueprint, 20" top tube, integrated 1-1/8" headset
• Fork: Sunday Blueprint, 20", 2-piece, welded compression cap
• Handlebar: Sunday, 2-piece
• Stem: Sunday Freeze front load, 48mm
• Headset: FSA integrated 1-1/8"
• Brake Lever: Aluminum, U-brake compatible
• Brakes: Odyssey Springfield U-brake
• Brake Cable: Odyssey Quik Slic
• Grips: Sunday Cornerstone
• Seat: Sunday Badge, combo
• Seatpost: Combo
• Seat Clamp: Integrated
• Sprocket: Sunday S-Logo, 25T, steel
• Cranks: 160mm, 3-piece, chromoly
• Bottom Bracket: Unsealed, American, 19mm
• Pedals: Wellgo platform, plastic
• Rims: P-7X aluminum, 20", 36H
• Front Hub: Sunday, 36H, low-flange, unsealed, 3/8" axle
• Rear Hub: Sunday, 36H, 14mm axle, 9T driver
• Spokes: 14g steel, black
• Tires: Sunday Current V2, 20 x 2.4"
• Chain: KMC S1
• Weight: 11.79 kg

GEOMETRY - FRAME

• Top Tube: 20"
• Chainstay Length: 13.2-13.5"
• Headtube Angle: 75°
• Seat Tube Angle: 71°
• Standover Height: 8.75"
• Bottom Bracket Height: 11.5"

GEOMETRY - HANDLBAR

• Height: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°
