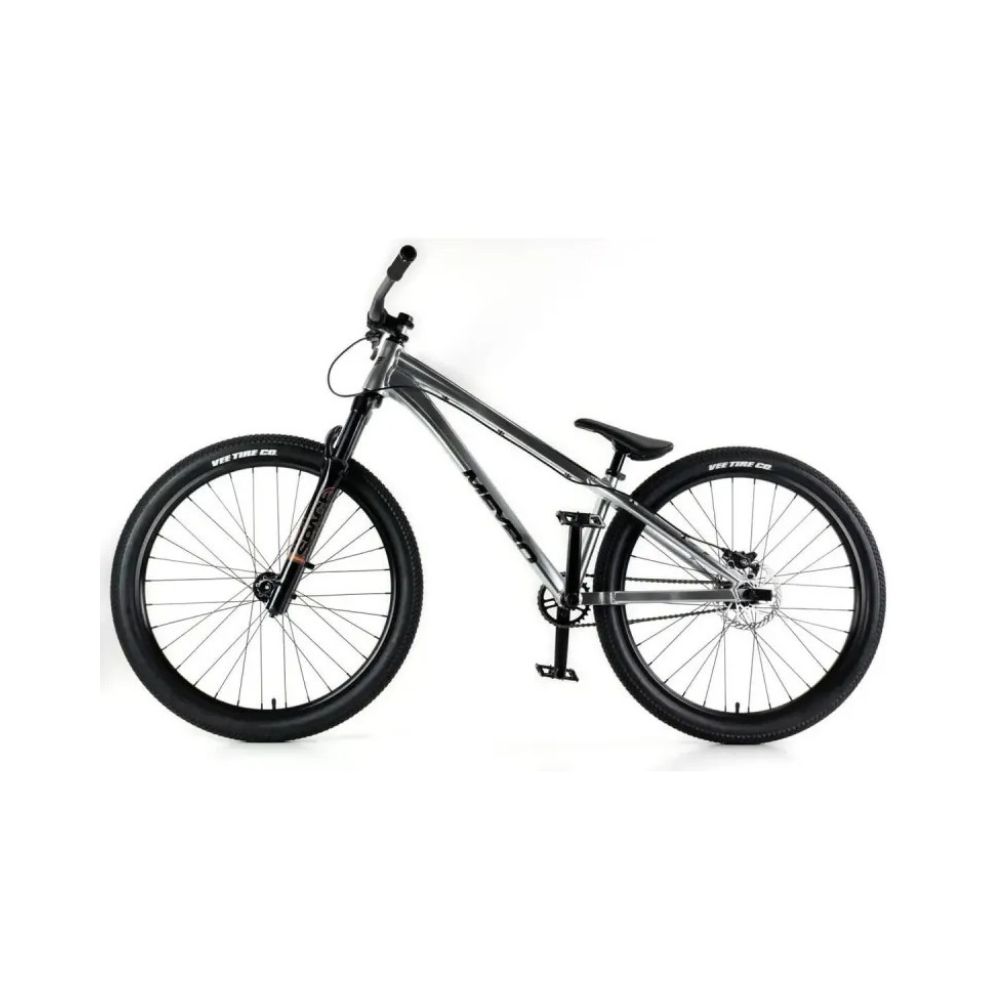

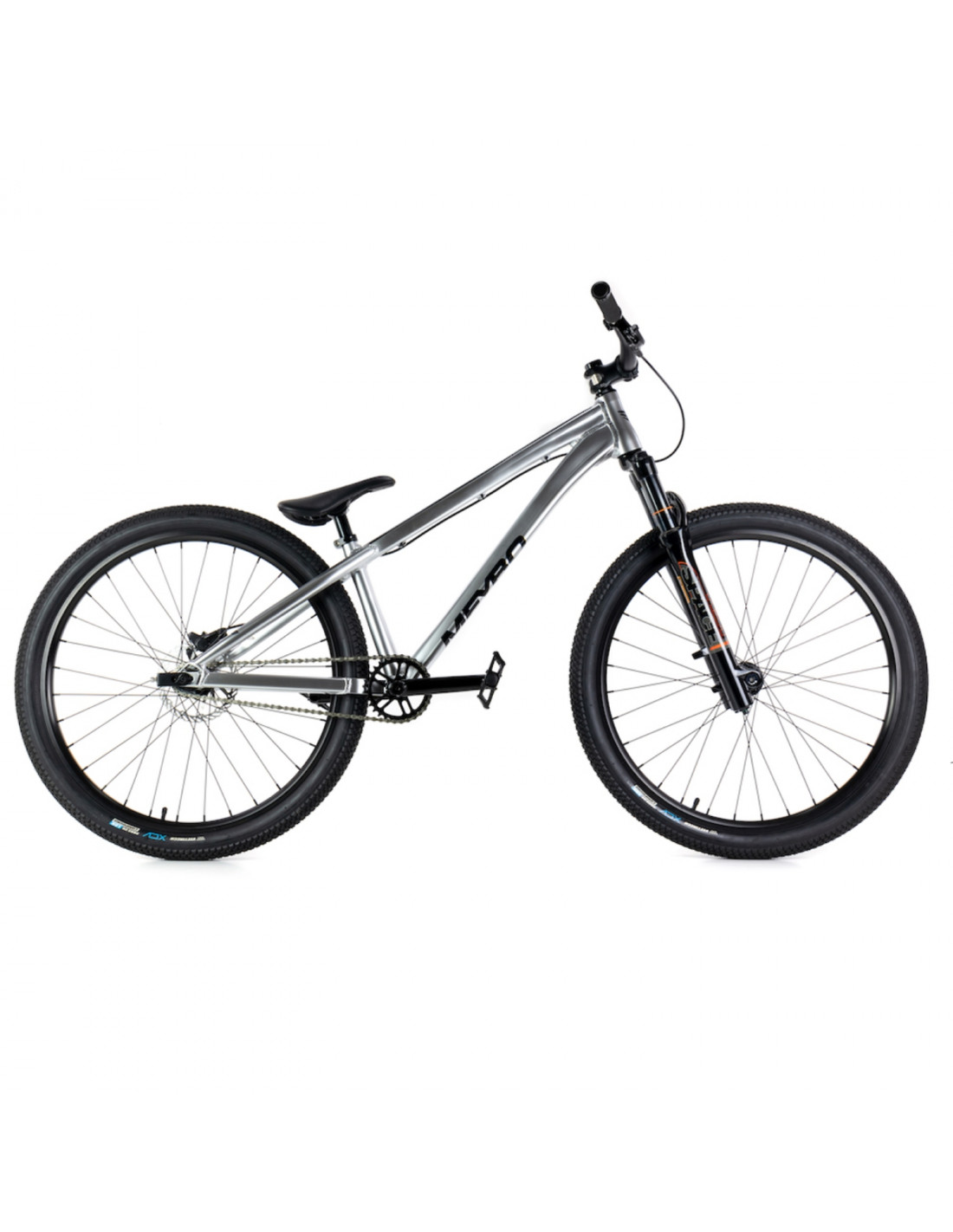

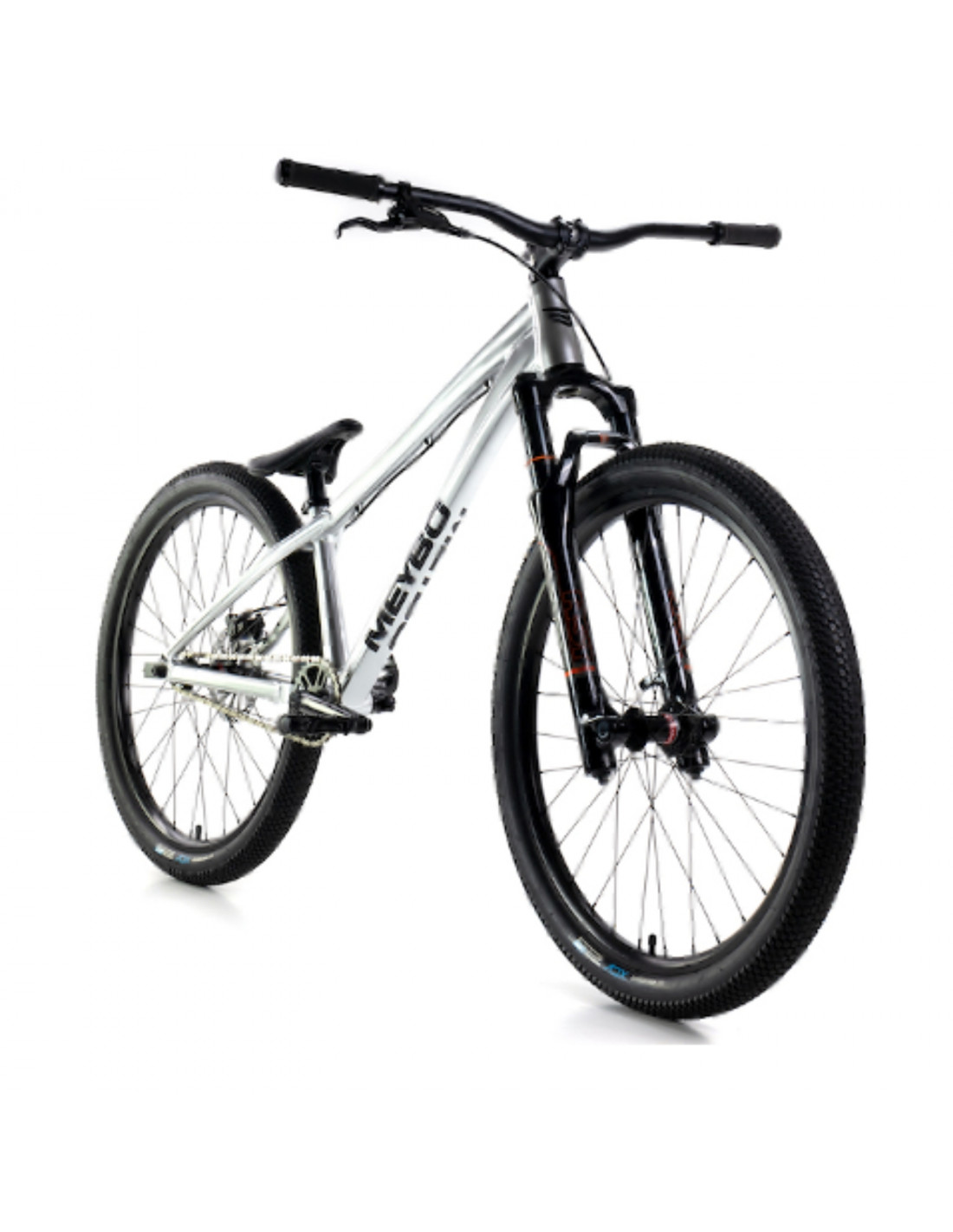

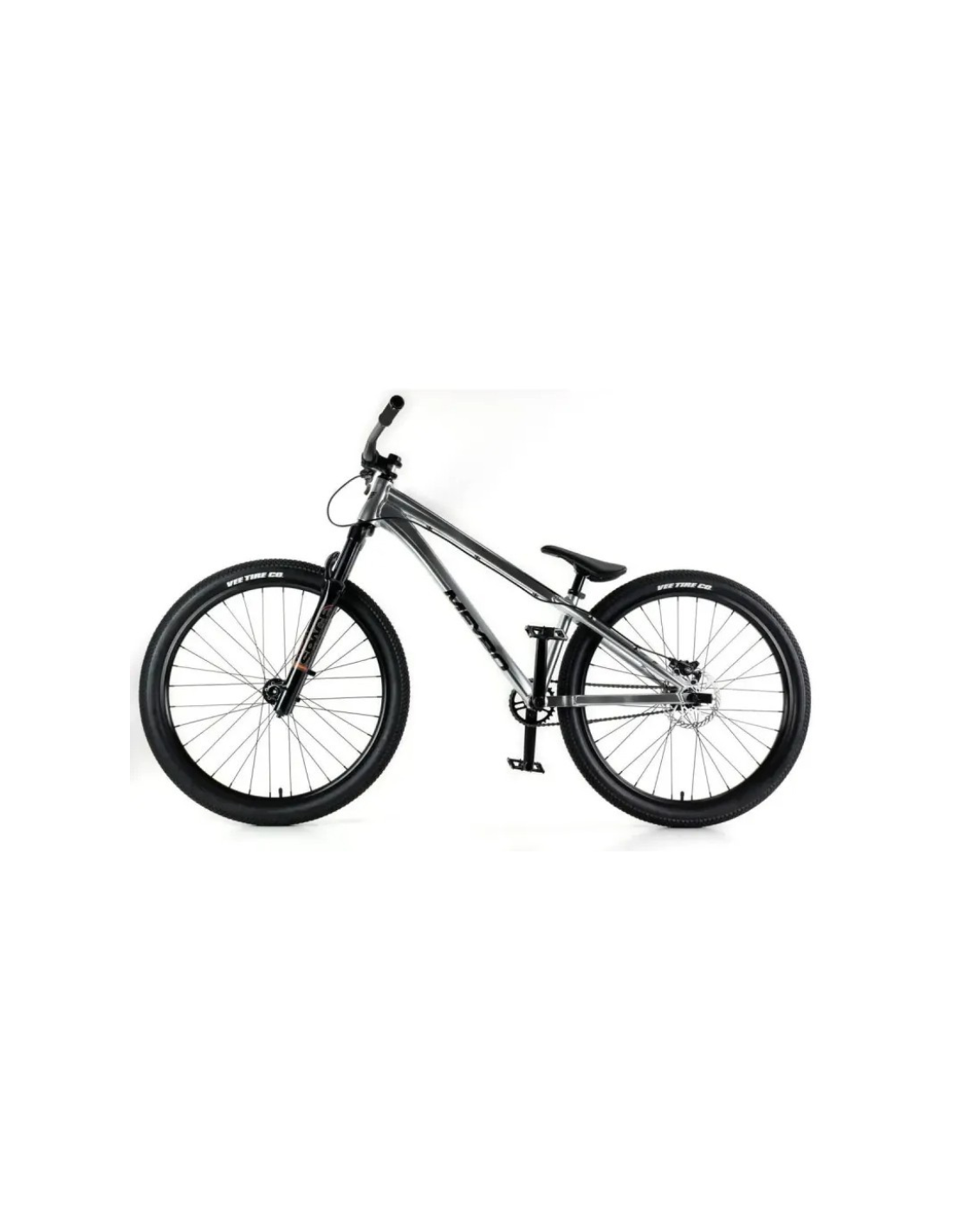

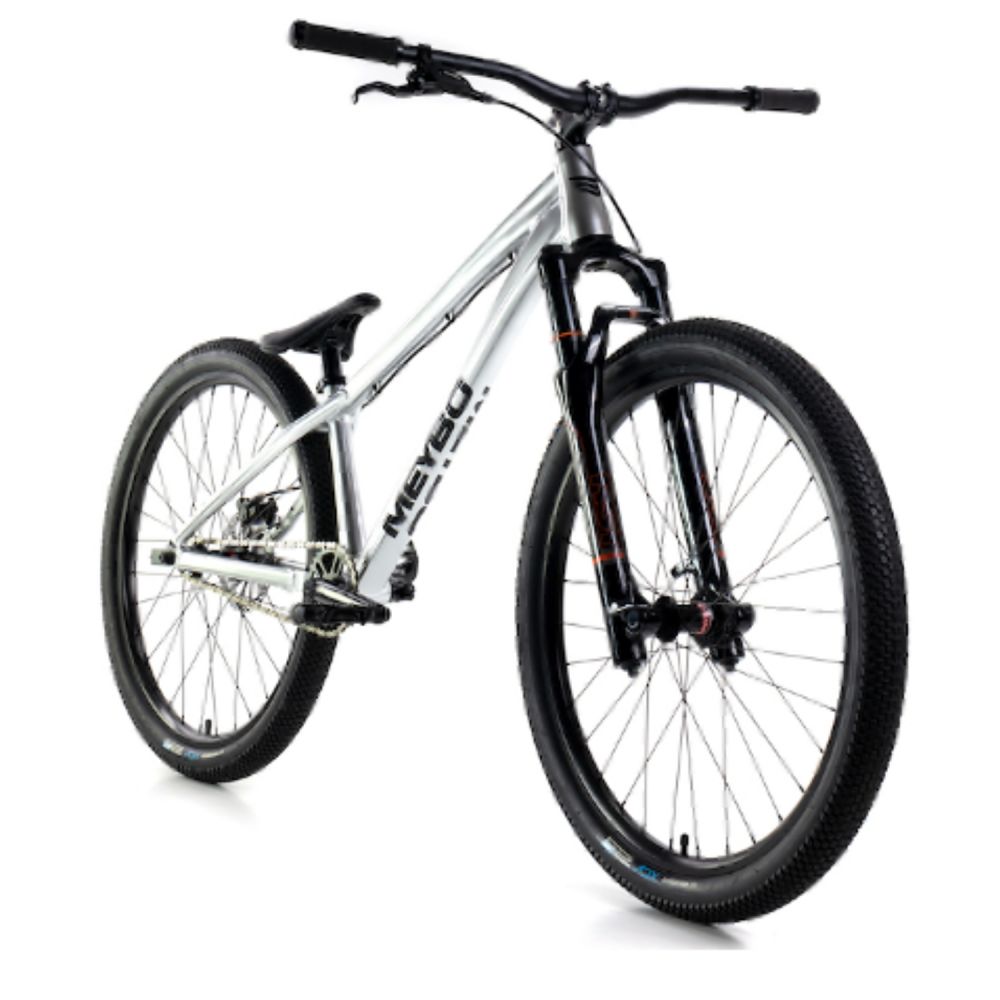

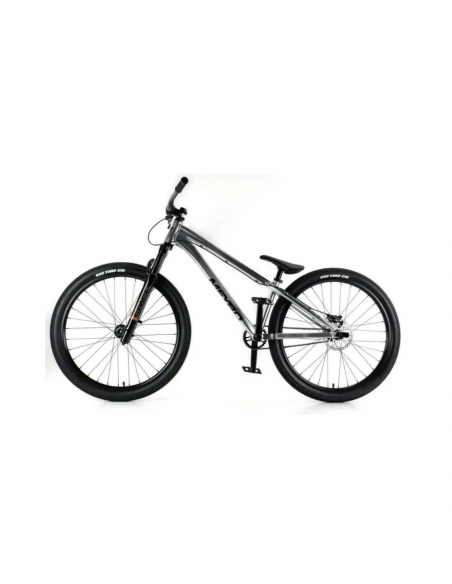

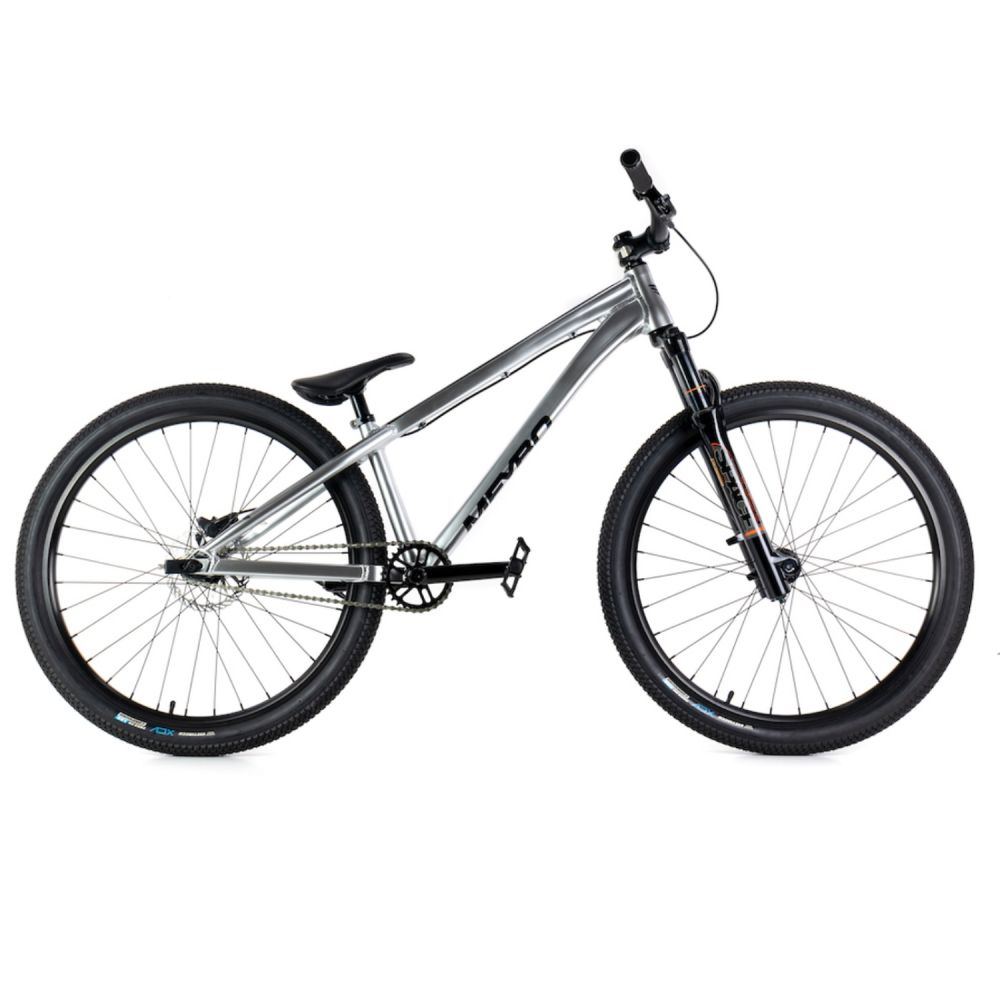

MEYBO STEEZ 2024
Meybo Bikes is a Dutch brand created in the years 2000 for BMX Race. Being a great brand today in the world of Race, Meybo decided this year to propose a Dirt Jump / Pumptrack model to its catalog. Meybo has always been a brand known for its quality products. On this Dirt Jump, a set of high-end components for a rather attractive price. A preload and rebound adjustable fork, an ultra light Aluinium frame, a solid 3 piece crankset and a hydraulic disc brake.
This model is ideal for use in Pumptracks or on mogul fields.
IN DETAIL:
- Frame: Meybo Steez 26" Aluminum

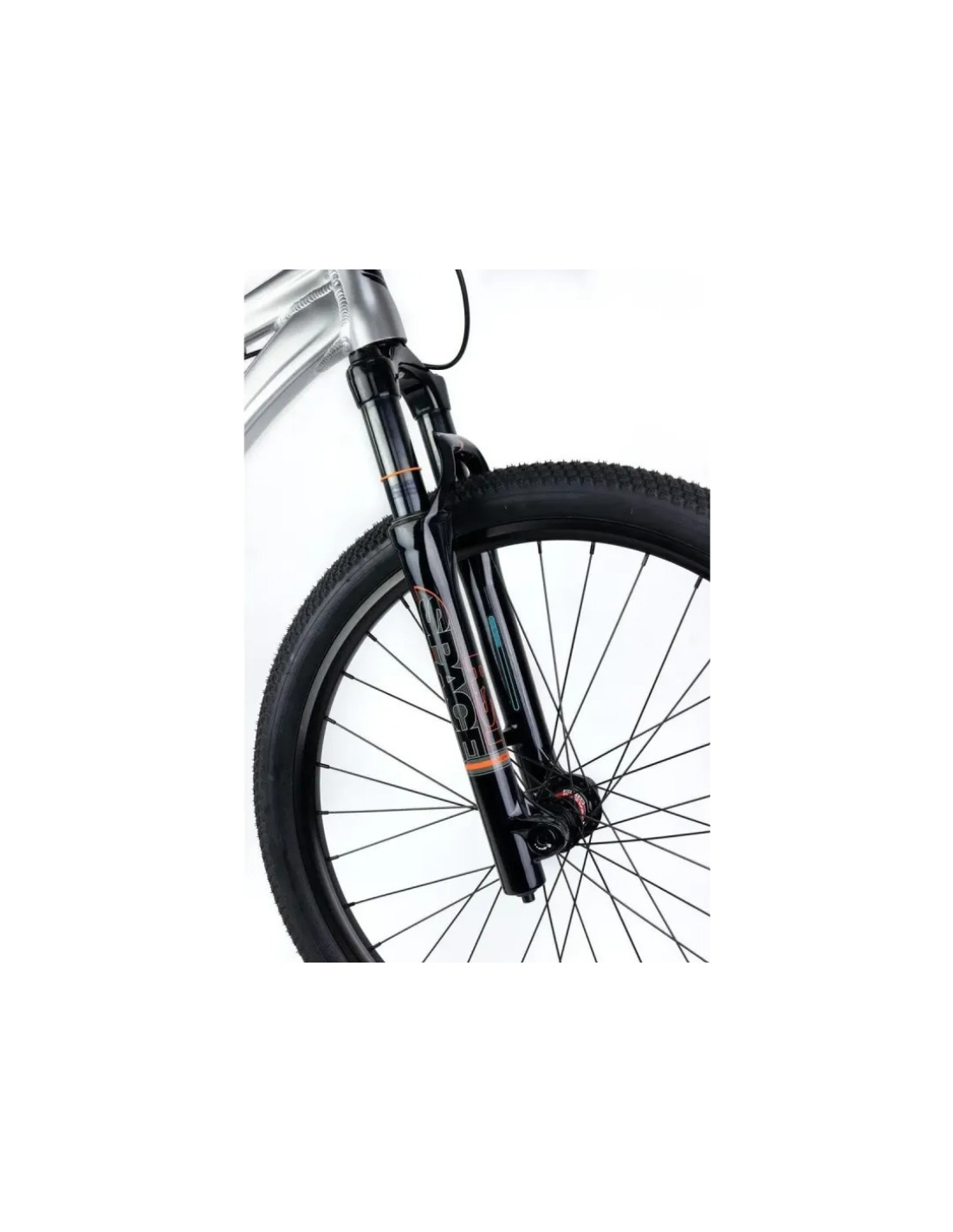

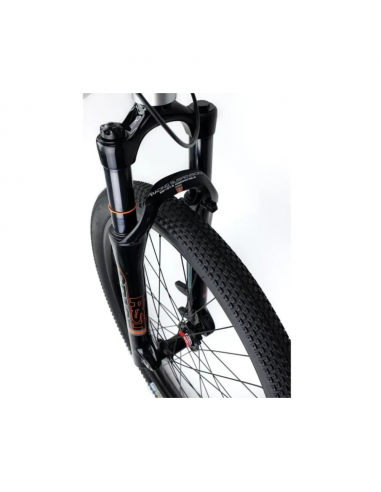

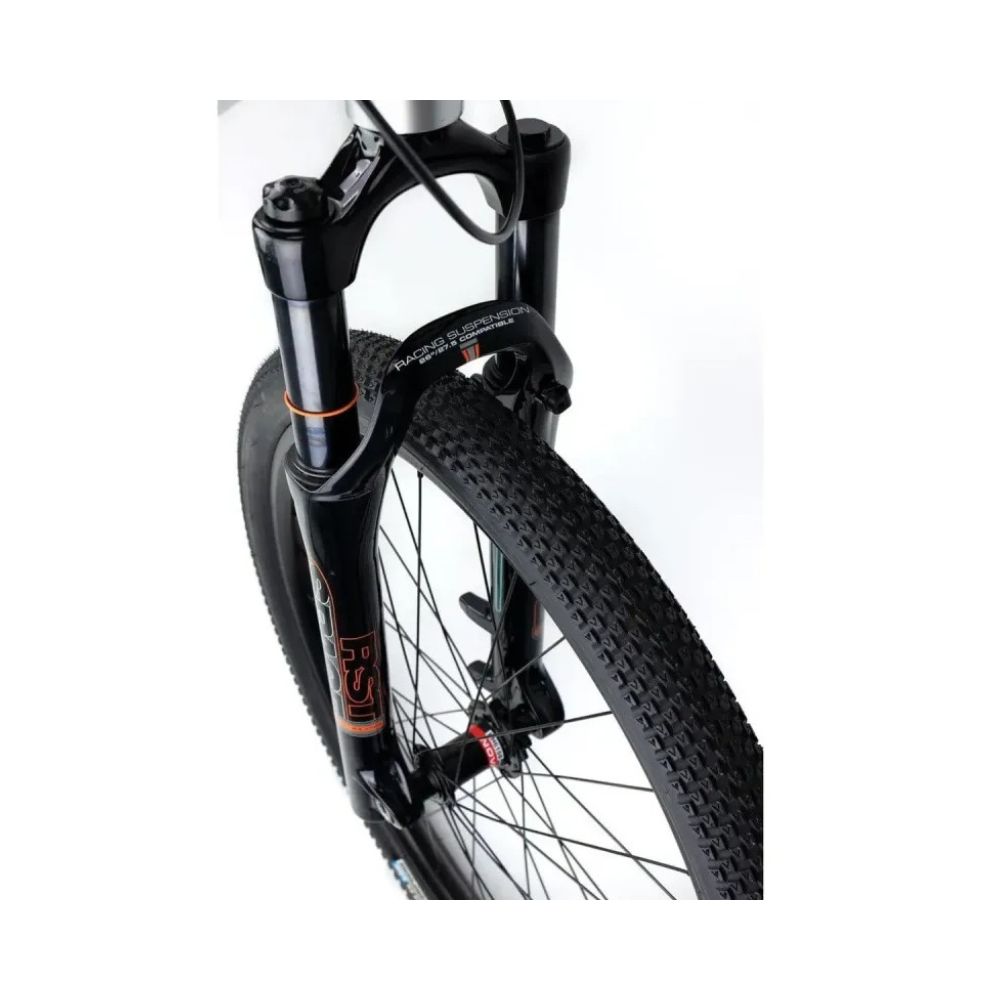

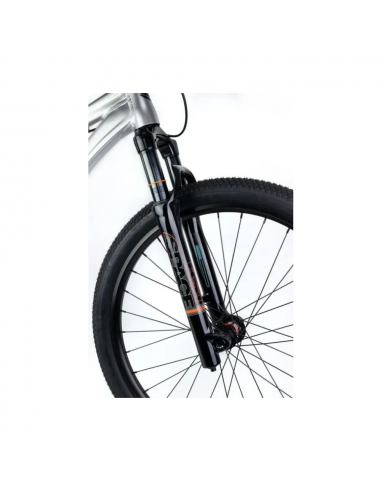

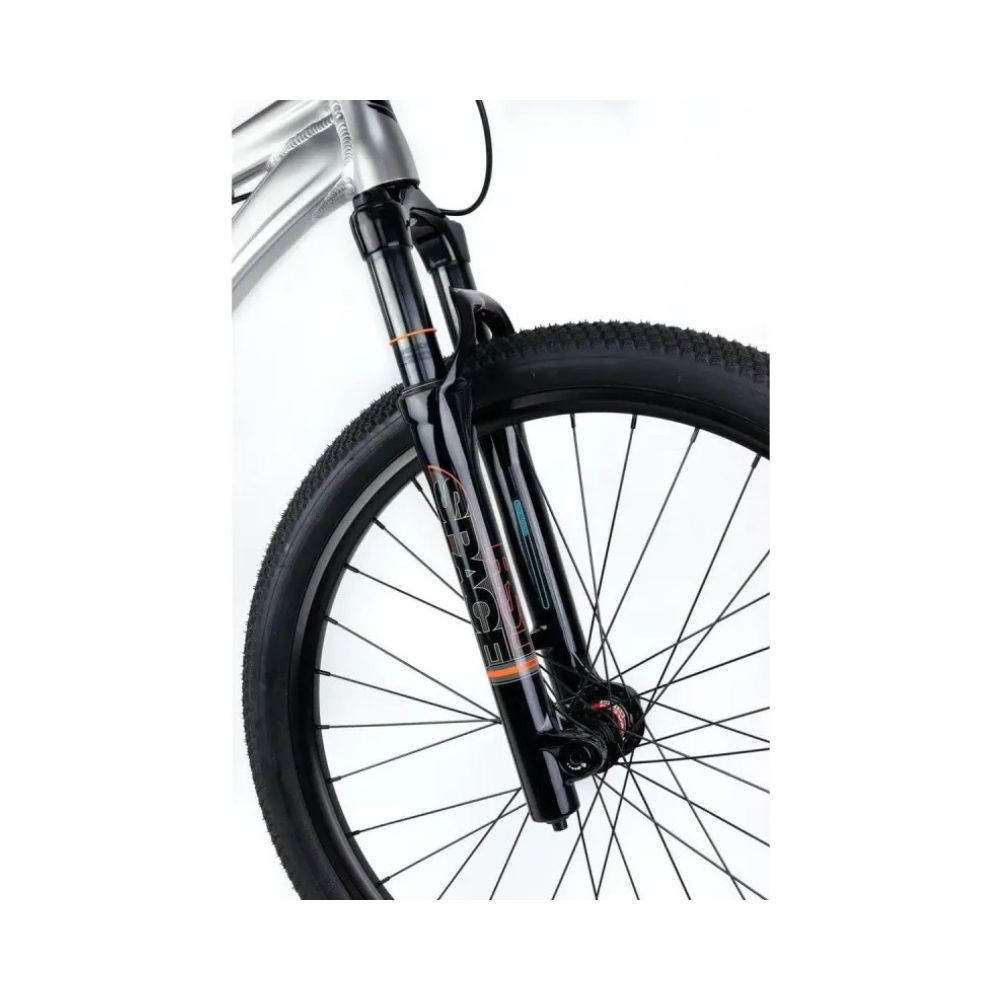

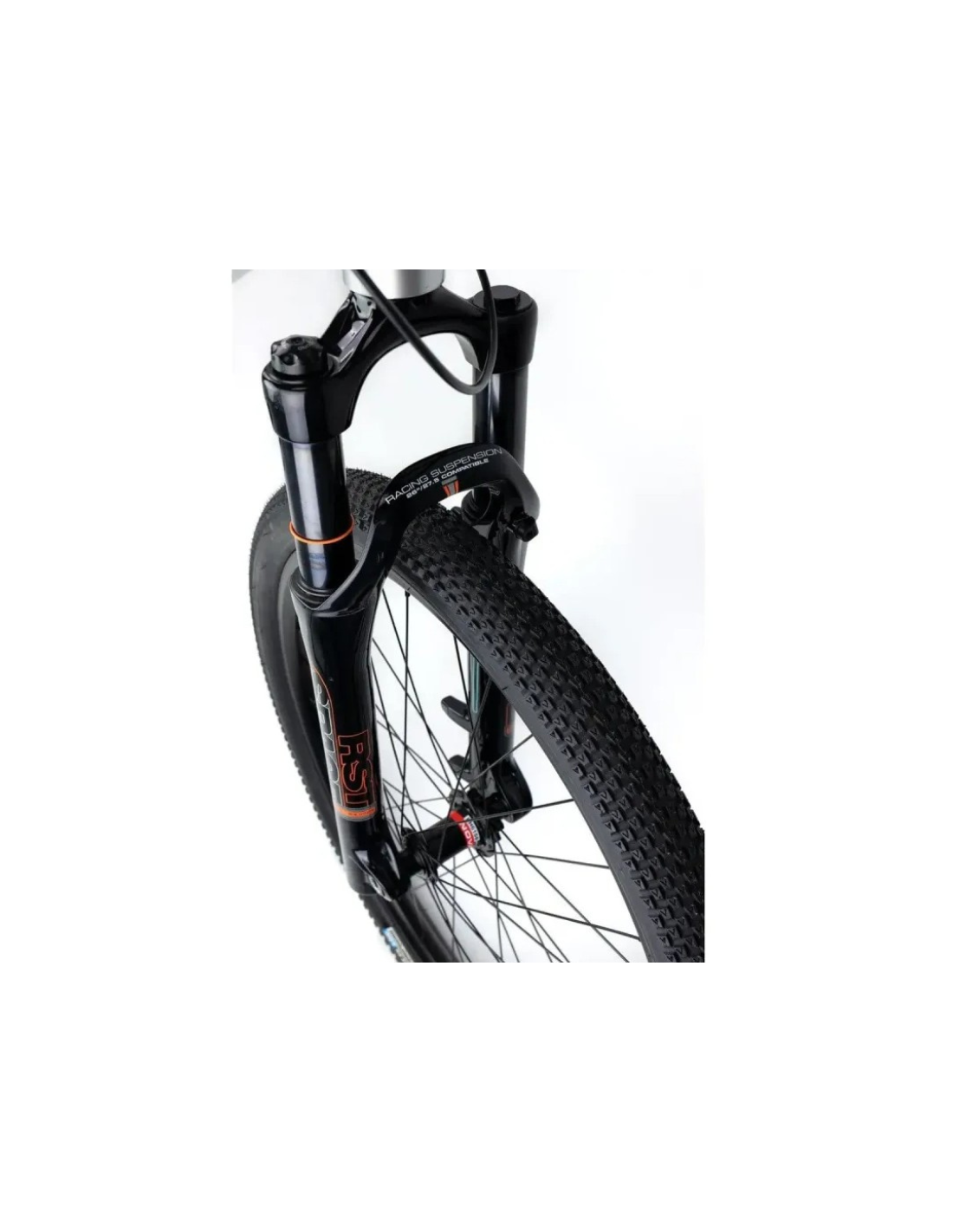

- Fork: RST Space - 26" - 100mm travel - Tapered (1"-1/8 | 1,5")
- Headset: Tapered 1"-1/8 | 1,5"
- Handlebars: MTB Aluminum handlebars 31.8mm diameter
- Stem: Oversized clamp 31.8mm - 45mm long
- Handles: 130mm Lock On
- Brake lever: Clarks Hydraulic CH-19

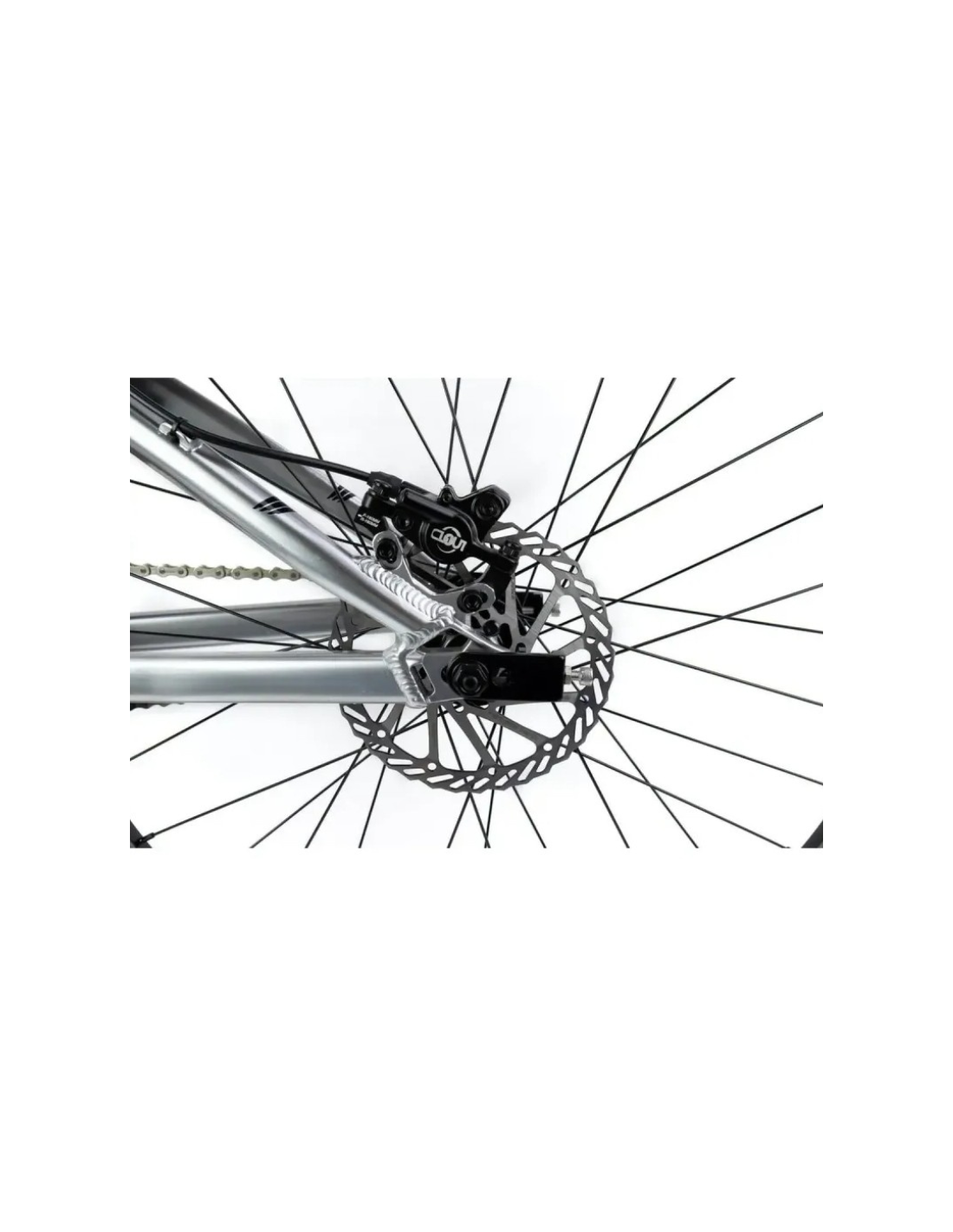

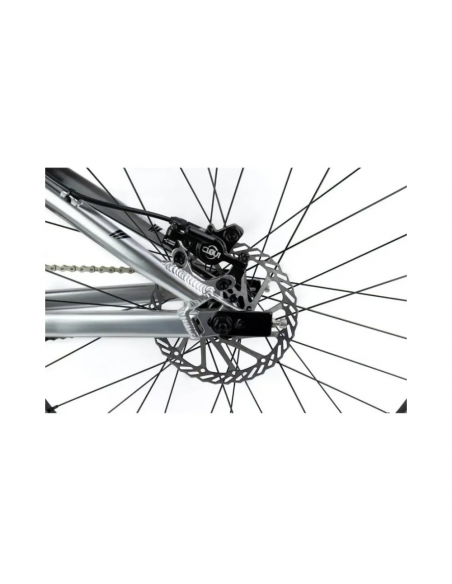

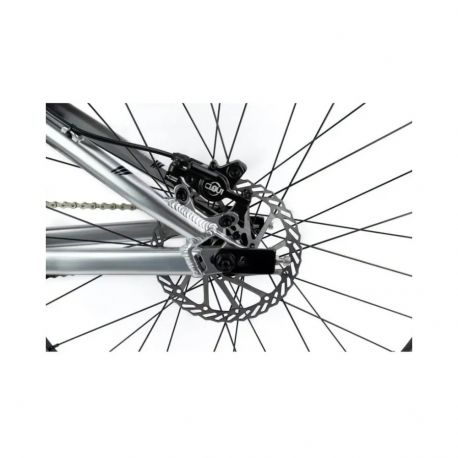

- Brake caliper: Clarks Hydraulic CH-19
- Front hub: Novatec 36H - 20mm thru axle
- Rear hub: Novatec 36H - 10mm male axle
- Spokes: Black
- Spokes heads : Brass 14G Black
- Front rim: 26" Double wall - Aluminum
- Rear rim: 26" Double wall - Aluminum
- Tires: Vee Tire Co. Speedster 26" x 2.25" tires
- Seat: Pivotal Black 27.2mm
- Seat Clamp: Black 31.8mm

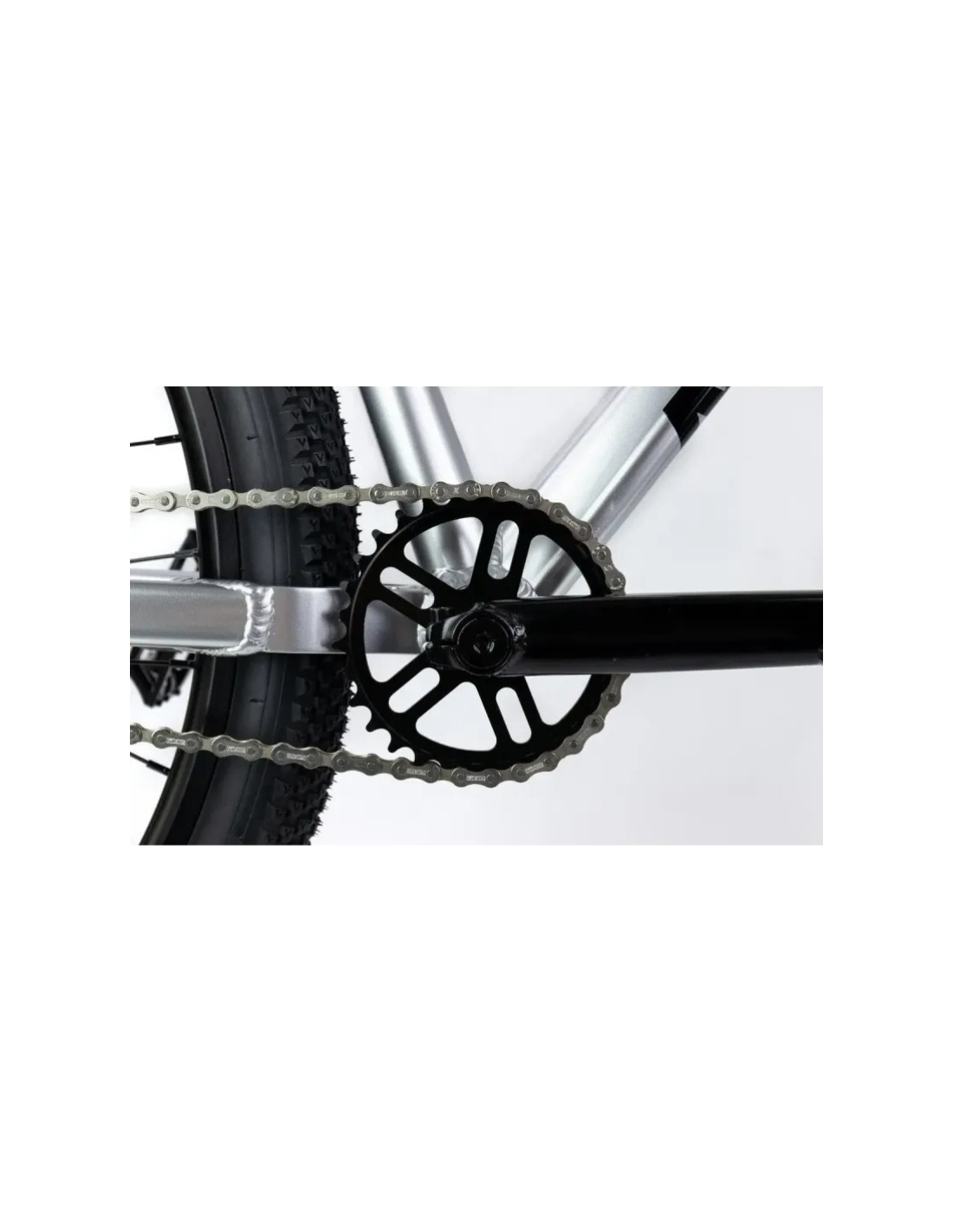

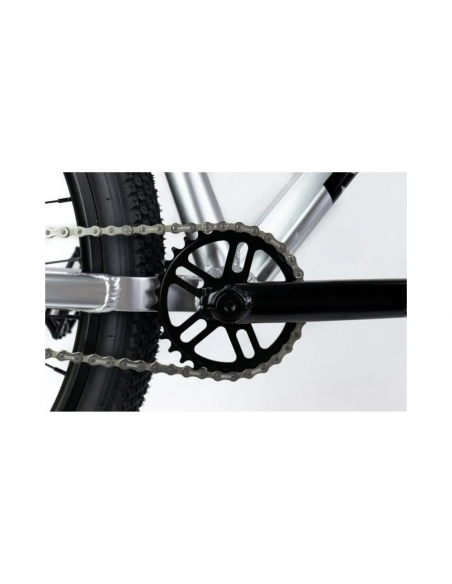

- Crankset: Cr-Mo 3 piece 175mm - 8 splines - 19mm diameter axle
- Bottom bracket: 19mm sealed bearings - EURO
- Pedals: Black Aluminum
- Sprocket: Black - 3/32 chain type - 30T
- COG: 14T - 3/32 Chain type
- Chain: KMC Z1 Narrow 3/32
- Chain tensioners: Integrated in the frame
FRAME GEOMETRIES :
- Top Tube : 22,86"
- Down Tube : 26"
- Chainstay : 15,43"
- Angle Head Tube : 69°
- Seat Tube Angle : 68,5°
- Headtube Size : 1"-1/8 | 1,5" (Tapered)
- Seat Post Diameter : 27,2mm
- Dropouts : 10mm
- Buttom Bracket type : EURO 19mm
- Disc Brakes compatible only
- BIKE TYPE
- Dirt
- TOP TUBE
- 22,86"
- WHEEL SIZE
- 26"
- STEERER TUBE SIZE
- 1"-1/8 | 1,5" (Tapered)
- FORK DROPOUTS
- 10mm
- SHIS CODE
- Tapered 1"-1/8 | 1,5"
