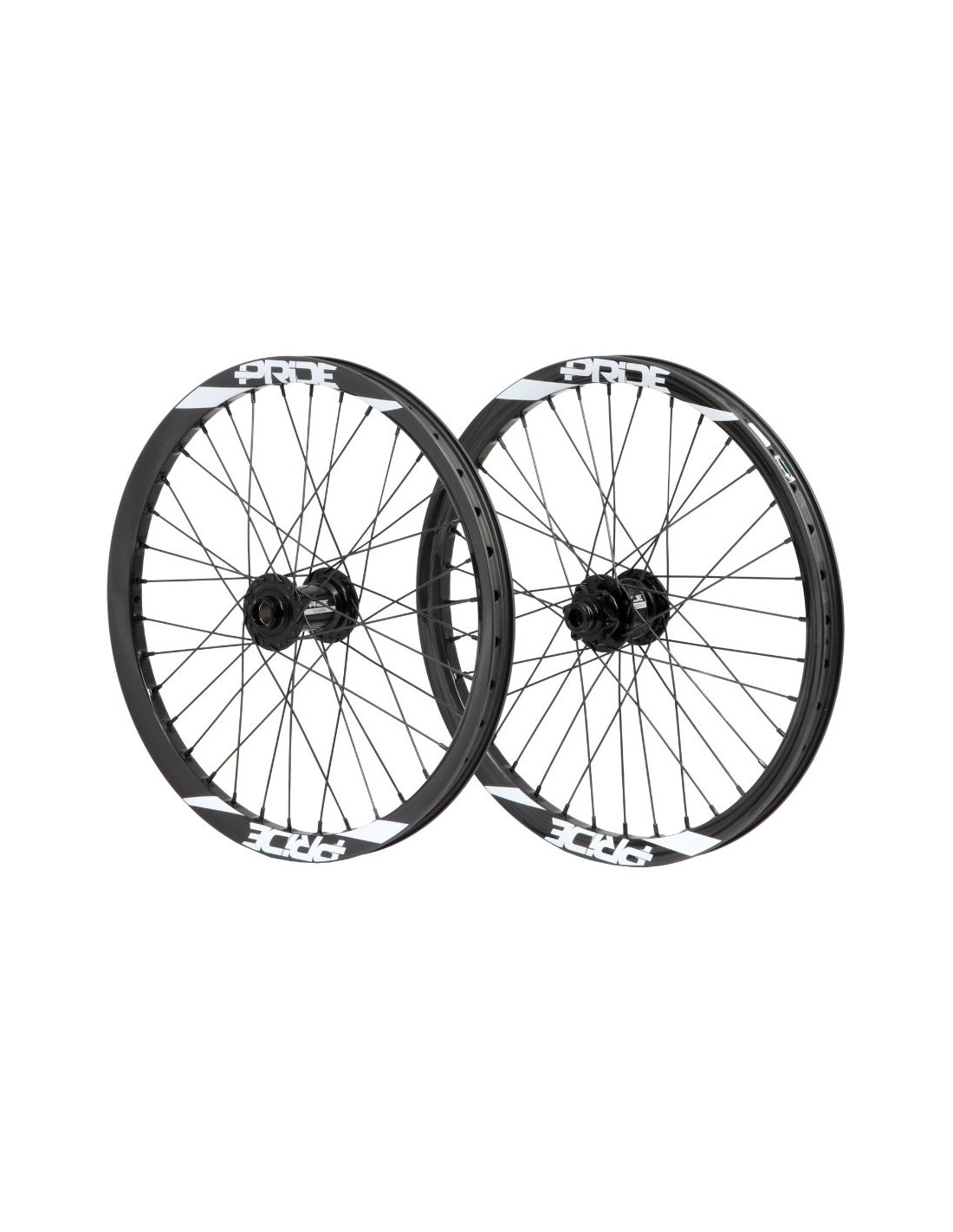

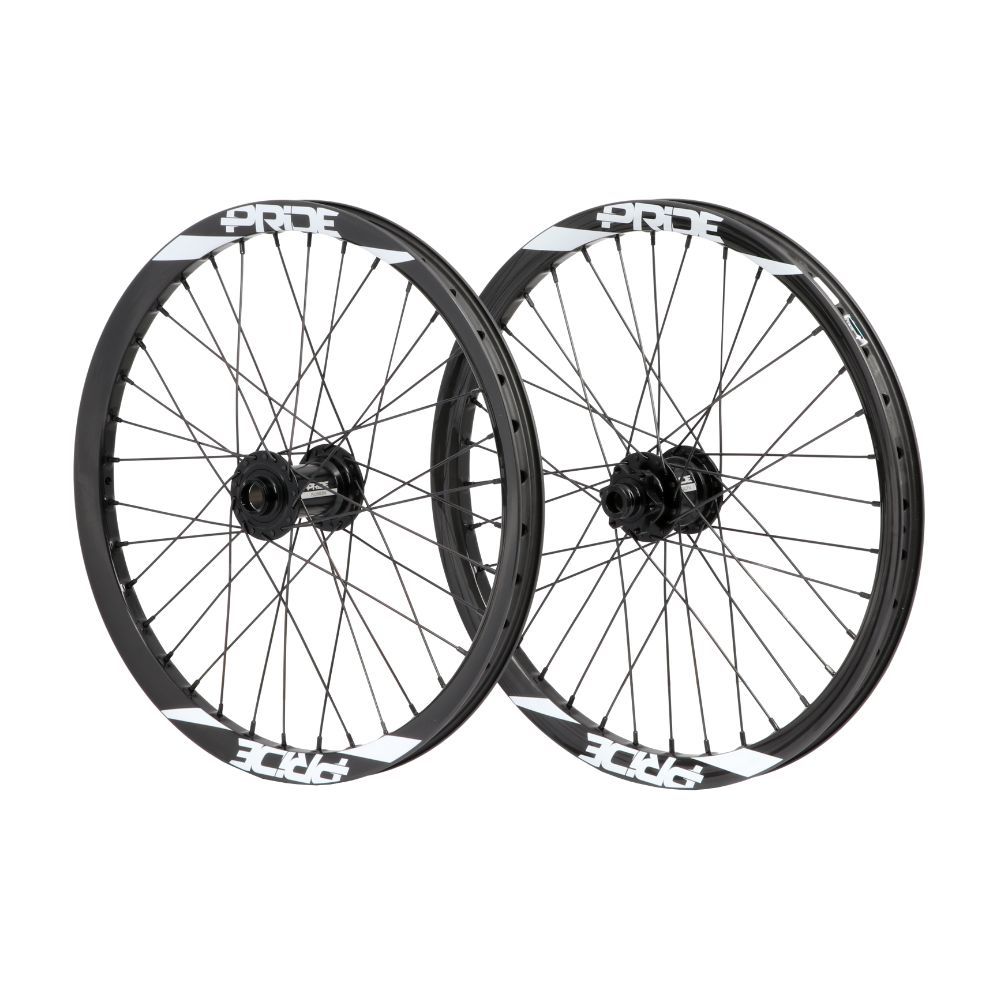

Wheels 20" (406) Pride Wave Gloss White - Fusion 20/15mm

PRIDE WAVE / FUSION WHEELS

Discover the high-end Pride Racing wheelset specifically designed for BMX Race. It consists of the PRIDE Wave rim and Pride Fusion hubs.

The WAVE rim, developed exclusively by Pride Racing, features a unique design with square reinforcement at each spoke head. This reinforcement allows higher spoke tension, providing increased stiffness. Optimized spoke head orientation also facilitates lacing.

Made from Toray T700 carbon, the rim has a very low profile, 22mm height and 31mm width, reducing wind resistance while providing excellent vertical and lateral stiffness. Weighing less than 300g, it is one of the lightest rims on the market, a major advantage in competition.

Compatible with tubeless tires, it requires rim tape, valve, and specific tires. The rim is disc brake only, as it has no brake pad surfaces.

The FUSION hubs offer ultra-fast 180-point engagement via a 6-pawl system, minimal drag, excellent smoothness, and optimal durability. Ultra-light, they guarantee maximum efficiency, precise control, and compatibility with 120mm discs for cleaner, more effective braking.

This wheelset combines lightness, stiffness, and performance, making it essential for BMX Race riders seeking speed and reliability.

NOTES

• The 20mm and 15mm axles are not included
• The rear wheel comes with a lock ring and spacers to adjust the chainline.

SPECIFICATIONS - RIMS

• Model: Pride Wave CFR Pro
• Material: Toray T700 Carbon
• Size / ETRTO: 20"" / 406x23
• Height: 22mm
• Width: 31mm
• Valve compatibility: Presta
• Tire compatibility: 20x1.40"" - 20x1.90""

SPECIFICATIONS - HUBS

• Material: 6061-T6 Aluminum
• Front spacing: 100x20mm (Through axle)
• Rear spacing: 110x15mm (Through axle)
• Driver standard: Shimano
• Engagement type: 180 points
• Disc mount: ISO6
• Front hub bearings: 6805
• Rear hub bearings: 6804

WEIGHT

• Wheelset: 1780g
• Front wheel: 880g
• Rear wheel: 900g
