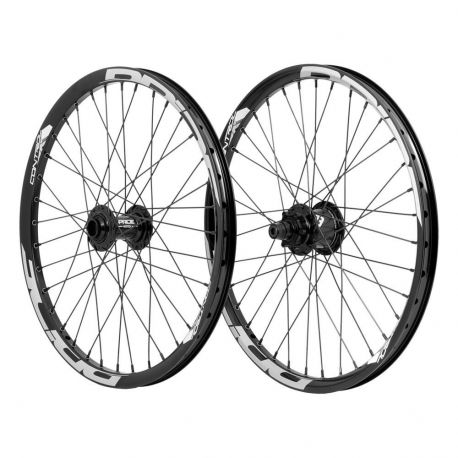

Wheels 20" (406) Pride Control Disque - Matrix 20/10mm Black

PRIDE CONTROL / MATRIX WHEELS

Pride Racing wheels are made from 6061-T6 aluminum and developed specifically for BMX Race in 20"" (406) size. They combine Pride Racing components with Control rims and hubs for a perfectly balanced set. T6 heat treatment gives the rims an excellent balance of lightness, stiffness, and performance, ensuring optimal track performance.

Matrix hubs feature a high-performance engagement system for near-instant power transfer, ideal for explosive starts and technical acceleration. The system uses two alternating rows of 6 pawls (12 total), providing 216 engagement points. With only 1.67° rotation per pedal stroke, every pedal translates into immediate response.

NOTES

• The 20mm front axle is not included
• The rear wheel comes with a lock ring and spacers to adjust the chainline.
• Rim tape is not included

SPECIFICATIONS - RIMS

• Model: Pride Control Pro
• Size / ETRTO: 20"" / 23-406 (Front) 24-406 (Rear)
• Material: 6061-T6 Aluminum
• Walls: Double
• Number of spokes: 36
• Height: 19mm
• Width: 27mm (Front) / 28mm (Rear)
• V-Brake Compatibility: No
• Valve Type: Schrader
• Compatible tire section: 28-65mm

SPECIFICATIONS - HUBS

• Material: 6061-T6 Aluminum
• Front spacing: 20x100mm (axle not included)
• Rear spacing: 10x110mm (Female threads)
• Driver standard: Shimano
• Engagement type: 216 points / 12 pawls
• Disc mount: ISO6
• Front bearing: 6804
• Rear bearing: 6903

WEIGHT

• Wheelset: 1734g
• Front wheel: 729g
• Rear wheel: 1005g
