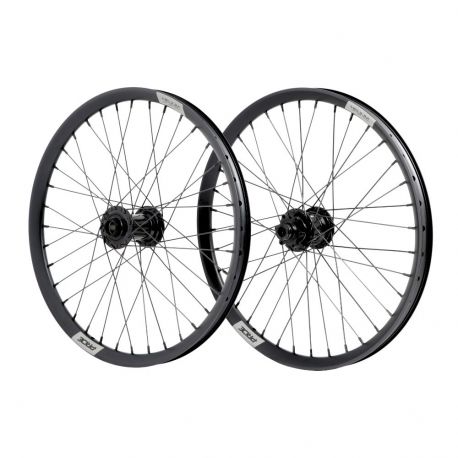

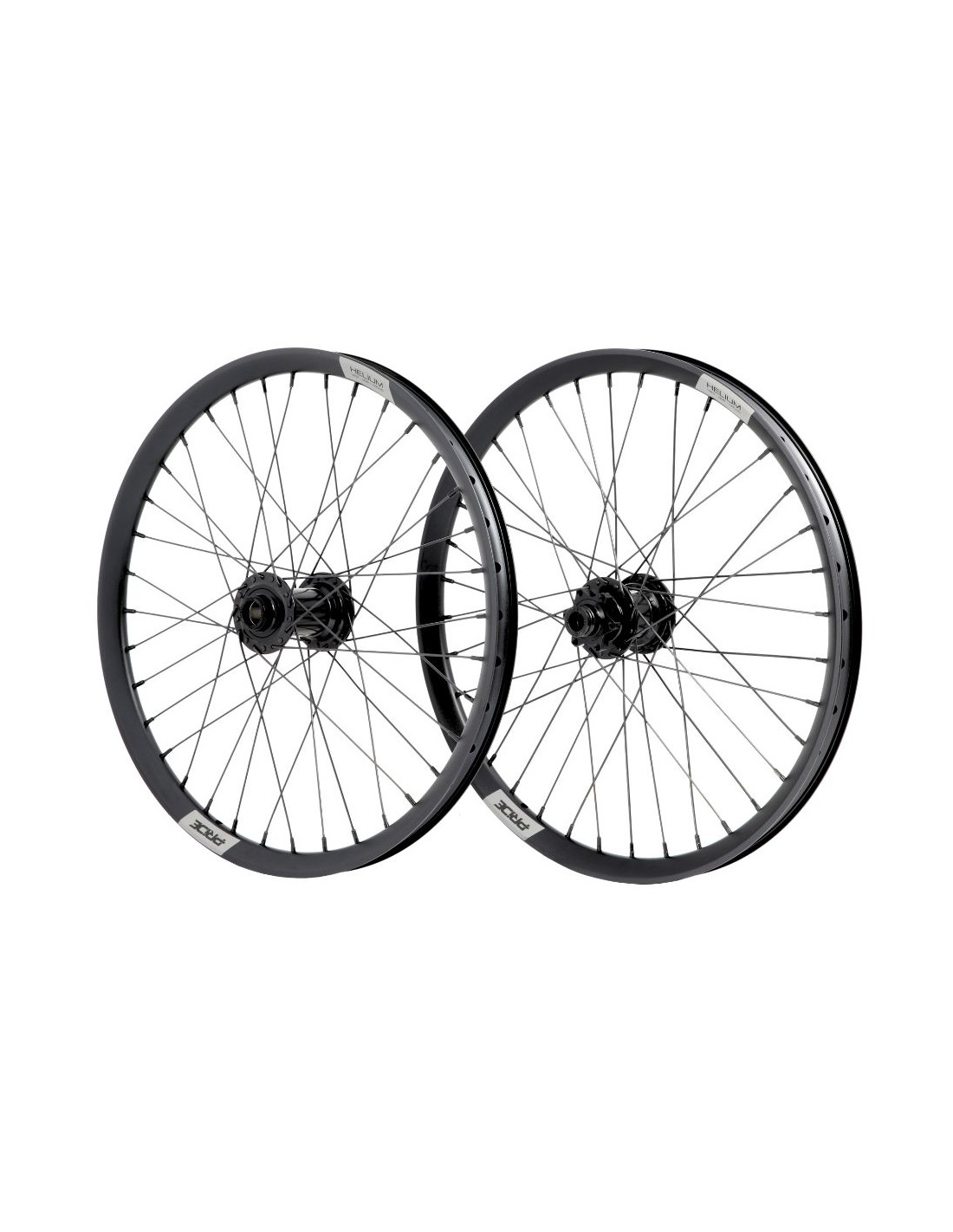

Wheels 20" (406) Pride Fusion 20/10mm Black - Helium M24

PRIDE FUSION WHEELS - HELIUM

The Pride Fusion/Helium wheelset combines cutting-edge technology and high-quality materials to deliver exceptional performance such as light weight, quick responsiveness, and outstanding reliability. A perfect choice for riders looking for performance.

The Pride Helium rim, specially developed for competition, stands out for its lightness, dynamism, and durability. With a weight of under 300g for Pro and Expert sizes, this aluminum rim ranks among the lightest on the market. Its low-profile design optimizes responsiveness, providing explosive acceleration and excellent handling, ideal for competitions where every second counts.

It uses the advanced Arcos System® manufacturing process, allowing maximum precision in the internal rim design. This process ensures perfect control over the technical properties of 6069-T6 aluminum, a high-quality material that combines lightness and strength, capable of withstanding the most demanding tracks.

The Fusion hubs are a concentration of technology. Ultra-responsive with 180 points of engagement, they offer minimal drag, exceptional durability, and a featherweight of 290g. Designed with a 6-pawl system and high-end bearings, they guarantee smoothness, precision, and optimal speed.

NOTES

• The rear wheel is supplied with a lock ring as well as spacers to adjust the chain line.
• Rim tape is not included

SPECIFICATIONS - RIMS

• Size / ETRTO: 20" / 24-406
• Material: Aluminum 6069-T6
• Walls: Double
• Number of spokes: 36
• Height: 19mm
• Width: 28mm
• V-Brake compatibility: No
• Valve type: Presta
• Compatible tire section: 29-65mm (20x1.40" - 20x1.85")

SPECIFICATIONS - HUBS

• Material: Aluminum 6061-T6
• Front spacing: 20x100mm (thru axle not included)
• Rear spacing: 10x110mm
• Number of holes: 36
• Driver standard: Shimano
• Engagement type: 180 points / 6 pawls
• Disc mounting: ISO6
• Front bearing: 6805
• Rear bearing: MR18307

WEIGHT

• Wheelset: 1566g
• Front wheel: 722g
• Rear wheel: 844g
