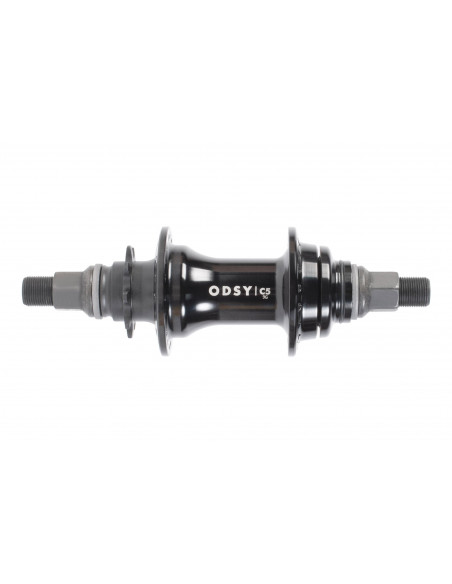

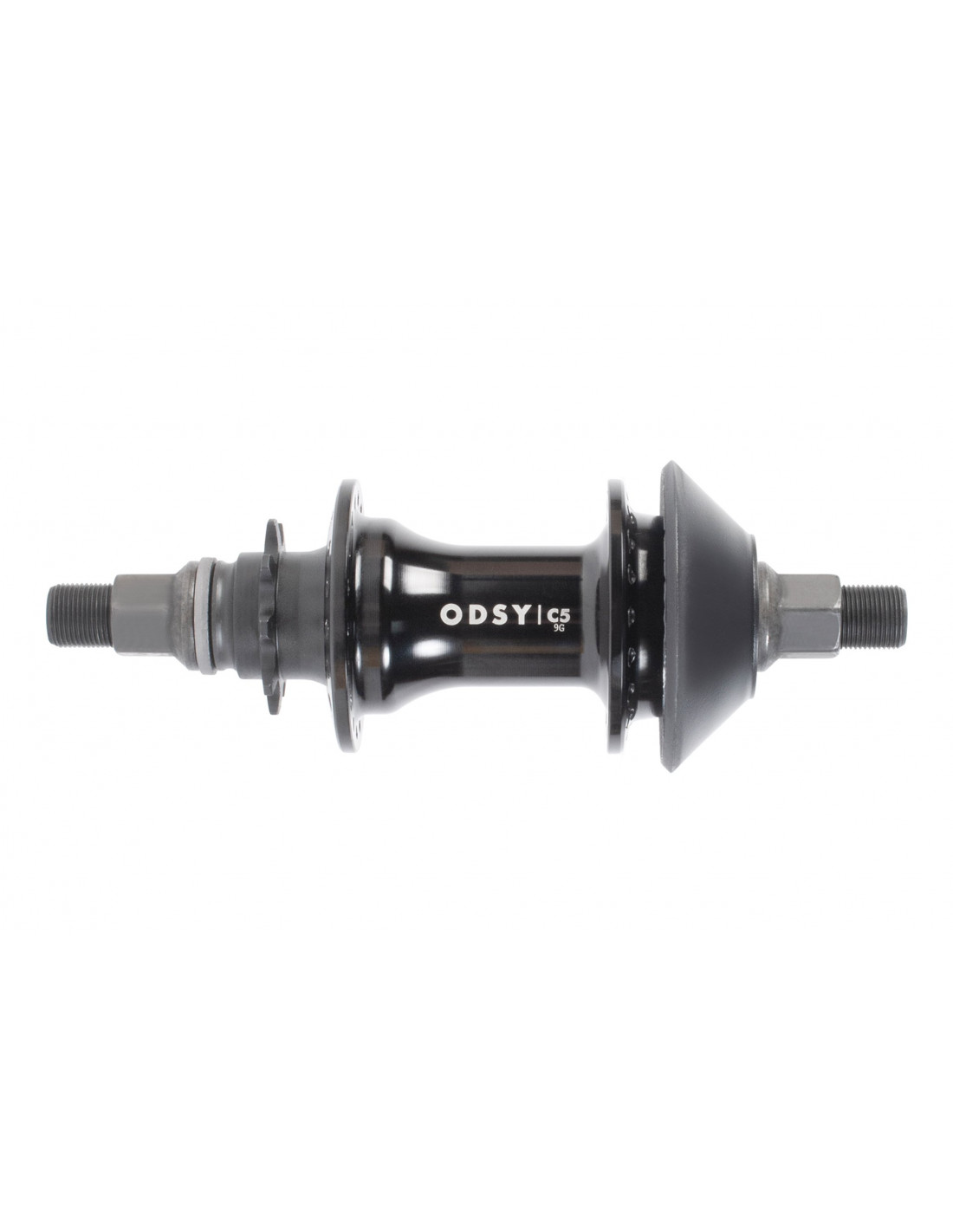

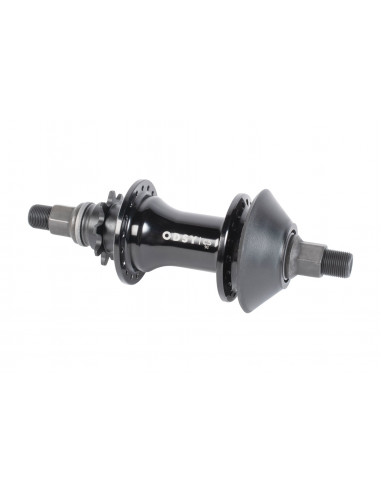

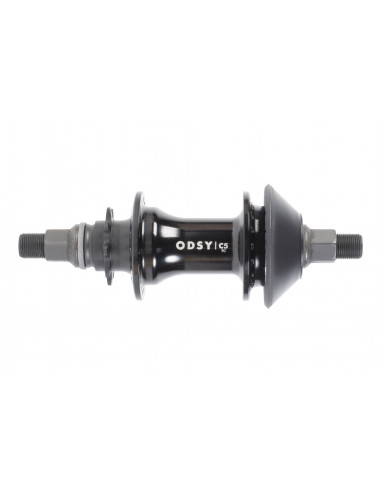

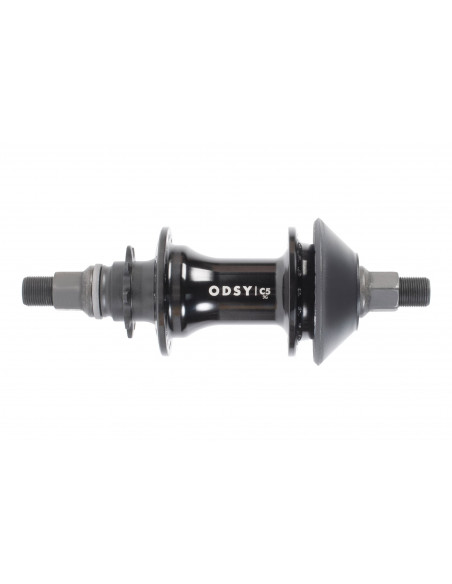

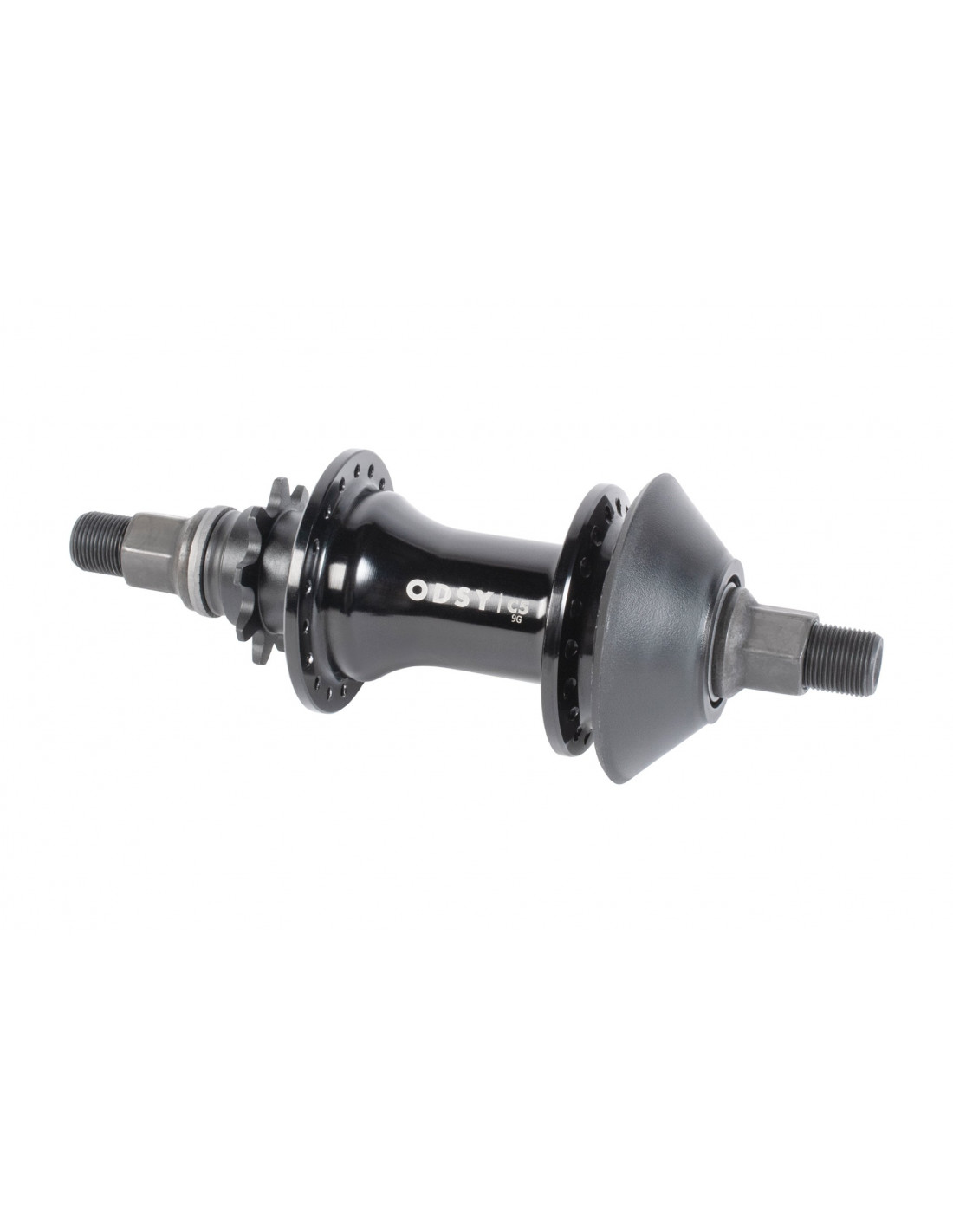

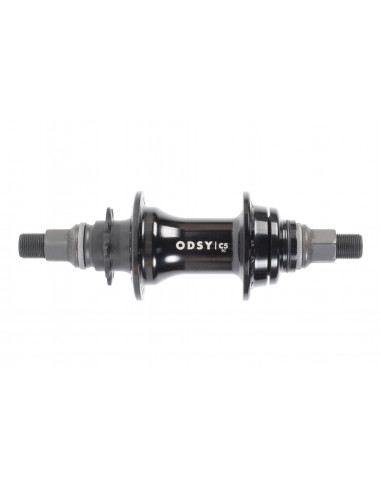

Odyssey C5 Cassette Hub

The C5 is a strong, drive switchable, affordably priced cassette hub with a 14mm chromoly male axle. The LHD/RHD compatible 9T driver rolls on three precision, sealed cartridge bearings. A replaceable plastic hub guard is included.

KEY FEATURES

• 36-H, 6061 T-6 aluminum hub shell
• 14mm, 4130 chromoly hollow axle, w/6mm hex broaching
• 9T driver with 3-Pawl independent spring design
• RHD/LHD switchable
• Removable plastic hub guards (compatible with Odyssey/G-Sport hubs)
• 6802 sealed cartridge driver bearings
• 6903 sealed cartridge hub shell bearings
•

SPECS

•
• Drive Side Effective Flange Diameter: 49mm
• Non-Drive Side Effective Flange Diameter: 49mm
• Drive Side Flange to Center Distance: 27mm
• Non-Drive Side Flange to Center Distance: 30mm
