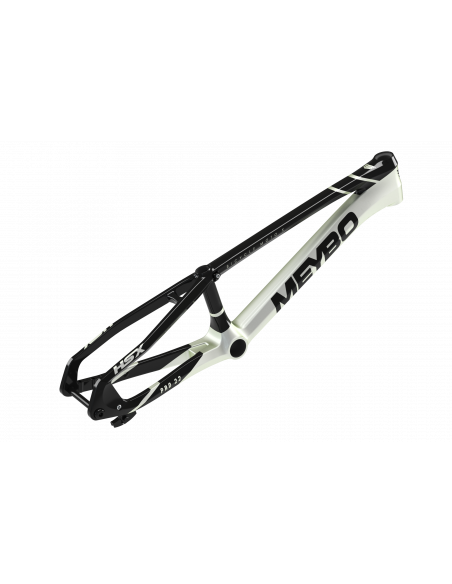

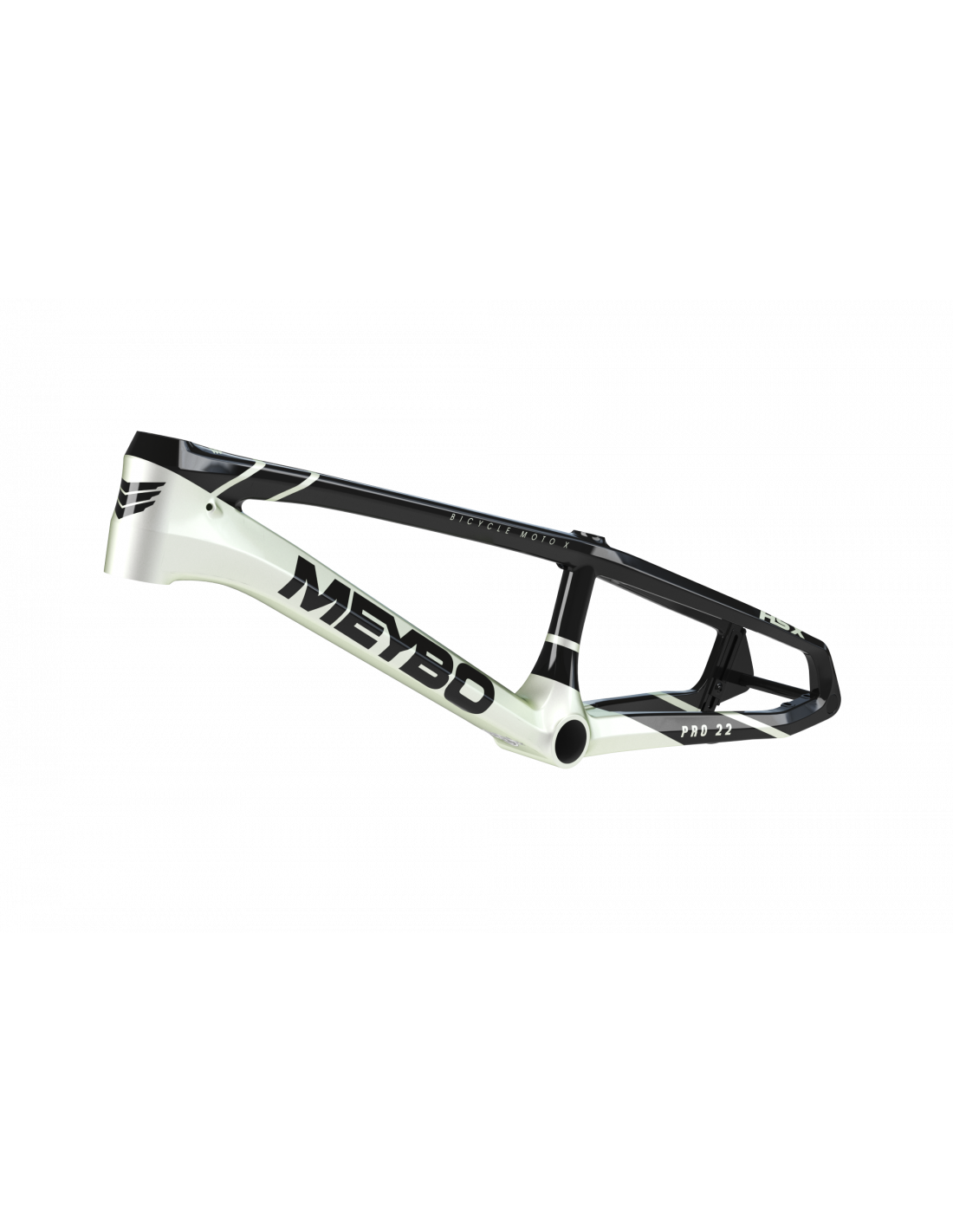

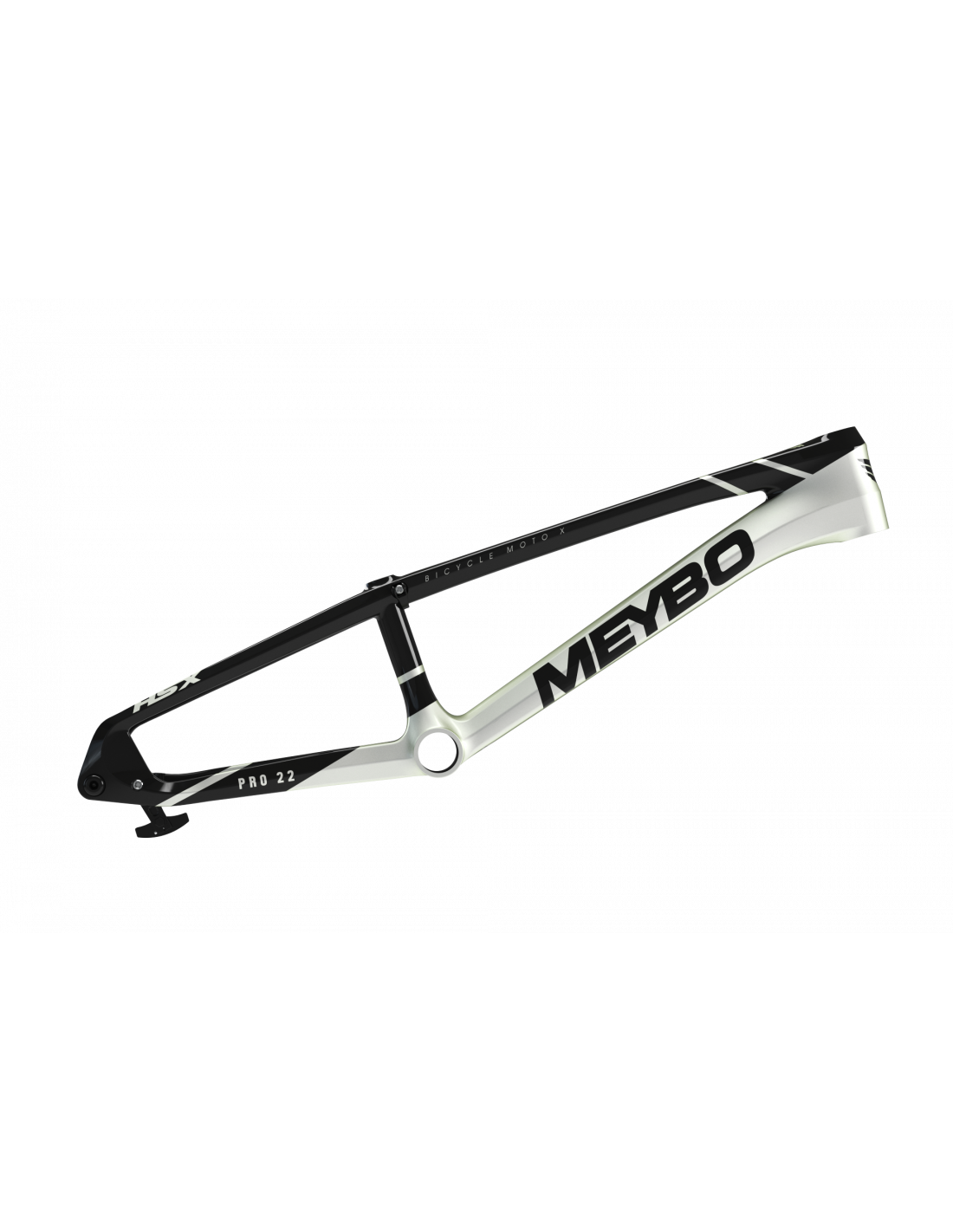

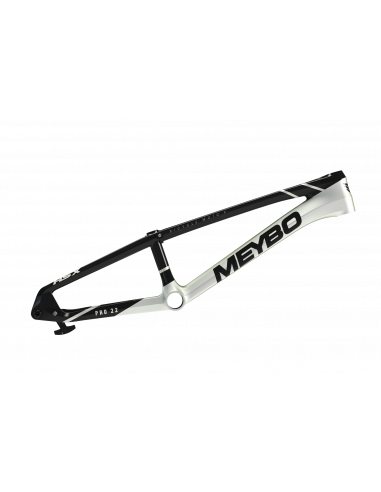

Meybo HSX Carbon 2025 Frame - Black/Pearl White

MEYBO HSX CARBON FRAME 2025

The HSX Carbon frame is the most advanced model in the MEYBO range, designed for top-tier racing performance and capable of winning major championships. With increased rigidity and cutting-edge technology, the new HSX carbon frame is the pinnacle of excellence. Lightweight, responsive, stable, and rigid, it combines all the sought-after benefits into one single frame.

The HSX Carbon is the fastest frame from the Dutch brand, specifically engineered for championship and world cup tracks. Its geometry strikes a perfect balance between agility and stability at high speeds.

The 2025 lineup retains the same features as the 2024/2024.5 range. For braking, the frame is compatible only with "Flat-mount" brake calipers. This means the brake caliper is directly mounted onto the rear base of the frame, with two fixing bolts running through the rear base to securely hold the caliper in place for an optimal finish.

This setup is only compatible with 120 mm disc brakes; the frame is not compatible with 140 mm discs. The frame comes with 1, 2, and 4 mm spacers to align the disc if you are not using a specific HSX SD hub.

To maintain consistent chainstay length regardless of the gear ratio used, the frame comes with a 15 mm thru-axle. This significantly increases the rear frame's rigidity. This setup requires a 15 mm rear axle hub. The axle itself is made from 7005 aluminum, fully CNC machined.

To keep chain tension constant, Meybo designed an integrated chain tensioner to ensure optimal transmission regardless of the chosen gear ratio. For precise chain tension adjustment with this tensioner, it is recommended to use a chain with half-links.

In summary, the HSX is a concentration of new technologies featuring T800 Toray carbon tubes. Designed for competition, whether at high speeds on a world cup track or leading an indoor circuit, the HSX is a formidable racing machine.

Meybo HSX carbon fiber frames are intended exclusively for BMX racing. The frames meet and exceed all CPSC and EN testing standards, including EN 14781.

SPECIFICATIONS:

• 100% Toray T800 Carbon Frame
• Compatible only with hydraulic "Flat-mount" brakes
• 120 mm disc brake setup only
• Comes with 3 spacers (1, 2, and 4 mm) for brake disc alignment
• Bottom bracket : BB86 or BB386 depending on frame size – see chart below
• Seatpost diameter : 25.4 mm or 27.2 mm depending on frame size – see chart below
• Possibility to install a crankset with a 24 or 30mm axle
• Integrated chain tensioner on the rear stay
• It is recommended to use a "Half-link" chain for transmission adjustment
• Comes with a fixed 15mm thru-axle for the rear wheel - 7005 Aluminum (Fully CNC machined)
• Compatible with OS20 wheels
• Integrated seat clamp in the frame

• ---

  RECOMMENDATIONS:

  Meybo HSX carbon fiber frames should ONLY be installed by a professional bicycle mechanic. Failure to follow instructions may damage the frame and void the warranty. NEVER ride a cracked or broken frame. It could cause loss of control, resulting in a crash, personal injury, or even death.

  Carbon fiber can conceal damage from impacts or crashes. In case of a crash or some sort of impact, stop riding immediately and have the frame inspected by a professional bicycle mechanic for possible damage. Meybo HSX frames are designed for standard seatposts with a maximum length of 150 mm. Using a longer seatpost may damage the frame and void the warranty!

GEOMETRIES & SIZES
