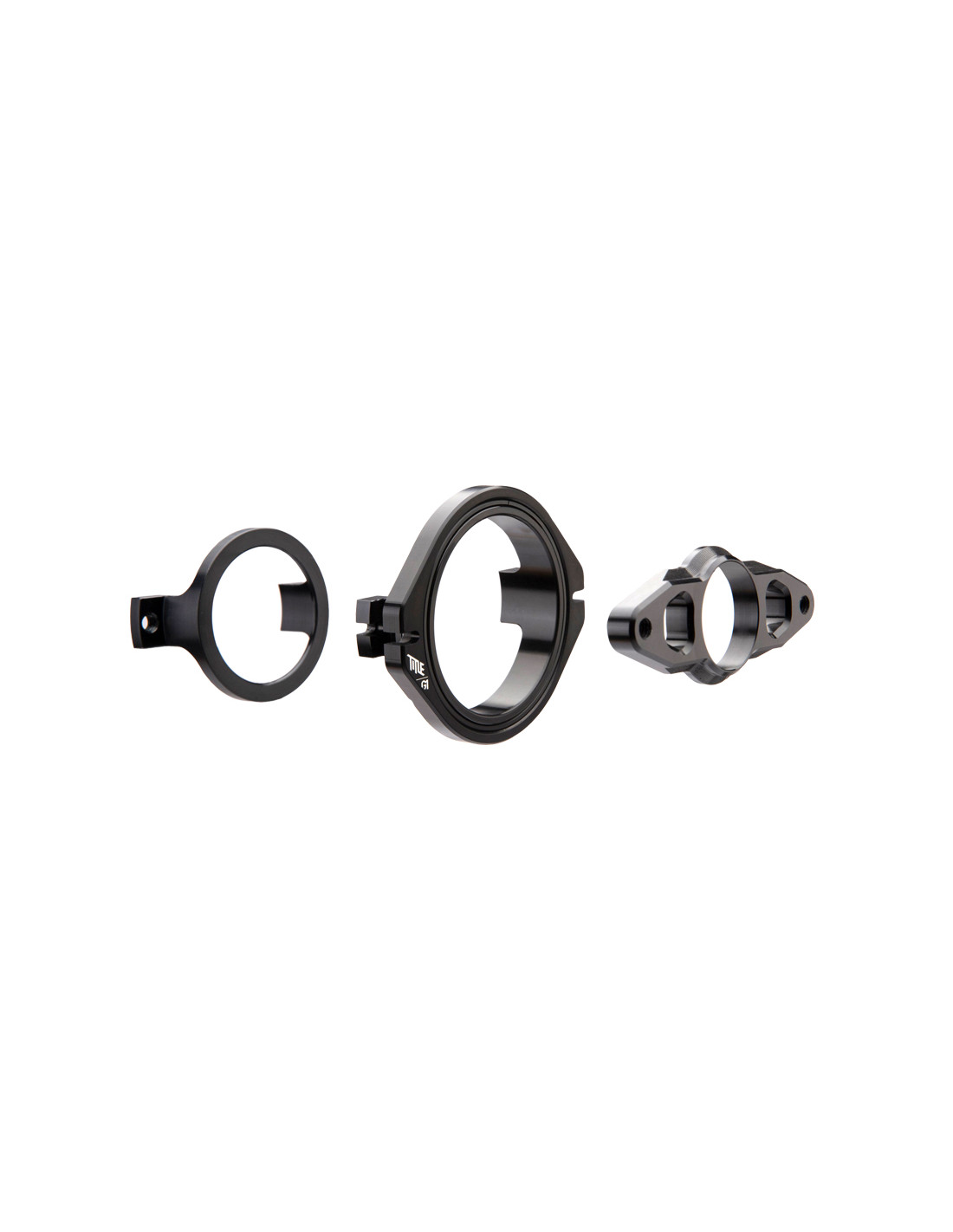

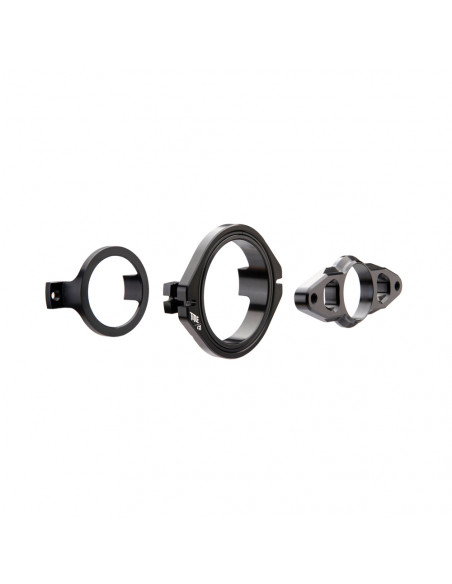

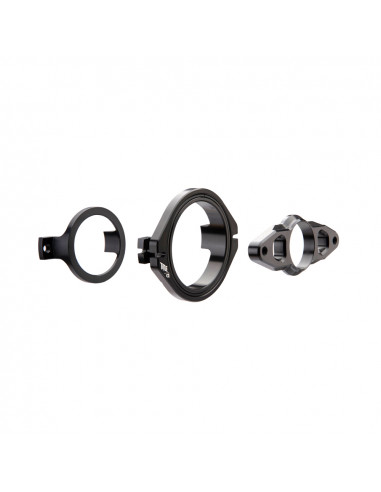

Title G1 Gyro System

Title G1 Gyro System

G1 SIZING AND COMPATIBILITY

SIZE SMALL

• Head tube outside diameter must be 54mm or less
• We recommended use with frames that use a press-in headset top cup. This will prevent any compatibility issues from using the G1 with different gyro tabs.
• If your frame does not use a press in top cup, you can use gyro tabs that line up with the bottom of the small G1 (69mm) however, gyro tabs are not included and may need to be customized to line up with the width of the bottom of the gyro. Using a vernier caliper is the best way to measure.
• Steer tube must have 20mm of extra length

SIZE LARGE

• Head tube outside diameter must be 54mm or greater
• We recommended use with frames that use a press-in headset top cup. This will prevent any compatibility issues from using the G1 with different gyro tabs.
• If your frame does not use a press in top cup, you can use gyro tabs that line up with the bottom of the large G1 (74mm) however, gyro tabs are not included and may need to be customized to line up with the width of the bottom of the gyro. Using a vernier caliper is the best way to measure.
• Steer tube must have 20mm of extra length

FEATURES

• MTB specific gyro
• Made in Canada from domestic 6061 T6 machined aluminum
• Low friction / high wear resistance machined delrin bushing
• Two sizes available (dependent on outside diameter of head tube)
• Available as a full system or gyro only

Delivered without cables - Items available here.

INTENDED USE

• Dirt Jump / Slopestyle
• Skatepark / Street
